21
ENGLISH

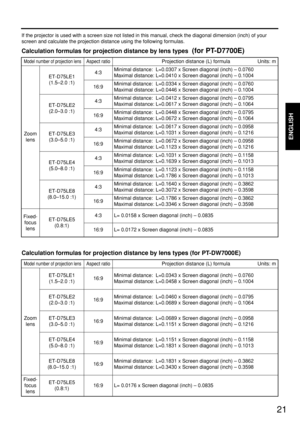

If the projector is used with a screen size not listed in this manual, check the diagonal dimension (inch) of your
screen and calculate the projection distance using the following formulas.
Calculation formulas for projection distance by lens types (for PT-D7700E)
Minimal distance:  L=0.1123 x Screen diagonal (inch) – 0.1158
Maximal distance: L=0.1786 x Screen diagonal (inch) – 0.1013
16:9 ET-D75LE5
(0.8:1)
Model number of projection lensAspect ratioProjection distance (L) formula Units: m
L=...

22
Connection

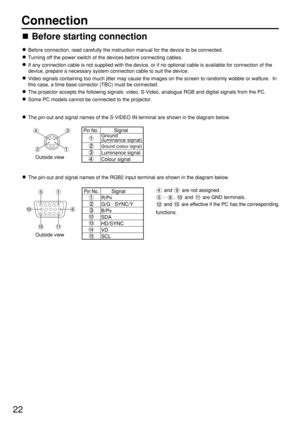

Before connection, read carefully the instruction manual for the device to be connected.
Turning off the power switch of the devices before connecting cables.
If any connection cable is not supplied with the device, or if no optional cable is available for connection of the
device, prepare a necessary system connection cable to suit the device.
Video signals containing too much jitter may cause the images on the screen to randomly wobble or wafture.  In
this case, a time base corrector...

23
ENGLISH
SERIALS-VIDEOVIDEO REMOTE 1RGB 1 ININ IN
IN
OUT OUT
OUTSYNC/HD VD B/PBG/Y
REMOTE 2
R/PR
RS-232C (G) /  RS-422 (R) RS-232C (G) /  RS-422 (R)
INRGB 2 IN
Video deck (TBC built-in)
High-vision video deckControl PC Colour monitor
Red (connected to PR terminal)
Blue (connected to P
B terminal)
Green (connected to Y terminal)
Video deck (TBC built-in)

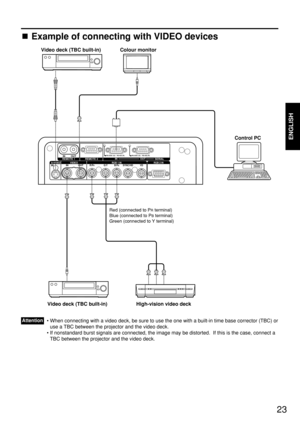

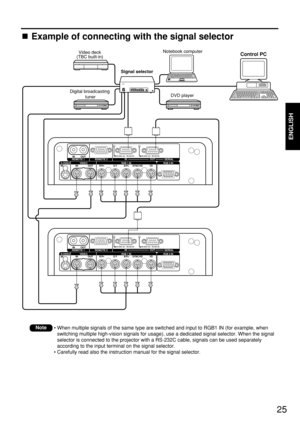

Example of connecting with VIDEO devices
• When connecting with a video deck, be sure to use the one with a built-in time base corrector (TBC) or
use a...

24
SERIALS-VIDEOVIDEO REMOTE 1RGB 1 ININ IN
IN
OUT OUT
OUTSYNC/HD VD B/PBG/Y
REMOTE 2
R/PR
RS-232C (G) /  RS-422 (R) RS-232C (G) /  RS-422 (R)
IN
SERIALS-VIDEOVIDEO REMOTE 1RGB 1 ININ IN
IN
OUT OUT
OUTSYNC/HD VD B/PBG/Y
REMOTE 2
R/PR
RS-232C (G) /  RS-422 (R) RS-232C (G) /  RS-422 (R)
IN
RGB 2 IN
RGB 2 IN
I/F
PC PC  Control PC
• When the main power of the main unit is turned off, also turn off the power of the PC.
Note
Attention
• For the specifications of the RGB signals that can be applied from the PC,...

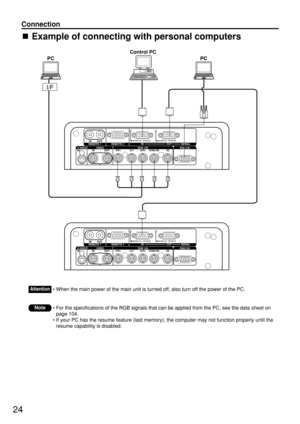

25
ENGLISH
SERIALS-VIDEOVIDEO REMOTE 1RGB 1 ININ IN
IN
OUT OUT
OUTSYNC/HD VD B/PBG/Y
REMOTE 2
R/PR
RS-232C (G) /  RS-422 (R) RS-232C (G) /  RS-422 (R)
IN
SERIALS-VIDEOVIDEO REMOTE 1RGB 1 ININ IN
IN
OUT OUT
OUTSYNC/HD VD B/PBG/Y
REMOTE 2
R/PR
RS-232C (G) /  RS-422 (R) RS-232C (G) /  RS-422 (R)
IN
RGB 2 IN
RGB 2 IN
OFFOFFPOWERONINPUT  SELECT1
2
34
56VP
ON/OFFS
i
g
n
a
l

S
e
l
e
c
t
o
r

T
W
-
S
W
SDigital broadcasting
tunerDVD player Signal selector Video deck
(TBC built-in)Notebook computer
Control...

26
SMPTE259M compliant : 480i, 576i
10BASE-T/100BASE-TX
SMPTE259M compliant : 480i, 576i
SMPTE292M compliant :
720/60p, 720/59.94p, 720/50p
1 035/60i, 1 035/59.94i, 1 080/60i, 1 080/59.94i
1 080/50i, 1 080/24sF, 1 080/23.98sF, 1 080/30p
1 080/29.97p, 1 080/25p, 1 080/24p, 1 080/23.98p
10BASE-T/100BASE-TX
HDCP-compliant
*1 DVI-D single link, DVI 1.0 compliant
EDID1 :
480p, 576p, 720/60p, 720/59.94p, 720/50p
       1 080/60i, 1 080/59.94i, 1 080/50i, 1 080/24sF,
1 080/23.98sF
       1 080/30p, 1...

27
ENGLISH

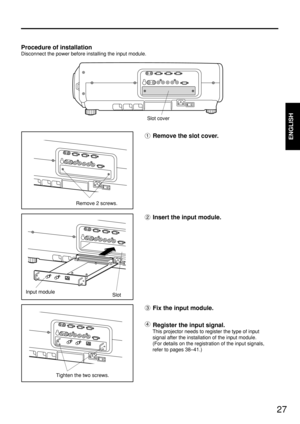

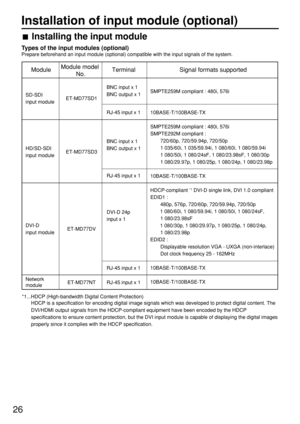

Procedure of installation
Disconnect the power before installing the input module.
Slot cover
Remove 2 screws.
Input module
Slot
Tighten the two screws.
Remove the slot cover.
Insert the input module.
Fix the input module.
Register the input signal.
This projector needs to register the type of input
signal after the installation of the input module.
(For details on the registration of the input signals,
refer to pages 38–41.)

28
SD-SDI input
module ET-MD77SD1
DVI-D input module
ET-MD77DV
Network module
ET-MD77NT SDI signal
DVI
signal
LAN
10BASE-T/
100BASE-TXProjector
High-vision
video deckDVD player  Business
digital VCR
PCHD/SD-SDI input
module ET-MD77SD3

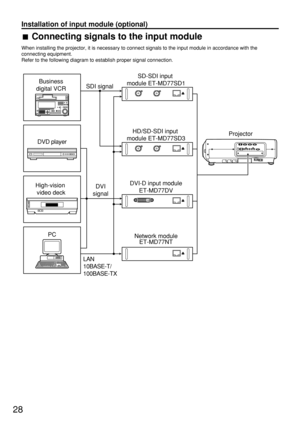

Connecting signals to the input module
When installing the projector, it is necessary to connect signals to the input module in accordance with the
connecting equipment.
Refer to the following diagram to establish proper signal connection.
Installation of input module...

29
ENGLISH
SD-SDI Module
ET-MD77SD1IN
SERIALOUT
LAN
SD-SDI signal
SD-SDI signal output
(active through)
LAN terminal
(10BASE-T / 100BASE-TX)
Business
digital VCR
For details on the network
function, refer to page 82.

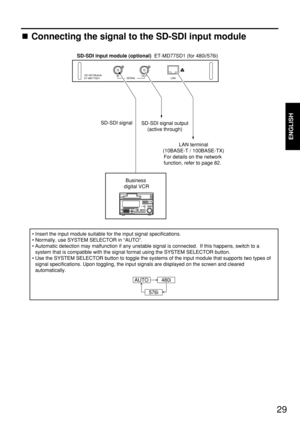

SD-SDI input module (optional)  ET-MD77SD1 (for 480i/576i)
• Insert the input module suitable for the input signal specifications.
• Normally, use SYSTEM SELECTOR in “AUTO”.
• Automatic detection may malfunction if any unstable signal is connected.  If this happens, switch to a
system...

30
Installation of input module (optional)
• Insert the input module that meets the input signal specifications.
• Normally, use SYSTEM SELECTOR in “AUTO”.
• Any of the format systems can be selected using the SYSTEM SELECTOR button which supports 9 types
(15 formats) of HD signal standards (SMPTE292M) and 2 types of SD signal standards (SMPTE259M)
shown below by toggling between any one of the formats. During the selection process, the input signals
and other information appear on-screen and are cleared...
