Panasonic Projector Pt Dw7000e Operating Instructions

31
ENGLISH

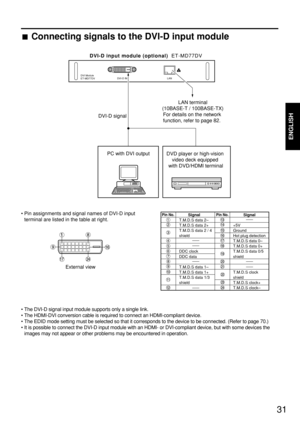

DVI-D input module (optional)  ET-MD77DV
DVI Module
ET-MD77DVDVI-D IN LAN
DVI-D signal
DVD player or high-vision
video deck equipped
with DVD/HDMI terminal PC with DVI output
LAN terminal
(10BASE-T / 100BASE-TX)
For details on the network
function, refer to page 82.
Pin No. Pin No.        Signal
T.M.D.S data 2–
T.M.D.S data 2+
T.M.D.S data 2 / 4
shield
DDC clock
DDC data
T.M.D.S data 1–
T.M.D.S data 1+
T.M.D.S data 1/3
shield       Signal
+5V
Ground
Hot plug detection
T.M.D.S data 0–...

32

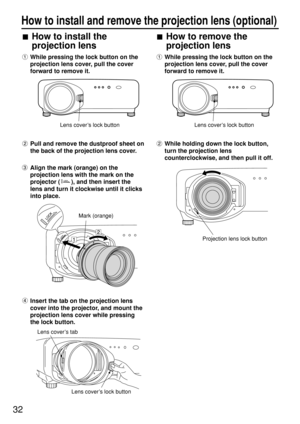

How to install and remove the projection lens (optional)
How to install the
projection lens
While pressing the lock button on the
projection lens cover, pull the cover
forward to remove it.
Pull and remove the dustproof sheet on
the back of the projection lens cover.
Align the mark (orange) on the
projection lens with the mark on the
projector ( ), and then insert the
lens and turn it clockwise until it clicks
into place.
Insert the tab on the projection lens
cover into the projector, and mount the...

ENGLISH
33

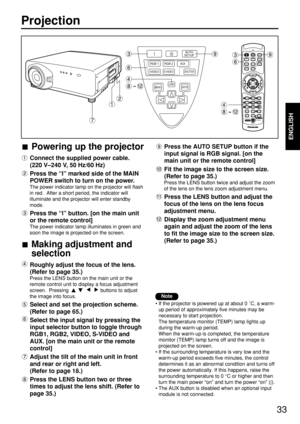

Powering up the projector
Connect the supplied power cable.
(220 V–240 V, 50 Hz/60 Hz)
Press the “I” marked side of the MAIN
POWER switch to turn on the power.
The power indicator lamp on the projector will flash
in red.  After a short period, the indicator will
illuminate and the projector will enter standby
mode.
Press the “l” button. [on the main unit
or the remote control]
The power indicator lamp illuminates in green and
soon the image is projected on the screen.
Making adjustment and...

34

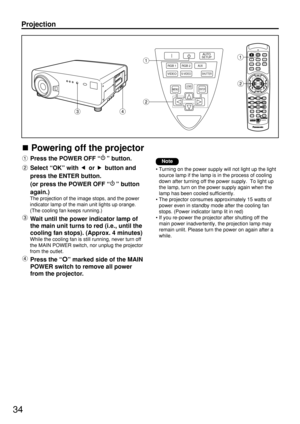

Powering off the projector
Press the POWER OFF “” button.
Select “OK” with  or  button and
press the ENTER button.
(or press the POWER OFF “” button
again.)
The projection of the image stops, and the power
indicator lamp of the main unit lights up orange.
(The cooling fan keeps running.)
Wait until the power indicator lamp of
the main unit turns to red (i.e., until the
cooling fan stops). (Approx. 4 minutes)
While the cooling fan is still running, never turn off
the MAIN POWER switch, nor unplug the...

ENGLISH

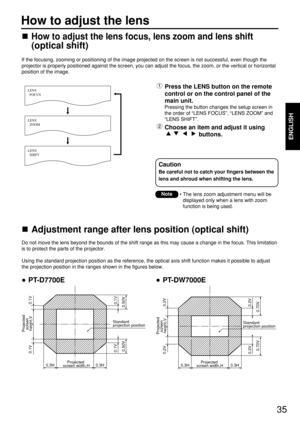

35
If the focusing, zooming or positioning of the image projected on the screen is not successful, even though the
projector is properly positioned against the screen, you can adjust the focus, the zoom, or the vertical or horizontal
position of the image.
Do not move the lens beyond the bounds of the shift range as this may cause a change in the focus. This limitation
is to protect the parts of the projector.
Using the standard projection position as the reference, the optical axis shift...

36

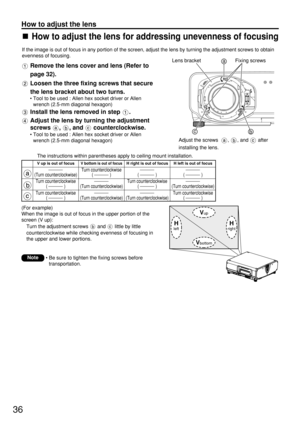

How to adjust the lens
If the image is out of focus in any portion of the screen, adjust the lens by turning the adjustment screws to obtain
evenness of focusing.
How to adjust the lens for addressing unevenness of focusing
Remove the lens cover and lens (Refer to
page 32).
Loosen the three fixing screws that secure
the lens bracket about two turns.
• Tool to be used : Allen hex socket driver or Allen
wrench (2.5-mm diagonal hexagon)
Install the lens removed in step  .
Adjust the lens by turning the...

ENGLISH
37

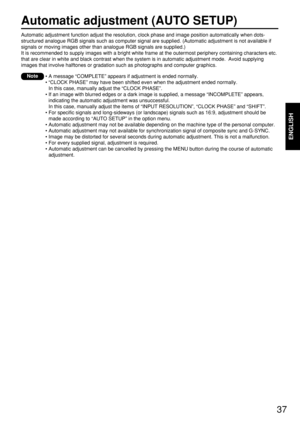

Automatic adjustment (AUTO SETUP)
Automatic adjustment function adjust the resolution, clock phase and image position automatically when dots-
structured analogue RGB signals such as computer signal are supplied. (Automatic adjustment is not available if
signals or moving images other than analogue RGB signals are supplied.)
It is recommended to supply images with a bright white frame at the outermost periphery containing characters etc.
that are clear in white and black contrast when the...

38

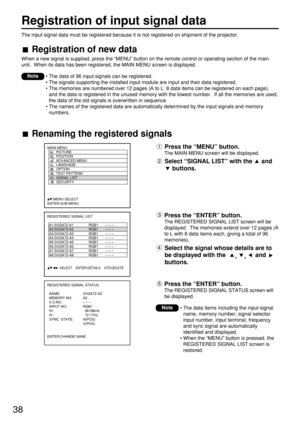

Registration of input signal data
• The data of 96 input signals can be registered.
• The signals supporting the installed input module are input and their data registered.
• The memories are numbered over 12 pages (A to L: 8 data items can be registered on each page),
and the data is registered in the unused memory with the lowest number.  If all the memories are used,
the data of the old signals is overwritten in sequence.
• The names of the registered data are automatically determined by the input...

39
ENGLISH

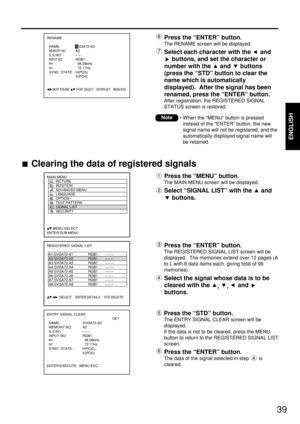

Clearing the data of registered signals
Press the “MENU” button.
The MAIN MENU screen will be displayed.
Select “SIGNAL LIST” with the  and
buttons.
Press the “ENTER” button.
The REGISTERED SIGNAL LIST screen will be
displayed.  The memories extend over 12 pages (A
to L with 8 data items each, giving total of 96
memories).
Select the signal whose data is to be
cleared with the
, , and
buttons.
MAIN MENU
         POSITION
         ADVANCED MENU
         LANGUAGE...

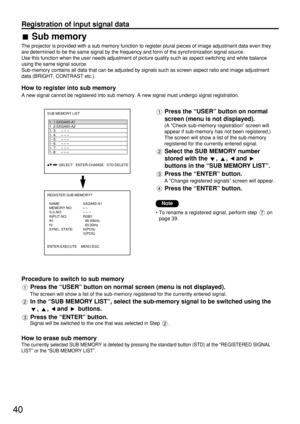

40
Registration of input signal data
Sub memory
The projector is provided with a sub memory function to register plural pieces of image adjustment data even they
are determined to be the same signal by the frequency and form of the synchronization signal source.
Use this function when the user needs adjustment of picture quality such as aspect switching and white balance
using the same signal source.
Sub-memory contains all data that can be adjusted by signals such as screen aspect ratio and image...
