Panasonic Projector Pt Dw7000e Operating Instructions

41
ENGLISH

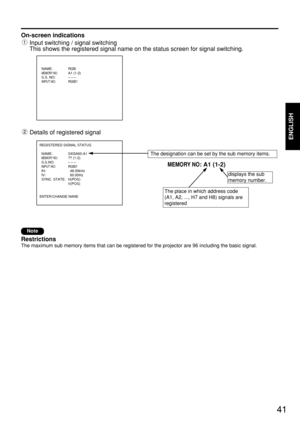

On-screen indications
Input switching / signal switching
This shows the registered signal name on the status screen for signal switching.
The designation can be set by the sub memory items.
The place in which address code
(A1, A2, ..., H7 and H8) signals are
registered
displays the sub
memory number.
Details of registered signal
Restrictions
The maximum sub memory items that can be registered for the projector are 96 including the basic signal.
Note
REGISTERED SIGNAL STATUS
  NAME: SXGA60-A1...

42

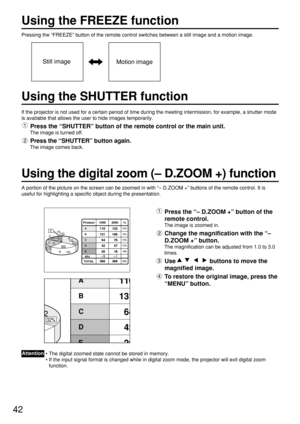

Using the FREEZE function
Pressing the “FREEZE” button of the remote control switches between a still image and a motion image.
If the projector is not used for a certain period of time during the meeting intermission, for example, a shutter mode
is available that allows the user to hide images temporarily.
Press the “SHUTTER” button of the remote control or the main unit.
The image is turned off.
Press the “SHUTTER” button again.
The image comes back.
A portion of the picture on the screen can be...

ENGLISH
43

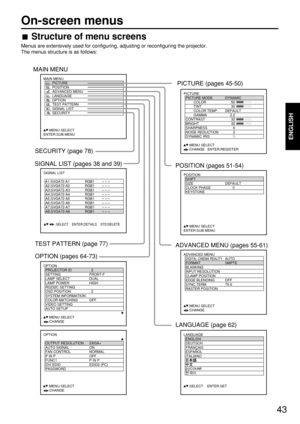

Structure of menu screens
Menus are extensively used for configuring, adjusting or reconfiguring the projector.
The menus structure is as follows:
MAIN MENU
         POSITION
         ADVANCED MENU
         LANGUAGE
         OPTION
         TEST PATTERN
         SIGNAL LIST
         SECURITY
     :MENU SELECT
ENTER:SUB MENU
  PICTURE MODE DYNAMIC
   COLOR 50
   TINT 30
   COLOR TEMP. DEFAULT
   GAMMA 2.2
  CONTRAST 32
  BRIGHT 32
  SHARPNESS 6
  NOISE REDUCTION 2...

44

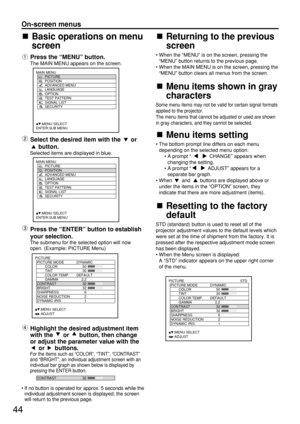

On-screen menus
Basic operations on menu
screen
Press the “MENU” button.
The MAIN MENU appears on the screen.
Select the desired item with the  or
button.
Selected items are displayed in blue.
Press the “ENTER” button to establish
your selection.
The submenu for the selected option will now
open. (Example: PICTURE Menu)
Highlight the desired adjustment item
with the  or  button, then change
or adjust the parameter value with the
or buttons.
For the items such as “COLOR”,“TINT”, “CONTRAST”
and...

ENGLISH
45

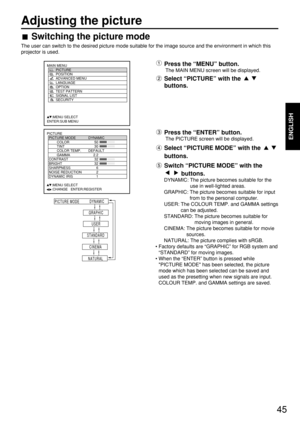

Adjusting the picture
Switching the picture mode
The user can switch to the desired picture mode suitable for the image source and the environment in which this
projector is used.
  PICTURE MODE DYNAMIC
   COLOR 50
   TINT 30
   COLOR TEMP. DEFAULT
   GAMMA 2.2
  CONTRAST 32
  BRIGHT 32
  SHARPNESS 6
  NOISE REDUCTION 2
  DYNAMIC IRIS 1
     :MENU SELECT
     :CHANGE   ENTER:REGISTER
MAIN MENU
         POSITION
         ADVANCED MENU
         LANGUAGE...

46

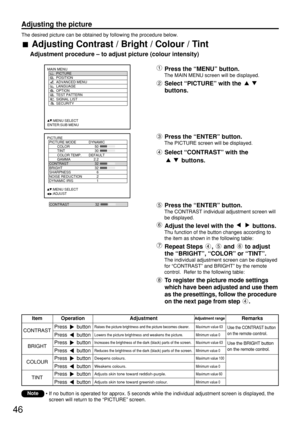

Adjusting the picture
The desired picture can be obtained by following the procedure below.
Adjusting Contrast / Bright / Colour / Tint
Adjustment procedure – to adjust picture (colour intensity)
  PICTURE MODE DYNAMIC
   COLOR 50
   TINT 30
   COLOR TEMP. DEFAULT
   GAMMA 2.2
  CONTRAST 32
  BRIGHT 32
  SHARPNESS 6
  NOISE REDUCTION 2
  DYNAMIC IRIS 1
     :MENU SELECT
     :ADJUST
Press the “MENU” button.
The MAIN MENU screen will be displayed.
Select “PICTURE” with the
buttons.
MAIN...

47
ENGLISHPICTURE
  PICTURE MODE DYNAMIC
   COLOR 50
   TINT 30
   COLOR TEMP. DEFAULT
   GAMMA 2.2
  CONTRAST 32
  BRIGHT 32
  SHARPNESS 6
  NOISE REDUCTION 2
  DYNAMIC IRIS 1
MAIN MENU
         POSITION
         ADVANCED MENU
         LANGUAGE
         OPTION
         TEST PATTERN
         SIGNAL LIST
         SECURITY
     :MENU SELECT
ENTER:SUB MENU
    SAVE AS DEFAULT SETTING FOR DYNAMIC?
OK ESC

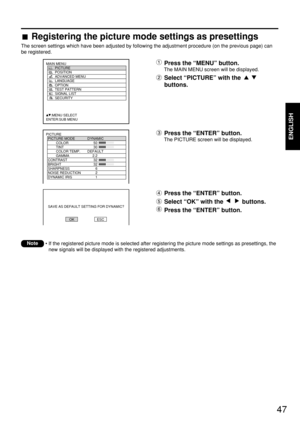

Registering the picture mode settings as presettings
The screen settings which have been...

48
Adjusting the picture
DYNAMIC IRIS
  AUTO IRIS 2
  MANUAL IRIS OFF
  DYNAMIC GAMMA 1




     :MENU SELECT
     :CHANGE
2
3
1 DYNAMIC IRIS
USER
OFF

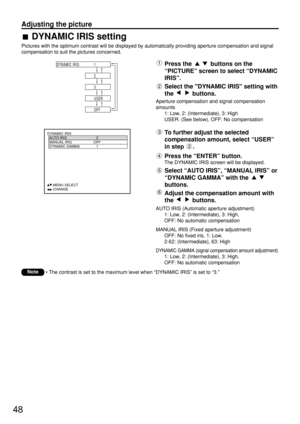

DYNAMIC IRIS setting
Pictures with the optimum contrast will be displayed by automatically providing aperture compensation and signal
compensation to suit the pictures concerned.
Press the  buttons on the
“PICTURE” screen to select “DYNAMIC
IRIS”.
Select the DYNAMIC IRIS setting with
the buttons.
To further adjust the selected
compensation...

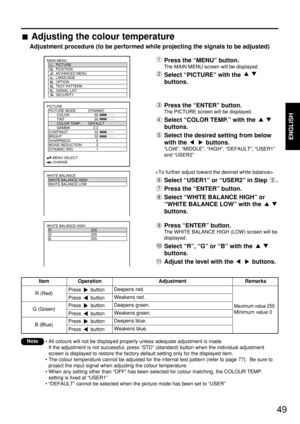

49
ENGLISH
  PICTURE MODE DYNAMIC
   COLOR 50
   TINT 30
   COLOR TEMP. DEFAULT
   GAMMA 2.2
  CONTRAST 32
  BRIGHT 32
  SHARPNESS 6
  NOISE REDUCTION 2
  DYNAMIC IRIS 1
     :MENU SELECT
     :CHANGE
Press the “MENU” button.
The MAIN MENU screen will be displayed
Select “PICTURE” with the
buttons.
MAIN MENU
         POSITION
         ADVANCED MENU
         LANGUAGE
         OPTION
         TEST PATTERN
         SIGNAL LIST
         SECURITY
Press the “ENTER” button.
The...

50
Adjusting the picture
Press the “MENU” button.
The MAIN MENU screen will be displayed.
Select “PICTURE” with the
buttons.
Press the “ENTER” button.
The PICTURE screen will be displayed.
Select desired one of the items in the
following table with the  buttons.
Switch the setting with the
buttons.
Refer to the following table for the items and the
details.

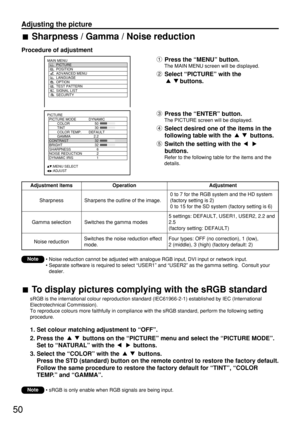

Sharpness / Gamma / Noise reduction
Procedure of adjustment
  PICTURE MODE DYNAMIC
   COLOR 50
   TINT 30
   COLOR TEMP. DEFAULT
   GAMMA...
