Panasonic Projector PT-RQ13K User Manual

Chapter 3 Basic Operations — Operating with the remote control
ENGLISH - 71
Operating with the remote control

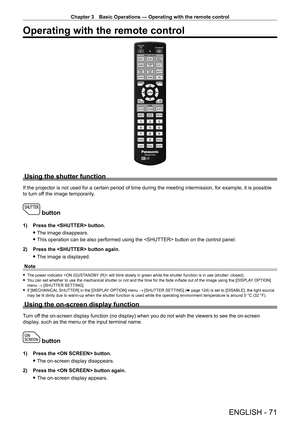

Using the shutter function
If the projector is not used for a certain period of time during the meeting intermission, for example, it is possible
to turn off the image temporarily.
 button
1) Press the  button.
 fThe image disappears.
 fThis operation can be also performed using the  button on the control panel.
2)


Press the  button again.
 fThe image is displayed.
Note
 f The power indicator...

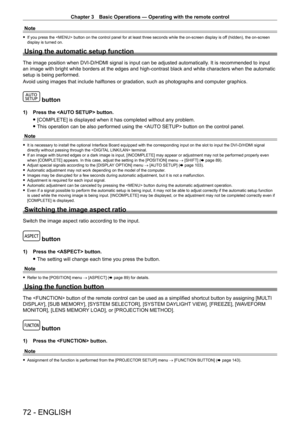

Chapter 3 Basic Operations — Operating with the remote control
72 - ENGLISH
Note
 fIf you press the  button on the control panel for at least three seconds while the on-screen display is of f (hidden), the on-screen
display is turned on.
Using the automatic setup function
The image position when DVI-D/HDMI signal is input can be adjusted automatically. It is recommended to input
an image with bright white borders at the edges and high-contrast black and white characters when the automatic
setup is...

Chapter 3 Basic Operations — Operating with the remote control
ENGLISH - 73

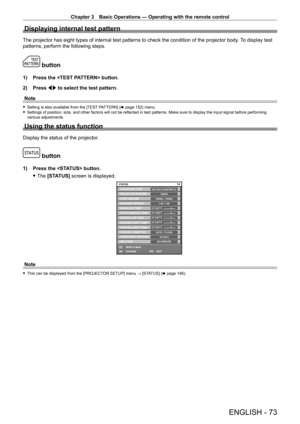

Displaying internal test pattern
The projector has eight types of internal test patterns to check the condition of the projector body. To display test
patterns, perform the following steps.
 button
1) Press the  button.
2)
Press
 qw to select the test pattern.
Note
 f Setting is also available from the [TEST  PATTERN] (x   page   152) menu. fSettings of position, size, and other factors will not be reflected in test patterns....

Chapter 3 Basic Operations — Operating with the remote control
74 - ENGLISH

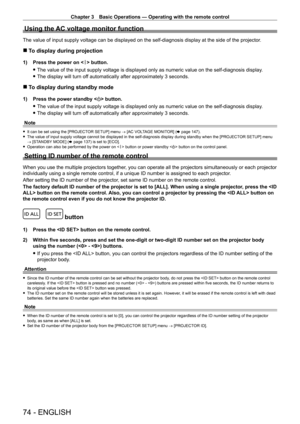

Using the AC voltage monitor function
The value of input supply voltage can be displayed on the self-diagnosis display at the side of the projector.
 rTo display during projection
1) Press the power on < b > button.
 fThe value of the input supply voltage is displayed only as numeric value on the self-diagnosis display .
 fThe display will turn of

f automatically after approximately 3 seconds.
 rTo display during standby mode
1)...

ENGLISH - 75

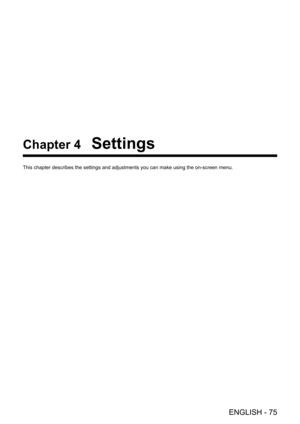

Chapter 4 Settings
This chapter describes the settings and adjustments you can make using the on-screen menu.

Chapter 4 Settings — Menu navigation
76 - ENGLISH
Menu navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.
Navigating through the menu

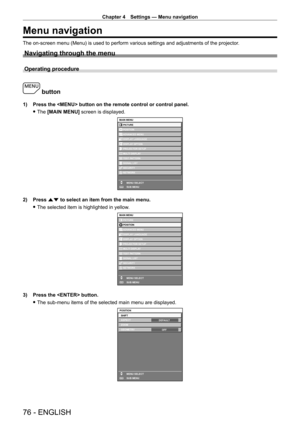

Operating procedure
 button
1) Press the  button on the remote control or control panel.
 fThe

[MAIN MENU] screen is displayed.
MAIN MENUPICTURE
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION
PROJECTOR SETUP
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
SUB MENU
MULTI DISPLAY
ENTER
2) Press  as to...

Chapter 4 Settings — Menu navigation
ENGLISH - 77

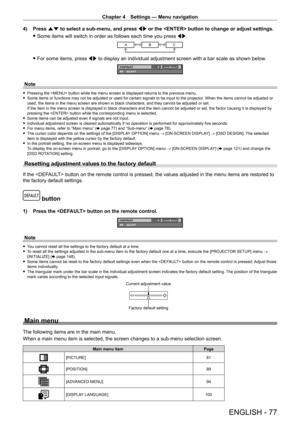

4) Press as to select a sub-menu, and press qw or the  button to change or adjust settings.
 fSome items will switch in order as follows each time you press  qw

.
ABC
 fFor some items, press  qw to display an individual adjustment screen with a bar scale as shown below .
0CONTRAST
ADJUST
Note
 fPressing the  button while the menu screen is displayed returns to the previous menu. fSome items or functions may not be adjusted or used for certain signals to...

Chapter 4 Settings — Menu navigation
78 - ENGLISH
Main menu itemPage
[DISPLAY OPTION] 101
[PROJECTOR SETUP]128
[MULTI DISPLAY]150
[TEST PATTERN]152
[SIGNAL LIST]153
[SECURITY]156
[NETWORK]161
Sub-menu

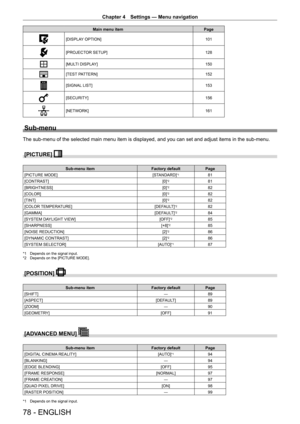

The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu.
[PICTURE]
Sub-menu itemFactory defaultPage
[PICTURE MODE] [STANDARD]
*181
[CONTRAST] [0]
*281
[BRIGHTNESS] [0]
*282
[COLOR] [0]
*282
[TINT] [0]
*282
[COLOR TEMPERATURE] [DEFAULT]
*282
[GAMMA]...

Chapter 4 Settings — Menu navigation
ENGLISH - 79
Note
 fSub-menu items and factory default settings vary depending on the selected input terminal.
[DISPLAY LANGUAGE]
Details (x page 100)
[DISPLAY OPTION]
Sub-menu item Factory defaultPage
[COLOR MATCHING] [OFF]101
[LARGE SCREEN CORRECTION] [OFF]102
[SCREEN SETTING] ―102
[AUTO SIGNAL] [OFF]103
[AUTO SETUP] ―103
[BACKUP INPUT SETTING] ―104
[SIMUL INPUT SETTING] ―105
[SDI IN] ―106
[DIGITAL LINK IN] ―109
[SLOT IN] ―111
[FRAME SYNC SETTING] ―11 9
[ON-SCREEN...

Chapter 4 Settings — Menu navigation
80 - ENGLISH

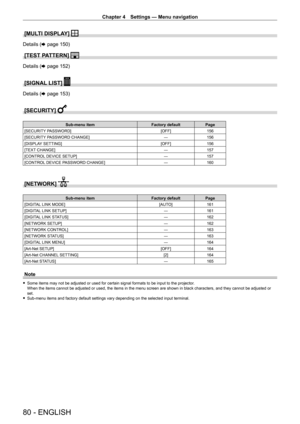

[MULTI DISPLAY]
Details (x page 150)
[TEST PATTERN]
Details (x page 152)
[SIGNAL LIST]
Details (x page 153)
[SECURITY]
Sub-menu itemFactory defaultPage
[SECURITY PASSWORD] [OFF]156
[SECURITY PASSWORD CHANGE] ―156
[DISPLAY SETTING] [OFF]156
[TEXT CHANGE] ―157
[CONTROL DEVICE SETUP] ―157
[CONTROL DEVICE PASSWORD CHANGE] ―160
[NETWORK]
Sub-menu item Factory defaultPage
[DIGITAL LINK MODE] [AUTO]161
[DIGITAL LINK SETUP] ―161
[DIGITAL LINK STATUS] ―162...
