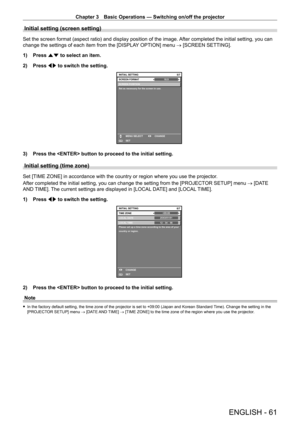

Panasonic Projector PT-RS11K User Manual

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 61
Initial setting (screen setting)
Set the screen format (aspect ratio) and display position of the image. After completed the initial setting, you can
change the settings of each item from the [DISPLAY OPTION] menu → [SCREEN SETTING].
1)

Press
 as to select an item.
2)

Press
 qw to switch the setting.
16:95/7
SCREEN POSITION
Set as necessary for the screen in use.
INITIAL SETTING
SET CHANGE
MENU SELECTSCREEN FORMAT
ENTER
3)...

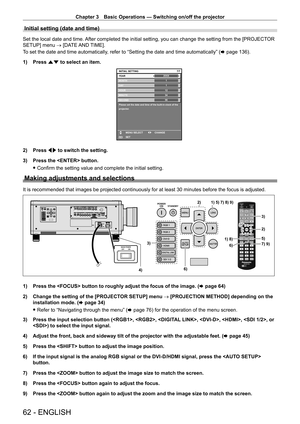

Chapter 3 Basic Operations — Switching on/off the projector
62 - ENGLISH
Initial setting (date and time)
Set the local date and time. After completed the initial setting, you can change the setting from the [PROJECTOR
SETUP] menu → [DATE AND TIME].
To set the date and time automatically, refer to “Setting the date and time automatically” (x
  page   136).
1)

Press
 as to select an item.
20XX7/7
11123456
MONTH
D AY
HOUR
MINUTE
SECOND
Please set the date and time of the built-in clock of the...

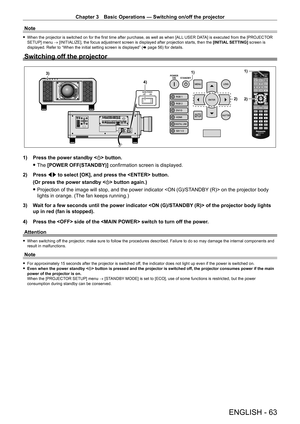

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 63
Note
 fWhen the projector is switched on for the first time after purchase, as well as when [ALL  USER DA TA] is executed from the [PROJECTOR
SETUP] menu → [INITIALIZE], the focus adjustment screen is displayed after projection starts, then the [INITIAL SETTING] screen is
displayed. Refer to “When the initial setting screen is displayed” ( x
  page   56) for details.
Switching off the projector
1)
2)
1)
4)3)
2)
1) Press the power...

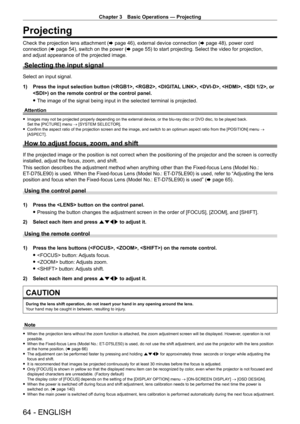

Chapter 3 Basic Operations — Projecting
64 - ENGLISH
Projecting
Check the projection lens attachment (x   page   46), external device connection (x   page   48), power cord
connection ( x
  page   54), switch on the power ( x
  page   55) to start projecting. Select the video for projection,
and adjust appearance of the projected image.
Selecting the input signal
Select an input signal.
1)

Press the input selection button (, , , , , , or
) on the remote control or the control panel.
 f The image of...

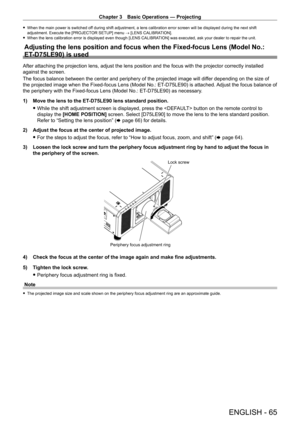

Chapter 3 Basic Operations — Projecting
ENGLISH - 65
 fWhen the main power is switched of f during shift adjustment, a lens calibration error screen will be displayed during the next shift
adjustment. Execute the [PROJECTOR SETUP] menu → [LENS CALIBRATION].
 f When the lens calibration error is displayed even though [LENS CALIBRA TION] was executed, ask your dealer to repair the unit.
Adjusting the lens position and focus when the Fixed-focus Lens (Model \
No.:
ET
-

D75LE90) is used
After attaching...

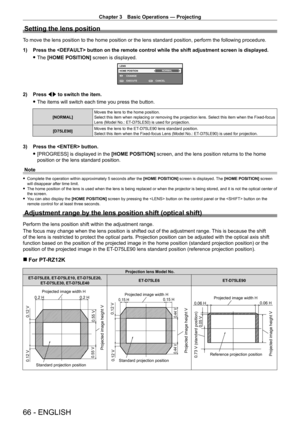

Chapter 3 Basic Operations — Projecting
66 - ENGLISH
Setting the lens position
To move the lens position to the home position or the lens standard posit\
ion, perform the following procedure.
1)
Press the  button on the remote control while the shift adjustment screen is dis\
played.
 fThe

[HOME POSITION]  screen is displayed.
LENS
HOME POSITION
EXECUTE CANCEL
ENTERMENU
NORMAL
CHANGE
2) Press
qw to switch the item.
 fThe items will switch each time you press the button.
[NORMAL] Moves the lens to the...

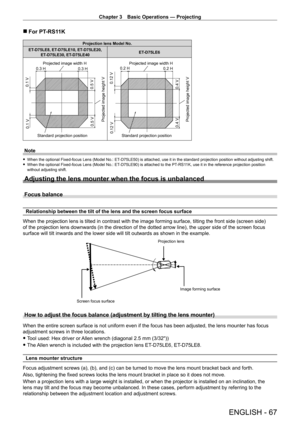

Chapter 3 Basic Operations — Projecting
ENGLISH - 67
 rFor PT- RS11K
Projection lens Model No.
ET
-

D75LE8, ET
-

D75LE10, ET
-
 D75LE20,
ET
-

D75LE30, ET
-

D75LE40 ET
-

D75LE6
Projected image width H
Standard projection position
Projected image height V
0.3 H 0.3 H
0.1 V
0.1 V
0.5 V 0.5 V
Projected image width H
Standard projection position
Projected image height V
0.2 H 0.2 H
0.4 V0.4 V0.12 V
0.12 V
Note
 f When the optional Fixed-focus Lens (Model No.: ET- D75LE50) is attached, use it in the...

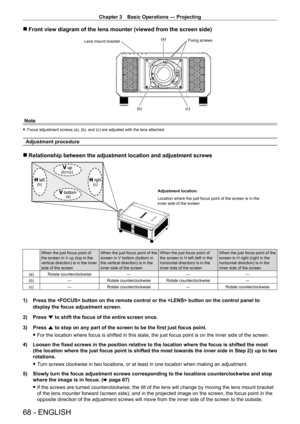

Chapter 3 Basic Operations — Projecting
68 - ENGLISH
 rFront view diagram of the lens mounter (viewed from the screen side)
(a)
(b) (c)
Lens mount bracket
Fixing screws
Note
 f
Focus adjustment screws (a), (b), and (c) are adjusted with the lens attached.
Adjustment procedure
 rRelationship between the adjustment location and adjustment screws
(b) (c)
(b)+(c)
(a)
Adjustment location:
Location where the just focus point of the screen is in the
inner side of the screen
When the just focus point of
the...

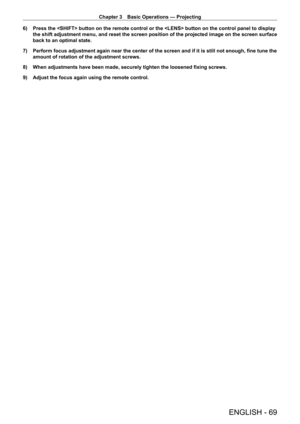

Chapter 3 Basic Operations — Projecting
ENGLISH - 69
6) Press the  button on the remote control or the  button on t\
he control panel to display
the shift adjustment menu, and reset the screen position of the projected image on the screen surface
back to an optimal state.
7)

Perform focus adjustment again near the center of the screen and if it is still not enough, fine tune the
amount of rotation of the adjustment screws.
8)


When adjustments have been made, securely tighten the loosened fixing...

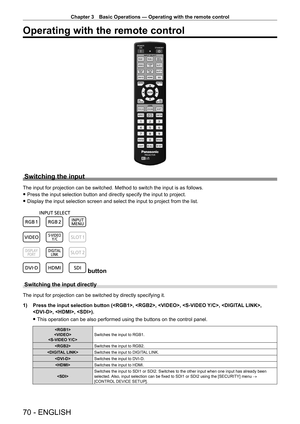

Chapter 3 Basic Operations — Operating with the remote control
70 - ENGLISH
Operating with the remote control
Switching the input
The input for projection can be switched. Method to switch the input is as follows.
 fPress the input selection button and directly specify the input to proje\
ct.
 fDisplay the input selection screen and select the input to project from \
the list.
 button
Switching the input directly
The input for projection can be switched by directly specifying it.
1)

Press the input...
