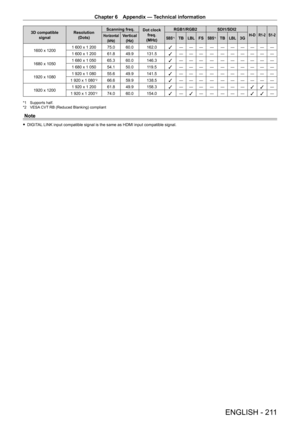

Page 211

Chapter 6 Appendix — Technical information
ENGLISH - 211
3D compatible signal Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) RGB1/RGB2 SDI1/SDI2H-DR1-2S1-2Horizontal
(kHz)Vertical(Hz)SBS*1TBLBLFSSBS*1TBLBL3G
1600

x

1200 1

600

x

1

200 75.0 60.0 162.0
l― ― ― ― ― ― ― ― ― ―
1

600

x

1

200 61.8 49.9 131.5
l― ― ― ― ― ― ― ― ― ―
1680

x

1050 1

680

x

1

050 65.3 60.0 146.3
l― ― ― ― ― ― ― ― ― ―
1

680

x

1

050 54.1 50.0 119.5
l― ― ― ― ― ― ― ― ― ―
1920

x

1080 1

920...

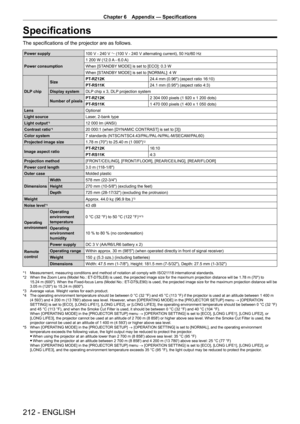

Page 212

Chapter 6 Appendix — Specifications
212 - ENGLISH
Specifications
The specifications of the projector are as follows.
Power supply100   V - 240   V ~ (100   V - 240   V alternating current), 50   Hz/60   Hz
Power consumption 1
  200   W (12.0
A
  - 6.0
A)
When [ST

ANDBY MODE] is set to [ECO]: 0.3   W
When [STANDBY MODE] is set to [NORMAL]: 4
  W
DLP chip Size
PT
-

RZ12K24.4
  mm (0.96") (aspect ratio 16:10)
PT
-

RS11K24.1
  mm (0.95") (aspect ratio 4:3)
Display system DLP chip x 3, DLP...

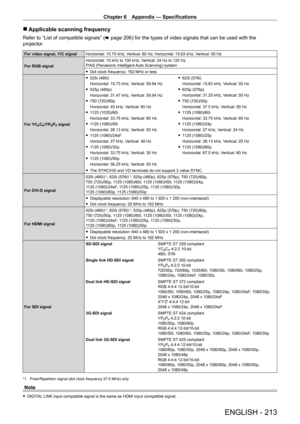

Page 213

Chapter 6 Appendix — Specifications
ENGLISH - 213
 rApplicable scanning frequency
Refer to “List of compatible signals” ( x   page   206) for the types of video signals that can be used with the
projector.
For video signal, Y/C signal Horizontal: 15.75   kHz, Vertical: 60   Hz; Horizontal: 15.63   kHz, Vertical: 50   Hz
For RGB signal Horizontal: 15
  kHz to 100   kHz, Vertical: 24   Hz to 120   Hz
PIAS (Panasonic Intelligent Auto Scanning) system
 f Dot clock frequency: 162

  MHz or less
For YC...

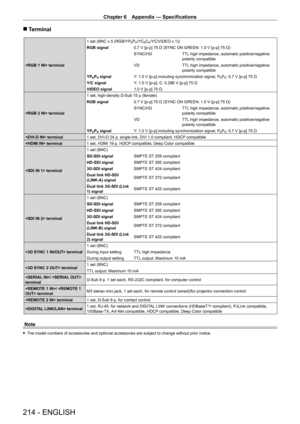

Page 214

Chapter 6 Appendix — Specifications
214 - ENGLISH
 rTerminal
 terminal 1 set (BNC x 5 (RGB/YP
BPR/YCBCR/YC/VIDEO x 1))
RGB signal 0.7

V [p-p] 75   Ω (SYNC ON GREEN: 1.0   V [p-p] 75   Ω)
SYNC/HD TTL high impedance, automatic positive/negative
polarity compatible
VD TTL high impedance, automatic positive/negative
polarity compatible
YP
BPR signal Y: 1.0   V [p-p] including synchronization signal, PBPR: 0.7 V [p-p] 75 Ω
Y/C signal Y
: 1.0

V [p-p], C: 0.286

V [p-p] 75

Ω
VIDEO signal 1.0

V [p-p]...

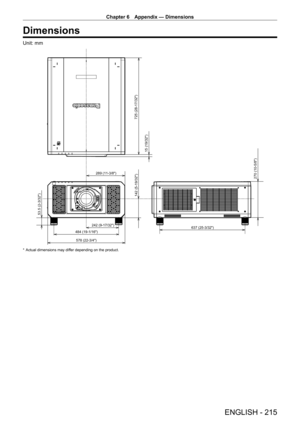

Page 215

Chapter 6 Appendix — Dimensions
ENGLISH - 215
Dimensions
Unit: mm
242 (9-17/32)289 (11-3/8)
578 (22-3/4) 637 (25-3/32)
484 (19-1/16)
53.5 (2-3/32)
142 (5-19/32)
270 (10-5/8) 15 (19/32)
725 (28-17/32)
* Actual dimensions may dif
fer depending on the product.

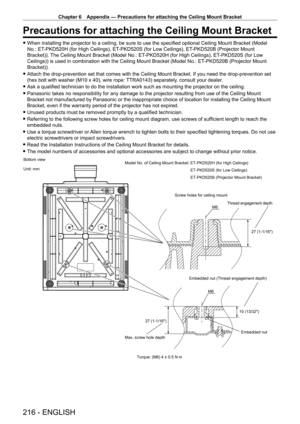

Page 216

Chapter 6 Appendix — Precautions for attaching the Ceiling Mount Bracket
216 - ENGLISH
Precautions for attaching the Ceiling Mount Bracket
 fWhen installing the projector to a ceiling, be sure to use the specified optional Ceiling Mount Bracket (Model
No.: ET
-

PKD520H (for High Ceilings), ET
-
 PKD520S (for Low Ceilings), ET
-
 PKD520B (Projector Mount
Bracket)). The Ceiling Mount Bracket (Model No.: ET
-

PKD520H (for High Ceilings), ET
-
 PKD520S (for Low
Ceilings)) is used in combination with the...

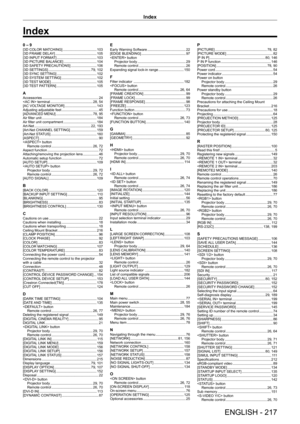

Page 217

Index
ENGLISH - 217
0 – 9[3D COLOR MATCHING]    103
[3D FRAME DELA
Y]
     105
[3D INPUT
 FORMAT]
     103
[3D PICTURE BALANCE]
     104
[3D SAFETY
 PRECAUTIONS]
     106
[3D SETTINGS]
     79, 102
[3D SYNC SETTING]
     102
[3D SYSTEM SETTING]
     102
[3D
TEST MODE]
     105
[3D
TEST PATTERN]
     105
AAccessories     24
 terminal
     28, 54
[AC VOL
TAGE MONITOR]
     143
Adjusting adjustable feet
     45
[ADV
ANCED MENU]
     78, 95
Air filter unit
     184
Air filter unit compartment
     184...

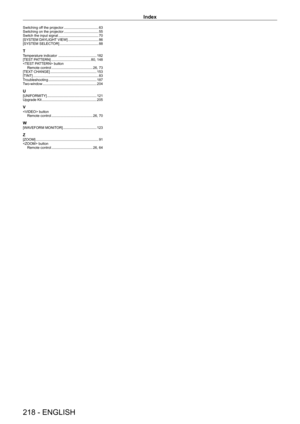

Page 218

Index
218 - ENGLISH
Switching off the projector    63
Switching on the projector
     55
Switch the input signal
     70
[SYSTEM DA
YLIGHT VIEW]
     86
[SYSTEM SELECT
OR]
     88
TTemperature indicator      182
[TEST
 PATTERN]
     80, 148
 button
Remote control

 26, 73
[TEXT
 CHANGE]
     153
[TINT]
     83
T
roubleshooting
     187
T
wo-window
     204
U[UNIFORMITY]    121
Upgrade Kit
     205
V button
Remote control     26, 70
W[WAVEFORM MONITOR]    123
Z[ZOOM]     91
 button Remote control...

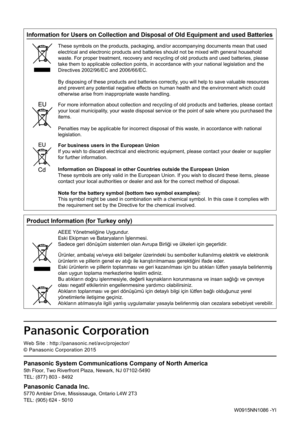

Page 219

$Page 219 Information for Users on Collection and Disposal of Old Equipment and us\ ed Batteries These symbols on the products, packaging, and/or accompanying documents \ mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and \ used batteries, please take them to applicable collection points, in accordance with your natio\ nal legislation and the Directives 2002/96/EC and 2006/66/EC. By...$

Information for Users on Collection and Disposal of Old Equipment and us\
ed Batteries
These symbols on the products, packaging, and/or accompanying documents \
mean that used
electrical and electronic products and batteries should not be mixed with general household
waste. For proper treatment, recovery and recycling of old products and \
used batteries, please
take them to applicable collection points, in accordance with your natio\
nal legislation and the
Directives 2002/96/EC and 2006/66/EC.
By...
