Chapter 4 Settings — [NETWORK] menu
ENGLISH - 161

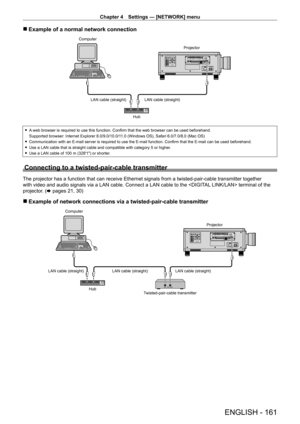

 rExample of a normal network connection
Computer
Projector
LAN cable (straight) LAN cable (straight) Hub
 fA web browser is required to use this function. Confirm that the web browser can be used beforehand.
Supported browser: Internet Explorer 8.0/9.0/10.0/11.0 (Windows OS), Safari 6.0/7.0/8.0 (Mac OS)
 f Communication with an E-mail server is required to use the E-mail function. Confirm that the E-mail can be used beforehand.
 fUse a LAN cable that is...

Chapter 4 Settings — [NETWORK] menu
162 - ENGLISH

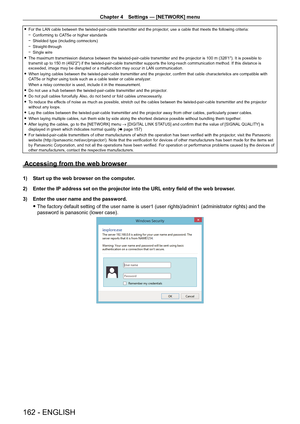

 fFor the LAN cable between the twisted-pair-cable transmitter and the projector , use a cable that meets the following criteria:
 gConforming to CA

T5e or higher standards
 gShielded type (including connectors)
 gStraight-through
 gSingle wire
 fThe maximum transmission distance between the twisted-pair-cable transmitter and the projector is 100

  m (328'1"). It is possible to
transmit up to 150
  m (492'2") if the twisted-pair-cable...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 163

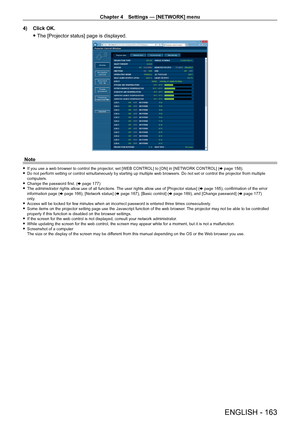

4) Click OK.
 fThe [Projector status] page is displayed.
Note
 f If you use a web browser to control the projector , set [WEB CONTROL] to [ON] in [NETWORK CONTROL] ( x   page   158). fDo not perform setting or control simultaneously by starting up multiple\
 web browsers. Do not set or control the projector from multiple
computers.
 fChange the password first. ( x

  page   177)
 fThe administrator rights allow use of all functions.

The user rights...

Chapter 4 Settings — [NETWORK] menu
164 - ENGLISH

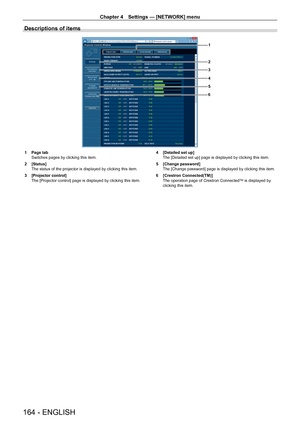

Descriptions of items
1
2
3
4
5
6
1 Page tab
Switches pages by clicking this item.
2

[Status]
The status of the projector is displayed by clicking this item.
3


[Projector control]
The [Projector control] page is displayed by clicking this item. 4

 [Detailed set up]
The [Detailed set up] page is displayed by clicking this item.
5

[Change password]
The [Change password] page is displayed by clicking this item.
6


[Crestron Connected(TM)]
The...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 165

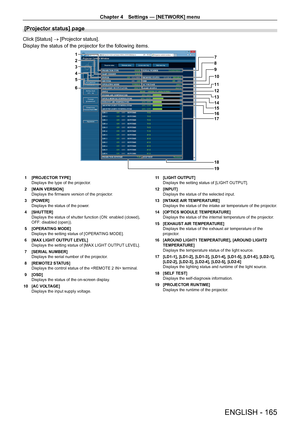

[Projector status] page
Click [Status] → [Projector status].
Display the status of the projector for the following items.
14
17
187
10
8
9
1
2
3
4
19
5
6
11
12
13
16 15
1 [PROJECT
OR TYPE]
Displays the type of the projector.
2

[MAIN VERSION]
Displays the firmware version of the projector

.
3

[POWER]
Displays the status of the power

.
4

[SHUTTER]
Displays the status of shutter function (ON: enabled (closed),
OFF: disabled (open)).
5


[OPERA...

Chapter 4 Settings — [NETWORK] menu
166 - ENGLISH

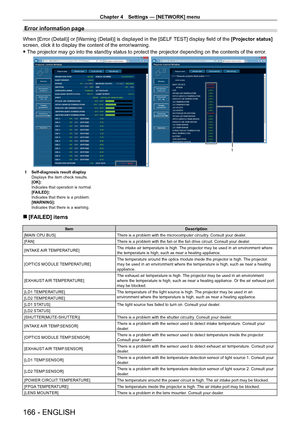

Error information page
When [Error (Detail)] or [Warning (Detail)] is displayed in the [SELF TEST] display field of the [Projector status]
screen, click it to display the content of the error/warning.
 fThe projector may go into the standby status to protect the projector de\
pending on the contents of the error

.
1
1 Self-diagnosis result display
Displays the item check results.
[OK]:
Indicates that operation is normal.
[F
AILED]:
Indicates that there...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 167
ItemDescription

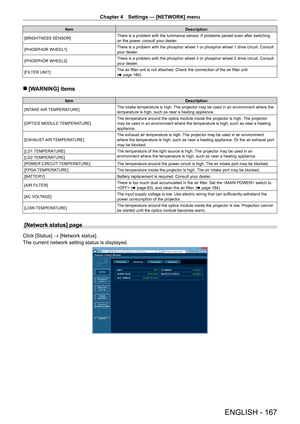

[BRIGHTNESS SENSOR] There is a problem with the luminance sensor. If problems persist even after switching
on the power, consult your dealer.
[PHOSPHOR WHEEL1] There is a problem with the phosphor wheel 1 or phosphor wheel 1 drive c\
ircuit. Consult
your dealer.
[PHOSPHOR WHEEL2] There is a problem with the phosphor wheel 2 or phosphor wheel 2 drive c\
ircuit. Consult
your dealer.
[FILTER UNIT] The air filter unit is not attached. Check...

Chapter 4 Settings — [NETWORK] menu
168 - ENGLISH

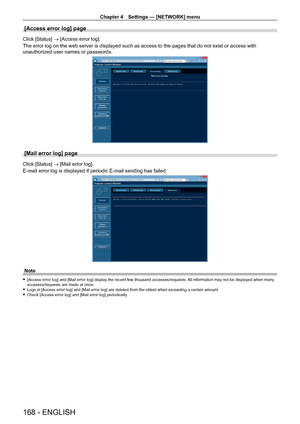

[Access error log] page
Click [Status] → [Access error log].
The error log on the web server is displayed such as access to the pages that do not exist or access with
unauthorized user names or passwords.
[Mail error log] page
Click [Status] → [Mail error log].
E-mail error log is displayed if periodic E-mail sending has failed.
Note
 f[Access error log] and [Mail error log] display the recent few thousand accesses/requests.  All information may not be...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 169
[Basic control] page
Click [Projector control] → [Basic control].
1
2
3
4
6
5

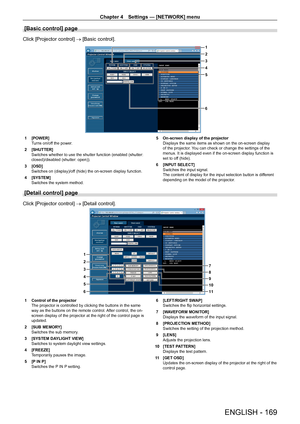

1 [POWER]
T
urns on/off the power.
2

[SHUTTER]
Switches whether to use the shutter function (enabled (shutter:
closed)/disabled (shutter: open)).
3


[OSD]
Switches on (display)/of

f (hide) the on-screen display function.
4

[SYSTEM]
Switches the system method. 5

 On-screen display of the projector
Displays the same items as shown on the on-screen display
of the...

Chapter 4 Settings — [NETWORK] menu
170 - ENGLISH

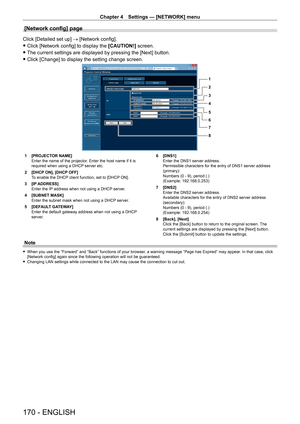

[Network config] page
Click [Detailed set up] → [Network config].
 fClick [Network config] to display the  [CAUTION!]

 screen.
 fThe current settings are displayed by pressing the [Next] button.
 fClick [Change] to display the setting change screen.
1
2
3
4
5
6
7
8
1 [PROJECT OR NAME]
Enter the name of the projector. Enter the host name if it is
required when using a DHCP server etc.
2

[DHCP
  ON], [DHCP OFF]
To enable the DHCP client function, set to...
