Panasonic Projector PT-RS11K User Manual

ENGLISH - 191

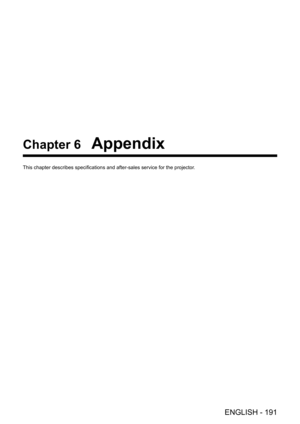

Chapter 6 Appendix
This chapter describes specifications and after-sales service for the projector.

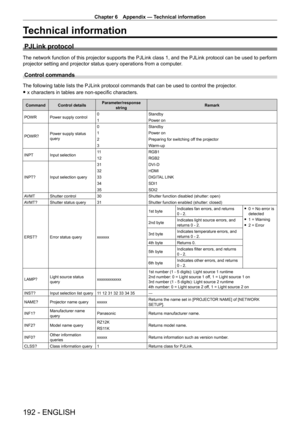

Chapter 6 Appendix — Technical information
192 - ENGLISH
Technical information
PJLink protocol
The network function of this projector supports the PJLink class 1, and the PJLink protocol can be used to perform
projector setting and projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used to control the projector .
 fx characters in tables are non-specific characters.
Command Control details Parameter/response
string...

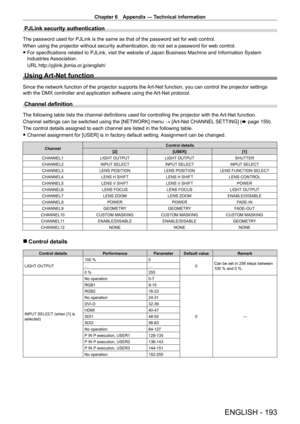

Chapter 6 Appendix — Technical information
ENGLISH - 193
PJLink security authentication
The password used for PJLink is the same as that of the password set for web control.
When using the projector without security authentication, do not set a p\
assword for web control.
 fFor specifications related to PJLink, visit the website of Japan Business Machine and Information System
Industries

Association.
URL http://pjlink.jbmia.or.jp/english/
Using Art-Net function
Since the network function of the...

Chapter 6 Appendix — Technical information

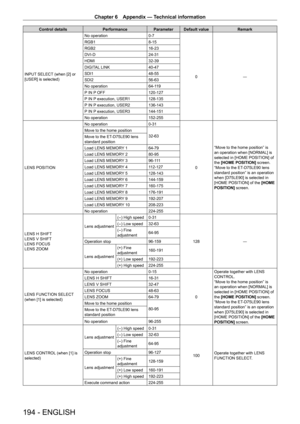

194 - ENGLISH
Control detailsPerformanceParameter Default value Remark
INPUT SELECT (when [2] or
[USER] is selected) No operation
0
- 7
0 ―
RGB1
8
- 15
RGB2 16
- 23
DVI
- D 24
- 31
HDMI 32
- 39
DIGITAL LINK 40
- 47
SDI1 48
- 55
SDI2 56
- 63
No operation 64
- 119
P IN P OFF 120
- 127
P IN P execution, USER1 128
- 135
P IN P execution, USER2 136
- 143
P IN P execution, USER3 144
- 151
No operation 152
- 255
LENS POSITION No operation
0
- 310“Move to the home...

Chapter 6 Appendix — Technical information

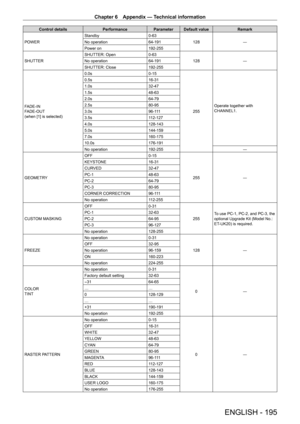

ENGLISH - 195
Control detailsPerformanceParameter Default value Remark
POWER Standby
0
- 63128 ―
No operation 64
- 191
Power on 192
- 255
SHUTTER SHUTTER: Open
0
- 63128 ―
No operation 64
- 191
SHUTTER: Close 192
- 255
FADE-IN
FADE-OUT
(when [1] is selected) 0.0s
0
- 15255Operate together with
CHANNEL1.
0.5s
16
- 31
1.0s 32
- 47
1.5s 48
- 63
2.0s 64
- 79
2.5s 80
- 95
3.0s 96
- 111
3.5s 112
- 127
4.0s 128
- 143
5.0s 144
- 159
7.0s 160
- 175
10.0s 176
- 191
No...

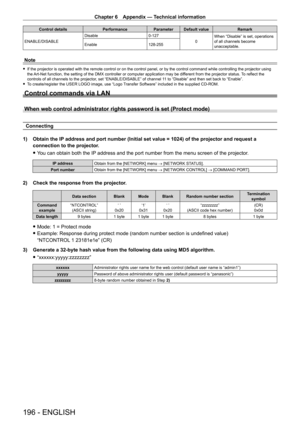

Chapter 6 Appendix — Technical information
196 - ENGLISH
Control detailsPerformanceParameter Default value Remark
ENABLE/DISABLE Disable
0
- 1270When “Disable” is set, operations
of all channels become
unacceptable.
Enable
128
- 255
Note
 fIf the projector is operated with the remote control or on the control p\
anel, or by the control command while controlling the projector using
the
Art-Net function, the setting of the DMX controller or computer application may be dif ferent from the projector...

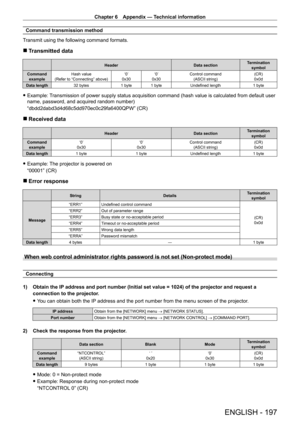

Chapter 6 Appendix — Technical information
ENGLISH - 197
Command transmission method
Transmit using the following command formats.
 r Transmitted data
Header Data sectionTermination
symbol
Command  example Hash value
(Refer to “Connecting” above) ‘0’
0x30 ‘0’
0x30 Control command
(ASCII string) (CR)
0x0d
Data length 32

bytes 1
  byte 1   byteUndefined length 1
  byte
 fExample: Transmission of power supply status acquisition command (hash value is calculated from default user
name, password, and...

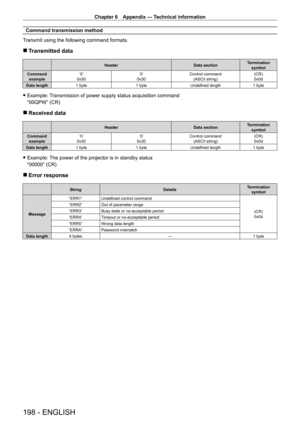

Chapter 6 Appendix — Technical information
198 - ENGLISH
Command transmission method
Transmit using the following command formats.
 r Transmitted data
Header Data sectionTermination
symbol
Command  example ‘0’
0x30 ‘0’
0x30 Control command
(ASCII string) (CR)
0x0d
Data length 1

byte 1
  byte Undefined length 1
  byte
 fExample: Transmission of power supply status acquisition command
“00QPW” (CR)
 r Received data
Header Data sectionTermination
symbol
Command  example ‘0’
0x30 ‘0’
0x30 Control command...

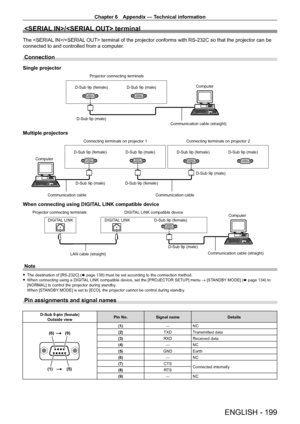

Chapter 6 Appendix — Technical information
ENGLISH - 199
/ terminal
The / terminal of the projector conforms with RS-232C so that the projector can be
connected to and controlled from a computer .
Connection
Single projector
Projector connecting terminals
Computer
D-Sub 9p (male) Communication cable (straight)
D-Sub 9p (female) D-Sub 9p (male)
Multiple projectors
D-Sub 9p (female) D-Sub 9p (male)
Connecting terminals on projector 2
D-Sub 9p (female) D-Sub 9p (male) Connecting terminals on projector 1...

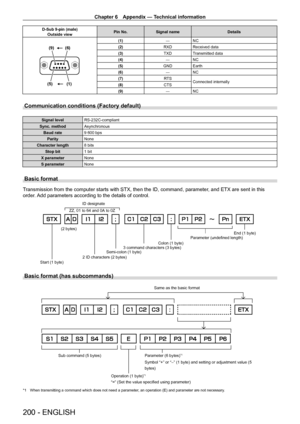

Chapter 6 Appendix — Technical information
200 - ENGLISH
D-Sub 9-pin (male)Outside view Pin No.
Signal name Details
(5) (1)(9) (6)
(1)
―NC
(2) RXDReceived data
(3) TXDTransmitted data
(4) ―NC
(5) GNDEarth
(6) ―NC
(7) RTS
Connected internally
(8) CTS
(9) ―NC
Communication conditions (Factory default)
Signal level RS - 232C-compliant
Sync. method Asynchronous
Baud rate 9
  600   bps
Parity None
Character length 8 bits
Stop bit 1 bit
X parameter None
S parameter None
Basic format
Transmission from the...
