Panasonic Projector PT-RS11K User Manual

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 171

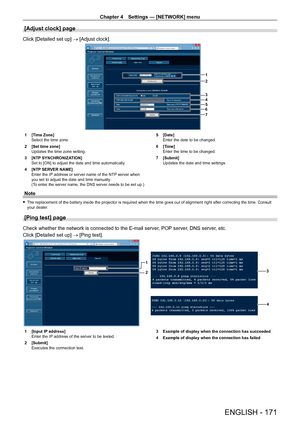

[Adjust clock] page
Click [Detailed set up] → [Adjust clock].
1
2
3
4
5
6
7
1 [Time Zone]
Select the time zone.
2

[Set time zone]
Updates the time zone setting.
3


[NTP
  SYNCHRONIZATION]
Set to [ON] to adjust the date and time automatically.
4

[NTP
  SERVER NAME]
Enter the IP address or server name of the NTP server when
you set to adjust the date and time manually.
(To enter the server name, the DNS server needs to be set up.) 5
 [Date]
Enter the...

Chapter 4 Settings — [NETWORK] menu
172 - ENGLISH

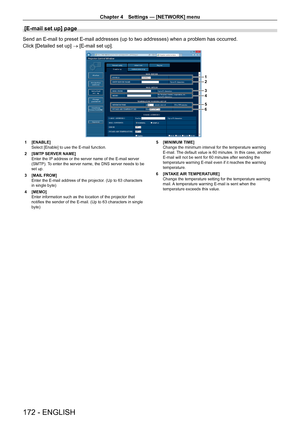

[E-mail set up] page
Send an E-mail to preset E-mail addresses (up to two addresses) when a problem has occurred.
Click [Detailed set up] → [E-mail set up].
1
2
3
4
5
6
1 [ENABLE]
Select [Enable] to use the E-mail function.
2

[SMTP
  SERVER NAME]
Enter the IP address or the server name of the E-mail server
(SMTP). To enter the server name, the DNS server needs to be
set up.
3

[MAIL
  FROM]
Enter the E-mail address of the projector. (Up to 63...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 173
8
7
9
8
7

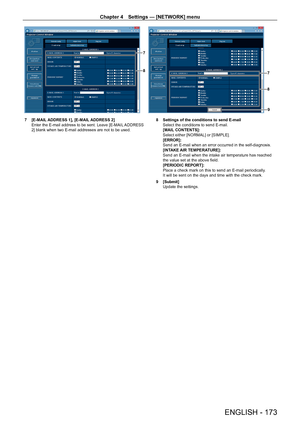

7 [E-MAIL ADDRESS 1], [E-MAIL ADDRESS 2]
Enter the E-mail address to be sent. Leave [E-MAIL ADDRESS
2] blank when two E-mail addresses are not to be used. 8
 Settings of the conditions to send E-mail
Select the conditions to send E-mail.
[MAIL
 CONTENTS]:
Select either [NORMAL] or [SIMPLE].
[ERROR]:
Send an E-mail when an error occurred in the self-diagnosis.
[INTAKE AIR TEMPERATURE]:
Send an E-mail when the intake air temperature has...

Chapter 4 Settings — [NETWORK] menu
174 - ENGLISH

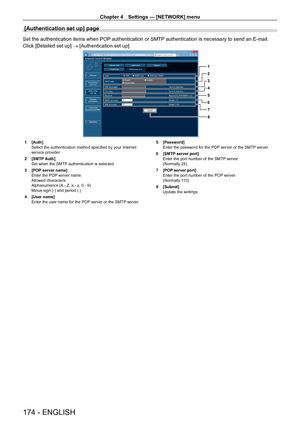

[Authentication set up] page
Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail.
Click [Detailed set up] → [Authentication set up].
1
2
3
4
5
6
7
8
1 [Auth]
Select the authentication method specified by your Internet
service provider
.
2

[SMTP
  Auth]
Set when the SMTP authentication is selected.
3

[POP
  server name]
Enter the POP server name.
Allowed characters:
Alphanumerics (A - Z, a - z, 0...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 175

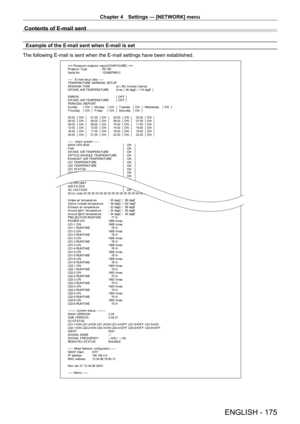

Contents of E-mail sent
Example of the E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been establis\
hed.
=== P anas onic  pr ojec t or  r epor t ( CO NF I G URE )  ===
P r ojec t or  T y pe  :  RZ 12K
S er ial No  :  123456789012
-----  E-mail set up dat a -----
T EMPERAT URE WARNING  SET UP
MINIMUM TIME  at  [  60]  m inut es  int er v al
I NT A K E  A I R T E M P E RA T URE   O v er  [  46 degC /  114 degF...

Chapter 4 Settings — [NETWORK] menu
176 - ENGLISH

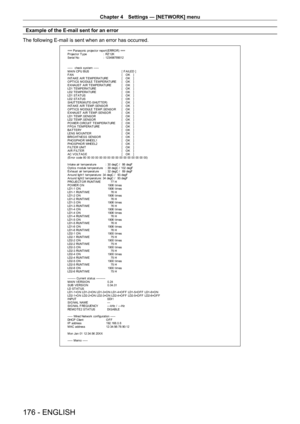

Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== P anas onic  pr ojec t or  r epor t ( E RRO R)  ===
P r ojec t or  T y pe  :  RZ 12K
S er ial No  :  123456789012
-----  check syst em -----
M A I N CP U B US   [ F AILED ]
F A N  [   O K   ]
INT AKE AIR T EMPERAT URE  [   O K   ]
O PT ICS MO DULE T EMPERAT URE  [   O K   ]
EXHAUST  AIR T EMPERAT URE  [   O K   ]
LD1 T EMPERAT URE  [   O K   ]
LD2 T...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 177

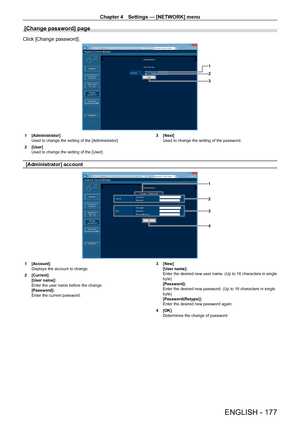

[Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of the [Administrator].
2

[User]
Used to change the setting of the [User]. 3

 [Next]
Used to change the setting of the password.
[Administrator] account
1
3
2
4
1 [Account]
Displays the account to change.
2

[Current]
[User name]:
Enter the user name before the change.
[Password]:
Enter the current password. 3

 [New]
[User name]:
Enter the desired...

Chapter 4 Settings — [NETWORK] menu
178 - ENGLISH

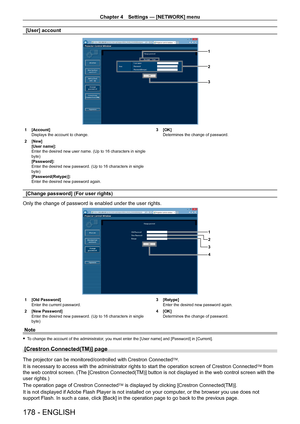

[User] account
1
2
3
1 [Account]
Displays the account to change.
2

[New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single
byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single
byte)
[Password(Retype)]:
Enter the desired new password again. 3

 [OK]
Determines the change of password.
[Change password] (For user rights)
Only the change of password is enabled under the user rights.
1
2
4 3
1 [Old...

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 179

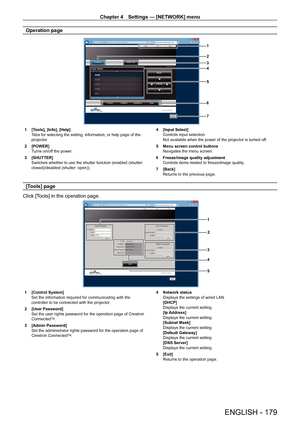

Operation page
1
2
3
4
5
6
7
1 [Tools], [Info], [Help]Tabs for selecting the setting, information, or help page of the
projector.
2

[POWER]
T

urns on/off the power.
3

[SHUTTER]
Switches whether to use the shutter function (enabled (shutter:
closed)/disabled (shutter: open)). 4

 [Input Select]
Controls input selection.
Not available when the power of the projector is turned of
f.
5

Menu screen control buttons
Navigates the menu screen.
6...

Chapter 4 Settings — [NETWORK] menu
180 - ENGLISH

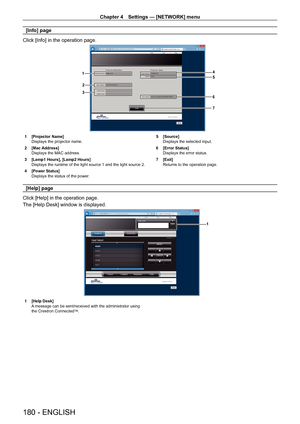

[Info] page
Click [Info] in the operation page.
4
5
6
1
2
3
7
1 [Projector Name]
Displays the projector name.
2

[Mac Address]
Displays the MAC address.
3


[Lamp1 Hours], [Lamp2 Hours]
Displays the runtime of the light source 1 and the light source 2.
4


[Power Status]
Displays the status of the power

. 5
 [Source]
Displays the selected input.
6

[Error Status]
Displays the error status.
7


[Exit]
Returns to the operation page.
[Help] page
Click...
