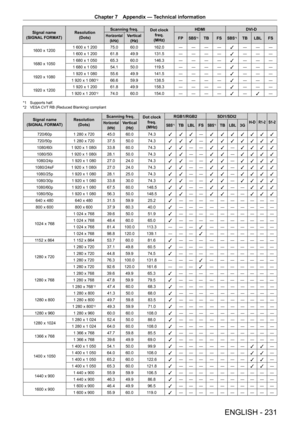

Chapter 7 Appendix — Technical information
ENGLISH - 231

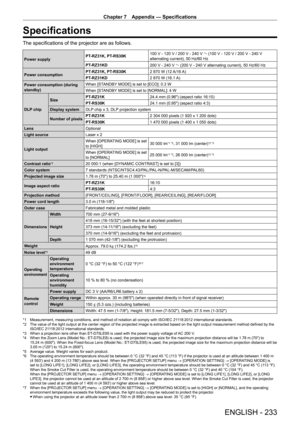

Signal name
(SIGNAL FORMAT) Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) HDMI
DVI - DHorizontal
(kHz)Vertical(Hz) FPSBS*1TB FSSBS*1TB LBL FS
1600

x

1200 1

600

x

1

200 75.0 60.0 162.0 ― ― ― ―
l― ― ―
1

600

x

1

200 61.8 49.9 131.5 ― ― ― ―
l― ― ―
1680

x

1050 1

680

x

1

050 65.3 60.0 146.3 ― ― ― ―
l― ― ―
1

680

x

1

050 54.1 50.0 119.5 ― ― ― ―
l― ― ―
1920

x

1080 1

920

x

1

080 55.6 49.9 141.5 ―...

Chapter 7 Appendix — Technical information
232 - ENGLISH

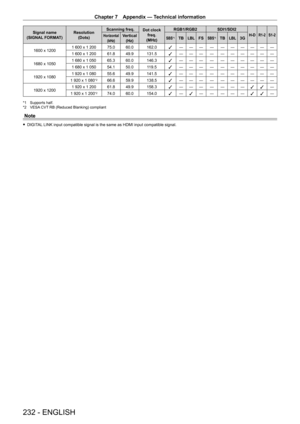

Signal name
(SIGNAL FORMAT) Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) RGB1/RGB2 SDI1/SDI2H-DR1-2S1-2Horizontal
(kHz)Vertical(Hz)SBS*1TBLBLFSSBS*1TBLBL3G
1600

x

1200 1

600

x

1

200 75.0 60.0 162.0
l― ― ― ― ― ― ― ― ― ―
1

600

x

1

200 61.8 49.9 131.5
l― ― ― ― ― ― ― ― ― ―
1680

x

1050 1

680

x

1

050 65.3 60.0 146.3
l― ― ― ― ― ― ― ― ― ―
1

680

x

1

050 54.1 50.0 119.5
l― ― ― ― ― ― ― ― ― ―
1920

x

1080...

Chapter 7 Appendix — Specifications
ENGLISH - 233
Specifications
The specifications of the projector are as follows.
Power supplyPT- RZ31K, PT- RS30K
100   V - 120   V / 200   V - 240   V ~ (100   V - 120   V / 200   V - 240   V
alternating current), 50   Hz/60   Hz
PT
-
 RZ31KD200
  V - 240   V ~ (200   V - 240   V alternating current), 50   Hz/60   Hz
Power consumption PT
-

RZ31K, PT
-
 RS30K2
  870   W (12
A/16

A)
PT
-

RZ31KD2
  870   W (16.1
A)
Power consumption (during
standby) When [ST...

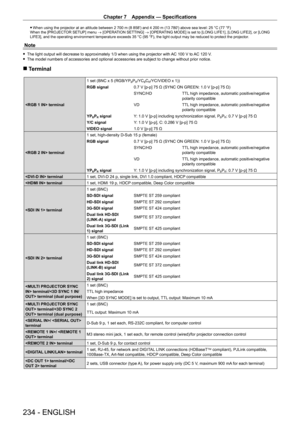

Chapter 7 Appendix — Specifications
234 - ENGLISH
 fWhen using the projector at an altitude between 2   700   m (8   858') and 4   200   m (13   780') above sea level: 25   °C (77   °F)
When the [PROJECTOR SETUP] menu → [OPERATION SETTING]  → [OPERATING MODE] is set to [LONG LIFE1], [LONG LIFE2], or [LONG
LIFE3], and the operating environment temperature exceeds 35
  °C (95   °F), the light output may be reduced to protect the projector.
Note
 fThe light output will decrease to approximately 1/3...

Chapter 7 Appendix — Specifications
ENGLISH - 235

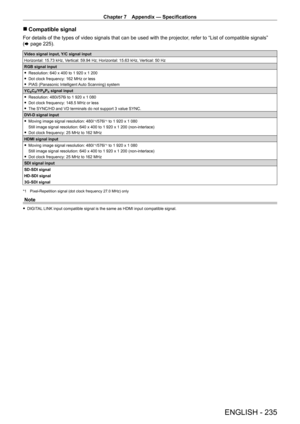

 rCompatible signal
For details of the types of video signals that can be used with the projector , refer to “List of compatible signals”
(x   page   225).
Video signal input, Y/C signal input
Horizontal: 15.73
  kHz, Vertical: 59.94   Hz; Horizontal: 15.63   kHz, Vertical: 50   Hz
RGB signal input
 f Resolution: 640

  x   400 to 1   920   x   1   200
 fDot clock frequency: 162

  MHz or less
 fPIAS (Panasonic Intelligent

Auto Scanning) system
YC...

Chapter 7 Appendix — Dimensions
236 - ENGLISH
Dimensions
Unit: mm
290 (11-13/32)350 (13-25/32)
700 (27-9/16) 951 (37-7/16)
580 (22-27/32)
45 (1-25/32)
245.5 (9-21/32)
373 (14-11/16)
418 (16-15/32) 25 (31/32)
90 (3-17/32)
1 070 (42-1/8)
1 249.2 (49-3/16)
* Actual dimensions may dif fer depending on the product.

Chapter 7 Appendix — Dimensions
ENGLISH - 237

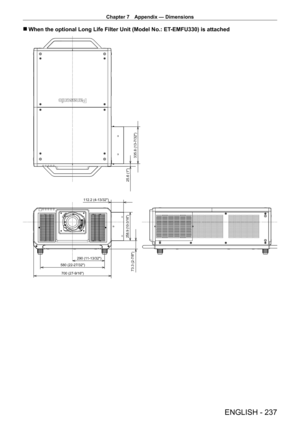

 rWhen the optional Long Life Filter Unit (Model No.: ET- EMFU330) is attached
290 (11-13/32)112.2 (4-13/32)
700 (27-9/16)
580 (22-27/32)
258.9 (10-3/16)
25.6 (1)
335.8 (13-7/32)
73.3 (2-7/8)

Chapter 7 Appendix — Attaching the Long Life Filter Unit (optional)
238 - ENGLISH
Attaching the Long Life Filter Unit (optional)
The optional Long Life Filter Unit (Model No.: ET-EMFU330) uses two of the same standard air filter unit attached
to the projector or the Replacement Filter Unit (Model No.: ET
-
 EMF330) (accessory/optional accessory). The
interval to perform maintenance/replacement of filters is extended roughly two times by attaching the Long Life
Filter Unit instead of the standard air...

Chapter 7 Appendix — Attaching the Long Life Filter Unit (optional)
ENGLISH - 239

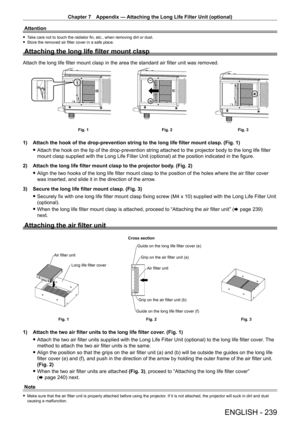

Attention
 fTake care not to touch the radiator fin, etc., when removing dirt or dust. fStore the removed air filter cover in a safe place.
Attaching the long life filter mount clasp
Attach the long life filter mount clasp in the area the standard air filter unit was removed.
Fig. 2 Fig. 3
Fig. 1
1) Attach the hook of the drop-prevention string to the long life filter mo\
unt clasp. (Fig. 1)
 f Attach the hook on the tip of...

Chapter 7 Appendix — Attaching the Long Life Filter Unit (optional)
240 - ENGLISH

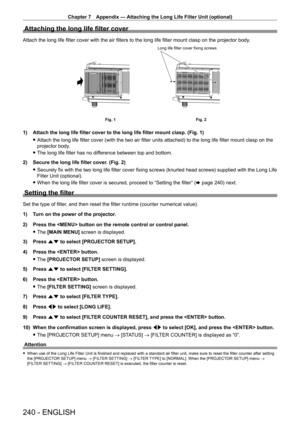

Attaching the long life filter cover
Attach the long life filter cover with the air filters to the long life filter mount clasp on the projector body.
Fig. 2
Fig. 1 Long life filter cover fixing screws
1) Attach the long life filter cover to the long life filter mount clasp. (\
Fig. 1)
 f
Attach the long life filter cover (with the two air filter units attached) to the long life filter mount clasp on the
projector body

....
