Chapter 5 Operations — Web control function
ENGLISH - 191

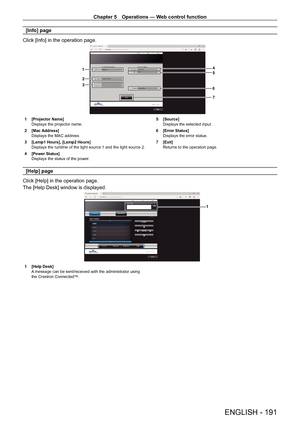

[Info] page
Click [Info] in the operation page.
45
6
1
2
3
7
1 [Projector Name]
Displays the projector name.
2

[Mac Address]
Displays the MAC address.
3


[Lamp1 Hours], [Lamp2 Hours]
Displays the runtime of the light source 1 and the light source 2.
4


[Power Status]
Displays the status of the power

. 5
 [Source]
Displays the selected input.
6

[Error Status]
Displays the error status.
7


[Exit]
Returns to the operation page.
[Help]...

192 - ENGLISH

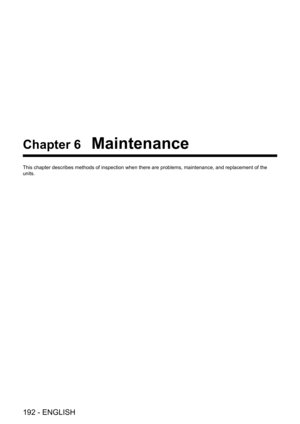

Chapter 6 Maintenance
This chapter describes methods of inspection when there are problems, ma\
intenance, and replacement of the
units.

Chapter 6 Maintenance — Light source/temperature/filter indicators
ENGLISH - 193

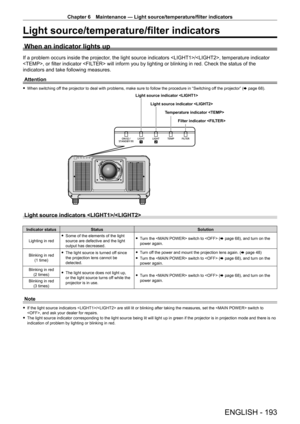

Light source/temperature/filter indicators
When an indicator lights up
If a problem occurs inside the projector, the light source indicators /, temperature indicator
, or filter indicator  will inform you by lighting or blinking in red. Check the status of the
indicators and take following measures.Attention
 f When switching of f the projector to deal with problems, make sure to follow the procedure in “Switching of f the...

Chapter 6 Maintenance — Light source/temperature/filter indicators
194 - ENGLISH

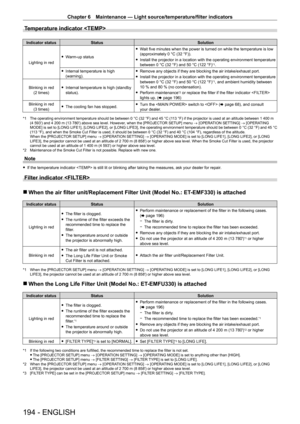

Temperature indicator
Indicator statusStatus Solution
Lighting in red
 f W

arm-up status
 fW

ait five minutes when the power is turned on while the temperature is low
(approximately 0
  °C (32   °F)).
 fInstall the

projector in a location with the operating environment temperature
between 0
  °C (32   °F) and 50   °C (122   °F)
*1.
 fInternal temperature is high
(warning). fRemove any objects if they are blocking the...

Chapter 6 Maintenance — Light source/temperature/filter indicators
ENGLISH - 195
 rWhen the Smoke Cut Filter (Model No.: ET- SFR330) is attached
Indicator statusStatus Solution
Lighting in red
 f The filter is clogged.
 fThe runtime of the filter exceeds the
recommended time to replace the
filter

.
 fThe temperature around or outside
the projector is abnormally high.
 fReplace the Smoke Cut Filter in the following cases. ( x

  page   242)
 gThe filter is dirty

.
 gThe recommended time to replace...

Chapter 6 Maintenance — Maintenance/replacement
196 - ENGLISH
Maintenance/replacement
Before performing maintenance/replacement
 fMake sure to turn of f the power before maintaining or replacing the unit.
 fWhen switching of

f the projector, make sure to follow the procedures in “Switching off the projector”
(x
  page   68).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
 fIf the dirt is persistent, soak the cloth with water and wring it thorou\
ghly before wiping. Dry of

f the...

Chapter 6 Maintenance — Maintenance/replacement
ENGLISH - 197
For the air filter unit
The section describes the maintenance of the standard air filter unit attached to the projector.
This air filter unit is the same as the Replacement Filter Unit (Model No.: ET
-
 EMF330) (accessory/optional
accessory).

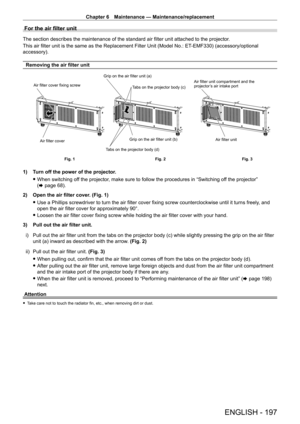

Removing the air filter unit
Grip on the air filter unit (b)
Grip on the air filter unit (a)
Fig. 3
Fig. 2
Fig. 1
Air filter cover
Air filter unit
Tabs on the projector body (d) Tabs on the projector...

Chapter 6 Maintenance — Maintenance/replacement
198 - ENGLISH

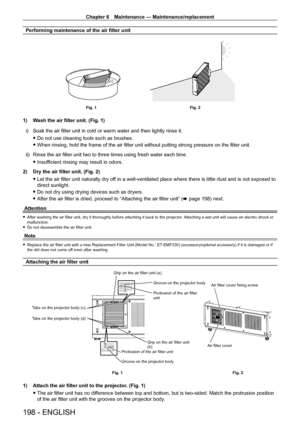

Performing maintenance of the air filter unit
Fig. 1Fig. 2
1) Wash the air filter unit. (Fig. 1)
i)
Soak the air filter unit in cold or warm water and then lightly rinse it\
.
 fDo not use cleaning tools such as brushes.
 fWhen rinsing, hold the frame of the air filter unit without putting strong pressure on the filter unit.
ii)


Rinse the air filter unit two to three times using fresh water each time\
.
 fInsufficient rinsing may result...

Chapter 6 Maintenance — Maintenance/replacement
ENGLISH - 199

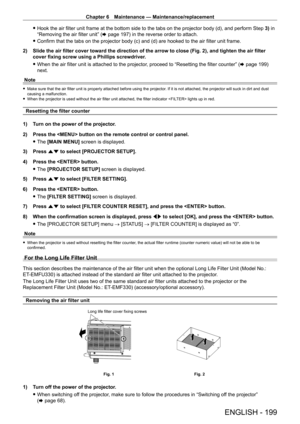

 fHook the air filter unit frame at the bottom side to the tabs on the projector body (d), and perform Step  3)  in
“Removing the air filter unit” ( x
  page   197) in the reverse order to attach.
 fConfirm that the tabs on the projector body (c) and (d) are hooked to the air filter unit frame.
2)


Slide the air filter cover toward the direction of the arrow to close (\
Fig. 2), and tighten the air filter
cover fixing screw using a...

Chapter 6 Maintenance — Maintenance/replacement
200 - ENGLISH

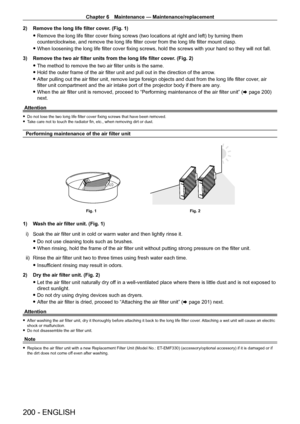

2) Remove the long life filter cover. (Fig. 1)
 fRemove the long life filter cover fixing screws (two locations at right and left) by turning them
counterclockwise, and remove the long life filter cover from the long life filter mount clasp.
 fWhen loosening the long life filter cover fixing screws, hold the screws with your hand so they will not fall.
3)


Remove the two air filter units from the long life filter cover
 . (Fig. 2)
 fThe...
