Panasonic Projector PT-RS30K User Manual

Chapter 5 Operations — Web control function
ENGLISH - 181

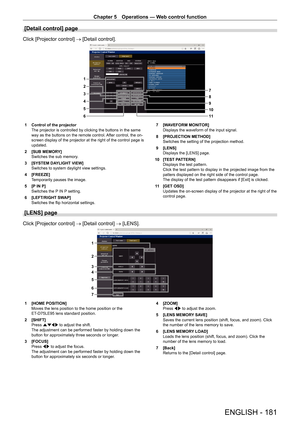

[Detail control] page
Click [Projector control] → [Detail control].
5 4
6 3 2
1
11 9 8
7
10
1 Control of the projector
The projector is controlled by clicking the buttons in the same
way as the buttons on the remote control. After control, the on-
screen display of the projector at the right of the control page is
updated.
2

[SUB MEMOR
 Y]
Switches the sub memory.
3

[SYSTEM DA
 YLIGHT VIEW]
Switches to system daylight view settings.
4...

Chapter 5 Operations — Web control function
182 - ENGLISH

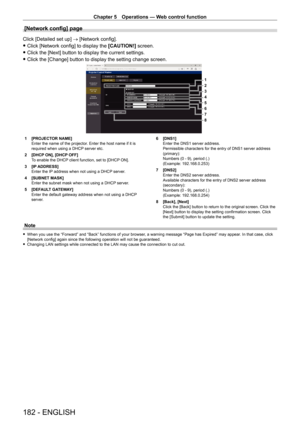

[Network config] page
Click [Detailed set up] → [Network config].
 fClick [Network config] to display the  [CAUTION!]

 screen.
 fClick the [Next] button to display the current settings.
 fClick the [Change] button to display the setting change screen.
1
2
3
4
5
6
7
8
1 [PROJECT OR NAME]
Enter the name of the projector. Enter the host name if it is
required when using a DHCP server etc.
2

[DHCP
  ON], [DHCP OFF]
To enable the DHCP client...

Chapter 5 Operations — Web control function
ENGLISH - 183

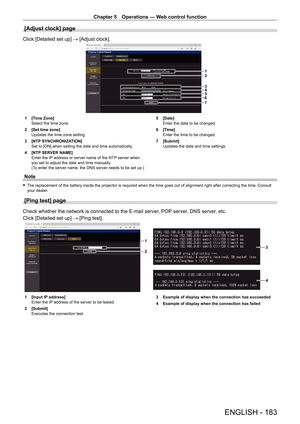

[Adjust clock] page
Click [Detailed set up] → [Adjust clock].
1
2
3
4
5
6
7
1 [Time Zone]
Select the time zone.
2

[Set time zone]
Updates the time zone setting.
3


[NTP
  SYNCHRONIZATION]
Set to [ON] when setting the date and time automatically.
4

[NTP
  SERVER NAME]
Enter the IP address or server name of the NTP server when
you set to adjust the date and time manually.
(To enter the server name, the DNS server needs to be set up.) 5...

Chapter 5 Operations — Web control function
184 - ENGLISH

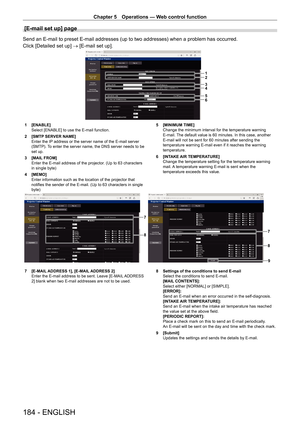

[E-mail set up] page
Send an E-mail to preset E-mail addresses (up to two addresses) when a problem has occurred.
Click [Detailed set up] → [E-mail set up].
1
2
3
4
5
6
1 [ENABLE]
Select [ENABLE] to use the E-mail function.
2

[SMTP
  SERVER NAME]
Enter the IP address or the server name of the E-mail server
(SMTP). To enter the server name, the DNS server needs to be
set up.
3

[MAIL
  FROM]
Enter the E-mail address of the projector. (Up to 63...

Chapter 5 Operations — Web control function
ENGLISH - 185

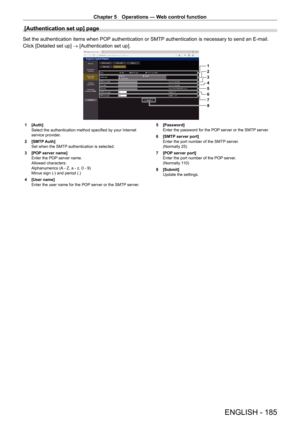

[Authentication set up] page
Set the authentication items when POP authentication or SMTP authentication is necessary to send an E-mail.
Click [Detailed set up] → [Authentication set up].
1
2
3
4
5
6
7
8
1 [Auth]
Select the authentication method specified by your Internet
service provider
.
2

[SMTP
  Auth]
Set when the SMTP authentication is selected.
3

[POP
  server name]
Enter the POP server name.
Allowed characters:
Alphanumerics (A - Z, a...

Chapter 5 Operations — Web control function
186 - ENGLISH

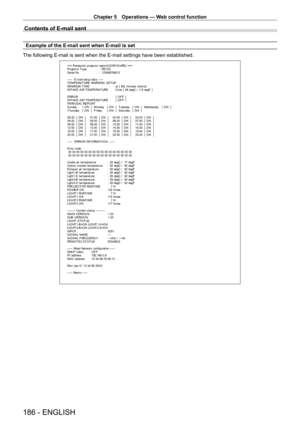

Contents of E-mail sent
Example of the E-mail sent when E-mail is set
The following E-mail is sent when the E-mail settings have been establis\
hed.
=== P anas onic  pr ojec t or  r epor t ( CO NF I G URE )  ===
P r ojec t or  T y pe  :  RZ 31K
S er ial No  :  123456789012
-----  E-mail set up dat a -----
T EMPERAT URE WARNING  SET UP
MINIMUM TIME  at  [  60]  m inut es  int er v al
I NT A K E  A I R T E M P E RA T URE   O v er  [  46 degC /...

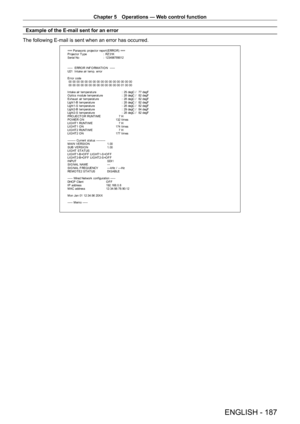

Chapter 5 Operations — Web control function
ENGLISH - 187
Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== P anas onic  pr ojec t or  r epor t ( E RRO R)  ===
P r ojec t or  T y pe  :  RZ 31K
S er ial No  :  123456789012
-----  ERRO R I NF O RMAT I O N  -----
U21  I nt ak e air  t em p.  er r or
E r r or  c ode
 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
 00 00 00 00 00 00 00 00 00 00 00 00 00 01 00 00
I nt ak e air  t em per at ur e  :  25 degC /...

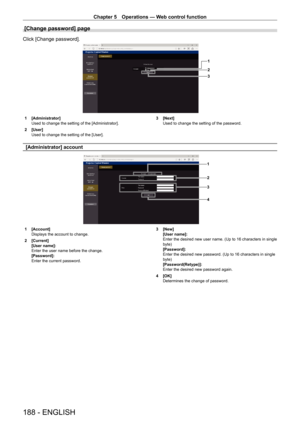

Chapter 5 Operations — Web control function
188 - ENGLISH
[Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of the [Administrator].
2

[User]
Used to change the setting of the [User]. 3

 [Next]
Used to change the setting of the password.
[Administrator] account
1
3
2
4
1 [Account]
Displays the account to change.
2

[Current]
[User name]:
Enter the user name before the change.
[Password]:
Enter the current password. 3

 [New]
[User name]:
Enter the...

Chapter 5 Operations — Web control function
ENGLISH - 189

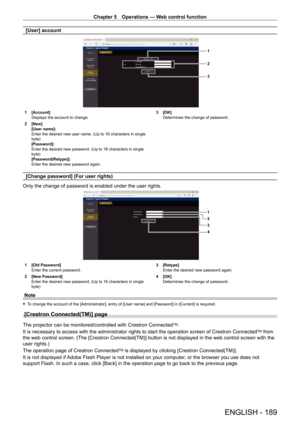

[User] account
1
2
3
1 [Account]
Displays the account to change.
2

[New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single
byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single
byte)
[Password(Retype)]:
Enter the desired new password again. 3

 [OK]
Determines the change of password.
[Change password] (For user rights)
Only the change of password is enabled under the user rights.
1
2
4...

Chapter 5 Operations — Web control function
190 - ENGLISH

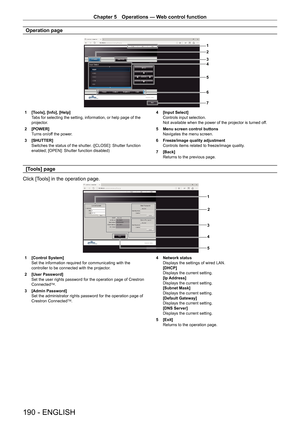

Operation page
1
2
34
5
6
7
1 [Tools], [Info], [Help]Tabs for selecting the setting, information, or help page of the
projector.
2

[POWER]
T

urns on/off the power.
3

[SHUTTER]
Switches the status of the shutter

. ([CLOSE]: Shutter function
enabled; [OPEN]: Shutter function disabled) 4
 [Input Select]
Controls input selection.
Not available when the power of the projector is turned of
f.
5

Menu screen control buttons
Navigates the menu...
