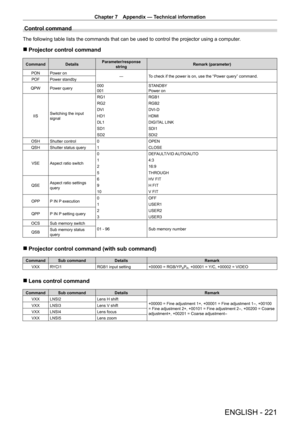

Control command
The following table lists the commands that can be used to control the p\
rojector using a computer.
 rProjector control command
Command Details Parameter/response
string Remark (parameter)
PON Power on
―To check if the power is on, use the “Power query” command.
POF Power standby
QPW Power query 000
001 STANDBY
Power on
IIS Switching the input
signal RG1
RGB1
RG2 RGB2
DVI DVI
- D
HD1 HDMI
DL1 DIGITAL LINK
SD1 SDI1
SD2 SDI2
OSH...

Chapter 7 Appendix — Technical information
222 - ENGLISH
 terminal

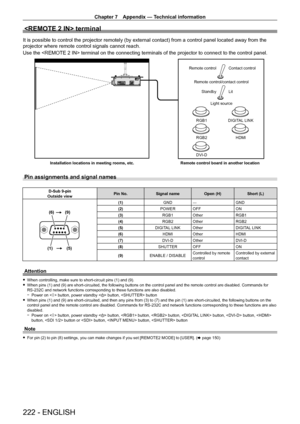

It is possible to control the projector remotely (by external contact) from a control panel located away from the
projector where remote control signals cannot reach.
Use the  terminal on the connecting terminals of the projector to connect to the control panel.
Remote control Contact controlRemote control/contact control Standby Lit
Light source
RGB1 DIGITAL LINK
RGB2 HDMI
DVI-D
Installation locations in meeting rooms, etc. Remote...

Chapter 7 Appendix — Technical information
ENGLISH - 223

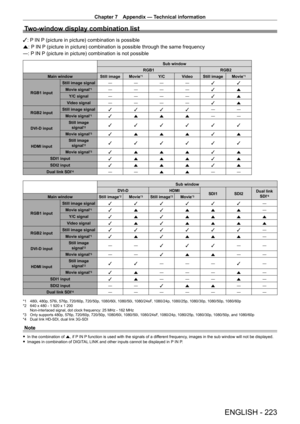

Two-window display combination list
l: P IN P (picture in picture) combination is possible
a: P IN P (picture in picture) combination is possible through the same frequency
―: P IN P (picture in picture) combination is not possible
Sub window
RGB1 RGB2
Main window Still image Movie
*1Y/C Video Still image Movie*1
RGB1 inputStill image signal
――――
ll
Movie signal*1― ―――
la
Y/C signal ――――
la
Video signal ――――
la
RGB2 input Still image signal
llll―...

Chapter 7 Appendix — Technical information
224 - ENGLISH

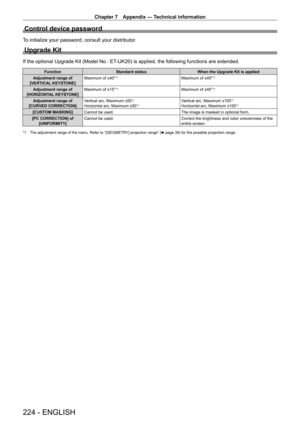

Control device password
To initialize your password, consult your distributor.
Upgrade Kit
If the optional Upgrade Kit (Model No.: ET-UK20) is applied, the following functions are extended.
FunctionStandard status When the Upgrade Kit is applied
Adjustment range of
[VERTICAL KEYSTONE] Maximum of ±40°
*1Maximum of ±45°*1
Adjustment range of
[HORIZONTAL KEYSTONE] Maximum of ±15°*1Maximum of ±40°*1
Adjustment range of
[CURVED CORRECTION] Vertical...

Chapter 7 Appendix — Technical information
ENGLISH - 225

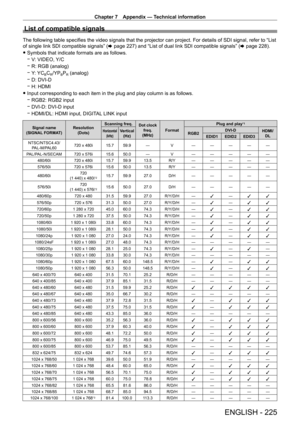

List of compatible signals
The following table specifies the video signals that the projector can project. For details of SDI signal, refer to “List
of single link SDI compatible signals” (x
  page   227) and “List of dual link SDI compatible signals” ( x
  page   228).
 fSymbols that indicate formats are as follows.
 gV

: VIDEO, Y/C
 gR: RGB (analog)
 gY

: YC
BCR/YPBPR (analog)
 gD: DVI

-
D
 g H: HDMI
 fInput corresponding to each item in the...

Chapter 7 Appendix — Technical information
226 - ENGLISH

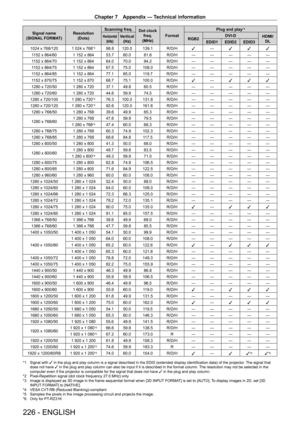

Signal name
(SIGNAL FORMAT) Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) Format Plug and play*1
Horizontal
(kHz)Vertical(Hz)RGB2 DVI - D
HDMI/
DL
EDID1 EDID2 EDID3
1024

x

768/120 1

024

x

768
*398.8 120.0 139.1 R/D/H
l―
l l l
1152

x

864/60 1

152

x

864 53.7 60.0 81.6 R/D/H ― ― ― ― ―
1152

x

864/70 1

152

x

864 64.0 70.0 94.2 R/D/H ― ― ― ― ―
1152

x

864/75 1

152

x

864 67.5 75.0 108.0 R/D/H ― ― ― ― ―...

Chapter 7 Appendix — Technical information
ENGLISH - 227
Note
 fA signal with a different resolution is converted to the number of display dots. The number of display dots is as follows. gPT-
RZ31K: 1   920   x   1   200
 gPT-

RS30K: 1   400   x   1   050
 fThe “i” at the end of the resolution indicates an interlaced signal. fWhen interlaced signals are connected, flickering may occur on the projected image. fDIGIT

AL LINK input compatible signal is the same as HDMI input compatible signal.

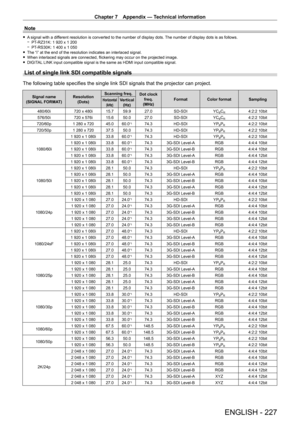

List of...

Chapter 7 Appendix — Technical information
228 - ENGLISH

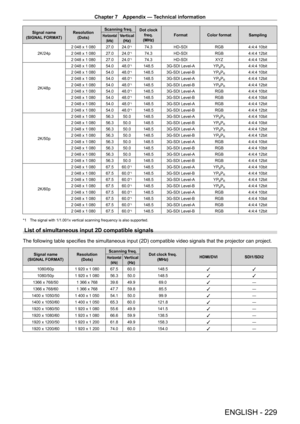

Signal name
(SIGNAL FORMAT) Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) Format Color format SamplingHorizontal
(kHz)Vertical(Hz)
2K/25p 2

048

x

1

080 28.1 25.0 74.3 3G-SDI Level-A RGB 4:4:4 10bit
2

048

x

1

080 28.1 25.0 74.3 3G-SDI Level-B RGB 4:4:4 10bit
2

048

x

1

080 28.1 25.0 74.3 3G-SDI Level-A RGB 4:4:4 12bit
2

048

x

1

080 28.1 25.0 74.3 3G-SDI Level-B RGB 4:4:4 12bit
2

048

x

1

080 28.1 25.0...

Chapter 7 Appendix — Technical information
ENGLISH - 229
Signal name
(SIGNAL FORMAT) Resolution
(Dots) Scanning freq.
Dot clock
freq.
(MHz) Format Color format SamplingHorizontal
(kHz)Vertical(Hz)
2K/24p 2

048

x

1

080 27.0 24.0
*174.3 HD - SDIRGB4:4:4 10bit
2

048

x

1

080 27.0 24.0
*174.3 HD - SDIRGB4:4:4 12bit
2

048

x

1

080 27.0 24.0
*174.3 HD - SDIXYZ4:4:4 12bit
2K/48p 2

048

x

1

080 54.0 48.0
*1148.5 3G-SDI Level-A YPBPR4:4:4 10bit
2

048

x

1

080 54.0 48.0
*1148.5...

Chapter 7 Appendix — Technical information
230 - ENGLISH

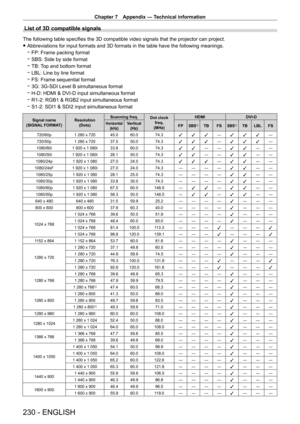

List of 3D compatible signals
The following table specifies the 3D compatible video signals that the projector can project.
 fAbbreviations for input formats and 3D formats in the table have the fol\
lowing meanings.
 gFP: Frame packing format
 gSBS: Side by side format
 gTB:

Top and bottom format
 gLBL: Line by line format
 gFS: Frame sequential format
 g3G: 3G

- SDI Level B simultaneous format
 gH

- D: HDMI & DVI - D input simultaneous...
