Panasonic Projector PT-RS30K User Manual

Chapter 6 Maintenance — Maintenance/replacement
ENGLISH - 201

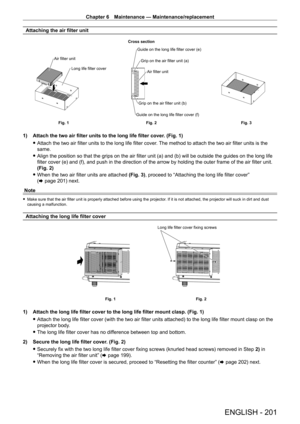

Attaching the air filter unit
Long life filter cover
Air filter unit
Guide on the long life filter cover (e)
Grip on the air filter unit (a)
Grip on the air filter unit (b)
Guide on the long life filter cover (f) Air filter unit
Fig. 3
Fig. 2
Fig. 1 Cross section
1) Attach the two air filter units to the long life filter cover
. (Fig. 1)
 fAttach the two air filter units to the long life filter cover

. The method to attach the two air filter...

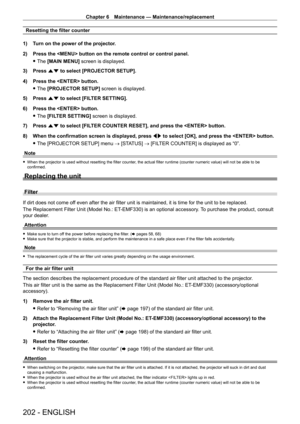

Chapter 6 Maintenance — Maintenance/replacement
202 - ENGLISH
Resetting the filter counter
1)
T
 urn on the power of the projector.
2)

Press the  button on the remote control or control panel.
 f The

[MAIN MENU] screen is displayed.
3)

Press
 as to select [PROJECTOR SETUP].
4)

Press the  button.
 f The

[PROJECTOR SETUP] screen is displayed.
5)

Press
 as to select [FILTER SETTING].
6)

Press the  button.
 f The

[FILTER SETTING] screen is displayed.
7)

Press
 as to select [FILTER...

Chapter 6 Maintenance — Maintenance/replacement
ENGLISH - 203

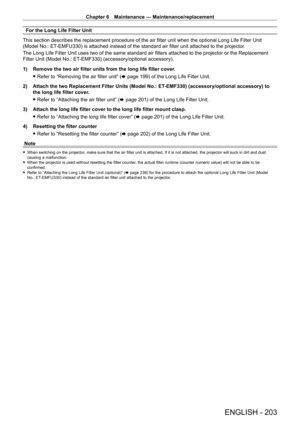

For the Long Life Filter Unit
This section describes the replacement procedure of the air filter unit when the optional Long Life Filter Unit
(Model No.: ET
-

EMFU330) is attached instead of the standard air filter unit attached to the projector .
The Long Life Filter Unit uses two of the same standard air filters attached to the projector or the Replacement
Filter Unit (Model No.: ET
-

EMF330) (accessory/optional accessory).
1)

Remove...

Chapter 6 Maintenance — Troubleshooting
204 - ENGLISH

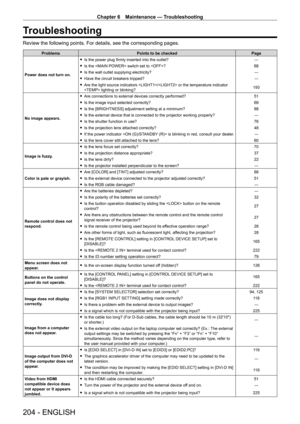

Troubleshooting
Review the following points. For details, see the corresponding pages.
ProblemsPoints to be checked Page
Power does not turn on.
 f Is the power plug firmly inserted into the outlet? ―
 fIs the  switch set to ? 68
 fIs the wall outlet supplying electricity? ―
 fHave the circuit breakers tripped? ―
 fAre the light source indicators / or the temperature indicator
 lighting or blinking? 193
No image appears.
 f Are connections to...

Chapter 6 Maintenance — Troubleshooting
ENGLISH - 205

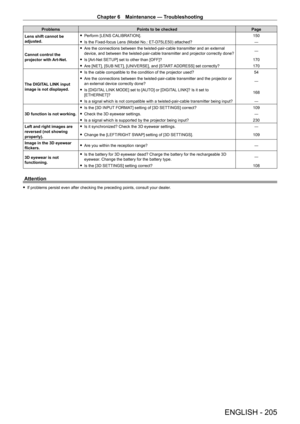

ProblemsPoints to be checked Page
Lens shift cannot be
adjusted.
 f Perform [LENS CALIBRA

TION]. 150
 fIs the Fixed-focus Lens (Model No.: ET-

D75LE50) attached?―
Cannot control the
projector with Art-Net.
 f Are the connections between the twisted-pair-cable transmitter and an external
device, and between the twisted-pair-cable transmitter and projector cor\
rectly done? ―
 f
Is [Art-Net SETUP] set to other than [OFF]? 170
 fAre [NET], [SUB...

Chapter 6 Maintenance — Self-diagnosis display
206 - ENGLISH

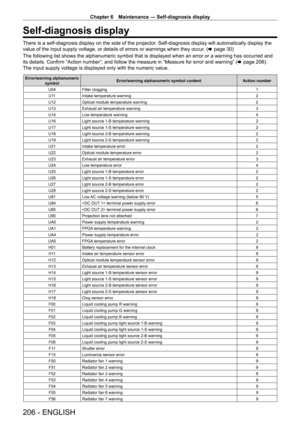

Self-diagnosis display
There is a self-diagnosis display on the side of the projector. Self-diagnosis display will automatically display the
value of the input supply voltage, or details of errors or warnings when they occur. (x
  page   30)
The following list shows the alphanumeric symbol that is displayed when \
an error or a warning has occurred and
its details. Confirm “Action number”, and follow the measure in “Measure for error and...

Chapter 6 Maintenance — Self-diagnosis display
ENGLISH - 207

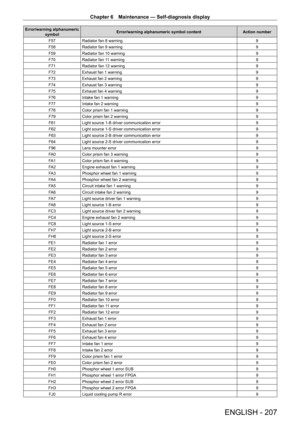

Error/warning alphanumeric symbol Error/warning alphanumeric symbol content
Action number
F57 Radiator fan 8 warning 9
F58 Radiator fan 9 warning 9
F59 Radiator fan 10 warning 9
F70 Radiator fan 11 warning 9
F71 Radiator fan 12 warning 9
F72 Exhaust fan 1 warning 9
F73 Exhaust fan 2 warning 9
F74 Exhaust fan 3 warning 9
F75 Exhaust fan 4 warning 9
F76 Intake fan 1 warning 9
F77 Intake fan 2 warning 9
F78 Color prism fan 1 warning 9
F79 Color...

Chapter 6 Maintenance — Self-diagnosis display
208 - ENGLISH

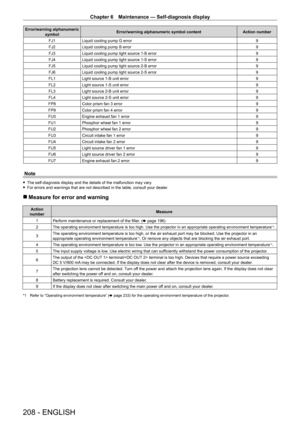

Error/warning alphanumeric symbol Error/warning alphanumeric symbol content
Action number
FJ1 Liquid cooling pump G error 9
FJ2 Liquid cooling pump B error 9
FJ3 Liquid cooling pump light source 1-B error 9
FJ4 Liquid cooling pump light source 1-S error 9
FJ5 Liquid cooling pump light source 2-B error 9
FJ6 Liquid cooling pump light source 2-S error 9
FL1 Light source 1-B unit error 9
FL2 Light source 1-S unit error 9
FL3 Light source 2-B unit...

ENGLISH - 209

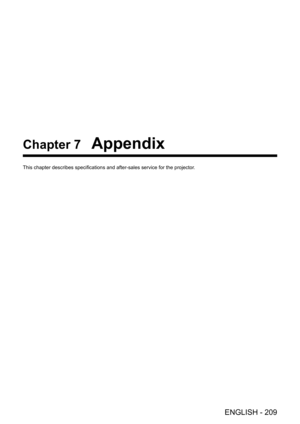

Chapter 7 Appendix
This chapter describes specifications and after-sales service for the projector.

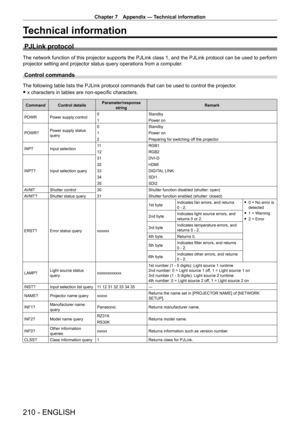

Chapter 7 Appendix — Technical information
210 - ENGLISH
Technical information
PJLink protocol
The network function of this projector supports the PJLink class 1, and the PJLink protocol can be used to perform
projector setting and projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used to control the projector .
 fx characters in tables are non-specific characters.
Command Control details Parameter/response
string...
