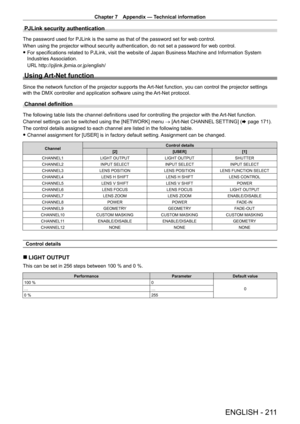

Panasonic Projector PT-RS30K User Manual

Chapter 7 Appendix — Technical information
ENGLISH - 211
PJLink security authentication
The password used for PJLink is the same as that of the password set for web control.
When using the projector without security authentication, do not set a p\
assword for web control.
 fFor specifications related to PJLink, visit the website of Japan Business Machine and Information System
Industries Association.
URL

 http://pjlink.jbmia.or.jp/english/
Using Art-Net function
Since the network function of the...

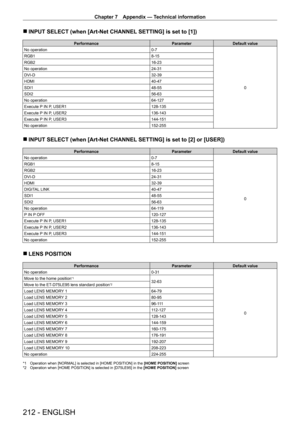

Chapter 7 Appendix — Technical information
212 - ENGLISH
 rINPUT SELECT (when [Art-Net CHANNEL  SETTING] is set to [1])
Performance ParameterDefault value
No operation 0
- 7
0
RGB1
8
- 15
RGB2 16
- 23
No operation 24
- 31
DVI
-
D 32
- 39
HDMI 40
- 47
SDI1 48
- 55
SDI2 56
- 63
No operation 64
- 127
Execute P IN P, USER1 128
- 135
Execute P IN P, USER2 136
- 143
Execute P IN P, USER3 144
- 151
No operation 152
- 255
 rINPUT SELECT (when [Art-Net CHANNEL  SETTING] is set to [2] or [USER])
Performance...

Chapter 7 Appendix — Technical information
ENGLISH - 213

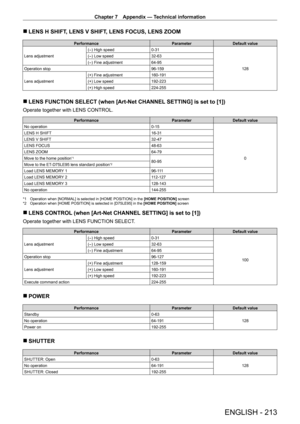

 rLENS H SHIFT , LENS V SHIFT, LENS FOCUS, LENS ZOOM
Performance ParameterDefault value
Lens adjustment (
-) High speed
0 - 31
128
(
-) Low speed
32 - 63
(
-) Fine adjustment 64 - 95
Operation stop 96
- 159
Lens adjustment (+) Fine adjustment
160
- 191
(+) Low speed 192
- 223
(+) High speed 224
- 255
 rLENS FUNCTION SELECT (when [Art-Net CHANNEL  SETTING] is set to [1])
Operate together with LENS CONTROL.
PerformanceParameterDefault value
No...

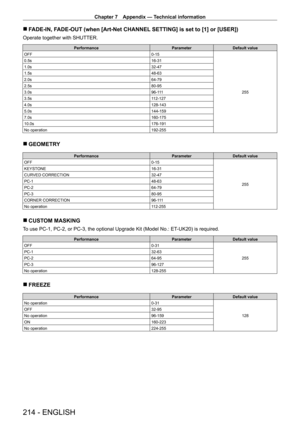

Chapter 7 Appendix — Technical information
214 - ENGLISH
 rFADE-IN, FADE-OUT (when [Art-Net CHANNEL SETTING] is set to [1] or [USER])
Operate together with SHUTTER.
Performance ParameterDefault value
OFF 0
- 15
255
0.5s
16
- 31
1.0s 32
- 47
1.5s 48
- 63
2.0s 64
- 79
2.5s 80
- 95
3.0s 96
- 111
3.5s 112
- 127
4.0s 128
- 143
5.0s 144
- 159
7.0s 160
- 175
10.0s 176
- 191
No operation 192
- 255
 rGEOMETR Y
Performance ParameterDefault value
OFF 0
- 15
255
KEYSTONE
16
- 31
CURVED CORRECTION 32
- 47
PC-1 48
-...

Chapter 7 Appendix — Technical information
ENGLISH - 215

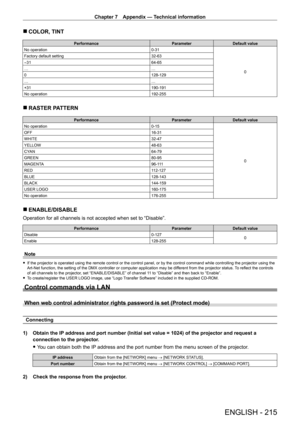

 rCOLOR, TINT
Performance ParameterDefault value
No operation 0
- 31
0
Factory default setting
32
- 63
-31 64 - 65
… …
0 128
- 129
… …
+31 190
- 191
No operation 192
- 255
 rRASTER P ATTERN
Performance ParameterDefault value
No operation 0
- 15
0
OFF
16
- 31
WHITE 32
- 47
YELLOW 48
- 63
CYAN 64
- 79
GREEN 80
- 95
MAGENTA 96
- 111
RED 112
- 127
BLUE 128
- 143
BLACK 144
- 159
USER LOGO 160
- 175
No operation 176
- 255
 rENABLE/DISABLE
Operation for...

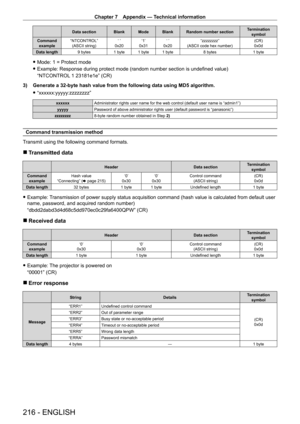

Chapter 7 Appendix — Technical information
216 - ENGLISH
Data section Blank Mode Blank Random number sectionTermination
symbol
Command  example “NTCONTROL”
(ASCII string) ‘ ’
0x20 ‘1’
0x31 ‘ ’
0x20 “zzzzzzzz”
(ASCII code hex number) (CR)
0x0d
Data length 9
  bytes 1
  byte 1   byte 1   byte8
  bytes1
  byte
 fMode: 1 = Protect mode
 fExample: Response during protect mode (random number section is undefined value)
“NTCONTROL

 1 23181e1e” (CR)
3)

Generate a 32-byte hash value from the following data...

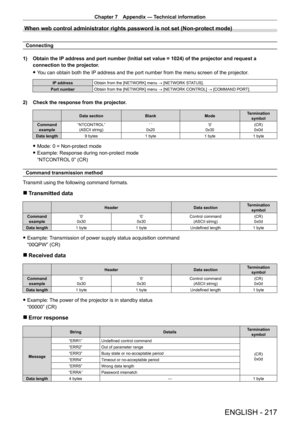

Chapter 7 Appendix — Technical information
ENGLISH - 217
When web control administrator rights password is not set (Non-protect \
mode)
Connecting
1)
Obtain the IP
  address and port number (Initial set value = 1024) of the projector a\
nd request a
connection to the projector.
 f Y

ou can obtain both the IP address and the port number from the menu screen of the projector.
IP address Obtain from the [NETWORK] menu → [NETWORK STATUS].
Port number Obtain from the [NETWORK] menu → [NETWORK CONTROL]  →...

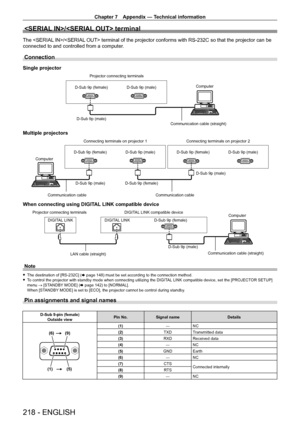

Chapter 7 Appendix — Technical information
218 - ENGLISH
/ terminal
The / terminal of the projector conforms with RS-232C so that the projector can be
connected to and controlled from a computer .
Connection
Single projector
Projector connecting terminals
Computer
D-Sub 9p (male) Communication cable (straight)
D-Sub 9p (female) D-Sub 9p (male)
Multiple projectors
D-Sub 9p (female) D-Sub 9p (male)
Connecting terminals on projector 2
D-Sub 9p (female) D-Sub 9p (male) Connecting terminals on projector 1...

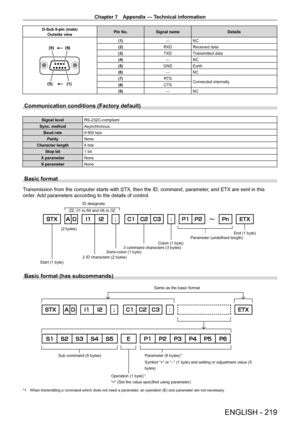

Chapter 7 Appendix — Technical information
ENGLISH - 219
D-Sub 9-pin (male)Outside view Pin No.
Signal name Details
(5) (1)(9) (6)
(1)
―NC
(2) RXDReceived data
(3) TXDTransmitted data
(4) ―NC
(5) GNDEarth
(6) ―NC
(7) RTS
Connected internally
(8) CTS
(9) ―NC
Communication conditions (Factory default)
Signal level RS - 232C-compliant
Sync. method Asynchronous
Baud rate 9
  600   bps
Parity None
Character length 8 bits
Stop bit 1 bit
X parameter None
S parameter None
Basic format
Transmission from the...

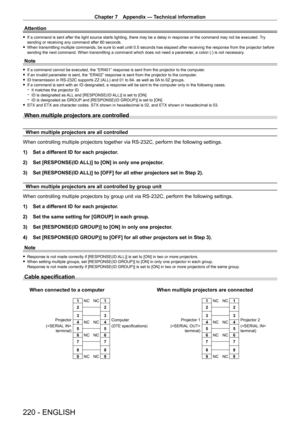

Chapter 7 Appendix — Technical information
220 - ENGLISH
Attention
 fIf a command is sent after the light source starts lighting, there may be a delay in response or the command may not be executed.  T ry
sending or receiving any command after 60 seconds.
 f When transmitting multiple commands, be sure to wait until 0.5 seconds h\
as elapsed after receiving the response from the projector before
sending the next command. When transmitting a command which does not need a parameter , a colon (:) is not...
