Contents
ContentsBe sure to read “Read this first!” from page 2.
Read this first! ............................................2
Chapter 1
 Preparation
Precautions for use ................................................. 14
Cautions when transporting
 ......
 ............................14
Cautions when installing
 ......

.................................14
Security
 .....

........................................................... 15
DIGITAL LINK
 .........

12 - ENGLISH
Contents
[DISPLAY OPTION] menu
 ........................................ 59
[COLOR MATCHING]
 ......

..................................... 59
[SCREEN SETTING] (only for PT-RW330U) ........ 60
[AUTO SIGNAL]
 .....

.............................................. 61
[AUTO SETUP]..................................................... 61 [COMPUTER IN]
 .......................

........................... 61
[DVI-I IN]
 ......

......................................................... 62
[HDMI IN]...

ENGLISH - 13
Chapter 1 Preparation
This chapter describes things you need to know or check before using the\
 projector.

Chapter 1 Preparation — Precautions for use
14 - ENGLISH
Precautions for use
Cautions when transporting
 fWhen transporting the projector, hold it securely by its bottom and avoid excessive vibration and impac\
ts. Doing so may
damage the internal components and result in malfunctions.
 fDo not transport the projector with the adjustable feet extended. Doing \
so may damage the adjustable feet.
Cautions when installing
 rDo not set up the projector outdoors.
The projector is designed for indoor use...

Chapter 1 Preparation — Precautions for use
ENGLISH - 15
 rCautions when setting up the projector

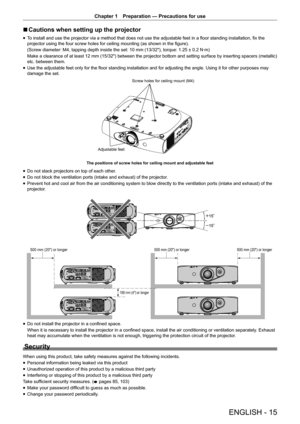

 fTo install and use the projector via a method that does not use the adjustable feet in a floor standing installation, fix the
projector using the four screw holes for ceiling mounting (as shown in the figure).
(Screw diameter: M4, tapping depth inside the set: 10 mm (13/32"), torque: 1.25 ± 0.2 N·m)
Make a clearance of at least 12 mm (15/32") between the projector bottom and setting surface by...

Chapter 1 Preparation — Precautions for use
16 - ENGLISH
 fPanasonic Corporation or its affiliate companies will never ask for your password directly
. Do not divulge your password in
case you receive such inquiries.
 f The connecting network must be secured by a firewall, etc.
 fSet a password for the web control and restrict the users who can log in\
.
DIGITAL LINK
“DIGITAL LINK” is a technology that uses a twisted-pair-cable to transmit audio and video signals.
The projector supports the optional...

Chapter 1 Preparation — Precautions for use
ENGLISH - 17

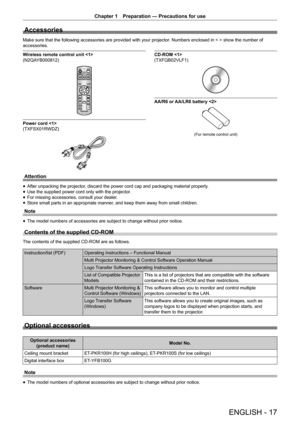

Accessories
Make sure that the following accessories are provided with your projecto\
r. Numbers enclosed in < > show the number of
accessories.
Wireless remote control unit
(N2QAYB000812)
Power cord
(TXFSX01RWDZ)
CD-ROM
(TXFQB02VLF1)
AA/R6 or AA/LR6 battery
(For remote control unit)
Attention
 fAfter unpacking the projector, discard the power cord cap and packaging material properly
.
 fUse the supplied power cord only with the projector....

Chapter 1 Preparation — Start-up display
18 - ENGLISH

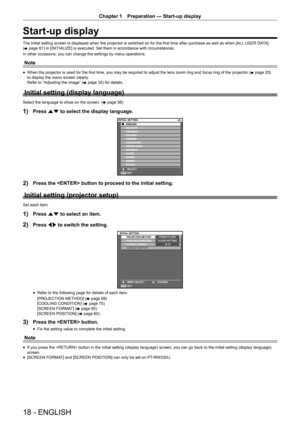

Start-up display
The initial setting screen is displayed when the projector is switched on for the first time after purchase as well as when [ALL USER DATA]
( x page 81) in [INITIALIZE] is executed. Set them in accordance with circumstan\
ces.
In other occasions, you can change the settings by menu operations.
Note
 f When the projector is used for the first time, you may be required to adjust the lens zoom ring and focus ring of the projector (
x...

Chapter 1 Preparation — About your projector
ENGLISH - 19

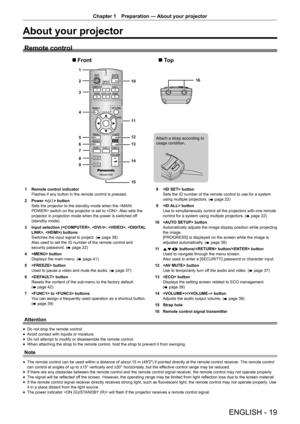

About your projector
Remote control














$WWDFKDVWUDSDFFRUGLQJWR
XVDJHFRQGLWLRQ
)URQW 7RS
1 Remote control indicator
Flashes if any button in the remote control is pressed.
2
 Power < v/
b > button
Sets the projector to the standby mode when the  switch on the projector is set to . Also sets the
projector in projection mode when the power is switched of

f
(standby mode).
3
 Input selection (, , , , )...

Chapter 1 Preparation — About your projector
20 - ENGLISH
Projector body












)URQW
)URQW
)URQW 6LGH
5HDU


)URQW
%RWWRP
1 Power indicator
Displays the status of the power.
2
 Light source indicator
Displays the status of the light source.
3
 Temperature indicator
Displays the internal temperature status.
4
 RISK GROUP 3 label
The following label is attached to the top surface of the
projector

.
529
5 Adjustable feet
Adjusts the projection angle.
6...
