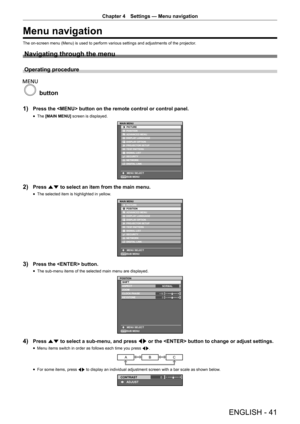

Chapter 4 Settings — Menu navigation
ENGLISH - 41
Menu navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.
Navigating through the menu
Operating procedure
button
1)
Press the button on the remote control or control panel.
f The [MAIN MENU]
screen is displayed.
(17(5
0$,10(183,&785(
326,7,21
$9$1&(0(18
,63/$](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-40.png "Page 41
Chapter 4 Settings — Menu navigation
ENGLISH - 41
Menu navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.
Navigating through the menu
Operating procedure
button
1)
Press the button on the remote control or control panel.
f The [MAIN MENU]
screen is displayed.
(17(5
0$,10(183,&785(
326,7,21
$9$1&(0(18
,63/$")
Chapter 4 Settings — Menu navigation ENGLISH - 41 Menu navigation The on-screen menu (Menu) is used to perform various settings and adjustments of the projector. Navigating through the menu Operating procedure button 1) Press the button on the remote control or control panel. f The [MAIN MENU] screen is displayed. (17(5 0$,10(183,&785( 326,7,21 $9$1&(0(18 ,63/$
Page 42
![Page 42
Chapter 4 Settings — Menu navigation
42 - ENGLISH
Note
fPressing the button or the button when the menu screen i\
s displayed returns to the previous menu. fSome items may not be adjusted or used for certain signal formats to be \
input to the projector.
The menu items that cannot be adjusted or
used are shown in gray characters, and they cannot be selected.
f Some items can be adjusted even if signals are not input. fIndividual adjustment screen is cleared automatically if no operation is...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-41.png "Page 42
Chapter 4 Settings — Menu navigation
42 - ENGLISH
Note
fPressing the button or the button when the menu screen i\
s displayed returns to the previous menu. fSome items may not be adjusted or used for certain signal formats to be \
input to the projector.
The menu items that cannot be adjusted or
used are shown in gray characters, and they cannot be selected.
f Some items can be adjusted even if signals are not input. fIndividual adjustment screen is cleared automatically if no operation is...")
Chapter 4 Settings — Menu navigation 42 - ENGLISH Note fPressing the button or the button when the menu screen i\ s displayed returns to the previous menu. fSome items may not be adjusted or used for certain signal formats to be \ input to the projector. The menu items that cannot be adjusted or used are shown in gray characters, and they cannot be selected. f Some items can be adjusted even if signals are not input. fIndividual adjustment screen is cleared automatically if no operation is...
Page 43
![Page 43
Chapter 4 Settings — Menu navigation
ENGLISH - 43
Main menu itemPage
[TEST PATTERN] 82
[SIGNAL LIST]83
[SECURITY]85
[NETWORK]88
[DIGITAL LINK]107
Sub-menu
The sub-menu of the selected main menu item is displayed, and you can se\
t and adjust items in the sub-menu.
[PICTURE]
Sub-menu itemFactory defaultPage
[PICTURE MODE] [GRAPHIC]
*146
[CONTRAST] [0]46
[BRIGHTNESS] [0]47
[COLOR] [0]47
[TINT] [0]47
[COLOR TEMPERATURE] [DEFAULT]47
[DAYLIGHT VIEW] [AUTO]49
[SHARPNESS] [6]
*149
[NOISE REDUCTION] [OFF]
*149...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-42.png "Page 43
Chapter 4 Settings — Menu navigation
ENGLISH - 43
Main menu itemPage
[TEST PATTERN] 82
[SIGNAL LIST]83
[SECURITY]85
[NETWORK]88
[DIGITAL LINK]107
Sub-menu
The sub-menu of the selected main menu item is displayed, and you can se\
t and adjust items in the sub-menu.
[PICTURE]
Sub-menu itemFactory defaultPage
[PICTURE MODE] [GRAPHIC]
*146
[CONTRAST] [0]46
[BRIGHTNESS] [0]47
[COLOR] [0]47
[TINT] [0]47
[COLOR TEMPERATURE] [DEFAULT]47
[DAYLIGHT VIEW] [AUTO]49
[SHARPNESS] [6]
*149
[NOISE REDUCTION] [OFF]
*149...")
Chapter 4 Settings — Menu navigation ENGLISH - 43 Main menu itemPage [TEST PATTERN] 82 [SIGNAL LIST]83 [SECURITY]85 [NETWORK]88 [DIGITAL LINK]107 Sub-menu The sub-menu of the selected main menu item is displayed, and you can se\ t and adjust items in the sub-menu. [PICTURE] Sub-menu itemFactory defaultPage [PICTURE MODE] [GRAPHIC] *146 [CONTRAST] [0]46 [BRIGHTNESS] [0]47 [COLOR] [0]47 [TINT] [0]47 [COLOR TEMPERATURE] [DEFAULT]47 [DAYLIGHT VIEW] [AUTO]49 [SHARPNESS] [6] *149 [NOISE REDUCTION] [OFF] *149...
Page 44
![Page 44
Chapter 4 Settings — Menu navigation
44 - ENGLISH
Note
fSub-menu items and factory default settings differ depending on the input terminal that is selected.
[DISPLAY LANGUAGE]
Details (
x page 58)
[DISPLAY OPTION]
Sub-menu item Factory defaultPage
[COLOR MATCHING] [OFF]59
[SCREEN SETTING]
*1― 60
[AUTO SIGNAL] [OFF]61
[AUTO SETUP] ―61
[COMPUTER IN] ―61
[DVI-I IN] ―62
[HDMI IN] ―63
[DIGITAL LINK IN] ―63
[ON-SCREEN DISPLAY] ―63
[CLOSED CAPTION SETTING] ―65
[BACK COLOR] [BLUE]66
[STARTUP LOGO] [DEFAULT...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-43.png "Page 44
Chapter 4 Settings — Menu navigation
44 - ENGLISH
Note
fSub-menu items and factory default settings differ depending on the input terminal that is selected.
[DISPLAY LANGUAGE]
Details (
x page 58)
[DISPLAY OPTION]
Sub-menu item Factory defaultPage
[COLOR MATCHING] [OFF]59
[SCREEN SETTING]
*1― 60
[AUTO SIGNAL] [OFF]61
[AUTO SETUP] ―61
[COMPUTER IN] ―61
[DVI-I IN] ―62
[HDMI IN] ―63
[DIGITAL LINK IN] ―63
[ON-SCREEN DISPLAY] ―63
[CLOSED CAPTION SETTING] ―65
[BACK COLOR] [BLUE]66
[STARTUP LOGO] [DEFAULT...")
Chapter 4 Settings — Menu navigation 44 - ENGLISH Note fSub-menu items and factory default settings differ depending on the input terminal that is selected. [DISPLAY LANGUAGE] Details ( x page 58) [DISPLAY OPTION] Sub-menu item Factory defaultPage [COLOR MATCHING] [OFF]59 [SCREEN SETTING] *1― 60 [AUTO SIGNAL] [OFF]61 [AUTO SETUP] ―61 [COMPUTER IN] ―61 [DVI-I IN] ―62 [HDMI IN] ―63 [DIGITAL LINK IN] ―63 [ON-SCREEN DISPLAY] ―63 [CLOSED CAPTION SETTING] ―65 [BACK COLOR] [BLUE]66 [STARTUP LOGO] [DEFAULT...
Page 45
![Page 45
Chapter 4 Settings — Menu navigation
ENGLISH - 45
[TEST PATTERN]
Details (x page 82)
[SIGNAL LIST]
Details (x page 83)
[SECURITY]
Sub-menu item Factory defaultPage
[SECURITY PASSWORD] [OFF]85
[SECURITY PASSWORD CHANGE] ―85
[TEXT DISPLAY] [OFF]86
[TEXT CHANGE] ―86
[MENU LOCK] [OFF]86
[MENU LOCK PASSWORD] ―86
[CONTROL DEVICE SETUP] ―87
[NETWORK]
Sub-menu item Factory defaultPage
[DIGITAL LINK MODE] [AUTO]88
[DIGITAL LINK SETUP] ―88
[DIGITAL LINK STATUS] ―89
[NETWORK SETUP] ―90
[NETWORK CONTROL] ―90...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-44.png "Page 45
Chapter 4 Settings — Menu navigation
ENGLISH - 45
[TEST PATTERN]
Details (x page 82)
[SIGNAL LIST]
Details (x page 83)
[SECURITY]
Sub-menu item Factory defaultPage
[SECURITY PASSWORD] [OFF]85
[SECURITY PASSWORD CHANGE] ―85
[TEXT DISPLAY] [OFF]86
[TEXT CHANGE] ―86
[MENU LOCK] [OFF]86
[MENU LOCK PASSWORD] ―86
[CONTROL DEVICE SETUP] ―87
[NETWORK]
Sub-menu item Factory defaultPage
[DIGITAL LINK MODE] [AUTO]88
[DIGITAL LINK SETUP] ―88
[DIGITAL LINK STATUS] ―89
[NETWORK SETUP] ―90
[NETWORK CONTROL] ―90...")
Chapter 4 Settings — Menu navigation ENGLISH - 45 [TEST PATTERN] Details (x page 82) [SIGNAL LIST] Details (x page 83) [SECURITY] Sub-menu item Factory defaultPage [SECURITY PASSWORD] [OFF]85 [SECURITY PASSWORD CHANGE] ―85 [TEXT DISPLAY] [OFF]86 [TEXT CHANGE] ―86 [MENU LOCK] [OFF]86 [MENU LOCK PASSWORD] ―86 [CONTROL DEVICE SETUP] ―87 [NETWORK] Sub-menu item Factory defaultPage [DIGITAL LINK MODE] [AUTO]88 [DIGITAL LINK SETUP] ―88 [DIGITAL LINK STATUS] ―89 [NETWORK SETUP] ―90 [NETWORK CONTROL] ―90...
Page 46
![Page 46
Chapter 4 Settings — [PICTURE] menu
46 - ENGLISH
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select the \
item from the
sub-menu.
Refer to “Navigating through the menu” (x
page 41) for the operation of the menu screen.
fAfter selecting the item, press
asqw to set.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source \
and the environment in which the projector is used.
1) Press as to select [PICTURE MODE].
2) Press qw to switch...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-45.png "Page 46
Chapter 4 Settings — [PICTURE] menu
46 - ENGLISH
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select the \
item from the
sub-menu.
Refer to “Navigating through the menu” (x
page 41) for the operation of the menu screen.
fAfter selecting the item, press
asqw to set.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source \
and the environment in which the projector is used.
1) Press as to select [PICTURE MODE].
2) Press qw to switch...")
Chapter 4 Settings — [PICTURE] menu 46 - ENGLISH [PICTURE] menu On the menu screen, select [PICTURE] from the main menu, and select the \ item from the sub-menu. Refer to “Navigating through the menu” (x page 41) for the operation of the menu screen. fAfter selecting the item, press asqw to set. [PICTURE MODE] You can switch to the desired picture mode suitable for the image source \ and the environment in which the projector is used. 1) Press as to select [PICTURE MODE]. 2) Press qw to switch...
Page 47
![Page 47
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 47
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1) Press as to select [BRIGHTNESS].
2) Press qw or the button.
fThe [BRIGHTNESS]
individual adjustment screen is displayed.
3) Press qw to adjust the level.
Operation Adjustment Range
Press the w button.
Increases the brightness of the dark (black) parts of the screen.
-31 - 31
Press the q button.
Reduces the brightness of the dark (black) parts of the screen.
[COLOR]
You can...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-46.png "Page 47
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 47
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1) Press as to select [BRIGHTNESS].
2) Press qw or the button.
fThe [BRIGHTNESS]
individual adjustment screen is displayed.
3) Press qw to adjust the level.
Operation Adjustment Range
Press the w button.
Increases the brightness of the dark (black) parts of the screen.
-31 - 31
Press the q button.
Reduces the brightness of the dark (black) parts of the screen.
[COLOR]
You can...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 47 [BRIGHTNESS] You can adjust the dark (black) part of the projected image. 1) Press as to select [BRIGHTNESS]. 2) Press qw or the button. fThe [BRIGHTNESS] individual adjustment screen is displayed. 3) Press qw to adjust the level. Operation Adjustment Range Press the w button. Increases the brightness of the dark (black) parts of the screen. -31 - 31 Press the q button. Reduces the brightness of the dark (black) parts of the screen. [COLOR] You can...
Page 48
![Page 48
Chapter 4 Settings — [PICTURE] menu
48 - ENGLISH
Note
fWhen [COLOR MATCHING] (
x page 59) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER].
Adjusting desired white balance
1) Press as to select [COLOR TEMPERATURE].
2) Press qw or the button.
fThe [COLOR TEMPERA
TURE] individual adjustment screen is displayed.
3) Press qw to select [USER].
4) Press the button.
fThe [COLOR TEMPERA
TURE] screen is displayed.
5) Press as to select [WHITE BALANCE].
6) Press the button....](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-47.png "Page 48
Chapter 4 Settings — [PICTURE] menu
48 - ENGLISH
Note
fWhen [COLOR MATCHING] (
x page 59) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER].
Adjusting desired white balance
1) Press as to select [COLOR TEMPERATURE].
2) Press qw or the button.
fThe [COLOR TEMPERA
TURE] individual adjustment screen is displayed.
3) Press qw to select [USER].
4) Press the button.
fThe [COLOR TEMPERA
TURE] screen is displayed.
5) Press as to select [WHITE BALANCE].
6) Press the button....")
Chapter 4 Settings — [PICTURE] menu 48 - ENGLISH Note fWhen [COLOR MATCHING] ( x page 59) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER]. Adjusting desired white balance 1) Press as to select [COLOR TEMPERATURE]. 2) Press qw or the button. fThe [COLOR TEMPERA TURE] individual adjustment screen is displayed. 3) Press qw to select [USER]. 4) Press the button. fThe [COLOR TEMPERA TURE] screen is displayed. 5) Press as to select [WHITE BALANCE]. 6) Press the button....
Page 49
![Page 49
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 49
Note
fWhen a name is changed, display of the [USER] menu is also changed.
[DAYLIGHT VIEW]
You can correct the image to the optimal vividness even if it is projecte\
d under a bright light.
1) Press as to select [DAYLIGHT VIEW].
2) Press qw or the button.
fThe [DAYLIGHT VIEW] individual adjustment screen is displayed.
3) Press qw to switch [DAYLIGHT VIEW].
fThe items will switch each time you press the button.
[AUTO]
Corrects the image vividness...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-48.png "Page 49
Chapter 4 Settings — [PICTURE] menu
ENGLISH - 49
Note
fWhen a name is changed, display of the [USER] menu is also changed.
[DAYLIGHT VIEW]
You can correct the image to the optimal vividness even if it is projecte\
d under a bright light.
1) Press as to select [DAYLIGHT VIEW].
2) Press qw or the button.
fThe [DAYLIGHT VIEW] individual adjustment screen is displayed.
3) Press qw to switch [DAYLIGHT VIEW].
fThe items will switch each time you press the button.
[AUTO]
Corrects the image vividness...")
Chapter 4 Settings — [PICTURE] menu ENGLISH - 49 Note fWhen a name is changed, display of the [USER] menu is also changed. [DAYLIGHT VIEW] You can correct the image to the optimal vividness even if it is projecte\ d under a bright light. 1) Press as to select [DAYLIGHT VIEW]. 2) Press qw or the button. fThe [DAYLIGHT VIEW] individual adjustment screen is displayed. 3) Press qw to switch [DAYLIGHT VIEW]. fThe items will switch each time you press the button. [AUTO] Corrects the image vividness...
Page 50
![Page 50
Chapter 4 Settings — [PICTURE] menu
50 - ENGLISH
[SYSTEM SELECTOR]
The projector will automatically detect the input signal, but you can se\
t the system method manually when an unstable signal is input. Set the
system method matching the input signal.
1) Press as to select [SYSTEM SELECTOR].
2) Press the button.
3) Press as to select a system format.
fAvailable system formats vary depending on the input signal.
Terminal
System format
terminal Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL-M],...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-49.png "Page 50
Chapter 4 Settings — [PICTURE] menu
50 - ENGLISH
[SYSTEM SELECTOR]
The projector will automatically detect the input signal, but you can se\
t the system method manually when an unstable signal is input. Set the
system method matching the input signal.
1) Press as to select [SYSTEM SELECTOR].
2) Press the button.
3) Press as to select a system format.
fAvailable system formats vary depending on the input signal.
Terminal
System format
terminal Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL-M],...")
Chapter 4 Settings — [PICTURE] menu 50 - ENGLISH [SYSTEM SELECTOR] The projector will automatically detect the input signal, but you can se\ t the system method manually when an unstable signal is input. Set the system method matching the input signal. 1) Press as to select [SYSTEM SELECTOR]. 2) Press the button. 3) Press as to select a system format. fAvailable system formats vary depending on the input signal. Terminal System format terminal Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL-M],...
