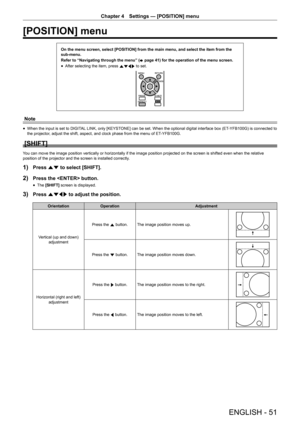

Chapter 4 Settings — [POSITION] menu
ENGLISH - 51
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select the\
item from the
sub-menu.
Refer to “Navigating through the menu” (x
page 41) for the operation of the menu screen.
fAfter selecting the item, press
asqw to set.
Note
fWhen the input is set to DIGITAL
LINK, only [KEYSTONE] can be set. When the optional digital interface box (ET-YFB100G) is connected to
the projector, adjust the shift, aspect, and clock phase...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-50.png "Page 51
Chapter 4 Settings — [POSITION] menu
ENGLISH - 51
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select the\
item from the
sub-menu.
Refer to “Navigating through the menu” (x
page 41) for the operation of the menu screen.
fAfter selecting the item, press
asqw to set.
Note
fWhen the input is set to DIGITAL
LINK, only [KEYSTONE] can be set. When the optional digital interface box (ET-YFB100G) is connected to
the projector, adjust the shift, aspect, and clock phase...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 51 [POSITION] menu On the menu screen, select [POSITION] from the main menu, and select the\ item from the sub-menu. Refer to “Navigating through the menu” (x page 41) for the operation of the menu screen. fAfter selecting the item, press asqw to set. Note fWhen the input is set to DIGITAL LINK, only [KEYSTONE] can be set. When the optional digital interface box (ET-YFB100G) is connected to the projector, adjust the shift, aspect, and clock phase...
Page 52
![Page 52
Chapter 4 Settings — [POSITION] menu
52 - ENGLISH
[ASPECT]
You can switch the aspect ratio of the image.
The aspect ratio is switched within the screen range selected in [SCREEN SETTING]. Set [SCREEN SETTING] first. (x
page 60)
[SCREEN SETTING] is available only on PT
-RW330U.
1) Press as to select [ASPECT].
2) Press qw or the button.
fThe [ASPECT]
individual adjustment screen is displayed.
3) Press qw to switch [ASPECT].
fThe items will switch each time you press the button.
[NORMAL]
Display...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-51.png "Page 52
Chapter 4 Settings — [POSITION] menu
52 - ENGLISH
[ASPECT]
You can switch the aspect ratio of the image.
The aspect ratio is switched within the screen range selected in [SCREEN SETTING]. Set [SCREEN SETTING] first. (x
page 60)
[SCREEN SETTING] is available only on PT
-RW330U.
1) Press as to select [ASPECT].
2) Press qw or the button.
fThe [ASPECT]
individual adjustment screen is displayed.
3) Press qw to switch [ASPECT].
fThe items will switch each time you press the button.
[NORMAL]
Display...")
Chapter 4 Settings — [POSITION] menu 52 - ENGLISH [ASPECT] You can switch the aspect ratio of the image. The aspect ratio is switched within the screen range selected in [SCREEN SETTING]. Set [SCREEN SETTING] first. (x page 60) [SCREEN SETTING] is available only on PT -RW330U. 1) Press as to select [ASPECT]. 2) Press qw or the button. fThe [ASPECT] individual adjustment screen is displayed. 3) Press qw to switch [ASPECT]. fThe items will switch each time you press the button. [NORMAL] Display...
Page 53
![Page 53
Chapter 4 Settings — [POSITION] menu
ENGLISH - 53
Note
fWhen [ASPECT] is set to [NATIVE], [ZOOM] cannot be adjusted.
When [ASPECT] is set to [NORMAL]
1) Press as to select [ZOOM].
2) Press the button.
fThe [ZOOM]
screen is displayed.
3) Press as to select [MODE].
4) Press qw to switch [MODE].
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT].
[FULL] Enlarges the size to the entire display area set with [SCREEN FORMAT].
5) Press as to select [INTERLOCKED].
6) Press qw to...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-52.png "Page 53
Chapter 4 Settings — [POSITION] menu
ENGLISH - 53
Note
fWhen [ASPECT] is set to [NATIVE], [ZOOM] cannot be adjusted.
When [ASPECT] is set to [NORMAL]
1) Press as to select [ZOOM].
2) Press the button.
fThe [ZOOM]
screen is displayed.
3) Press as to select [MODE].
4) Press qw to switch [MODE].
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT].
[FULL] Enlarges the size to the entire display area set with [SCREEN FORMAT].
5) Press as to select [INTERLOCKED].
6) Press qw to...")
Chapter 4 Settings — [POSITION] menu ENGLISH - 53 Note fWhen [ASPECT] is set to [NATIVE], [ZOOM] cannot be adjusted. When [ASPECT] is set to [NORMAL] 1) Press as to select [ZOOM]. 2) Press the button. fThe [ZOOM] screen is displayed. 3) Press as to select [MODE]. 4) Press qw to switch [MODE]. [INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMAT]. [FULL] Enlarges the size to the entire display area set with [SCREEN FORMAT]. 5) Press as to select [INTERLOCKED]. 6) Press qw to...
Page 54
![Page 54

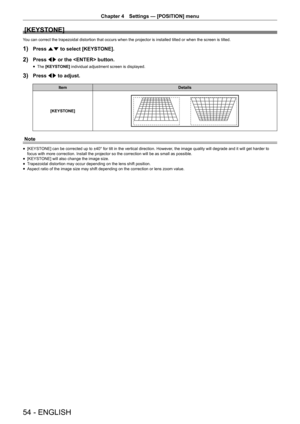

Chapter 4 Settings — [POSITION] menu
54 - ENGLISH
[KEYSTONE]
You can correct the trapezoidal distortion that occurs when the projector\
is installed tilted or when the screen is tilted.
1) Press as to select [KEYSTONE].
2) Press qw or the button.
fThe [KEYST
ONE] individual adjustment screen is displayed.
3) Press qw to adjust.
Item Details
[KEYSTONE]
Note
f [KEYSTONE] can be corrected up to ±40° for tilt in the vertical direction. However, the image quality will degrade and it will get harder to...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-53.png "Page 54
Chapter 4 Settings — [POSITION] menu
54 - ENGLISH
[KEYSTONE]
You can correct the trapezoidal distortion that occurs when the projector\
is installed tilted or when the screen is tilted.
1) Press as to select [KEYSTONE].
2) Press qw or the button.
fThe [KEYST
ONE] individual adjustment screen is displayed.
3) Press qw to adjust.
Item Details
[KEYSTONE]
Note
f [KEYSTONE] can be corrected up to ±40° for tilt in the vertical direction. However, the image quality will degrade and it will get harder to...")
Chapter 4 Settings — [POSITION] menu 54 - ENGLISH [KEYSTONE] You can correct the trapezoidal distortion that occurs when the projector\ is installed tilted or when the screen is tilted. 1) Press as to select [KEYSTONE]. 2) Press qw or the button. fThe [KEYST ONE] individual adjustment screen is displayed. 3) Press qw to adjust. Item Details [KEYSTONE] Note f [KEYSTONE] can be corrected up to ±40° for tilt in the vertical direction. However, the image quality will degrade and it will get harder to...
Page 55
![Page 55

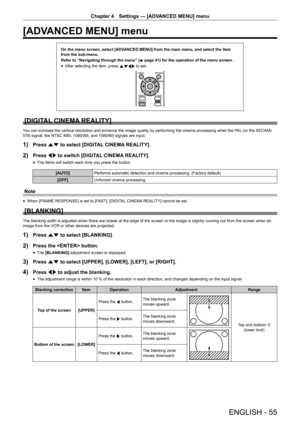

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 55
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select the item
from the sub-menu.
Refer to “Navigating through the menu” (
x
page 41) for the operation of the menu screen.
fAfter selecting the item, press
asqw to set.
[DIGITAL CINEMA REALITY]
You can increase the vertical resolution and enhance the image quality by performing the cinema processing when the PAL (or the SECAM)
576i signal, the NTSC 480i,...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-54.png "Page 55
Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 55
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select the item
from the sub-menu.
Refer to “Navigating through the menu” (
x
page 41) for the operation of the menu screen.
fAfter selecting the item, press
asqw to set.
[DIGITAL CINEMA REALITY]
You can increase the vertical resolution and enhance the image quality by performing the cinema processing when the PAL (or the SECAM)
576i signal, the NTSC 480i,...")
Chapter 4 Settings — [ADVANCED MENU] menu ENGLISH - 55 [ADVANCED MENU] menu On the menu screen, select [ADVANCED MENU] from the main menu, and select the item from the sub-menu. Refer to “Navigating through the menu” ( x page 41) for the operation of the menu screen. fAfter selecting the item, press asqw to set. [DIGITAL CINEMA REALITY] You can increase the vertical resolution and enhance the image quality by performing the cinema processing when the PAL (or the SECAM) 576i signal, the NTSC 480i,...
Page 56
![Page 56
Chapter 4 Settings — [ADVANCED MENU] menu
56 - ENGLISH

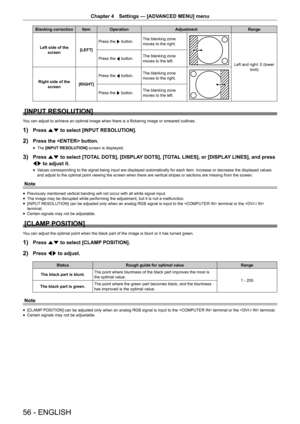

Blanking correction Item Operation AdjustmentRange
Left side of the screen [LEFT]Press the
w button. The blanking zone
moves to the right.
Left and right: 0 (lower
limit)
Press the
q button. The blanking zone
moves to the left.
Right side of the screen [RIGHT]Press the
q button. The blanking zone
moves to the right.
Press the
w button. The blanking zone
moves to the left.
[INPUT RESOLUTION]
You can adjust to achieve an optimal image when...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-55.png "Page 56
Chapter 4 Settings — [ADVANCED MENU] menu
56 - ENGLISH
Blanking correction Item Operation AdjustmentRange
Left side of the screen [LEFT]Press the
w button. The blanking zone
moves to the right.
Left and right: 0 (lower
limit)
Press the
q button. The blanking zone
moves to the left.
Right side of the screen [RIGHT]Press the
q button. The blanking zone
moves to the right.
Press the
w button. The blanking zone
moves to the left.
[INPUT RESOLUTION]
You can adjust to achieve an optimal image when...")
Chapter 4 Settings — [ADVANCED MENU] menu 56 - ENGLISH Blanking correction Item Operation AdjustmentRange Left side of the screen [LEFT]Press the w button. The blanking zone moves to the right. Left and right: 0 (lower limit) Press the q button. The blanking zone moves to the left. Right side of the screen [RIGHT]Press the q button. The blanking zone moves to the right. Press the w button. The blanking zone moves to the left. [INPUT RESOLUTION] You can adjust to achieve an optimal image when...
Page 57
![Page 57
Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 57
[FRAME RESPONSE]
If 1 080/60i, 1 080/50i, or 1 080/24sF signals are input, the video fram\
e delay can be shortened by simplifying video processing.
1) Press as to select [FRAME RESPONSE].
2) Press qw to switch [FRAME RESPONSE].
fThe items will switch each time you press the button.
[NORMAL]
Sets a priority on image quality.
[FAST] Sets a limit to the time delay.
Note
fSelecting [NORMAL] allows images to be viewed in higher quality. fIf the [NOISE...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-56.png "Page 57
Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 57
[FRAME RESPONSE]
If 1 080/60i, 1 080/50i, or 1 080/24sF signals are input, the video fram\
e delay can be shortened by simplifying video processing.
1) Press as to select [FRAME RESPONSE].
2) Press qw to switch [FRAME RESPONSE].
fThe items will switch each time you press the button.
[NORMAL]
Sets a priority on image quality.
[FAST] Sets a limit to the time delay.
Note
fSelecting [NORMAL] allows images to be viewed in higher quality. fIf the [NOISE...")
Chapter 4 Settings — [ADVANCED MENU] menu ENGLISH - 57 [FRAME RESPONSE] If 1 080/60i, 1 080/50i, or 1 080/24sF signals are input, the video fram\ e delay can be shortened by simplifying video processing. 1) Press as to select [FRAME RESPONSE]. 2) Press qw to switch [FRAME RESPONSE]. fThe items will switch each time you press the button. [NORMAL] Sets a priority on image quality. [FAST] Sets a limit to the time delay. Note fSelecting [NORMAL] allows images to be viewed in higher quality. fIf the [NOISE...
Page 58
![Page 58

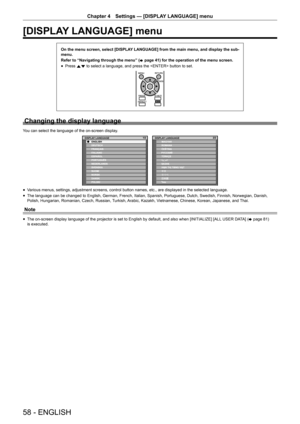

Chapter 4 Settings — [DISPLAY LANGUAGE] menu
58 - ENGLISH
[DISPLAY LANGUAGE] menu
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-
menu.
Refer to “Navigating through the menu” (
x
page 41) for the operation of the menu screen.
fPress
as to select a language, and press the button to set.
Changing the display language
You can select the language of the on-screen display.
,63/$](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-57.png "Page 58
Chapter 4 Settings — [DISPLAY LANGUAGE] menu
58 - ENGLISH
[DISPLAY LANGUAGE] menu
On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub-
menu.
Refer to “Navigating through the menu” (
x
page 41) for the operation of the menu screen.
fPress
as to select a language, and press the button to set.
Changing the display language
You can select the language of the on-screen display.
,63/$")
Chapter 4 Settings — [DISPLAY LANGUAGE] menu 58 - ENGLISH [DISPLAY LANGUAGE] menu On the menu screen, select [DISPLAY LANGUAGE] from the main menu, and display the sub- menu. Refer to “Navigating through the menu” ( x page 41) for the operation of the menu screen. fPress as to select a language, and press the button to set. Changing the display language You can select the language of the on-screen display. ,63/$
Page 59
![Page 59
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 59
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select the item from
the sub-menu.
Refer to “Navigating through the menu” (
x
page 41) for the operation of the menu screen.
fAfter selecting the item, press
asqw to set.
[COLOR MATCHING]
You can correct the color difference between the sets when multiple sets are to be used simultaneousl\
y.
Adjusting the color matching as desired
1) Press as to select...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-58.png "Page 59
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 59
[DISPLAY OPTION] menu
On the menu screen, select [DISPLAY OPTION] from the main menu, and select the item from
the sub-menu.
Refer to “Navigating through the menu” (
x
page 41) for the operation of the menu screen.
fAfter selecting the item, press
asqw to set.
[COLOR MATCHING]
You can correct the color difference between the sets when multiple sets are to be used simultaneousl\
y.
Adjusting the color matching as desired
1) Press as to select...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 59 [DISPLAY OPTION] menu On the menu screen, select [DISPLAY OPTION] from the main menu, and select the item from the sub-menu. Refer to “Navigating through the menu” ( x page 41) for the operation of the menu screen. fAfter selecting the item, press asqw to set. [COLOR MATCHING] You can correct the color difference between the sets when multiple sets are to be used simultaneousl\ y. Adjusting the color matching as desired 1) Press as to select...
Page 60
![Page 60
Chapter 4 Settings — [DISPLAY OPTION] menu
