Chapter 1 Preparation — About your projector
ENGLISH - 21

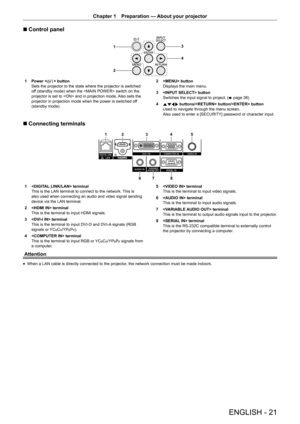

 rControl panel
3
4
1
2
1 Power <
v/
b > button
Sets the projector to the state where the projector is switched
off (standby mode) when the  switch on the
projector is set to  and in projection mode.
Also sets the
projector in projection mode when the power is switched off
(standby mode). 2  button
Displays the main menu.
3
  button
Switches the input signal to project. ( x page 38)
4
 asqw  buttons/ button/ button
Used to navigate through...

Chapter 1 Preparation — Using the remote control
22 - ENGLISH

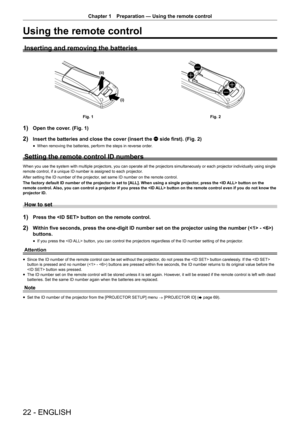

Using the remote control
Inserting and removing the batteries
(i)
(ii)
Fig. 1
Fig. 2
1) Open the cover. (Fig. 1)
2) Insert the batteries and close the cover (insert the m side first). (Fig. 2)
 fWhen removing the batteries, perform the steps in reverse order.
Setting the remote control ID numbers
When you use the system with multiple projectors, you can operate all th\
e projectors simultaneously or each projector individually using single \...

ENGLISH - 23
Chapter 2 Getting Started
This chapter describes things you need to do before using the projector \
such as the setup and connections.

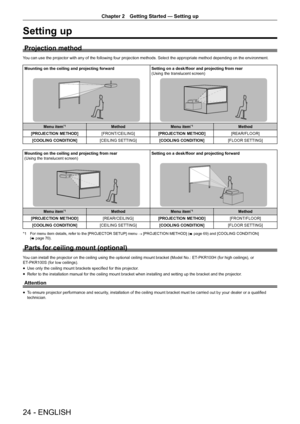

Chapter 2 Getting Started — Setting up
24 - ENGLISH
Setting up
Projection method
You can use the projector with any of the following four projection metho\
ds. Select the appropriate method depending on the environment.
Mounting on the ceiling and projecting forwardSetting on a desk/floor and projecting from rear
(Using the translucent screen)
Menu item*1MethodMenu item*1Method
[PROJECTION METHOD] [FRONT/CEILING][PROJECTION METHOD] [REAR/FLOOR]
[COOLING CONDITION] [CEILING SETTING][COOLING CONDITION]...

Chapter 2 Getting Started — Setting up
ENGLISH - 25

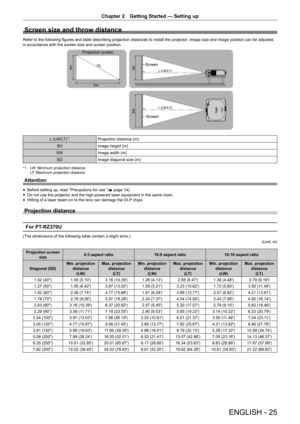

Screen size and throw distance
Refer to the following figures and table describing projection distances to install the projector. Image size and image position can be adjusted
in accordance with the screen size and screen position.
6
//:/7 
//:/7 
6: 6+6+
6:
3URMHFWLRQVFUHHQ
6FUHHQ
6FUHHQ
L (LW/LT)*1Projection distance (m)
SH Image height (m)
SW Image width (m)
SD Image diagonal size (m)
*1 LW: Minimum projection distance
L
T: Maximum...

Chapter 2 Getting Started — Setting up
26 - ENGLISH

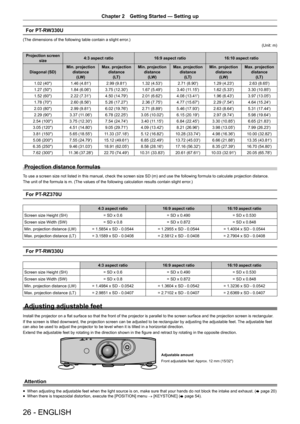

For PT-RW330U
(The dimensions of the following table contain a slight error.)(Unit: m)
Projection screen size 4:3 aspect ratio
16:9 aspect ratio16:10 aspect ratio
Diagonal (SD) Min. projection
distance(LW) Max. projection
distance(LT) Min. projection
distance(LW) Max. projection
distance(LT) Min. projection
distance(LW) Max. projection
distance(LT)
1.02 (40") 1.46 (4.81') 2.99 (9.81') 1.32 (4.53') 2.71 (8.90') 1.29 (4.23')...

Chapter 2 Getting Started — Connecting
ENGLISH - 27
Connecting
Before connecting
 fBefore connecting, carefully read the operating instructions for the ext\
ernal device to be connected.
 fTurn of

f the power of all devices before connecting cables.
 fTake note of the following points before connecting the cables. Failure t\
o do so may result in malfunctions.
 gWhen connecting a cable to a device connected to the projector or the pr\
ojector itself, touch any nearby metallic objects to eliminate static...

Chapter 2 Getting Started — Connecting
28 - ENGLISH

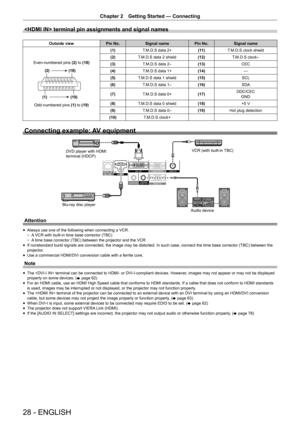

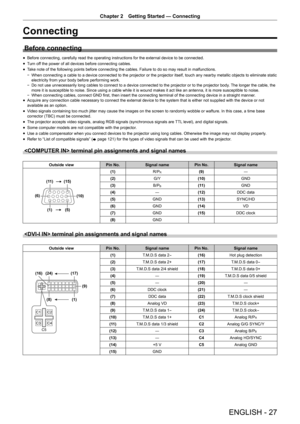

 terminal pin assignments and signal names
Outside viewPin No.Signal name Pin No.Signal name
Even-numbered pins  (2) to (18)
(1)(19)
(2) (18)
Odd-numbered pins
(1) to (19) (1)
T.M.D.S data 2+ (11)T.M.D.S clock shield
(2) T.M.D.S data 2 shield (12)T.M.D.S clock
-
(3)T.M.D.S data 2-(13) CEC
(4) T.M.D.S data 1+ (14)—
(5) T.M.D.S data 1 shield (15)SCL
(6) T.M.D.S data 1
-(16) SDA
(7) T.M.D.S data 0+ (17)DDC/CEC
GND
(8) T.M.D.S data 0 shield (18)+5 V
(9)...

Chapter 2 Getting Started — Connecting
ENGLISH - 29

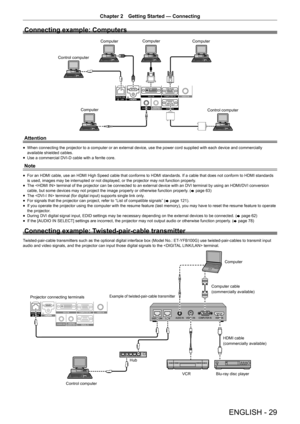

Connecting example: Computers
&RPSXWHU&RPSXWHU
&RPSXWHU
&RPSXWHU
&RQWUROFRPSXWHU
&RQWUROFRPSXWHU
Attention
 fWhen connecting the projector to a computer or an external device, use t\
he power cord supplied with each device and commercially
available shielded cables.
 fUse a commercial DVI-D cable with a ferrite core.
Note
 fFor an HDMI cable, use an HDMI High Speed cable that conforms to HDMI st\
andards. If a cable that does not conform to HDMI...

Chapter 2 Getting Started — Connecting
30 - ENGLISH
Attention
 fAlways use one of the following when connecting a VCR. gA VCR with built-in time base corrector (TBC) gA time base corrector (TBC) between the projector and the VCR fIf nonstandard burst signals are connected, the image may be distorted. In such case, connect the time base corrector (TBC) between the
projector.
 fUse a commercial HDMI/DVI conversion cable with a ferrite core. fAsk a qualified technician or your dealer to install the cable...
