Page 61
![Page 61
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 61
[AUTO SIGNAL]
Set automatic execution of auto setup.
The screen display position or signal level can be adjusted automatically without pressing the button on the remote control on
each occasion if you input unregistered signals frequently at meetings, etc.
1) Press as to select [AUTO SIGNAL].
2) Press qw to switch [AUTO SIGNAL].
fThe items will switch each time you press the button.
[OFF]
Set input auto setup to off.
[ON] Auto setup is...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-60.png "Page 61
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 61
[AUTO SIGNAL]
Set automatic execution of auto setup.
The screen display position or signal level can be adjusted automatically without pressing the button on the remote control on
each occasion if you input unregistered signals frequently at meetings, etc.
1) Press as to select [AUTO SIGNAL].
2) Press qw to switch [AUTO SIGNAL].
fThe items will switch each time you press the button.
[OFF]
Set input auto setup to off.
[ON] Auto setup is...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 61 [AUTO SIGNAL] Set automatic execution of auto setup. The screen display position or signal level can be adjusted automatically without pressing the button on the remote control on each occasion if you input unregistered signals frequently at meetings, etc. 1) Press as to select [AUTO SIGNAL]. 2) Press qw to switch [AUTO SIGNAL]. fThe items will switch each time you press the button. [OFF] Set input auto setup to off. [ON] Auto setup is...
Page 62
![Page 62
Chapter 4 Settings — [DISPLAY OPTION] menu
62 - ENGLISH
[DVI-I IN]
Switch the setting when the external equipment is connected to the terminal of the projector and the image is not projected
correctly.
When digital signals are input
1) Press as to select [DVI-I IN].
2) Press the button.
fThe [DVI-I IN]
screen is displayed.
3) Press as to select [DIGITAL/ANALOG].
4) Press qw to switch [DIGITAL].
5) Press as to select [EDID].
6) Press qw to switch [EDID].
fThe items will switch each time you press...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-61.png "Page 62
Chapter 4 Settings — [DISPLAY OPTION] menu
62 - ENGLISH
[DVI-I IN]
Switch the setting when the external equipment is connected to the terminal of the projector and the image is not projected
correctly.
When digital signals are input
1) Press as to select [DVI-I IN].
2) Press the button.
fThe [DVI-I IN]
screen is displayed.
3) Press as to select [DIGITAL/ANALOG].
4) Press qw to switch [DIGITAL].
5) Press as to select [EDID].
6) Press qw to switch [EDID].
fThe items will switch each time you press...")
Chapter 4 Settings — [DISPLAY OPTION] menu 62 - ENGLISH [DVI-I IN] Switch the setting when the external equipment is connected to the terminal of the projector and the image is not projected correctly. When digital signals are input 1) Press as to select [DVI-I IN]. 2) Press the button. fThe [DVI-I IN] screen is displayed. 3) Press as to select [DIGITAL/ANALOG]. 4) Press qw to switch [DIGITAL]. 5) Press as to select [EDID]. 6) Press qw to switch [EDID]. fThe items will switch each time you press...
Page 63
![Page 63
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 63
[HDMI IN]
Switch the setting when an external device is connected using the terminal of the projector and the image is not projected correctly.
1) Press as to select [HDMI IN].
2) Press the button.
fThe [HDMI IN]
screen is displayed.
3) Press qw to switch [SIGNAL LEVEL].
fThe items will switch each time you press the button.
[AUTO]
Automatically sets the signal level.
[64-940] Select when the HDMI terminal of an external device (such as a...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-62.png "Page 63
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 63
[HDMI IN]
Switch the setting when an external device is connected using the terminal of the projector and the image is not projected correctly.
1) Press as to select [HDMI IN].
2) Press the button.
fThe [HDMI IN]
screen is displayed.
3) Press qw to switch [SIGNAL LEVEL].
fThe items will switch each time you press the button.
[AUTO]
Automatically sets the signal level.
[64-940] Select when the HDMI terminal of an external device (such as a...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 63 [HDMI IN] Switch the setting when an external device is connected using the terminal of the projector and the image is not projected correctly. 1) Press as to select [HDMI IN]. 2) Press the button. fThe [HDMI IN] screen is displayed. 3) Press qw to switch [SIGNAL LEVEL]. fThe items will switch each time you press the button. [AUTO] Automatically sets the signal level. [64-940] Select when the HDMI terminal of an external device (such as a...
Page 64
![Page 64
Chapter 4 Settings — [DISPLAY OPTION] menu
64 - ENGLISH
4) Press qw to switch [OSD POSITION].
fThe items will switch each time you press the button.
[5]
Sets to the center of the screen.
[6] Sets to the bottom center of the screen.
[7] Sets to the upper right of the screen.
[8] Sets to the right center of the screen.
[9] Sets to the right bottom of the screen.
[1] Sets to the upper left of the screen.
[2] Sets to the center left of the screen.
[3] Sets to the bottom left of the screen.
[4] Sets to the...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-63.png "Page 64
Chapter 4 Settings — [DISPLAY OPTION] menu
64 - ENGLISH
4) Press qw to switch [OSD POSITION].
fThe items will switch each time you press the button.
[5]
Sets to the center of the screen.
[6] Sets to the bottom center of the screen.
[7] Sets to the upper right of the screen.
[8] Sets to the right center of the screen.
[9] Sets to the right bottom of the screen.
[1] Sets to the upper left of the screen.
[2] Sets to the center left of the screen.
[3] Sets to the bottom left of the screen.
[4] Sets to the...")
Chapter 4 Settings — [DISPLAY OPTION] menu 64 - ENGLISH 4) Press qw to switch [OSD POSITION]. fThe items will switch each time you press the button. [5] Sets to the center of the screen. [6] Sets to the bottom center of the screen. [7] Sets to the upper right of the screen. [8] Sets to the right center of the screen. [9] Sets to the right bottom of the screen. [1] Sets to the upper left of the screen. [2] Sets to the center left of the screen. [3] Sets to the bottom left of the screen. [4] Sets to the...
Page 65
![Page 65
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 65
Setting [INPUT GUIDE]
Set display of the input guide (display of the currently selected input terminal name, signal name, and memory number) in the position set by
the [OSD POSITION].
1) Press as to select [ON-SCREEN DISPLAY].
2) Press the button.
fThe [ON-SCREEN DISPLA
Y] screen is displayed.
3) Press as to select [INPUT GUIDE].
4) Press qw to switch [INPUT GUIDE].
fThe items will switch each time you press the button.
[ON]
Displays the input...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-64.png "Page 65
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 65
Setting [INPUT GUIDE]
Set display of the input guide (display of the currently selected input terminal name, signal name, and memory number) in the position set by
the [OSD POSITION].
1) Press as to select [ON-SCREEN DISPLAY].
2) Press the button.
fThe [ON-SCREEN DISPLA
Y] screen is displayed.
3) Press as to select [INPUT GUIDE].
4) Press qw to switch [INPUT GUIDE].
fThe items will switch each time you press the button.
[ON]
Displays the input...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 65 Setting [INPUT GUIDE] Set display of the input guide (display of the currently selected input terminal name, signal name, and memory number) in the position set by the [OSD POSITION]. 1) Press as to select [ON-SCREEN DISPLAY]. 2) Press the button. fThe [ON-SCREEN DISPLA Y] screen is displayed. 3) Press as to select [INPUT GUIDE]. 4) Press qw to switch [INPUT GUIDE]. fThe items will switch each time you press the button. [ON] Displays the input...
Page 66
![Page 66
Chapter 4 Settings — [DISPLAY OPTION] menu
66 - ENGLISH
4) Press qw to switch [MODE].
fThe items will switch each time you press the button.
[CC1]
Displays CC1 data.
[CC2] Displays CC2 data.
[CC3] Displays CC3 data.
[CC4] Displays CC4 data.
Note
fClosed captions are a function that is mainly used in North America to display text information with video signals. Captions may not\
be
displayed depending on the connected devices or software being played ba\
ck.
f[CLOSED CAPTION SETTING] can only be...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-65.png "Page 66
Chapter 4 Settings — [DISPLAY OPTION] menu
66 - ENGLISH
4) Press qw to switch [MODE].
fThe items will switch each time you press the button.
[CC1]
Displays CC1 data.
[CC2] Displays CC2 data.
[CC3] Displays CC3 data.
[CC4] Displays CC4 data.
Note
fClosed captions are a function that is mainly used in North America to display text information with video signals. Captions may not\
be
displayed depending on the connected devices or software being played ba\
ck.
f[CLOSED CAPTION SETTING] can only be...")
Chapter 4 Settings — [DISPLAY OPTION] menu 66 - ENGLISH 4) Press qw to switch [MODE]. fThe items will switch each time you press the button. [CC1] Displays CC1 data. [CC2] Displays CC2 data. [CC3] Displays CC3 data. [CC4] Displays CC4 data. Note fClosed captions are a function that is mainly used in North America to display text information with video signals. Captions may not\ be displayed depending on the connected devices or software being played ba\ ck. f[CLOSED CAPTION SETTING] can only be...
Page 67
![Page 67
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 67
[SUB MEMORY LIST]
The projector has a sub memory function that can register the multiple i\
mage adjustment data, even if it is recognized as the same signal by
the frequency or format of the synchronization signal source.
Use this function when you need to adjust the image quality such as switching of the aspect ratio or white balance by the same synchronization
signal source. The sub memory includes all the data that can be adjusted for each...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-66.png "Page 67
Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 67
[SUB MEMORY LIST]
The projector has a sub memory function that can register the multiple i\
mage adjustment data, even if it is recognized as the same signal by
the frequency or format of the synchronization signal source.
Use this function when you need to adjust the image quality such as switching of the aspect ratio or white balance by the same synchronization
signal source. The sub memory includes all the data that can be adjusted for each...")
Chapter 4 Settings — [DISPLAY OPTION] menu ENGLISH - 67 [SUB MEMORY LIST] The projector has a sub memory function that can register the multiple i\ mage adjustment data, even if it is recognized as the same signal by the frequency or format of the synchronization signal source. Use this function when you need to adjust the image quality such as switching of the aspect ratio or white balance by the same synchronization signal source. The sub memory includes all the data that can be adjusted for each...
Page 68
![Page 68
Chapter 4 Settings — [DISPLAY OPTION] menu
68 - ENGLISH
[AV MUTE]
Image and audio are muted when the projector is not used for a certain p\
eriod of time.
1) Press as to select [AV MUTE].
2) Press the button.
fPress the button to release.
Note
fThe power indicator flashes slowly when the projector is in AV mute mode.](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-67.png "Page 68
Chapter 4 Settings — [DISPLAY OPTION] menu
68 - ENGLISH
[AV MUTE]
Image and audio are muted when the projector is not used for a certain p\
eriod of time.
1) Press as to select [AV MUTE].
2) Press the button.
fPress the button to release.
Note
fThe power indicator flashes slowly when the projector is in AV mute mode.")
Chapter 4 Settings — [DISPLAY OPTION] menu 68 - ENGLISH [AV MUTE] Image and audio are muted when the projector is not used for a certain p\ eriod of time. 1) Press as to select [AV MUTE]. 2) Press the button. fPress the button to release. Note fThe power indicator flashes slowly when the projector is in AV mute mode.

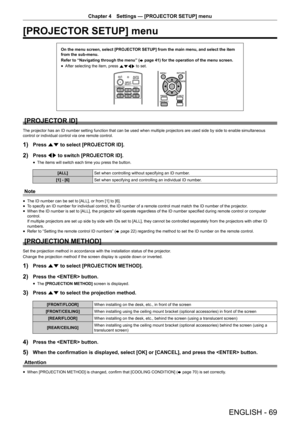

Page 69
![Page 69
Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 69
[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select the item
from the sub-menu.
Refer to “Navigating through the menu” (
x
page 41) for the operation of the menu screen.
fAfter selecting the item, press
asqw to set.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when mu\
ltiple projectors are used side by side to enable simultaneous
control or individual control...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-68.png "Page 69
Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 69
[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select the item
from the sub-menu.
Refer to “Navigating through the menu” (
x
page 41) for the operation of the menu screen.
fAfter selecting the item, press
asqw to set.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when mu\
ltiple projectors are used side by side to enable simultaneous
control or individual control...")
Chapter 4 Settings — [PROJECTOR SETUP] menu ENGLISH - 69 [PROJECTOR SETUP] menu On the menu screen, select [PROJECTOR SETUP] from the main menu, and select the item from the sub-menu. Refer to “Navigating through the menu” ( x page 41) for the operation of the menu screen. fAfter selecting the item, press asqw to set. [PROJECTOR ID] The projector has an ID number setting function that can be used when mu\ ltiple projectors are used side by side to enable simultaneous control or individual control...

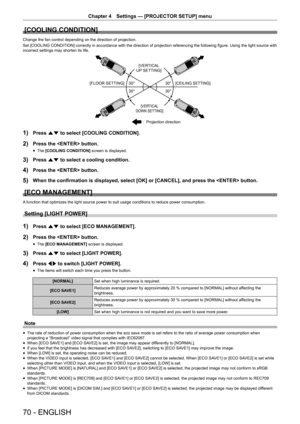

Page 70
![Page 70
Chapter 4 Settings — [PROJECTOR SETUP] menu
70 - ENGLISH
[COOLING CONDITION]
Change the fan control depending on the direction of projection.
Set [COOLING CONDITION] correctly in accordance with the direction of projection referencing the following figure. Using the light source with
incorrect settings may shorten its life.
ƒ
ƒƒ
ƒ
>9(57,&$/
836(77,1*@
>)/2256(77,1*@>&(,/,1*6(77,1*@
>9(57,&$/
2:16(77,1*@
3URMHFWLRQGLUHFWLRQ
1) Press as to select [COOLING CONDITION].
2) Press the...](http://img.usermanuals.tech/thumb/58/94710/w300_panasonic-pt-rw330u-manual_d-69.png "Page 70
Chapter 4 Settings — [PROJECTOR SETUP] menu
70 - ENGLISH
[COOLING CONDITION]
Change the fan control depending on the direction of projection.
Set [COOLING CONDITION] correctly in accordance with the direction of projection referencing the following figure. Using the light source with
incorrect settings may shorten its life.
ƒ
ƒƒ
ƒ
>9(57,&$/
836(77,1*@
>)/2256(77,1*@>&(,/,1*6(77,1*@
>9(57,&$/
2:16(77,1*@
3URMHFWLRQGLUHFWLRQ
1) Press as to select [COOLING CONDITION].
2) Press the...")
Chapter 4 Settings — [PROJECTOR SETUP] menu 70 - ENGLISH [COOLING CONDITION] Change the fan control depending on the direction of projection. Set [COOLING CONDITION] correctly in accordance with the direction of projection referencing the following figure. Using the light source with incorrect settings may shorten its life. ƒ ƒƒ ƒ >9(57,&$/ 836(77,1*@ >)/2256(77,1*@>&(,/,1*6(77,1*@ >9(57,&$/ 2:16(77,1*@ 3URMHFWLRQGLUHFWLRQ 1) Press as to select [COOLING CONDITION]. 2) Press the...
