Chapter 3 Basic Operations
This chapter describes basic operations to start with.

Chapter 3 Basic Operations — Switching on/off the projector
32 - ENGLISH

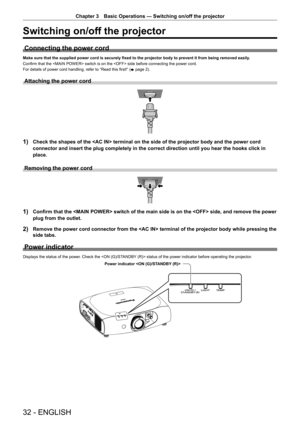

Switching on/off the projector
Connecting the power cord
Make sure that the supplied power cord is securely fixed to the projector body to prevent it from being removed easily.
Confirm that the  switch is on the  side before connecting the power cord.
For details of power cord handling, refer to “Read this first!” ( x
 page 2).
Attaching the power cord
1) Check the shapes of the  terminal on the side of the projector bo\
dy and the...

Chapter 3 Basic Operations — Switching on/off the projector
ENGLISH - 33
Indicator statusStatus
Off The main power is switched off.
Red Flashing
The power is switched off (in standby mode). [STANDBY MODE] is set to [NORMAL].
Projection will start when the power <
v/
b > button is pressed.
 f The projector may not operate when the temperature indicator  is flashing.
(
x page 109)
Lit The power is switched of

f (in standby mode). [STANDBY MODE] is set to [ECO].
Projection will start when the power < v/
b...

Chapter 3 Basic Operations — Switching on/off the projector
34 - ENGLISH

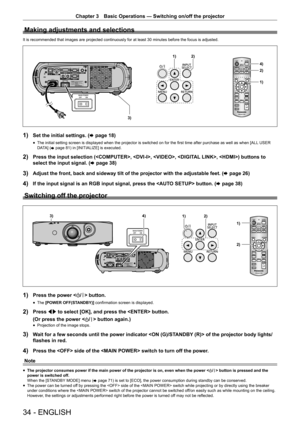

Making adjustments and selections
It is recommended that images are projected continuously for at least 30\
 minutes before the focus is adjusted.
3)
2)1)
2)
1)
4)
1) Set the initial settings. (x page 18)
 fThe initial setting screen is displayed when the projector is switched on for the first time after purchase as well as when [ALL
 USER
DAT A] (x page 81) in [INITIALIZE] is executed.
2) Press the input selection (, , , , )...

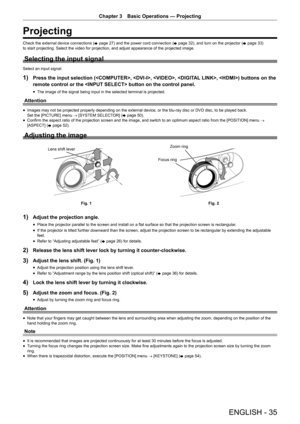

Chapter 3 Basic Operations — Projecting
ENGLISH - 35
Projecting
Check the external device connections (x page 27) and the power cord connection (x page 32), and turn on the projector (x page 33)
to start projecting. Select the video for projection, and adjust appeara\
nce of the projected image.
Selecting the input signal
Select an input signal.
1) Press the input selection (, , , , ) buttons on the
remote control or the  button on the control panel.
 f The image of the signal being input in the...

Chapter 3 Basic Operations — Projecting
36 - ENGLISH
Adjustment range by the lens position shift (optical shift)
Perform the lens position shift within the adjustment range.
The focus may change when the lens position is shifted out of the adjust\
ment range. This is because the movement of the lens is restricted to
protect the optical parts. Projection position can be adjusted with the \
optical axis shift based on the standard projection position in the rang\
e
shown in the following figures....

Chapter 3 Basic Operations — Operating with the remote control
ENGLISH - 37

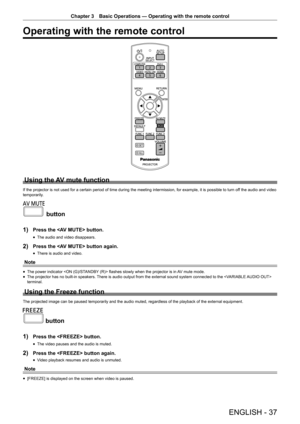

Operating with the remote control
Using the AV mute function
If the projector is not used for a certain period of time during the mee\
ting intermission, for example, it is possible to turn off the audio and video
temporarily.
 button
1)
 Press the  button.
 f The audio and video disappears.
2) Press the  button again.
 fThere is audio and video.
Note
 fThe power indicator  flashes slowly when the projector is in AV mute mode....

Chapter 3 Basic Operations — Operating with the remote control
38 - ENGLISH

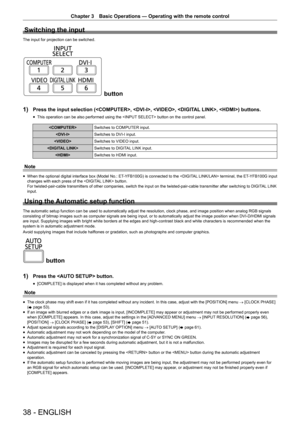

Switching the input
The input for projection can be switched.
 button
1)
 Press the input selection (, , , , ) buttons.
 f This operation can be also performed using the  button on the control panel.

Switches to COMPUTER input.
 Switches to DVI-I input.
 Switches to VIDEO input.
 Switches to DIGITAL LINK input.
 Switches to HDMI input.
Note
 fWhen the optional digital interface box (Model No.: ET-YFB100G) is connected to the...

Chapter 3 Basic Operations — Operating with the remote control
ENGLISH - 39
Using the Function button
Frequently used operations can be assigned to the buttons from  to  on the remote control to be used as simple shortcut
buttons.
 buttons
1)
 Press the  to  buttons.
When assigning operations to the buttons from  to
1) Press the  on the control panel or the remote control to display t\
he menu items (main menu,
sub-menu, or details menu) you want to assign.
 f Refer to “Navigating through the menu” (...
