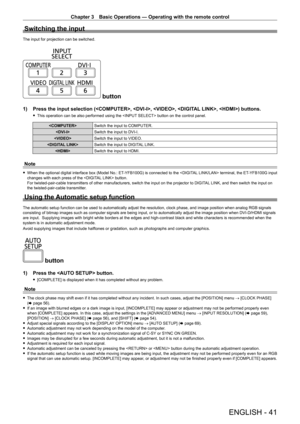

Panasonic Projector PT-RW430UW User Manual

Chapter 3 Basic Operations — Operating with the remote control
ENGLISH - 41
Switching the input
The input for projection can be switched.
 button
1) Press the input selection (, , , , ) buttons.
 fThis operation can be also performed using the  button on the control panel.
Switch the input to COMPUTER.
 Switch the input to DVI
- I.
 Switch the input to VIDEO.
 Switch the input to DIGITAL LINK.
 Switch the input to HDMI.
Note
 fWhen the optional digital interface box (Model No.: ET- YFB100G) is connected...

Chapter 3 Basic Operations — Operating with the remote control
42 - ENGLISH

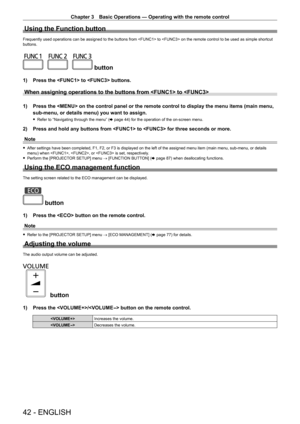

Using the Function button
Frequently used operations can be assigned to the buttons from  to  on the remote control to be used as simple shortcut
buttons.
 button
1) Press the  to  buttons.
When assigning operations to the buttons from  to
1) Press the  on the control panel or the remote control to display t\
he menu items (main menu,
sub-menu, or details menu) you want to assign.
 fRefer to “Navigating through the menu” ( x...

ENGLISH - 43

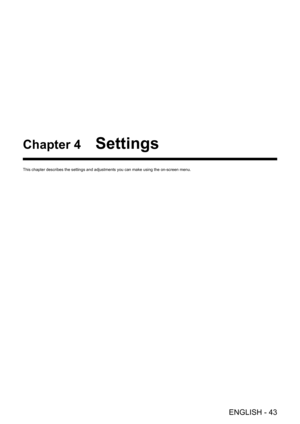

Chapter 4 Settings
This chapter describes the settings and adjustments you can make using the on-screen menu.

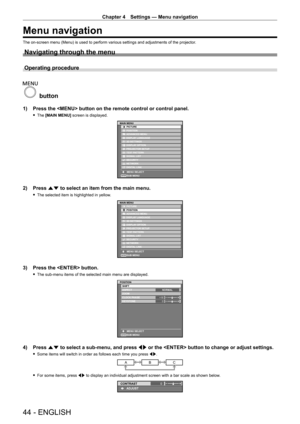

Chapter 4 Settings — Menu navigation
44 - ENGLISH
Menu navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.
Navigating through the menu
Operating procedure
 button
1) Press the  button on the remote control or control panel.
 fThe  [MAIN MENU] screen is displayed.
ENTER
MAIN MENUPICTURE
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION 3D SETTINGS
PROJECTOR SETUP
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
DIGITAL LINK
MENU SELECT
SUB MENU
2) Press...

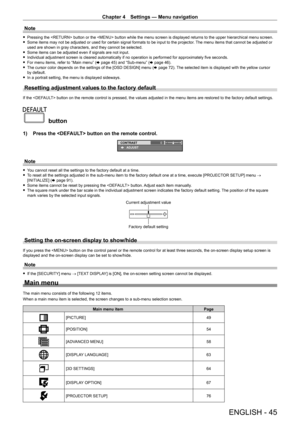

Chapter 4 Settings — Menu navigation
ENGLISH - 45
Note
 fPressing the  button or the  button while the menu screen is displayed returns to the upper hierarchical menu screen. fSome items may not be adjusted or used for certain signal formats to be input to the projector .
The menu items that cannot be adjusted or
used are shown in gray characters, and they cannot be selected.
 f Some items can be adjusted even if signals are not input. fIndividual adjustment screen is cleared automatically if no...

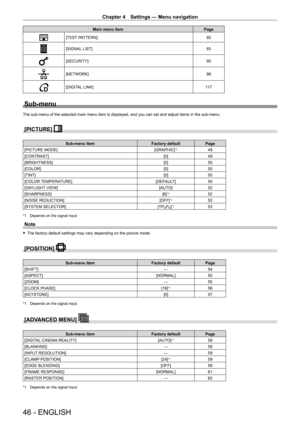

Chapter 4 Settings — Menu navigation
46 - ENGLISH
Main menu itemPage
[TEST PATTERN] 92
[SIGNAL LIST]93
[SECURITY]95
[NETWORK]98
[DIGITAL LINK]11 7
Sub-menu
The sub-menu of the selected main menu item is displayed, and you can set and adjust items in the sub-menu.
[PICTURE]
Sub-menu itemFactory defaultPage
[PICTURE MODE] [GRAPHIC]
*149
[CONTRAST] [0]49
[BRIGHTNESS] [0]50
[COLOR] [0]50
[TINT] [0]50
[COLOR TEMPERATURE] [DEFAULT]50
[DAYLIGHT VIEW] [AUTO]52
[SHARPNESS] [6]
*152
[NOISE REDUCTION] [OFF]
*152...

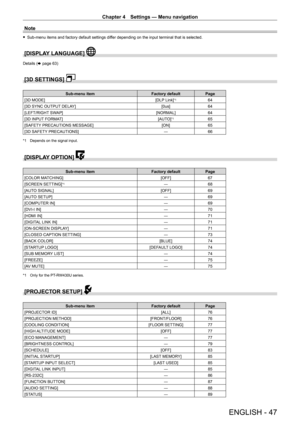

Chapter 4 Settings — Menu navigation
ENGLISH - 47
Note
 fSub-menu items and factory default settings dif fer depending on the input terminal that is selected.
[DISPLAY LANGUAGE]
Details (x page 63)
[3D SETTINGS]
Sub-menu itemFactory defaultPage
[3D MODE] [DLP Link]
*164
[3D SYNC OUTPUT DELAY] [0us]64
[LEFT/RIGHT SWAP] [NORMAL]64
[3D INPUT FORMAT] [AUTO]
*165
[SAFETY PRECAUTIONS MESSAGE] [ON]65
[3D SAFETY PRECAUTIONS] ―66
*1 Depends on the signal input.
[DISPLAY OPTION]
Sub-menu item Factory...

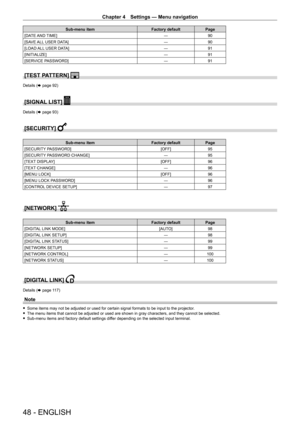

Chapter 4 Settings — Menu navigation
48 - ENGLISH
Sub-menu itemFactory defaultPage
[DATE AND TIME] ―90
[SAVE ALL USER DATA] ―90
[LOAD ALL USER DATA] ―91
[INITIALIZE] ―91
[SERVICE PASSWORD] ―91
[TEST PATTERN]
Details (x page 92)
[SIGNAL LIST]
Details (x page 93)
[SECURITY]
Sub-menu item Factory defaultPage
[SECURITY PASSWORD] [OFF]95
[SECURITY PASSWORD CHANGE] ―95
[TEXT DISPLAY] [OFF]96
[TEXT CHANGE] ―96
[MENU LOCK] [OFF]96
[MENU LOCK PASSWORD] ―96
[CONTROL DEVICE SETUP] ―97
[NETWORK]
Sub-menu item...

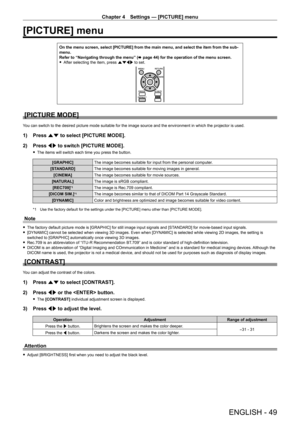

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 49
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select the \
item from the sub-
menu.
Refer to “Navigating through the menu” (x
  page   44) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to set.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source and the environment in which the projector is used.
1) Press  as to select [PICTURE MODE].
2)
Press
 qw to switch...

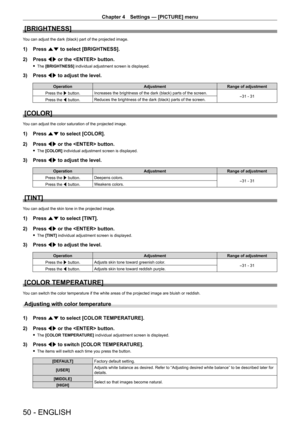

Chapter 4 Settings — [PICTURE] menu
50 - ENGLISH
[BRIGHTNESS]
You can adjust the dark (black) part of the projected image.
1) Press as to select [BRIGHTNESS].
2)
Press
 qw or the  button.
 fThe  [BRIGHTNESS] individual adjustment screen is displayed.
3) Press  qw to adjust the level.
Operation AdjustmentRange of adjustment
Press the w button. Increases the brightness of the dark (black) parts of the screen.
-31 - 31
Press the q button. Reduces the brightness of the dark (black) parts of the screen....
