Chapter 4 Settings — [PICTURE] menu
ENGLISH - 51
Note
 fWhen “[PICTURE MODE]” ( x   page   49) is set to [DYNAMIC], [COLOR TEMPERATURE] is fixed to [USER]. (However, [WHITE
BALANCE HIGH] cannot be adjusted.)
 f When [COLOR MA

TCHING] (x   page   67) adjustment is set to other than [OFF], [COLOR TEMPERATURE] is fixed to [USER].

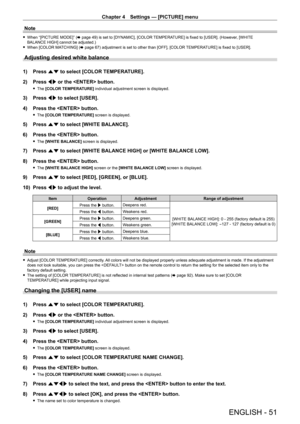

Adjusting desired white balance
1) Press as to select [COLOR TEMPERATURE].
2)
Press
 qw or the  button.
 fThe  [COLOR TEMPERATURE] individual adjustment screen is displayed....

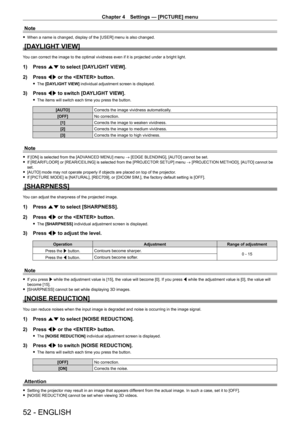

Chapter 4 Settings — [PICTURE] menu
52 - ENGLISH
Note
 fWhen a name is changed, display of the [USER] menu is also changed.
[DAYLIGHT VIEW]
You can correct the image to the optimal vividness even if it is projected under a bright light.
1) Press  as to select [DAYLIGHT VIEW].
2)
Press
 qw or the  button.
 fThe  [DAYLIGHT VIEW] individual adjustment screen is displayed.
3) Press  qw to switch [DAYLIGHT VIEW].
 fThe items will switch each time you press the button.
[AUTO] Corrects the image vividness...

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 53

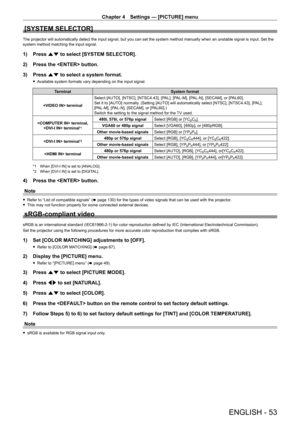

[SYSTEM SELECTOR]
The projector will automatically detect the input signal, but you can set the system method manually when an unstable signal is input. Set the
system method matching the input signal.
1) Press as to select [SYSTEM SELECTOR].
2)
Press the  button.
3)


Press
 as to select a system format.
 fAvailable system formats vary depending on the input signal.
Terminal System format
 terminal Select [AUTO], [NTSC], [NTSC4.43], [PAL], [PAL
- M],...

Chapter 4 Settings — [POSITION] menu
54 - ENGLISH

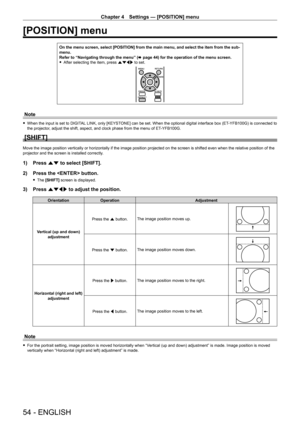

[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select the\
 item from the sub-
menu.
Refer to “Navigating through the menu” (x
  page   44) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to set.
Note
 fWhen the input is set to DIGIT AL LINK, only [KEYSTONE] can be set. When the optional digital interface box (ET- YFB100G) is connected to
the projector, adjust the shift, aspect, and clock...

Chapter 4 Settings — [POSITION] menu
ENGLISH - 55

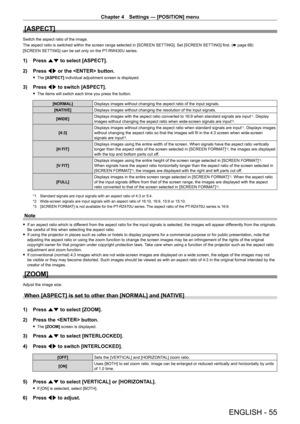

[ASPECT]
Switch the aspect ratio of the image.
The aspect ratio is switched within the screen range selected in [SCREEN SETTING]. Set [SCREEN SETTING] first. (x  page   68)
[SCREEN SETTING] can be set only on the PT
-

RW430U series.
1) Press as to select [ASPECT].
2)
Press
 qw or the  button.
 fThe  [ASPECT] individual adjustment screen is displayed.
3) Press  qw to switch [ASPECT].
 fThe items will switch each time you press the button.
[NORMAL]...

Chapter 4 Settings — [POSITION] menu
56 - ENGLISH
Note
 fWhen [ASPECT] is set to [NA TIVE], [ZOOM] cannot be adjusted.

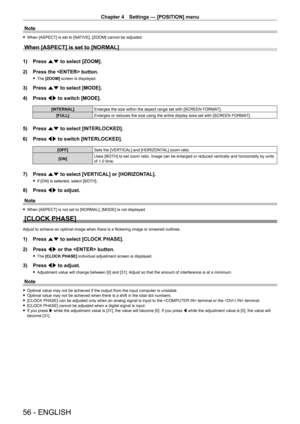

When [ASPECT] is set to [NORMAL]
1) Press as to select [ZOOM].
2)
Press the  button.
 f The  [ZOOM]  screen is displayed.
3) Press  as to select [MODE].
4)
Press
 qw to switch [MODE].
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T].
[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T].
5) Press as to select...

Chapter 4 Settings — [POSITION] menu
ENGLISH - 57

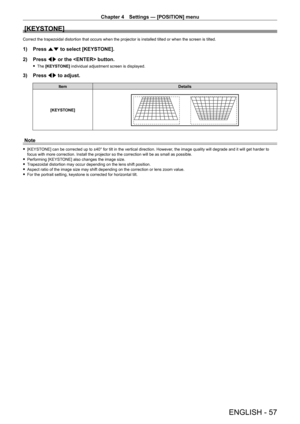

[KEYSTONE]
Correct the trapezoidal distortion that occurs when the projector is installed tilted or when the screen is tilted.
1) Press as to select [KEYSTONE].
2)
Press
 qw or the  button.
 fThe  [KEYSTONE] individual adjustment screen is displayed.
3) Press  qw to adjust.
Item Details
[KEYSTONE]
Note
 f [KEYSTONE] can be corrected up to ±40° for tilt in the vertical direction. However, the image quality will degrade and it will get harder to
focus...

Chapter 4 Settings — [ADVANCED MENU] menu
58 - ENGLISH
[ADVANCED MENU] menu

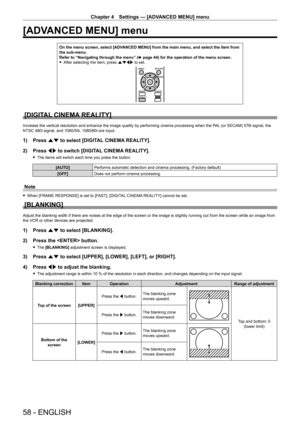

On the menu screen, select [ADVANCED MENU] from the main menu, and select the item from
the sub-menu.
Refer to “Navigating through the menu” (x
  page   44) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to set.
[DIGITAL CINEMA REALITY]
Increase the vertical resolution and enhance the image quality by performing cinema processing when the P AL (or SECAM) 576i signal, the
NTSC 480i signal, and...

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 59

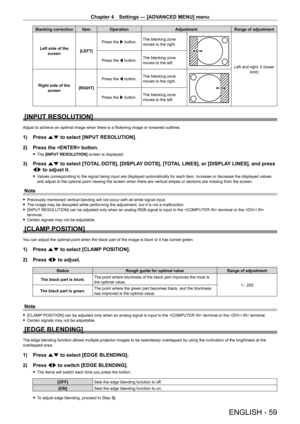

Blanking correction Item OperationAdjustmentRange of adjustment
Left side of the  screen [LEFT]Press the w button.
The blanking zone
moves to the right.
Left and right: 0 (lower
limit)
Press the q button.
The blanking zone
moves to the left.
Right side of the  screen [RIGHT]Press the q button.
The blanking zone
moves to the right.
Press the w button.The blanking zone
moves to the left.
[INPUT RESOLUTION]
Adjust to achieve an optimal image when...

Chapter 4 Settings — [ADVANCED MENU] menu
60 - ENGLISH

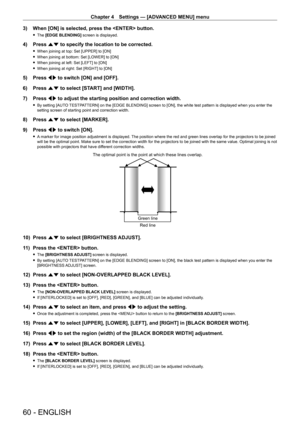

3) When [ON] is selected, press the  button.
 fThe  [EDGE BLENDING] screen is displayed.
4) Press  as to specify the location to be corrected.
 fWhen joining at top: Set [UPPER] to [ON]
 fWhen joining at bottom: Set [LOWER] to [ON]
 fWhen joining at left: Set [LEFT] to [ON]
 fWhen joining at right: Set [RIGHT] to [ON]
5) Press  qw to switch [ON] and [OFF].
6)
Press
 as to select [START] and [WIDTH].
7)

Press
 qw to adjust the starting position...
