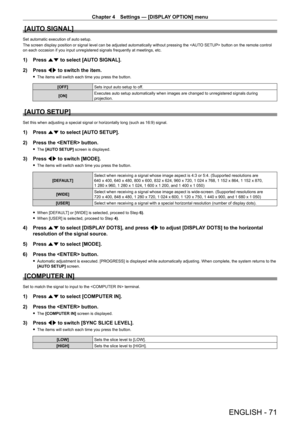

Panasonic Projector PT-RZ475U User Manual

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 71
[AUTO SIGNAL]
Set automatic execution of auto setup.
The screen display position or signal level can be adjusted automaticall\
y without pressing the  button on the remote control
on each occasion if you input unregistered signals frequently at meetings, etc.
1) Press as to select [AUTO SIGNAL].
2)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Sets input auto setup to off.
[ON] Executes auto setup...

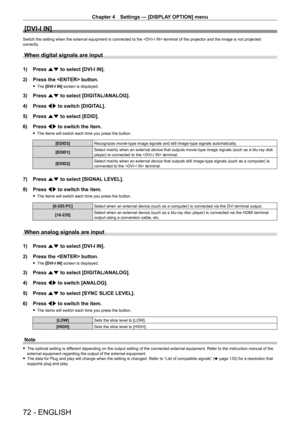

Chapter 4 Settings — [DISPLAY OPTION] menu
72 - ENGLISH
[DVI-I IN]
Switch the setting when the external equipment is connected to the  terminal of the projector and the image is not projected
correctly.
When digital signals are input
1) Press as to select [DVI-I IN].
2)
Press the  button.
 f The  [DVI-I IN] screen is displayed.
3) Press  as to select [DIGITAL/ANALOG].
4)
Press
 qw to switch [DIGITAL].
5)

Press
 as to select [EDID].
6)

Press
 qw to switch the item.
 fThe items will switch each...

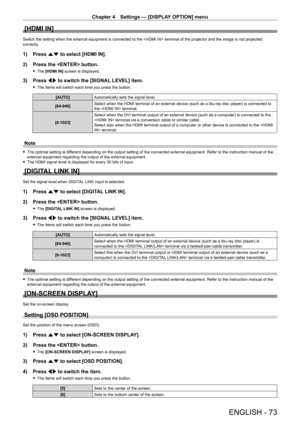

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 73
[HDMI IN]
Switch the setting when the external equipment is connected to the  terminal of the projector and the image is not projected
correctly.
1) Press as to select [HDMI IN].
2)
Press the  button.
 f The  [HDMI IN] screen is displayed.
3) Press  qw to switch the [SIGNAL LEVEL] item.
 fThe items will switch each time you press the button.
[AUTO] Automatically sets the signal level.
[64 - 940] Select when the HDMI terminal of an external device...

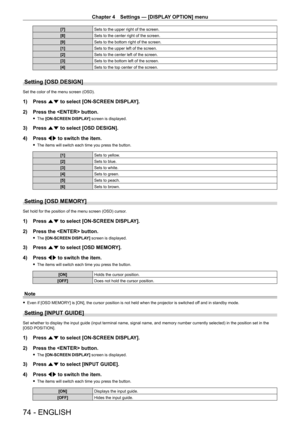

Chapter 4 Settings — [DISPLAY OPTION] menu
74 - ENGLISH
[7]Sets to the upper right of the screen.
[8] Sets to the center right of the screen.
[9] Sets to the bottom right of the screen.
[1] Sets to the upper left of the screen.
[2] Sets to the center left of the screen.
[3] Sets to the bottom left of the screen.
[4] Sets to the top center of the screen.
Setting [OSD DESIGN]
Set the color of the menu screen (OSD).
1) Press as to select [ON-SCREEN DISPLAY].
2)
Press the  button.
 f The  [ON-SCREEN...

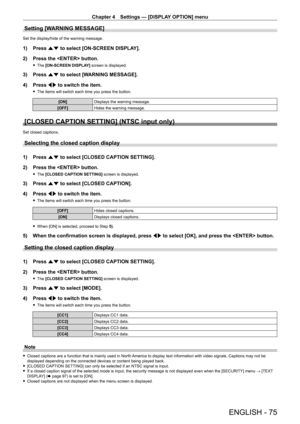

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 75
Setting [WARNING MESSAGE]
Set the display/hide of the warning message.
1) Press as to select [ON-SCREEN DISPLAY].
2)
Press the  button.
 f The  [ON-SCREEN DISPLAY] screen is displayed.
3) Press  as to select [WARNING MESSAGE].
4)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Displays the warning message.
[OFF] Hides the warning message.
[CLOSED CAPTION SETTING] (NTSC input only)
Set closed captions....

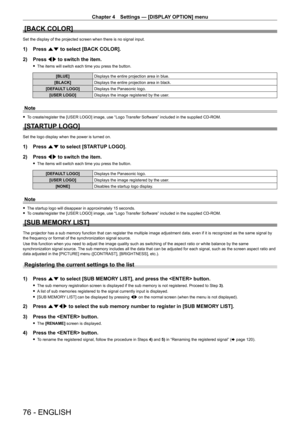

Chapter 4 Settings — [DISPLAY OPTION] menu
76 - ENGLISH
[BACK COLOR]
Set the display of the projected screen when there is no signal input.
1) Press as to select [BACK COLOR].
2)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[BLUE] Displays the entire projection area in blue.
[BLACK] Displays the entire projection area in black.
[DEFAULT LOGO] Displays the Panasonic logo.
[USER LOGO] Displays the image registered by the user.
Note
 fTo create/register the [USER...

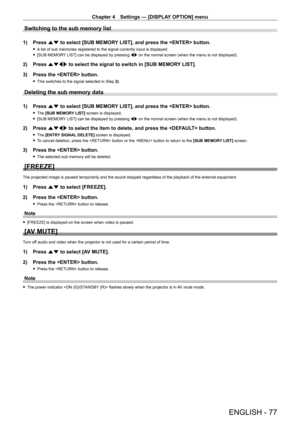

Chapter 4 Settings — [DISPLAY OPTION] menu
ENGLISH - 77
Switching to the sub memory list
1) Press as to select [SUB MEMORY LIST], and press the  button.
 fA list of sub memories registered to the signal currently input is displa\
yed.
 f[SUB MEMOR

Y LIST] can be displayed by pressing  qw on the normal screen (when the menu is not displayed).
2) Press asqw to select the signal to switch in [SUB MEMORY LIST].
3)
Press the  button.
 f This switches to the signal selected in Step  2) .
Deleting the sub...

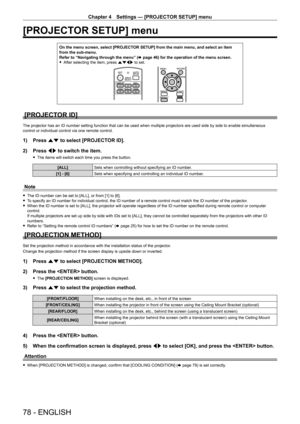

Chapter 4 Settings — [PROJECTOR SETUP] menu
78 - ENGLISH
[PROJECTOR SETUP] menu
On the menu screen, select [PROJECTOR SETUP] from the main menu, and select an item
from the sub-menu.
Refer to “Navigating through the menu” (x
  page   46) for the operation of the menu screen.
 fAfter selecting the item, press

asqw to set.
[PROJECTOR ID]
The projector has an ID number setting function that can be used when mu\
ltiple projectors are used side by side to enable simultaneous
control or individual control...

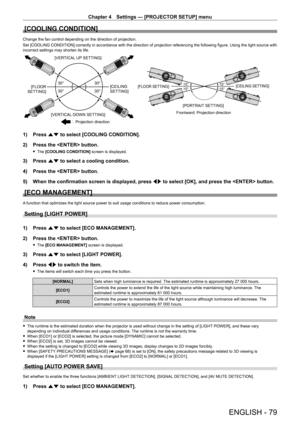

Chapter 4 Settings — [PROJECTOR SETUP] menu
ENGLISH - 79
[COOLING CONDITION]
Change the fan control depending on the direction of projection.
Set [COOLING CONDITION] correctly in accordance with the direction of projection referencing the following figure. Using the light source with
incorrect settings may shorten its life.
15°
15°15°
15°

30°
30°30°
30°
[VERTICAL UP SETTING]
[FLOOR
SETTING] [CEILING
SETTING]
[VERTICAL DOWN SETTING] [PORTRAIT SETTING]
Projection direction Frontward: Projection...

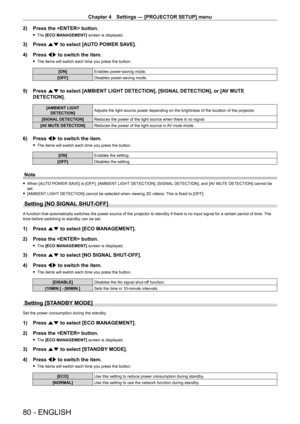

Chapter 4 Settings — [PROJECTOR SETUP] menu
80 - ENGLISH
2) Press the  button.
 fThe  [ECO MANAGEMENT] screen is displayed.
3) Press  as to select [AUTO POWER SAVE].
4)
Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[ON] Enables power-saving mode.
[OFF] Disables power-saving mode.
5) Press as to select [AMBIENT LIGHT DETECTION], [SIGNAL DETECTION], or [AV MUTE
DETECTION].
[AMBIENT LIGHT
DETECTION] Adjusts the light source power depending on the brightness of...
