Panasonic Projector PT-RZ575 User Manual

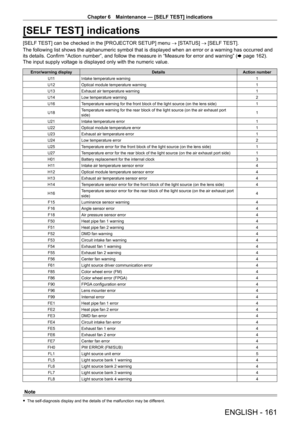

Chapter 6 Maintenance — [SELF TEST] indications
ENGLISH - 161
[SELF TEST] indications
[SELF TEST] can be checked in the [PROJECTOR SETUP] menu → [STATUS] → [SELF TEST].
The following list shows the alphanumeric symbol that is displayed when \
an error or a warning has occurred and
its details. Confirm “Action number”, and follow the measure in “Measure for error and warning” (x
  page   162).
The input supply voltage is displayed only with the numeric value.
Error/warning display DetailsAction number
U...

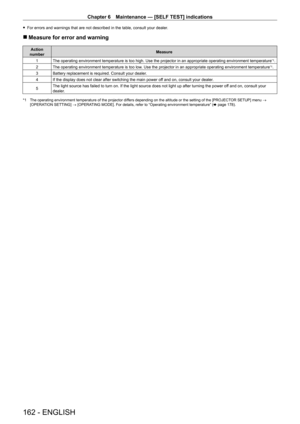

Chapter 6 Maintenance — [SELF TEST] indications
162 - ENGLISH
 fFor errors and warnings that are not described in the table, consult your dealer .
 rMeasure for error and warning
Action
number Measure
1 The operating environment temperature is too high. Use the projector in \
an appropriate operating environment temperature
*1.
2 The operating environment temperature is too low. Use the projector in an appropriate operating environment temperature
*1.
3 Battery replacement is required. Consult your...

ENGLISH - 163

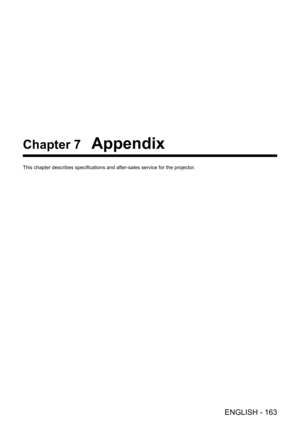

Chapter 7 Appendix
This chapter describes specifications and after-sales service for the projector.

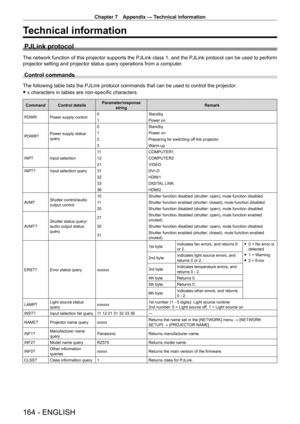

Chapter 7 Appendix — Technical information
164 - ENGLISH
Technical information
PJLink protocol
The network function of this projector supports the PJLink class 1, and the PJLink protocol can be used to perform
projector setting and projector status query operations from a computer.
Control commands
The following table lists the PJLink protocol commands that can be used to control the projector .
 fx characters in tables are non-specific characters.
Command Control details Parameter/response
string...

Chapter 7 Appendix — Technical information
ENGLISH - 165

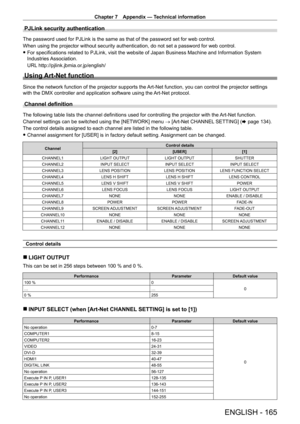

PJLink security authentication
The password used for PJLink is the same as that of the password set for web control.
When using the projector without security authentication, do not set a p\
assword for web control.
 fFor specifications related to PJLink, visit the website of Japan Business Machine and Information System
Industries

Association.
URL http://pjlink.jbmia.or.jp/english/
Using Art-Net function
Since the network function of the...

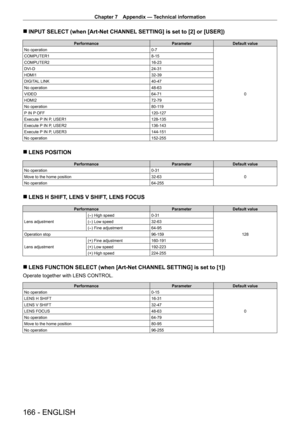

Chapter 7 Appendix — Technical information
166 - ENGLISH
 rINPUT SELECT (when [Art-Net CHANNEL  SETTING] is set to [2] or [USER])
Performance ParameterDefault value
No operation 0
- 7
0
COMPUTER1
8
- 15
COMPUTER2 16
- 23
DVI
-
D 24
- 31
HDMI1 32
- 39
DIGITAL LINK 40
- 47
No operation 48
- 63
VIDEO 64
- 71
HDMI2 72
- 79
No operation 80
- 119
P IN P OFF 120
- 127
Execute P IN P, USER1 128
- 135
Execute P IN P, USER2 136
- 143
Execute P IN P, USER3 144
- 151
No operation 152
- 255
 rLENS POSITION...

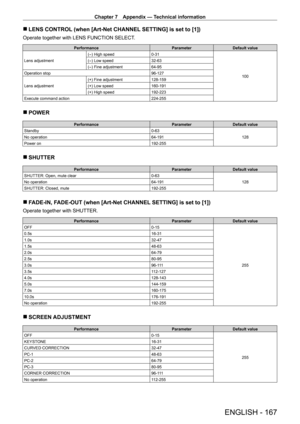

Chapter 7 Appendix — Technical information
ENGLISH - 167
 rLENS CONTROL  (when [Art-Net CHANNEL SETTING] is set to [1])
Operate together with LENS FUNCTION SELECT.
Performance ParameterDefault value
Lens adjustment (
-) High speed
0 - 31
100
(
-) Low speed
32 - 63
(
-) Fine adjustment 64 - 95
Operation stop 96
- 127
Lens adjustment (+) Fine adjustment
128
- 159
(+) Low speed 160
- 191
(+) High speed 192
- 223
Execute command action 224
- 255
 rPOWER
Performance ParameterDefault value
Standby 0
- 63 128...

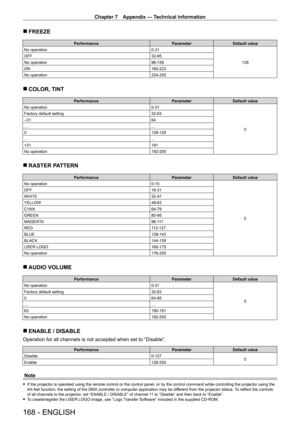

Chapter 7 Appendix — Technical information
168 - ENGLISH
 rFREEZE
Performance ParameterDefault value
No operation 0
- 31
128
OFF
32
- 95
No operation 96
- 159
ON 160
- 223
No operation 224
- 255
 rCOLOR, TINT
Performance ParameterDefault value
No operation 0
- 31
0
Factory default setting
32
- 63
-31 64
… …
0 128
- 129
… …
+31 191
No operation 192
- 255
 rRASTER P ATTERN
Performance ParameterDefault value
No operation 0
- 15
0
OFF
16
- 31
WHITE 32
- 47
YELLOW 48
- 63
CYAN 64
- 79
GREEN 80
- 95
MAGENTA...

Chapter 7 Appendix — Technical information
ENGLISH - 169

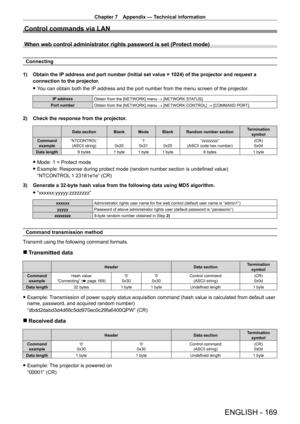

Control commands via LAN
When web control administrator rights password is set (Protect mode)
Connecting
1)
Obtain the IP
  address and port number (Initial set value = 1024) of the projector a\
nd request a
connection to the projector.
 f Y

ou can obtain both the IP address and the port number from the menu screen of the projector.
IP address Obtain from the [NETWORK] menu → [NETWORK STATUS].
Port number Obtain from the [NETWORK] menu →...

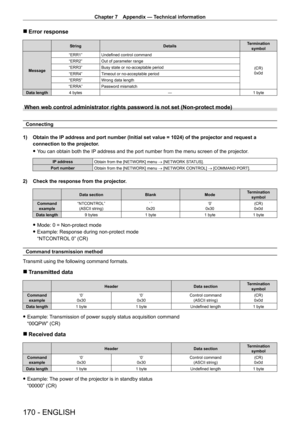

Chapter 7 Appendix — Technical information
170 - ENGLISH
 rError response
String DetailsTermination
symbol
Message “ERR1” Undefined control command
(CR)
0x0d
“ERR2”
Out of parameter range
“ERR3” Busy state or no-acceptable period
“ERR4” Timeout or no-acceptable period
“ERR5” Wrong data length
“ERRA” Password mismatch
Data length 4
  bytes ―1
  byte
When web control administrator rights password is not set (Non-protect \
mode)
Connecting
1)
Obtain the IP
  address and port number (Initial set value =...
