Panasonic Projector PT-RZ575 User Manual

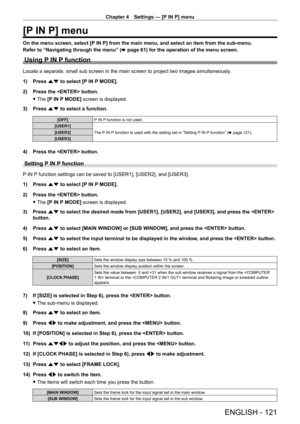

Chapter 4 Settings — [P IN P] menu
ENGLISH - 121
[P IN P] menu
On the menu screen, select [P IN P] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   61) for the operation of the menu screen.
Using P IN P function
Locate a separate, small sub screen in the main screen to project two images simultaneously .
1)
Press
 as to select [P IN P MODE].
2)

Press the  button.
 fThe

[P IN P MODE] screen is displayed.
3)

Press
 as to select a...

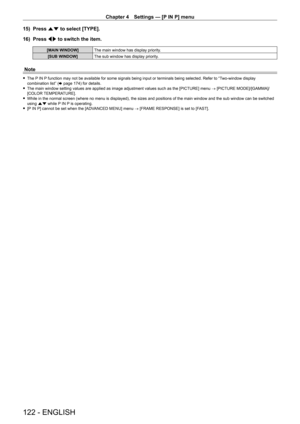

Chapter 4 Settings — [P IN P] menu
122 - ENGLISH
15) Press as to select [TYPE].
16)
Press
 qw to switch the item.
[MAIN WINDOW] The main window has display priority.
[SUB WINDOW] The sub window has display priority.
Note
 fThe P IN P function may not be available for some signals being input or terminals being selected. Refer to “Two-window display
combination list” ( x
  page   174) for details.
 fThe main window setting values are applied as image adjustment values such as the [PICTURE] menu  →...

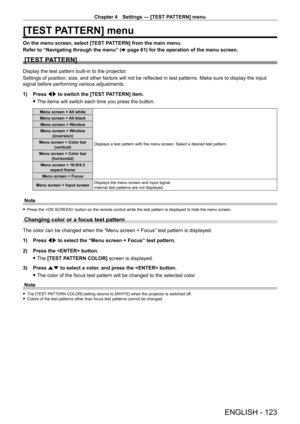

Chapter 4 Settings — [TEST PATTERN] menu
ENGLISH - 123
[TEST PATTERN] menu
On the menu screen, select [TEST PATTERN] from the main menu.
Refer to “Navigating through the menu” (x
  page   61) for the operation of the menu screen.
[TEST PATTERN]
Display the test pattern built-in to the projector.
Settings of position, size, and other factors will not be reflected in test patterns. Make sure to display the input
signal before performing various adjustments.
1)

Press
 qw to switch the [TEST PATTERN]...

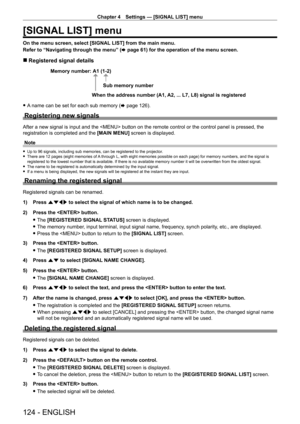

Chapter 4 Settings — [SIGNAL LIST] menu
124 - ENGLISH
[SIGNAL LIST] menu
On the menu screen, select [SIGNAL LIST] from the main menu.
Refer to “Navigating through the menu” (x
  page   61) for the operation of the menu screen.
 rRegistered signal details
A1 (1-2)
When the address number (A1, A2, ... L7, L8) signal is registered Sub memory number
Memory number:
 f
A name can be set for each sub memory (x   page   126).
Registering new signals
After a new signal is input and the  button on the remote...

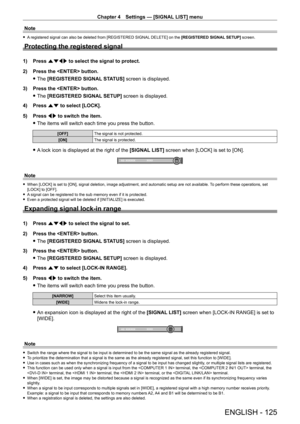

Chapter 4 Settings — [SIGNAL LIST] menu
ENGLISH - 125
Note
 fA registered signal can also be deleted from [REGISTERED SIGNAL DELETE] on the [REGISTERED SIGNAL SETUP] screen.
Protecting the registered signal
1) Press  asqw to select the signal to protect.
2)
Press the  button.
 fThe

[REGISTERED SIGNAL STATUS] screen is displayed.
3)

Press the  button.
 fThe

[REGISTERED SIGNAL SETUP] screen is displayed.
4)

Press
 as to select [LOCK].
5)

Press
 qw to switch the item.
 fThe items will switch...

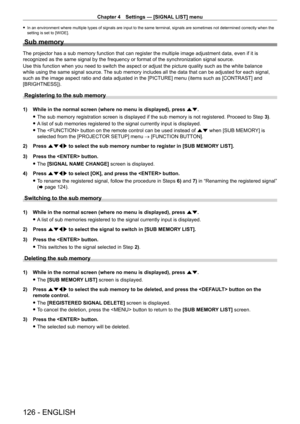

Chapter 4 Settings — [SIGNAL LIST] menu
126 - ENGLISH
 fIn an environment where multiple types of signals are input to the same terminal, signals are sometimes not determined correctly when the
setting is set to [WIDE].
Sub memory
The projector has a sub memory function that can register the multiple i\
mage adjustment data, even if it is
recognized as the same signal by the frequency or format of the synchronization signal source.
Use this function when you need to switch the aspect or adjust the...

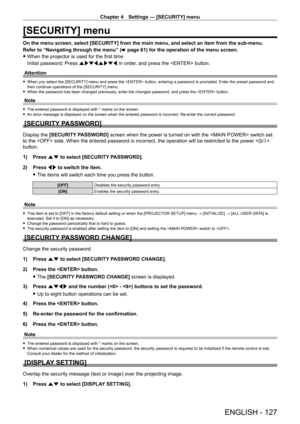

Chapter 4 Settings — [SECURITY] menu
ENGLISH - 127
[SECURITY] menu
On the menu screen, select [SECURITY] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   61) for the operation of the menu screen.
 fWhen the projector is used for the first time
Initial password: Press  awsqawsq in order

, and press the  button.
Attention
 f When you select the [SECURITY] menu and press the  button, entering a password is prompted. Enter the preset password and...

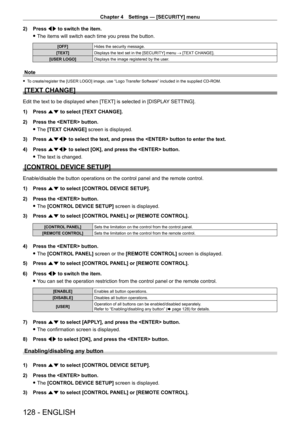

Chapter 4 Settings — [SECURITY] menu
128 - ENGLISH
2) Press qw to switch the item.
 fThe items will switch each time you press the button.
[OFF] Hides the security message.
[TEXT] Displays the text set in the [SECURITY] menu → [TEXT CHANGE].
[USER LOGO] Displays the image registered by the user.
Note
 fTo create/register the [USER LOGO] image, use “Logo Transfer Software” included in the supplied CD-ROM.
[TEXT CHANGE]
Edit the text to be displayed when [TEXT] is selected in [DISPLA Y SETTING].
1)
Press...

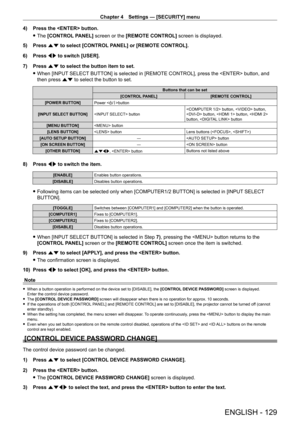

Chapter 4 Settings — [SECURITY] menu
ENGLISH - 129
4) Press the  button.
 fThe

[CONTROL PANEL] screen or the [REMOTE CONTROL] screen is displayed.
5)

Press
 as to select [CONTROL PANEL] or [REMOTE CONTROL].
6)

Press
 qw to switch [USER].
7)

Press
 as to select the button item to set.
 fWhen [INPUT

 SELECT BUTTON] is selected in [REMOTE CONTROL], press the  button, and
then press as to select the button to set.
Buttons that can be set
[CONTROL PANEL] [REMOTE CONTROL]
[POWER BUTTON] Power...

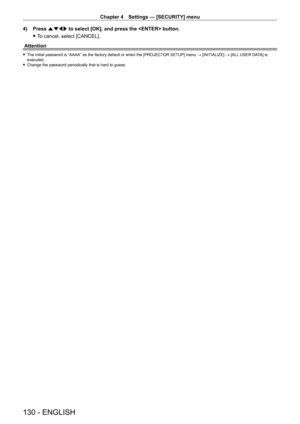

Chapter 4 Settings — [SECURITY] menu
130 - ENGLISH
4) Press asqw to select [OK], and press the  button.
 fT

o cancel, select [CANCEL].
Attention
 f The initial password is “AAAA” as the factory default or when the [PROJECT OR SETUP] menu  → [INITIALIZE] → [ALL USER DATA] is
executed.
 f Change the password periodically that is hard to guess.
