Panasonic Projector PT-RZ575 User Manual

Chapter 4 Settings — [PROJECTOR SETUP] menu

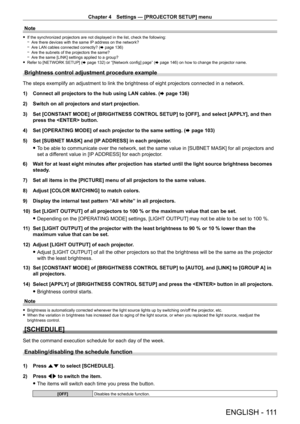

ENGLISH - 111
Note
 fIf the synchronized projectors are not displayed in the list, check the following: gAre there devices with the same IP
 address on the network?
 gAre LAN cables connected correctly? ( x

  page   136)
 gAre the subnets of the projectors the same? gAre the same [LINK] settings applied to a group? fRefer to [NETWORK SETUP] ( x

  page   132) or “[Network config] page” (x
  page   146) on how to change the projector name.
Brightness control...

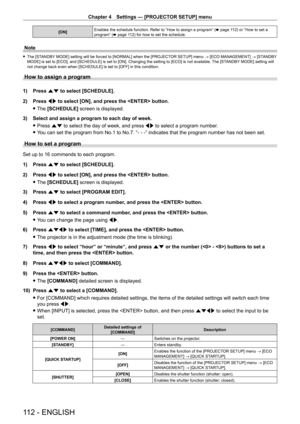

Chapter 4 Settings — [PROJECTOR SETUP] menu
112 - ENGLISH
[ON]Enables the schedule function. Refer to “How to assign a program” (
x   page   112) or “How to set a
program” (x   page   112) for how to set the schedule.
Note
 fThe [STANDBY MODE] setting will be forced to [NORMAL] when the [PROJECTOR SETUP] menu → [ECO MANAGEMENT] → [STANDBY
MODE] is set to [ECO], and [SCHEDULE] is set to [ON]. Changing the setting to [ECO] is not available.  The [STANDBY MODE] setting will
not change back even when...

Chapter 4 Settings — [PROJECTOR SETUP] menu

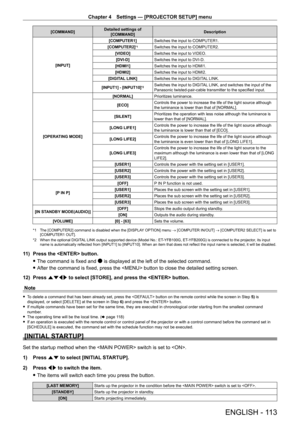

ENGLISH - 113
[COMMAND]Detailed settings of
[COMMAND] Description
[INPUT] [COMPUTER1]
Switches the input to COMPUTER1.
[COMPUTER2]
*1Switches the input to COMPUTER2.
[VIDEO] Switches the input to VIDEO.
[DVI-D] Switches the input to DVI
- D.
[HDMI1] Switches the input to HDMI1.
[HDMI2] Switches the input to HDMI2.
[DIGITAL LINK] Switches the input to DIGITAL LINK.
[INPUT1] - [INPUT10]
*2Switches the input to DIGITAL LINK, and switches the input of the...

Chapter 4 Settings — [PROJECTOR SETUP] menu

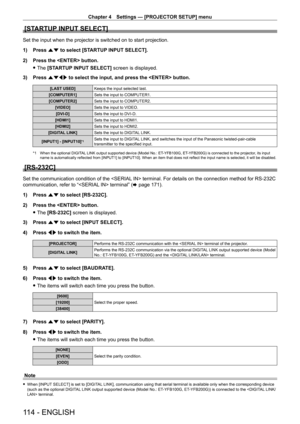

114 - ENGLISH
[STARTUP INPUT SELECT]
Set the input when the projector is switched on to start projection.
1)
Press
 as to select [STARTUP INPUT SELECT].
2)

Press the  button.
 fThe

[STARTUP INPUT SELECT]  screen is displayed.
3)

Press
 asqw to select the input, and press the  button.
[LAST USED] Keeps the input selected last.
[COMPUTER1] Sets the input to COMPUTER1.
[COMPUTER2] Sets the input to COMPUTER2.
[VIDEO] Sets the input to VIDEO.
[DVI-D] Sets...

Chapter 4 Settings — [PROJECTOR SETUP] menu

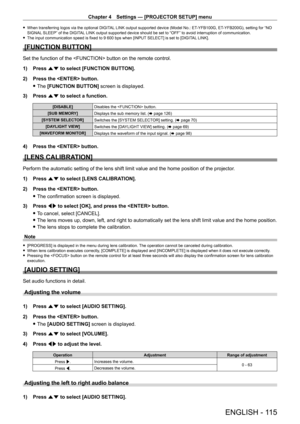

ENGLISH - 115
 fWhen transferring logos via the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G), setting for “NO
SIGNAL SLEEP” of the DIGITAL LINK output supported device should be set to “OFF” to avoid interruption of communication.
 f The input communication speed is fixed to 9

  600   bps when [INPUT SELECT] is set to [DIGITAL LINK].
[FUNCTION BUTTON]
Set the function of the  button on the remote control.
1)
Press
 as...

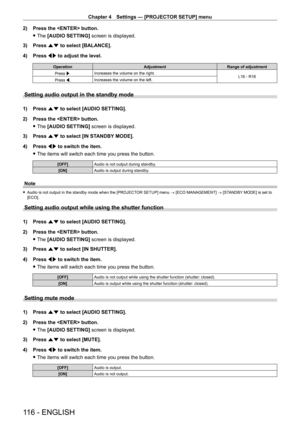

Chapter 4 Settings — [PROJECTOR SETUP] menu
116 - ENGLISH
2) Press the  button.
 fThe

[AUDIO SETTING]  screen is displayed.
3)

Press
 as to select [BALANCE].
4)

Press
 qw to adjust the level.
Operation AdjustmentRange of adjustment
Press w. Increases the volume on the right.
L16 - R16
Press q. Increases the volume on the left.
Setting audio output in the standby mode
1) Press
as to select [AUDIO SETTING].
2)
Press the  button.
 fThe

[AUDIO SETTING]  screen is displayed.
3)

Press
 as to...

Chapter 4 Settings — [PROJECTOR SETUP] menu

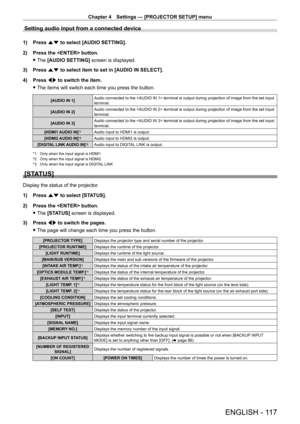

ENGLISH - 117
Setting audio input from a connected device
1) Press as to select [AUDIO SETTING].
2)
Press the  button.
 fThe

[AUDIO SETTING]  screen is displayed.
3)

Press
 as to select item to set in [AUDIO IN SELECT].
4)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[AUDIO IN 1] Audio connected to the  terminal is output during projection of image from the set input
terminal.
[AUDIO IN 2] Audio connected to...

Chapter 4 Settings — [PROJECTOR SETUP] menu

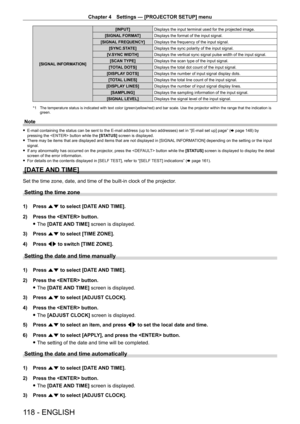

118 - ENGLISH
[SIGNAL INFORMATION][INPUT]
Displays the input terminal used for the projected image.
[SIGNAL FORMAT] Displays the format of the input signal.
[SIGNAL FREQUENCY] Displays the frequency of the input signal.
[SYNC.STATE] Displays the sync polarity of the input signal.
[V.SYNC WIDTH] Displays the vertical sync signal pulse width of the input signal.
[SCAN TYPE] Displays the scan type of the input signal.
[TOTAL DOTS] Displays the total dot count of...

Chapter 4 Settings — [PROJECTOR SETUP] menu

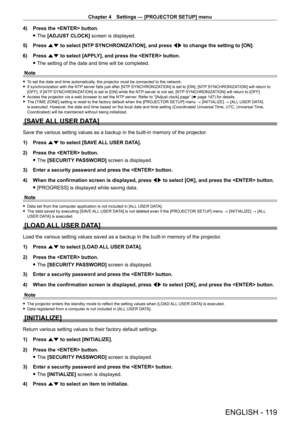

ENGLISH - 119
4) Press the  button.
 fThe

[ADJUST CLOCK] screen is displayed.
5)

Press
 as to select [NTP SYNCHRONIZATION], and press qw to change the setting to [ON].
6)

Press
 as to select [APPLY], and press the  button.
 fThe setting of the date and time will be completed.
Note
 f To set the date and time automatically, the projector must be connected to the network. fIf synchronization with the NTP
 server fails just after [NTP SYNCHRONIZATION] is...

Chapter 4 Settings — [PROJECTOR SETUP] menu

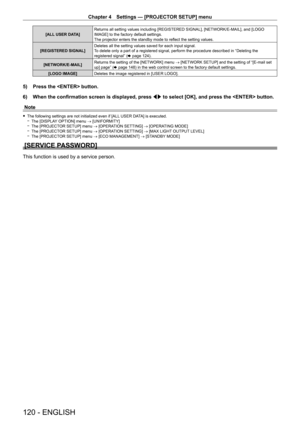

120 - ENGLISH
[ALL USER DATA]Returns all setting values including [REGISTERED SIGNAL], [NETWORK/E-MAIL], and [LOGO
IMAGE] to the factory default settings.
The projector enters the standby mode to reflect the setting values.
[REGISTERED SIGNAL] Deletes all the setting values saved for each input signal.
To delete only a part of a registered signal, perform the procedure descr\
ibed in “Deleting the
registered signal” (
x
  page   124).
[NETWORK/E-MAIL] Returns...
