Panasonic Projector PT-RZ575 User Manual

Chapter 5 Operations — Web control function
ENGLISH - 151

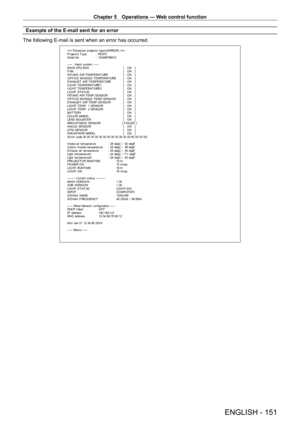

Example of the E-mail sent for an error
The following E-mail is sent when an error has occurred.
=== P anas onic  pr ojec t or  r epor t ( E RRO R)  ===
P r ojec t or  T y pe  :  RZ 575
S er ial No  :  123456789012
-----  check syst em -----
M A I N CP U B US   [   O K   ]
F A N  [   O K   ]
INT AKE AIR T EMPERAT URE  [   O K   ]
O PT ICS MO DULE T EMPERAT URE  [   O K   ]
EXHAUST  AIR T EMPERAT URE  [   O K   ]
LIG HT  T EMPERAT URE1  [   O K...

Chapter 5 Operations — Web control function
152 - ENGLISH

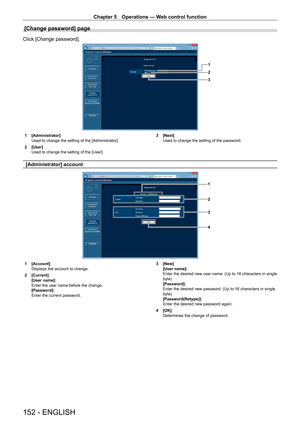

[Change password] page
Click [Change password].
1
2
3
1 [Administrator]
Used to change the setting of the [Administrator].
2

[User]
Used to change the setting of the [User]. 3

 [Next]
Used to change the setting of the password.
[Administrator] account
1
3
2
4
1 [Account]
Displays the account to change.
2

[Current]
[User name]:
Enter the user name before the change.
[Password]:
Enter the current password. 3

 [New]
[User name]:
Enter the...

Chapter 5 Operations — Web control function
ENGLISH - 153

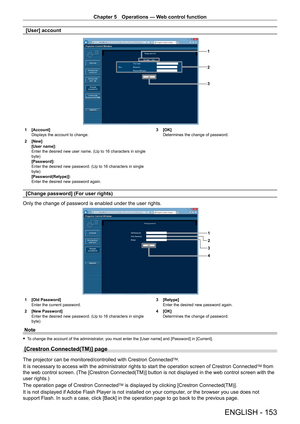

[User] account
1
2
3
1 [Account]
Displays the account to change.
2

[New]
[User name]:
Enter the desired new user name. (Up to 16 characters in single
byte)
[Password]:
Enter the desired new password. (Up to 16 characters in single
byte)
[Password(Retype)]:
Enter the desired new password again. 3

 [OK]
Determines the change of password.
[Change password] (For user rights)
Only the change of password is enabled under the user rights.
1
2
4...

Chapter 5 Operations — Web control function
154 - ENGLISH

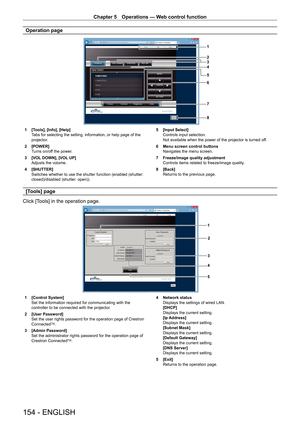

Operation page
1
2
4 3
5
6
7
8
1 [Tools], [Info], [Help]Tabs for selecting the setting, information, or help page of the
projector.
2

[POWER]
T

urns on/off the power.
3

[VOL
  DOWN], [VOL UP]
Adjusts the volume.
4

[SHUTTER]
Switches whether to use the shutter function (enabled (shutter:
closed)/disabled (shutter: open)). 5

 [Input Select]
Controls input selection.
Not available when the power of the projector is turned of
f.
6

Menu...

Chapter 5 Operations — Web control function
ENGLISH - 155

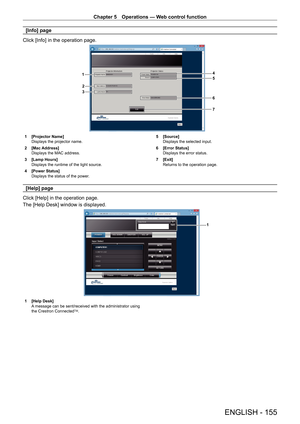

[Info] page
Click [Info] in the operation page.
4
5
6
1
2
3
7
1 [Projector Name]
Displays the projector name.
2

[Mac Address]
Displays the MAC address.
3


[Lamp Hours]
Displays the runtime of the light source.
4


[Power Status]
Displays the status of the power

. 5
 [Source]
Displays the selected input.
6

[Error Status]
Displays the error status.
7


[Exit]
Returns to the operation page.
[Help] page
Click [Help] in the operation page.
The...

156 - ENGLISH

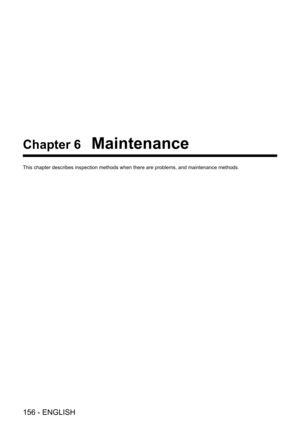

Chapter 6 Maintenance
This chapter describes inspection methods when there are problems, and m\
aintenance methods.

Chapter 6 Maintenance — Light source/temperature indicators
ENGLISH - 157

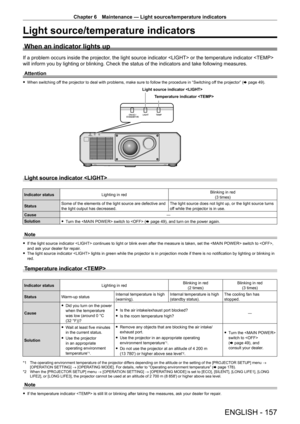

Light source/temperature indicators
When an indicator lights up
If a problem occurs inside the projector, the light source indicator  or the temperature indicator
will inform you by lighting or blinking. Check the status of the indicat\
ors and take following measures.Attention
 f When switching of f the projector to deal with problems, make sure to follow the procedure in “Switching of f the projector” (x   page   49).
Light...

Chapter 6 Maintenance — Maintenance
158 - ENGLISH

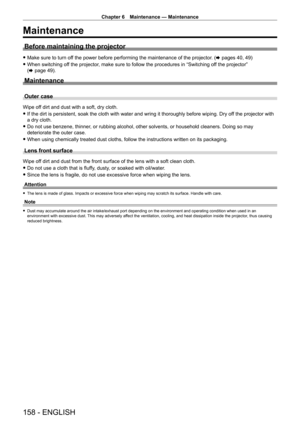

Maintenance
Before maintaining the projector
 fMake sure to turn of f the power before performing the maintenance of the projector. (x pages 40, 49)
 fWhen switching of

f the projector, make sure to follow the procedures in “Switching off the projector”
(x
  page   49).
Maintenance
Outer case
Wipe off dirt and dust with a soft, dry cloth.
 fIf the dirt is persistent, soak the cloth with water and wring it thoroughly before wiping. Dry of f the projector...

Chapter 6 Maintenance — Troubleshooting
ENGLISH - 159

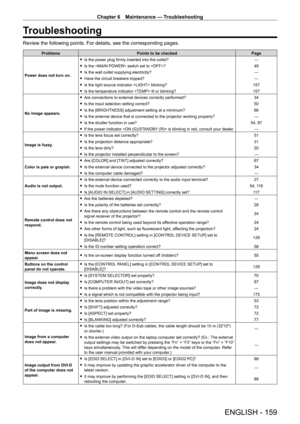

Troubleshooting
Review the following points. For details, see the corresponding pages.
ProblemsPoints to be checked Page
Power does not turn on.
 f Is the power plug firmly inserted into the outlet? ―
 fIs the  switch set to ? 49
 fIs the wall outlet supplying electricity? ―
 fHave the circuit breakers tripped? ―
 fIs the light source indicator  blinking? 157
 fIs the temperature indicator  lit or blinking? 157
No image appears.
 f Are connections to...

Chapter 6 Maintenance — Troubleshooting
160 - ENGLISH

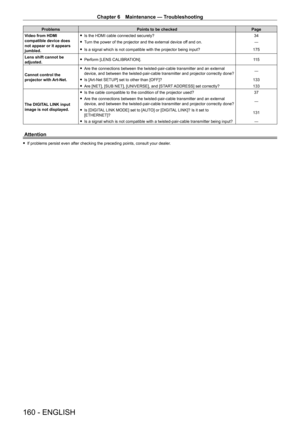

ProblemsPoints to be checked Page
Video from HDMI
compatible device does
not appear or it appears
jumbled.
 f Is the HDMI cable connected securely? 34
 fT

urn the power of the projector and the external device off and on. ―
 fIs a signal which is not compatible with the projector being input? 175
Lens shift cannot be
adjusted.
 f Perform [LENS CALIBRA

TION]. 11 5
Cannot control the
projector with Art-Net.
 f Are the connections between the...
