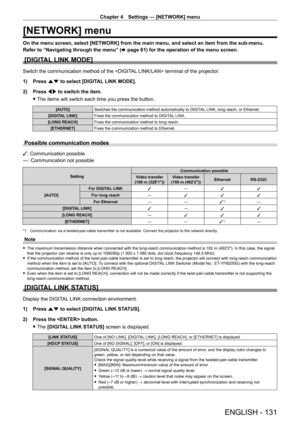

Panasonic Projector PT-RZ575 User Manual

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 131
[NETWORK] menu
On the menu screen, select [NETWORK] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   61) for the operation of the menu screen.
[DIGITAL LINK MODE]
Switch the communication method of the  terminal of the projector.
1)

Press
 as to select [DIGITAL LINK MODE].
2)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[AUTO] Switches the...

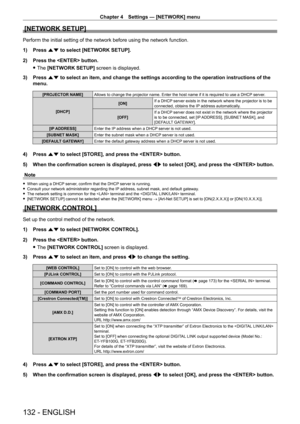

Chapter 4 Settings — [NETWORK] menu
132 - ENGLISH
[NETWORK SETUP]
Perform the initial setting of the network before using the network func\
tion.
1)
Press
 as to select [NETWORK SETUP].
2)

Press the  button.
 fThe

[NETWORK SETUP] screen is displayed.
3)

Press
 as to select an item, and change the settings according to the operation instructions of the
menu.
[PROJECTOR NAME] Allows to change the projector name. Enter the host name if it is required to use a DHCP  server.
[DHCP] [ON]
If a DHCP...

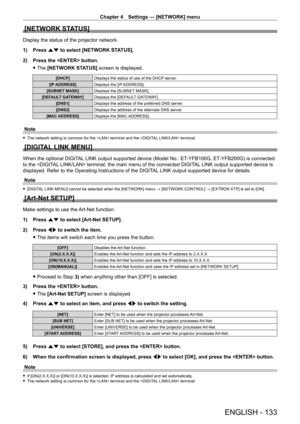

Chapter 4 Settings — [NETWORK] menu
ENGLISH - 133
[NETWORK STATUS]
Display the status of the projector network.
1)
Press
 as to select [NETWORK STATUS].
2)

Press the  button.
 fThe

[NETWORK STATUS] screen is displayed.
[DHCP] Displays the status of use of the DHCP server.
[IP ADDRESS] Displays the [IP ADDRESS].
[SUBNET MASK] Displays the [SUBNET MASK].
[DEFAULT GATEWAY] Displays the [DEFAULT GATEWAY].
[DNS1] Displays the address of the preferred DNS server.
[DNS2] Displays the address of the...

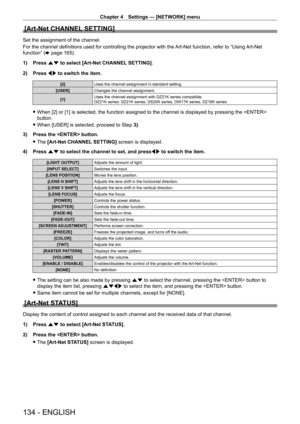

Chapter 4 Settings — [NETWORK] menu
134 - ENGLISH
[Art-Net CHANNEL SETTING]
Set the assignment of the channel.
For the channel definitions used for controlling the projector with the Art-Net function, refer to “Using Art-Net
function” (x
  page   165).
1)

Press
 as to select [Art-Net CHANNEL SETTING].
2)

Press
 qw to switch the item.
[2] Uses the channel assignment in standard setting.
[USER] Changes the channel assignment.
[1] Uses the channel assignment with DZ21K series compatible.
DZ21K...

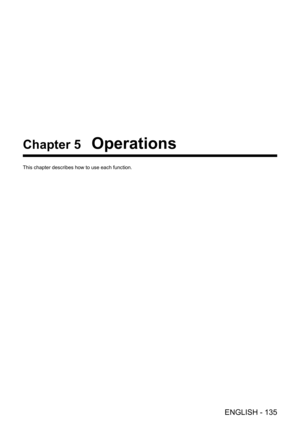

ENGLISH - 135
Chapter 5 Operations
This chapter describes how to use each function.

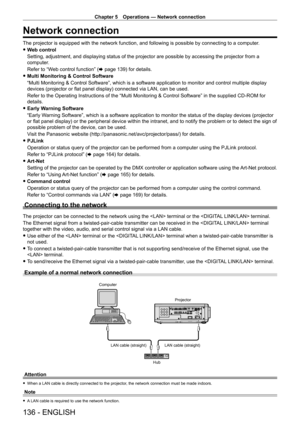

Chapter 5 Operations — Network connection
136 - ENGLISH
Network connection
The projector is equipped with the network function, and following is possible by connecting to a computer.
 fW

eb control
Setting, adjustment, and displaying status of the projector are possible by accessing the projector from a
computer.
Refer to “Web control function” (x
  page   139) for details.
 fMulti Monitoring & Control Software
“Multi Monitoring & Control Software”, which is a software application to monitor and...

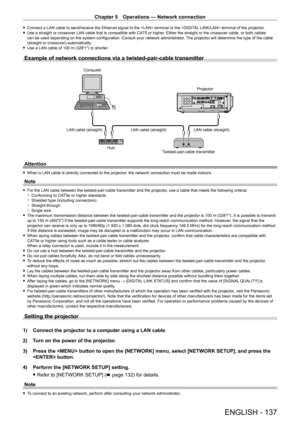

Chapter 5 Operations — Network connection
ENGLISH - 137
 fConnect a LAN cable to send/receive the Ethernet signal to the  terminal or the  terminal of the projector. fUse a straight or crossover LAN cable that is compatible with CA T5 or higher
. Either the straight or the crossover cable, or both cables
can be used depending on the system configuration. Consult your network administrator . The projector will determine the type of the cable
(straight or crossover) automatically.
 f Use a LAN cable of...

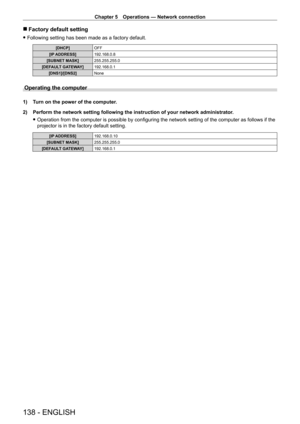

Chapter 5 Operations — Network connection
138 - ENGLISH
 rFactory default setting
 fFollowing setting has been made as a factory default.
[DHCP] OFF
[IP ADDRESS]  192.168.0.8
[SUBNET MASK] 255.255.255.0
[DEFAULT GATEWAY] 192.168.0.1
[DNS1]/[DNS2] None
Operating the computer
1) Turn on the power of the computer.
2)

Perform the network setting following the instruction of your network ad\
ministrator
 .
 fOperation from the computer is possible by configuring the network setting of the computer as...

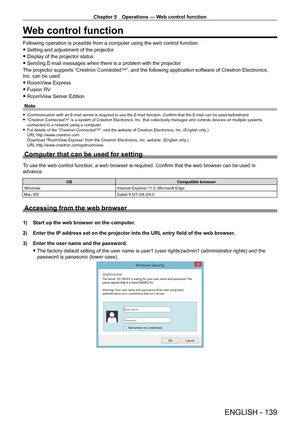

Chapter 5 Operations — Web control function
ENGLISH - 139
Web control function
Following operation is possible from a computer using the web control function.
 fSetting and adjustment of the projector
 fDisplay of the projector status
 fSending E-mail messages when there is a problem with the projector
The projector supports “Crestron Connected
TM”, and the following application software of Crestron Electronics,
Inc. can be used.
 f RoomV

iew Express
 f Fusion R

V
 f RoomV

iew Server Edition
Note
 f...

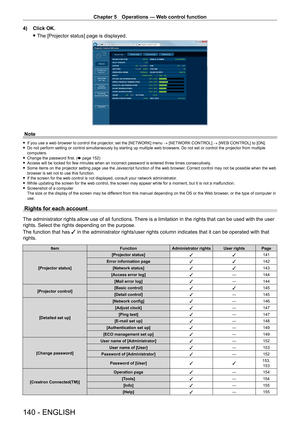

Chapter 5 Operations — Web control function
140 - ENGLISH
4) Click OK.
 fThe [Projector status] page is displayed.
Note
 f If you use a web browser to control the projector , set the [NETWORK] menu → [NETWORK CONTROL] → [WEB CONTROL] to [ON]. fDo not perform setting or control simultaneously by starting up multiple\
 web browsers. Do not set or control the projector from multiple
computers.
 fChange the password first. ( x

  page   152)
 fAccess will be locked for few minutes when an incorrect password...
