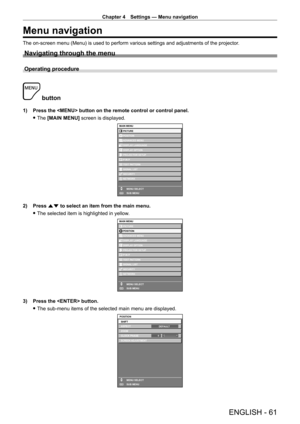

Panasonic Projector PT-RZ575 User Manual

Chapter 4 Settings — Menu navigation
ENGLISH - 61
Menu navigation
The on-screen menu (Menu) is used to perform various settings and adjustments of the projector.
Navigating through the menu
Operating procedure
 button
1) Press the  button on the remote control or control panel.
 fThe

[MAIN MENU] screen is displayed.
MAIN MENUPICTURE
POSITION
ADVANCED MENU
DISPLAY LANGUAGE
DISPLAY OPTION
PROJECTOR SETUP
TEST PATTERN
SIGNAL LIST
SECURITY
NETWORK
MENU SELECT
SUB MENU
P IN P
ENTER
2) Press  as to select an...

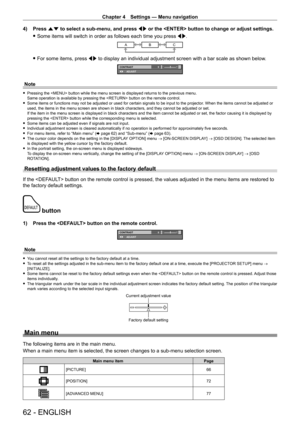

Chapter 4 Settings — Menu navigation
62 - ENGLISH
4) Press as to select a sub-menu, and press qw or the  button to change or adjust settings.
 fSome items will switch in order as follows each time you press  qw

.
ABC
 fFor some items, press  qw to display an individual adjustment screen with a bar scale as shown be\
low.
0CONTRAST
ADJUST
Note
 fPressing the  button while the menu screen is displayed returns to the previous menu.
Same operation is available by pressing the  button on the remote control....

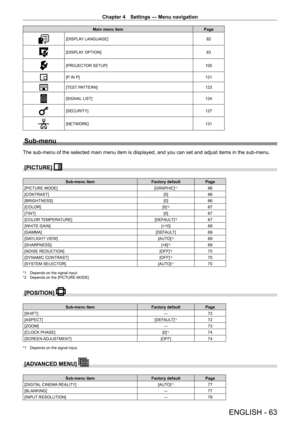

Chapter 4 Settings — Menu navigation
ENGLISH - 63
Main menu itemPage
[DISPLAY LANGUAGE] 82
[DISPLAY OPTION]83
[PROJECTOR SETUP]100
[P IN P]121
[TEST PATTERN]123
[SIGNAL LIST]124
[SECURITY]127
[NETWORK]131
Sub-menu
The sub-menu of the selected main menu item is displayed, and you can se\
t and adjust items in the sub-menu.
[PICTURE]
Sub-menu itemFactory defaultPage
[PICTURE MODE] [GRAPHIC]
*166
[CONTRAST] [0]66
[BRIGHTNESS] [0]66
[COLOR] [0]
*267
[TINT] [0]67
[COLOR TEMPERATURE] [DEFAULT]
*267
[WHITE...

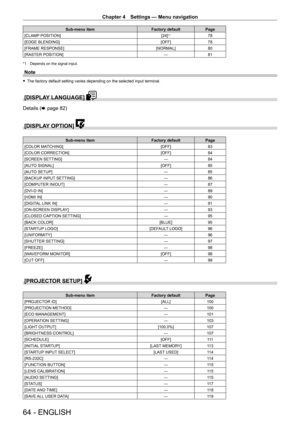

Chapter 4 Settings — Menu navigation
64 - ENGLISH
Sub-menu itemFactory defaultPage
[CLAMP POSITION] [24]
*178
[EDGE BLENDING] [OFF]78
[FRAME RESPONSE] [NORMAL]80
[RASTER POSITION] ―81
*1 Depends on the signal input.
Note
 fThe factory default setting varies depending on the selected input termi\
nal.
[DISPLAY LANGUAGE]
Details (x page 82)
[DISPLAY OPTION]
Sub-menu item Factory defaultPage
[COLOR MATCHING] [OFF]83
[COLOR CORRECTION] [OFF]84
[SCREEN SETTING] ―84
[AUTO SIGNAL] [OFF]85
[AUTO SETUP] ―85...

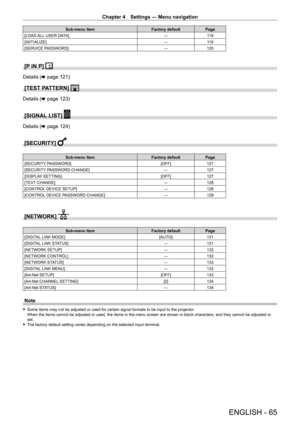

Chapter 4 Settings — Menu navigation
ENGLISH - 65
Sub-menu itemFactory defaultPage
[LOAD ALL USER DATA] ―11 9
[INITIALIZE] ―11 9
[SERVICE PASSWORD] ―120
[P IN P]
Details (x page 121)
[TEST PATTERN]
Details (x page 123)
[SIGNAL LIST]
Details (x page 124)
[SECURITY]
Sub-menu item Factory defaultPage
[SECURITY PASSWORD] [OFF]127
[SECURITY PASSWORD CHANGE] ―127
[DISPLAY SETTING] [OFF]127
[TEXT CHANGE] ―128
[CONTROL DEVICE SETUP] ―128
[CONTROL DEVICE PASSWORD CHANGE] ―129
[NETWORK]
Sub-menu item Factory...

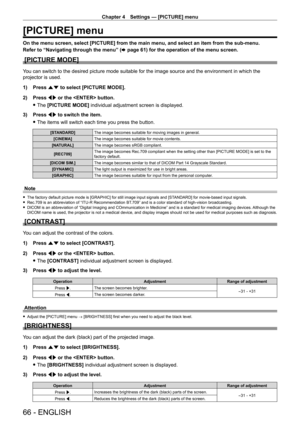

Chapter 4 Settings — [PICTURE] menu
66 - ENGLISH
[PICTURE] menu
On the menu screen, select [PICTURE] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   61) for the operation of the menu screen.
[PICTURE MODE]
You can switch to the desired picture mode suitable for the image source \
and the environment in which the
projector is used.
1)

Press
 as to select [PICTURE MODE].
2)

Press
 qw or the  button.
 fThe

[PICTURE MODE] individual...

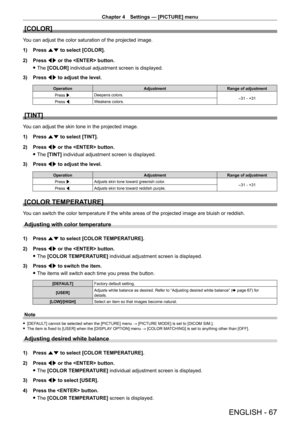

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 67
[COLOR]
You can adjust the color saturation of the projected image.
1)
Press
 as to select [COLOR].
2)

Press
 qw or the  button.
 fThe

[COLOR] individual adjustment screen is displayed.
3)

Press
 qw to adjust the level.
Operation AdjustmentRange of adjustment
Press w. Deepens colors.
-31 - +31
Press q. Weakens colors.
[TINT]
You can adjust the skin tone in the projected image.
1)

Press
 as to select [TINT].
2)

Press
 qw or the  button....

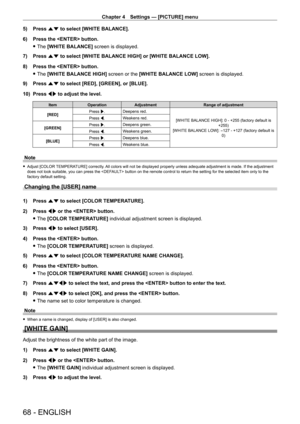

Chapter 4 Settings — [PICTURE] menu
68 - ENGLISH
5) Press as to select [WHITE BALANCE].
6)
Press the  button.
 fThe

[WHITE BALANCE] screen is displayed.
7)

Press
 as to select [WHITE BALANCE HIGH] or [WHITE BALANCE LOW].
8)

Press the  button.
 fThe

[WHITE BALANCE HIGH] screen or the [WHITE BALANCE LOW] screen is displayed.
9)

Press
 as to select [RED], [GREEN], or [BLUE].
10)

Press
 qw to adjust the level.
Item Operation Adjustment Range of adjustment
[RED] Press w.
Deepens red.
[WHITE...

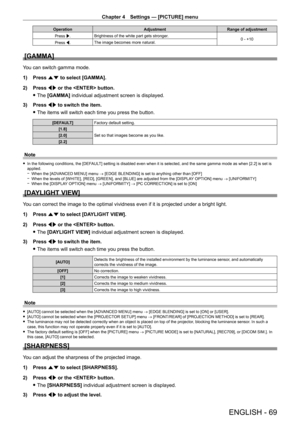

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 69
OperationAdjustmentRange of adjustment
Press w. Brightness of the white part gets stronger.
0 - +10
Press q. The image becomes more natural.
[GAMMA]
You can switch gamma mode.
1)

Press
 as to select [GAMMA].
2)

Press
 qw or the  button.
 fThe

[GAMMA] individual adjustment screen is displayed.
3)

Press
 qw to switch the item.
 fThe items will switch each time you press the button.
[DEFAULT] Factory default setting.
[1.8] Set so that images become...

Chapter 4 Settings — [PICTURE] menu
70 - ENGLISH
OperationAdjustmentRange of adjustment
Press w. Contours become sharper.
0 - +15
Press q. Contours become softer.
Note
 f
If you press  w while the adjustment value is [+15], the value will become [0]. If you press  q while the adjustment value is [0], the value will
become [+15].
[NOISE REDUCTION]
You can reduce noises when the input image is degraded and noise is occur\
ring in the image signal.
1)

Press
 as to select [NOISE REDUCTION].
2)

Press...
