Panasonic Projector PT-RZ575 User Manual

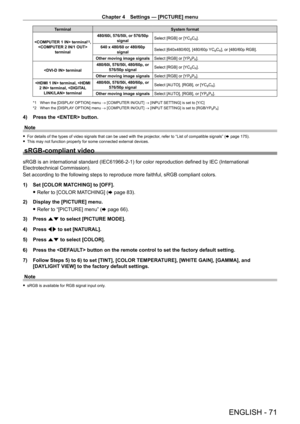

Chapter 4 Settings — [PICTURE] menu
ENGLISH - 71
TerminalSystem format
 terminal
*2,
  terminal 480/60i, 576/50i, or 576/50p
signal Select [RGB] or [YCBCR].
640

x

480/60 or 480/60p  signal Select [640x480/60], [480/60p YC
BCR], or [480/60p RGB].
Other moving image signals Select [RGB] or [YP
BPR].
 terminal 480/60i, 576/50i, 480/60p, or
576/50p signal Select [RGB] or [YC
BCR].
Other moving image signals Select [RGB] or [YP
BPR].
 terminal,  terminal,  terminal 480/60i, 576/50i, 480/60p, or...

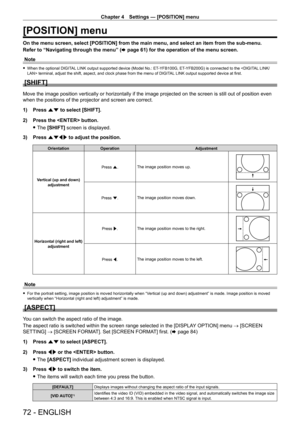

Chapter 4 Settings — [POSITION] menu
72 - ENGLISH
[POSITION] menu
On the menu screen, select [POSITION] from the main menu, and select an item from the sub-menu.
Refer to “Navigating through the menu” (x
  page   61) for the operation of the menu screen.
Note
 f When the optional DIGIT AL LINK output supported device (Model No.: ET- YFB100G, ET- YFB200G) is connected to the  terminal, adjust the shift, aspect, and clock phase from the menu of DIGIT AL LINK output supported device at first.
[SHIFT]
Move...

Chapter 4 Settings — [POSITION] menu
ENGLISH - 73
[AUTO]*2Identifies the video ID (VID) embedded in the video signal, and automatically switches the image size
between 4:3 and 16:9. This is enabled when 480/60i or 480/60p signal is input.
[THROUGH] Displays images without changing the resolution of the input signals.
[16:9] Displays images with the aspect ratio converted to 16:9 when standard signals are input
*3. When
wide-screen signals are input*4, the images are displayed without changing the...

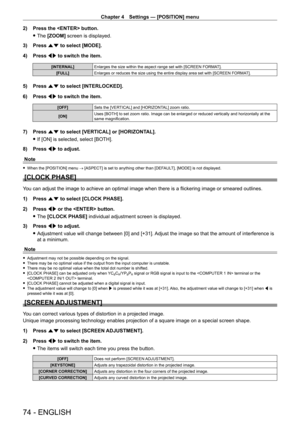

Chapter 4 Settings — [POSITION] menu
74 - ENGLISH
2) Press the  button.
 fThe

[ZOOM] screen is displayed.
3)

Press
 as to select [MODE].
4)

Press
 qw to switch the item.
[INTERNAL] Enlarges the size within the aspect range set with [SCREEN FORMA T].
[FULL] Enlarges or reduces the size using the entire display area set with [SCREEN FORMA T].
5) Press as to select [INTERLOCKED].
6)
Press
 qw to switch the item.
[OFF] Sets the [VERTICAL] and [HORIZONTAL] zoom ratio.
[ON] Uses [BOTH] to set zoom...

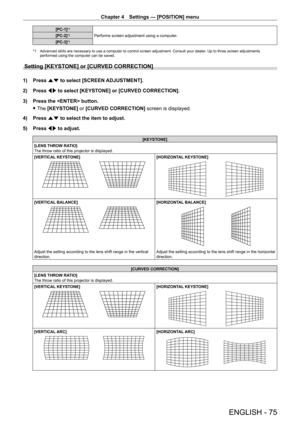

Chapter 4 Settings — [POSITION] menu
ENGLISH - 75
[PC-1]*1
Performs screen adjustment using a computer.
[PC-2]*1
[PC-3]*1
*1 Advanced skills are necessary to use a computer to control screen adjust\
ment. Consult your dealer . Up to three screen adjustments
performed using the computer can be saved.
Setting [KEYSTONE] or [CURVED CORRECTION]
1) Press  as to select [SCREEN ADJUSTMENT].
2)
Press
 qw to select [KEYSTONE] or [CURVED CORRECTION].
3)

Press the  button.
 fThe

[KEYSTONE] or [CURVED...

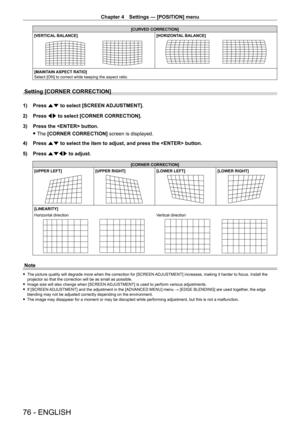

Chapter 4 Settings — [POSITION] menu
76 - ENGLISH
[CURVED CORRECTION]
[VERTICAL BALANCE]
[HORIZONTAL BALANCE]
[MAINTAIN ASPECT RATIO]
Select [ON] to correct while keeping the aspect ratio.
Setting [CORNER CORRECTION]
1) Press  as to select [SCREEN ADJUSTMENT].
2)
Press
 qw to select [CORNER CORRECTION].
3)

Press the  button.
 fThe

[CORNER CORRECTION] screen is displayed.
4)

Press
 as to select the item to adjust, and press the  button.
5)

Press
 asqw to adjust.
[CORNER CORRECTION]
[UPPER...

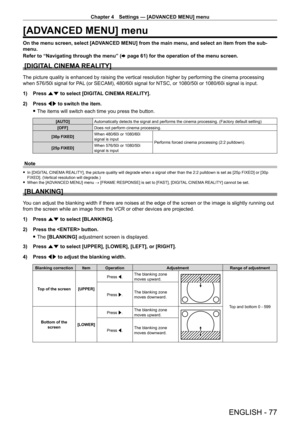

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 77
[ADVANCED MENU] menu
On the menu screen, select [ADVANCED MENU] from the main menu, and select an item from the sub-
menu.
Refer to “Navigating through the menu” (x
  page   61) for the operation of the menu screen.
[DIGITAL CINEMA REALITY]
The picture quality is enhanced by raising the vertical resolution higher by performing the cinema processing
when 576/50i signal for PAL (or SECAM), 480/60i signal for NTSC, or 1080/50i or 1080/60i signal is...

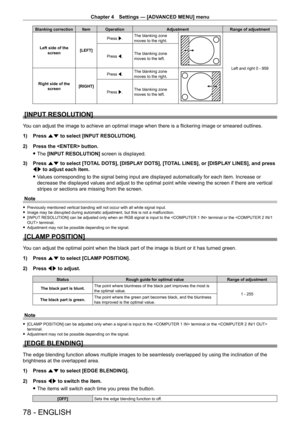

Chapter 4 Settings — [ADVANCED MENU] menu
78 - ENGLISH
Blanking correction Item OperationAdjustmentRange of adjustment
Left side of the  screen [LEFT]Press w.
The blanking zone
moves to the right.
Left and right 0 - 959
Press q.
The blanking zone
moves to the left.
Right side of the  screen [RIGHT]Press q.
The blanking zone
moves to the right.
Press w.The blanking zone
moves to the left.
[INPUT RESOLUTION]
You can adjust the image to achieve an optimal image when there is a flickering image or...

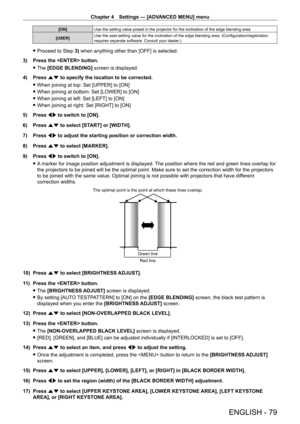

Chapter 4 Settings — [ADVANCED MENU] menu
ENGLISH - 79
[ON]Use the setting value preset in the projector for the inclination of the\
 edge blending area.
[USER] Use the user-setting value for the inclination of the edge blending area. (Configuration/registration
requires separate software. Consult your dealer.)
 f
Proceed to Step  3) when anything other than [OFF] is selected.
3)

Press the  button.
 f The

[EDGE BLENDING] screen is displayed.
4)

Press
 as to specify the location to be corrected....

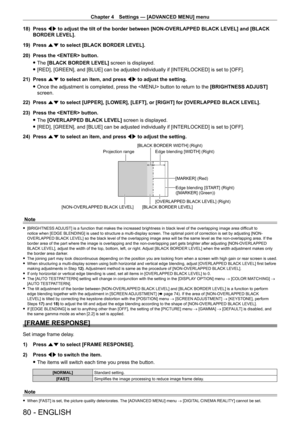

Chapter 4 Settings — [ADVANCED MENU] menu
80 - ENGLISH
18) Press qw to adjust the tilt of the border between [NON-OVERLAPPED BLACK LEVEL] a\
nd [BLACK
BORDER LEVEL].
19)

Press
 as to select [BLACK BORDER LEVEL].
20)

Press the  button.
 fThe

[BLACK BORDER LEVEL] screen is displayed.
 f[RED], [GREEN], and [BLUE] can be adjusted individually if [INTERLOCKED] is set to [OFF].
21)


Press
 as to select an item, and press qw to adjust the setting.
 fOnce the adjustment is completed, press the  button...
