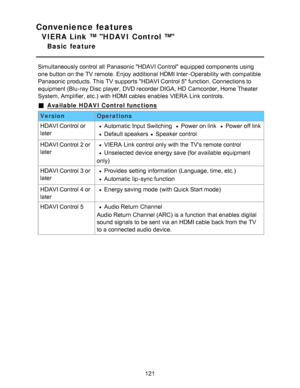

Convenience features
VIERA Link ™ HDAVI Control ™
Basic  feature
Simultaneously control  all  Panasonic HDAVI Control equipped components  using
one button on the TV remote. Enjoy  additional HDMI Inter -Operability with compatible
Panasonic products. This TV supports HDAVI Control 5 function. Connections to
equipment (Blu-ray Disc  player,  DVD recorder DIGA, HD  Camcorder, Home Theater
System, Amplifier, etc.)  with HDMI cables enables  VIERA  Link controls.
Available HDAVI Control functions...

Convenience features
VIERA Link ™ HDAVI Control ™

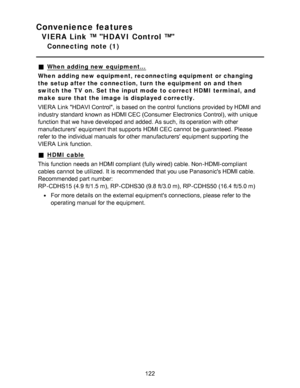

Connecting  note  (1)
When  adding new equipment...
When  adding new equipment, reconnecting equipment or changing
the setup after the connection,  turn the equipment on and  then
switch the TV on. Set the input mode  to correct HDMI  terminal, and
make  sure that the image is  displayed correctly.
VIERA  Link HDAVI Control, is based on the control  functions  provided by HDMI and
industry  standard known as HDMI CEC (Consumer  Electronics Control), with...

Convenience features
VIERA Link ™ HDAVI Control ™

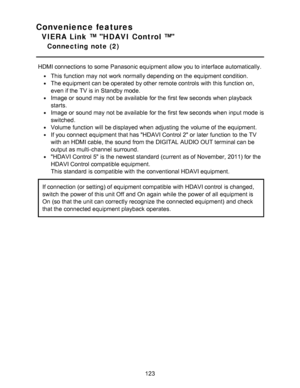

Connecting  note  (2)
HDMI connections to some  Panasonic equipment allow you to interface automatically.
This function  may not work normally depending on the equipment condition.
The equipment can be operated  by other remote controls  with this function  on,
even if the TV is in Standby mode.
Image or sound may not be available  for the first few seconds when playback
starts.
Image or sound may not be available  for the first few seconds when input...

Convenience features
VIERA Link ™ HDAVI Control ™

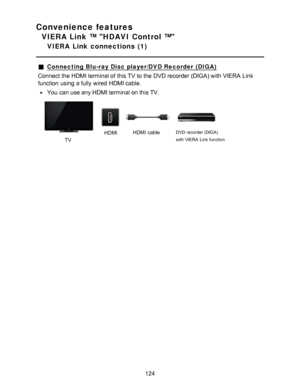

VIERA  Link  connections  (1)
Connecting Blu-ray Disc player/DVD Recorder  (DIGA)
Connect the HDMI terminal of this TV to the DVD recorder (DIGA) with VIERA  Link
function  using a fully wired HDMI cable.
You can use any HDMI terminal on this TV.

TV HDMI
HDMI cable
DVD  recorder (DIGA)
with  VIERA  Link  function
124

Convenience features
VIERA Link ™ HDAVI Control ™

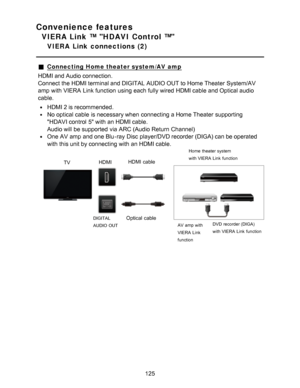

VIERA  Link  connections  (2)
Connecting Home theater system/AV amp
HDMI and Audio connection.
Connect the HDMI terminal and DIGITAL AUDIO OUT to Home Theater  System/AV
amp  with VIERA  Link function  using each fully wired HDMI cable and Optical audio
cable.
HDMI 2 is recommended.
No optical cable is necessary when connecting a Home Theater  supporting
HDAVI control  5 with an HDMI cable.
Audio will be supported  via ARC (Audio Return  Channel)
One AV...

Convenience features
VIERA Link ™ HDAVI Control ™

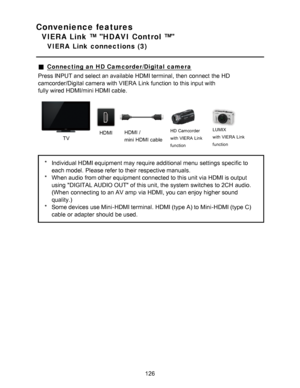

VIERA  Link  connections  (3)
Connecting an HD Camcorder/Digital camera
Press INPUT and select an available  HDMI terminal, then  connect  the HD
camcorder/Digital camera with VIERA  Link function  to this input with
fully wired HDMI/mini HDMI cable.

TV HDMI
HDMI /
mini HDMI cable
HD  Camcorder
with  VIERA  Link
function LUMIX
with  VIERA  Link
function
*
Individual HDMI equipment may require additional menu  settings  specific to...

Convenience features
VIERA Link ™ HDAVI Control ™

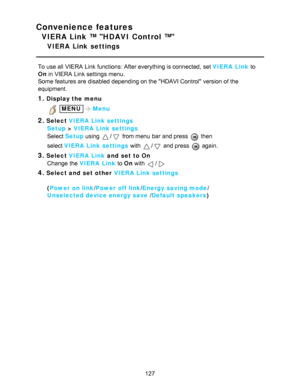

VIERA  Link  settings
To use all  VIERA  Link functions: After everything is connected, set VIERA  Link to
On in VIERA  Link settings  menu.
Some features are  disabled depending on the HDAVI Control version of the
equipment.
1.Display the menu
 MENUMenu
2.Select  VIERA  Link settings
Setup  > VIERA  Link settings
Select  Setup  using
/ from menu  bar  and press   then
select  VIERA  Link settings  with
/ and press   again.
3.Select VIERA  Link  and...

Convenience features
VIERA Link ™ HDAVI Control ™

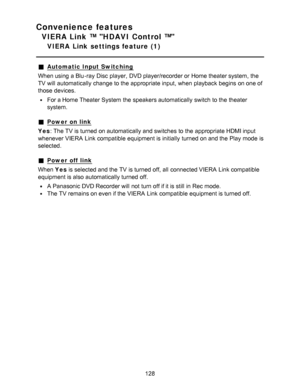

VIERA  Link  settings feature  (1)
Automatic Input Switching
When using a Blu -ray Disc  player,  DVD player/recorder or Home theater system,  the
TV will automatically change to the appropriate input,  when playback  begins  on one of
those  devices.
For a Home Theater  System the speakers automatically switch to the theater
system.
Power  on link
Yes : The TV is turned on automatically and switches to the appropriate HDMI input
whenever VIERA  Link...

Convenience features
VIERA Link ™ HDAVI Control ™

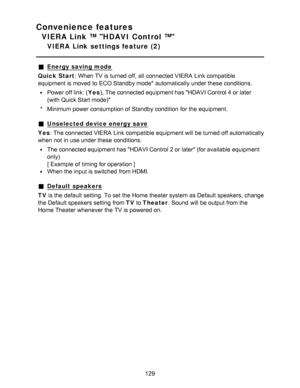

VIERA  Link  settings feature  (2)
Energy saving mode
Quick Start : When TV is turned off, all  connected VIERA  Link compatible
equipment is moved  to ECO Standby mode* automatically under these  conditions.
Power off link: ( Yes), The connected equipment has HDAVI Control 4 or later
(with Quick Start mode)
* Minimum power consumption of Standby condition  for the equipment.
Unselected device energy save
Yes : The connected VIERA  Link compatible...

Convenience features
VIERA Link ™ HDAVI Control ™
VIERA  Link  settings feature  (3)
Automatic lip-sync function
Minimizes  time delay between the picture  and audio  when you connect  to a Panasonic
theater system or Amplifier.
TV provided setting information
The following information  about  the TV settings  can be transmitted  to each piece of
equipment (Recorder/Home theater/Player) that has HDAVI Control 3 or later
function  connected to a TV with an HDMI cable.
Transmittable data RecorderHome...
