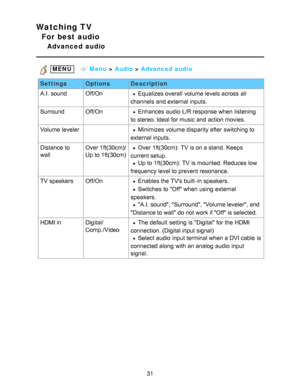

Watching TV
For best audio
Advanced  audio
 MENU    Menu  > Audio  > Advanced audio
Settings OptionsDescription
A.I.  sound Off/On
Equalizes overall  volume levels across  all
channels  and external inputs.
Surround Off/On
Enhances  audio  L/R response when listening
to stereo. Ideal for music and action movies.
Volume leveler Minimizes  volume disparity after  switching to
external inputs.
Distance to
wall Over 1ft(30cm)/
Up to 1ft(30cm)Over 1ft(30cm):  TV is on a stand. Keeps
current setup.
Up to...

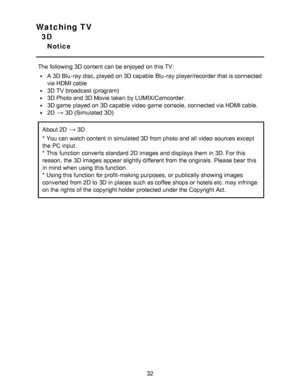

Watching TV
3D
Notice
The following 3D content can be enjoyed  on this TV:
A 3D Blu -ray disc, played  on 3D capable  Blu -ray player/recorder that is connected
via HDMI cable
3D TV broadcast (program)
3D Photo and 3D Movie taken  by LUMIX/Camcorder.
3D game  played  on 3D capable  video game  console, connected via HDMI cable.
2D3D (Simulated 3D)
About 2D3D
* You can watch content in simulated 3D from photo  and all  video sources  except
the PC input.
* This function  converts standard 2D images and...

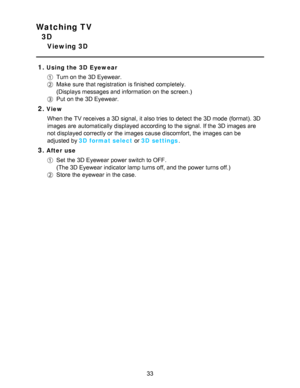

Watching TV
3D
Viewing 3D
1.
Using the 3D  Eyewear
Turn on the 3D Eyewear.
Make  sure  that registration  is finished  completely.
(Displays messages and information  on the screen.)
Put  on the 3D Eyewear.
2.View When the TV receives a 3D signal, it also tries to detect the 3D mode  (format). 3D
images are  automatically displayed according to the signal. If the 3D images are
not displayed correctly or the images cause discomfort, the images can be
adjusted by 3D  format select  or 3D  settings....

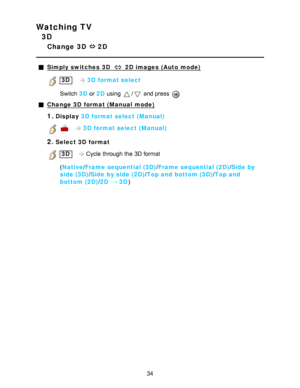

Watching TV
3D
Change  3D  ⇔ 2D
Simply switches  3D   2D  images  (Auto  mode)
 3D   3D  format select
Switch   3D or 2D  using
/ and press
Change 3D  format (Manual mode)
1.Display  3D  format select (Manual)
    3D  format select (Manual)
2.Select 3D  format
 3D   Cycle  through the 3D format
( Native /Frame  sequential (3D) /Frame  sequential (2D) /Side by
side (3D) /Side by side (2D) /Top and  bottom (3D) /Top and
bottom (2D) /2D
3D )
34

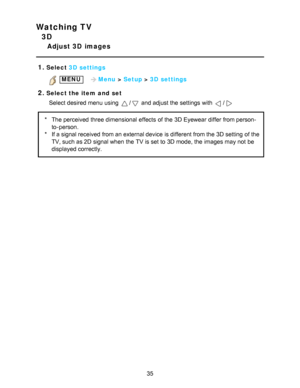

Watching TV
3D
Adjust 3D  images
1.
Select  3D  settings
 MENU    Menu > Setup  > 3D  settings
2.Select the item  and  set
Select desired menu  using
/ and adjust the settings  with /
* The perceived three dimensional effects  of the 3D Eyewear differ from person-
to-person.
* If a signal received from an external device is different from the 3D setting  of the
TV, such as 2D signal when the TV is set to 3D mode, the images may not be
displayed correctly.
35

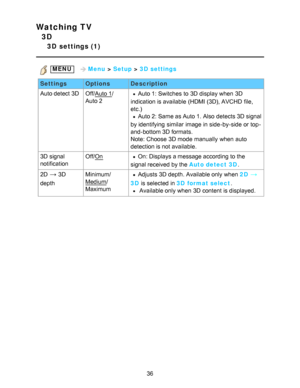

Watching TV
3D
3D  settings (1)
 MENU   Menu > Setup  > 3D  settings
Settings OptionsDescription
Auto detect 3D Off/
Auto 1/
Auto 2Auto 1: Switches  to 3D display when 3D
indication is available  (HDMI (3D), AVCHD  file,
etc.)
Auto 2: Same as Auto 1. Also  detects 3D signal
by identifying  similar image in side-by-side or top-
and-bottom 3D formats.
Note: Choose  3D mode  manually  when auto
detection is not available.
3D signal
notification Off/
OnOn: Displays a message according to the
signal received...

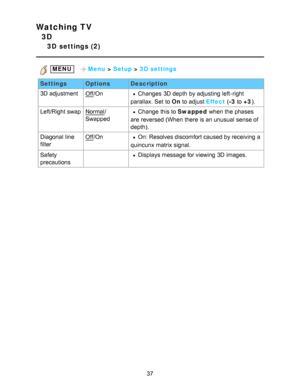

Watching TV
3D
3D  settings (2)
 MENU   Menu > Setup  > 3D  settings
Settings OptionsDescription
3D adjustment
Off /OnChanges  3D depth  by adjusting  left-right
parallax. Set  to On to adjust Effect  (-3  to +3 ).
Left/Right swap
Normal /
SwappedChange  this to Swapped  when the phases
are  reversed (When  there is an unusual  sense of
depth).
Diagonal  line
filter
Off /OnOn: Resolves discomfort caused by receiving  a
quincunx  matrix signal.
Safety
precautions
 Displays message for viewing 3D images.
37

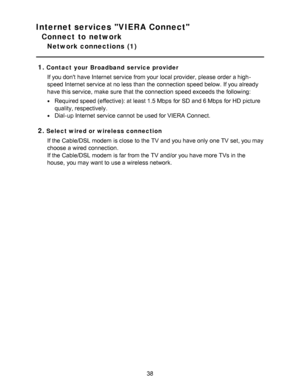

Internet services VIERA Connect
Connect to network
Network connections  (1)
1.
Contact your Broadband service provider If you dont have Internet service from your  local provider, please  order a high-
speed Internet service at no less than  the connection speed below. If you already
have this service,  make  sure  that the connection speed exceeds the following:
Required speed (effective): at least 1.5 Mbps  for SD and 6 Mbps  for HD  picture
quality, respectively.
Dial-up Internet service cannot  be...

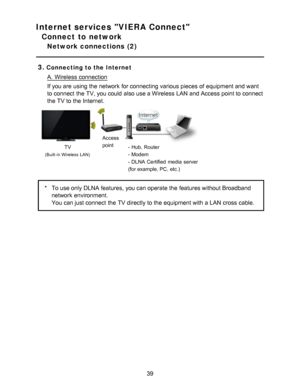

Internet services VIERA Connect
Connect to network
Network connections  (2)
3.
Connecting to the Internet
A.  Wireless connection
If you are  using the network  for connecting various pieces of equipment and want
to connect  the TV, you could also use a Wireless LAN  and Access point to connect
the TV to the Internet.
TV
(Built -in  Wireless  LAN)
Access
point - Hub, Router
- Modem
- DLNA Certified  media  server
(for example, PC, etc.)
*To use only DLNA features, you can operate the features without...

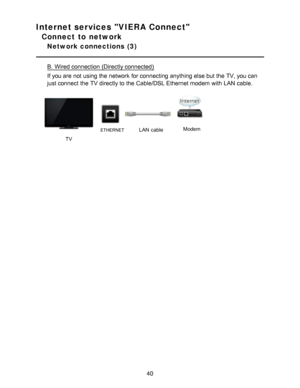

Internet services VIERA Connect
Connect to network
Network connections  (3)
B.  Wired connection (Directly connected)
If you are  not using the network  for connecting anything else but the TV, you can
just connect  the TV directly to the Cable/DSL Ethernet modem with LAN  cable.

TV
ETHERNETLAN  cableModem
