Panasonic ST50 Series Tv User Manual

Home network DLNA
Photos
Photo  view
Thumbnail view
Display Slideshow settings
 INFOInformation  panel  (File  name, Date, and Size  etc.)
* Information  differs depending on selected data.
Playback  screen
INFODisplay/hide  Guide and Banner
Photo status:  Shows  current photo  status
 or
2D/3D status:  Shows  current 2D/3D status
Navigation Guide:  Shows  available  functions.
* In DMR mode, Slideshow is not available.
* In DMR mode, OK/Next/Prev. are  not available.
71

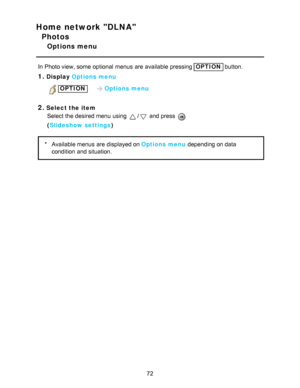

Home network DLNA
Photos
Options menu
In Photo view, some  optional  menus  are  available  pressing OPTION button.
1.Display Options menu
OPTION     Options menu
2.Select the item
Select the desired menu  using
/ and press
( Slideshow settings )
*Available menus  are  displayed on Options menu  depending on data
condition  and situation.
72

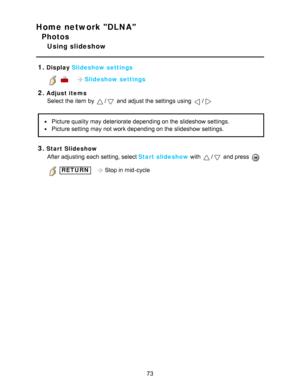

Home network DLNA
Photos
Using slideshow
1.
Display  Slideshow settings
     Slideshow settings
2.Adjust items
Select the item by
/ and adjust the settings  using /
Picture quality may deteriorate depending on the slideshow settings.
Picture setting  may not work depending on the slideshow settings.
3.Start Slideshow
After adjusting  each setting, select Start slideshow with
/ and press
 RETURN   Stop in mid-cycle
73

Home network DLNA
Photos

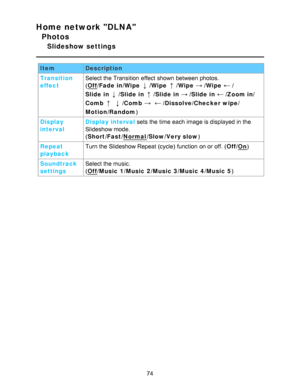

Slideshow settings
ItemDescription
Transition
effect Select the Transition effect  shown between photos.
(
Off
/Fade in/ Wipe/Wipe/Wipe/Wipe/
Slide in
/ Slide in/Slide in/Slide in/Zoom in/
Comb
/ Comb/Dissolve /Checker wipe /
Motion /Random )
Display
interval Display interval
 sets the time each image is displayed in the
Slideshow mode.
( Short /Fast /
Normal /Slow /Very slow )
Repeat
playback Turn the Slideshow Repeat (cycle)  function  on or off. (
Off/
On)
Soundtrack
settings...

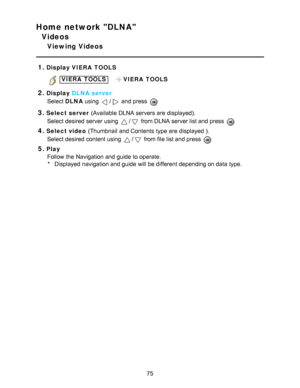

Home network DLNA
Videos
Viewing Videos
1.
Display  VIERA  TOOLS
 VIERA  TOOLS    VIERA  TOOLS
2.Display DLNA server
Select  DLNA using
/ and press
3.Select server  (Available DLNA servers are  displayed).
Select desired server using
/ from DLNA server list and press
4.Select video  (Thumbnail  and Contents  type are  displayed ).
Select desired content using
/ from file list and press
5.Play Follow the Navigation and guide  to operate.* Displayed navigation and guide  will be different...

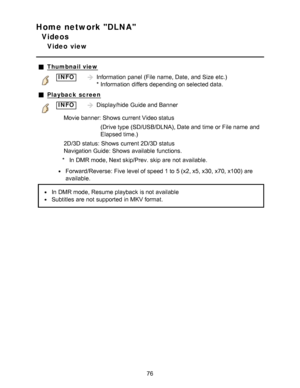

Home network DLNA
Videos
Video  view
Thumbnail view
INFOInformation  panel  (File  name, Date, and Size  etc.)
* Information  differs depending on selected data.
Playback  screen
INFODisplay/hide  Guide and Banner
Movie banner: Shows  current Video status (Drive type (SD/USB/DLNA), Date and time or File name  and
Elapsed time.)
2D/3D status:  Shows  current 2D/3D status
Navigation Guide:  Shows  available  functions.
* In DMR mode, Next skip/Prev. skip are  not available.
Forward/Reverse:  Five level...

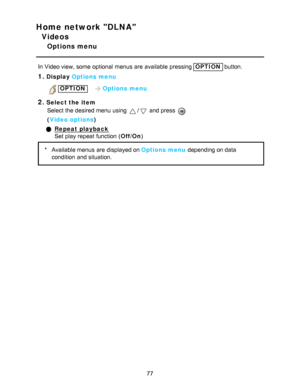

Home network DLNA
Videos
Options menu
In Video view, some  optional  menus  are  available  pressing OPTION button.
1.Display Options menu
OPTION    Options menu
2.Select the item
Select the desired menu  using
/ and press
( Video options )
Repeat playback
Set  play repeat function  ( Off/On)
* Available menus  are  displayed on Options menu  depending on data
condition  and situation.
77

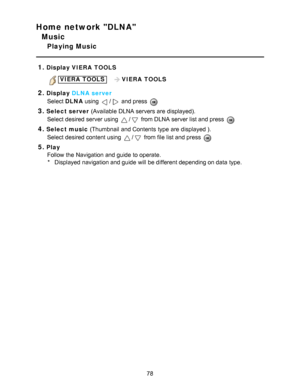

Home network DLNA
Music
Playing Music
1.
Display  VIERA  TOOLS
VIERA  TOOLS    VIERA  TOOLS
2.Display DLNA server
Select  DLNA using
/ and press
3.Select server  (Available DLNA servers are  displayed).
Select desired server using
/ from DLNA server list and press
4.Select music  (Thumbnail  and Contents  type are  displayed ).
Select desired content using
/ from file list and press
5.Play Follow the Navigation and guide  to operate.* Displayed navigation and guide  will be different depending...

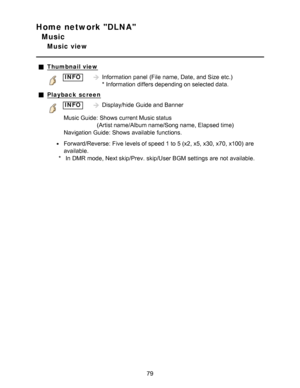

Home network DLNA
Music
Music view
Thumbnail view
INFOInformation  panel  (File  name, Date, and Size  etc.)
* Information  differs depending on selected data.
Playback  screen
INFODisplay/hide  Guide and Banner
Music Guide:  Shows  current Music status (Artist name/Album name/Song name, Elapsed time)
Navigation Guide:  Shows  available  functions.
Forward/Reverse:  Five levels of speed 1 to 5 (x2, x5, x30, x70, x100)  are
available.
* In DMR mode, Next skip/Prev. skip/User BGM settings  are  not...

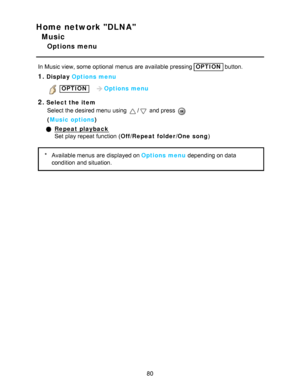

Home network DLNA
Music
Options menu
In Music view, some  optional  menus  are  available  pressing OPTION button.
1.Display Options menu
 OPTION    Options menu
2.Select the item
Select the desired menu  using
/ and press
( Music options )
Repeat playback
Set  play repeat function  ( Off/Repeat folder /One song )
*Available menus  are  displayed on Options menu  depending on data
condition  and situation.
80
