Panasonic ST50 Series Tv User Manual

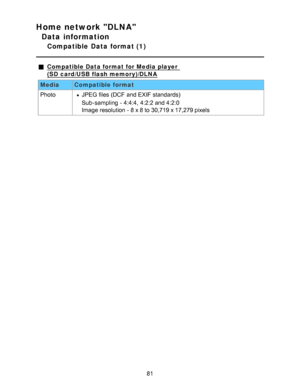

Home network DLNA
Data information
Compatible  Data  format (1)
Compatible Data format for Media player
(SD card/USB flash memory)/DLNA
MediaCompatible format
JPEG files (DCF and EXIF standards)


Sub-sampling  - 4:4:4,  4:2:2 and 4:2:0


Image resolution - 8 x 8 to 30,719 x 17,279 pixels
81

Home network DLNA
Data information

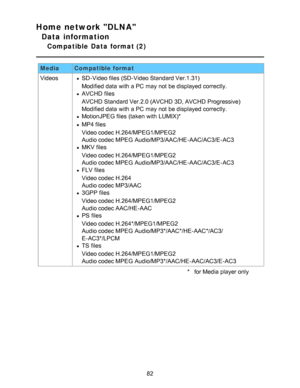

Compatible  Data  format (2)
MediaCompatible format
VideosSD-Video files (SD-Video Standard Ver.1.31)


Modified data  with a PC may not be displayed correctly.
AVCHD  files


AVCHD  Standard Ver.2.0 (AVCHD 3D, AVCHD  Progressive)


Modified data  with a PC may not be displayed correctly.
MotionJPEG files (taken with LUMIX)*
MP4 files


Video codec H.264/MPEG1/MPEG2


Audio codec MPEG  Audio/MP3/AAC/HE-AAC/AC3/E-AC3
MKV files


Video codec...

Home network DLNA
Data information

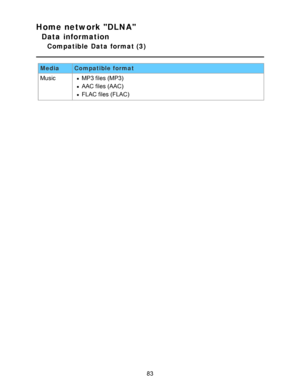

Compatible  Data  format (3)
MediaCompatible format
MusicMP3 files (MP3)
AAC files (AAC)
FLAC files (FLAC)
83

Home network DLNA
Data information

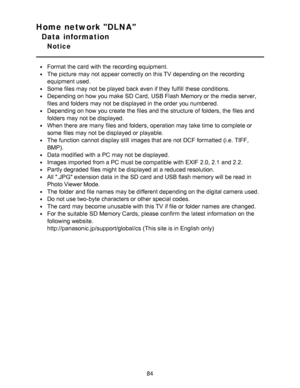

Notice
Format the card  with the recording equipment.
The picture  may not appear correctly on this TV depending on the recording
equipment used.
Some files may not be played  back even if they fulfill  these  conditions.
Depending on how you make  SD Card,  USB Flash  Memory or the media server,
files and folders  may not be displayed in the order you numbered.
Depending on how you create the files and the structure of folders, the files and
folders  may not be...

Media player
Get started
Information

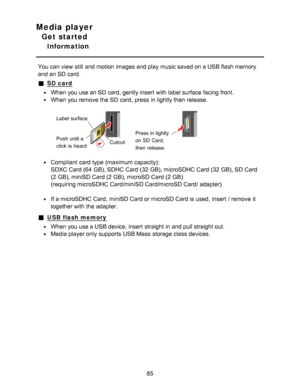

You can view  still  and motion  images and play music saved on a USB flash memory
and an SD card.
SD card
When you use an SD card, gently insert  with label surface facing front.
When you remove the SD card, press  in lightly then  release.
Label  surface
Push until a
click  is  heardCutoutPress in lightly
on SD Card,
then  release.
Compliant  card  type (maximum capacity):
SDXC Card (64  GB), SDHC Card (32  GB), microSDHC Card (32  GB), SD Card
(2 GB), miniSD...

Media player
Get started

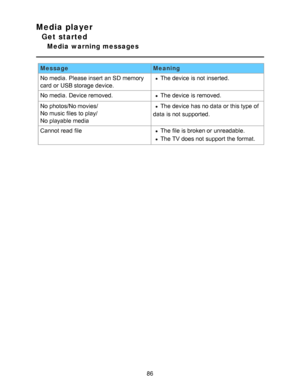

Media  warning messages
MessageMeaning
No media.  Please insert  an SD memory
card  or USB storage device.
The device is not inserted.
No media.  Device removed.
The device is removed.
No photos/No movies/
No music files to play/
No playable media
The device has no data  or this type of
data  is not supported.
Cannot read  file
The file is broken or unreadable.
The TV does not support the format.
86

Media player
Get started

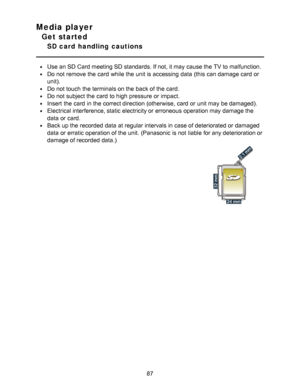

SD card  handling  cautions
Use an SD Card meeting SD standards. If not, it may cause the TV to malfunction.
Do not remove the card  while the unit is accessing  data  (this can damage card  or
unit).
Do not touch  the terminals on the back of the card.
Do not subject the card  to high pressure or impact.
Insert  the card  in the correct direction (otherwise, card  or unit may be damaged).
Electrical interference, static electricity or erroneous  operation may damage the
data  or...

Media player
Photos

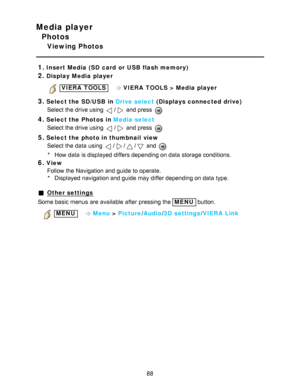

Viewing Photos
1.
Insert Media (SD card  or USB flash memory)
2.Display Media player
 VIERA  TOOLS    VIERA  TOOLS > Media player
3.Select the SD/ USB in Drive select  (Displays connected drive)
Select the drive using
/ and press
4.Select the Photos  in Media select
Select the drive using
/ and press
5.Select the photo in thumbnail  view Select the data  using
/// and
* How  data  is displayed differs depending on data  storage conditions.
6.View
Follow the Navigation and...

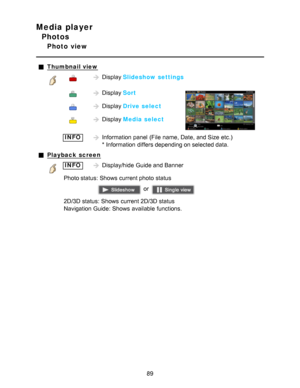

Media player
Photos
Photo  view
Thumbnail view
Display Slideshow settings
 Display Sort
 Display Drive select
 Display Media select
 INFOInformation  panel  (File  name, Date, and Size  etc.)
* Information  differs depending on selected data.
Playback  screen
INFODisplay/hide  Guide and Banner
Photo status:  Shows  current photo  status
 or
2D/3D status:  Shows  current 2D/3D status
Navigation Guide:  Shows  available  functions.
89

Media player
Photos

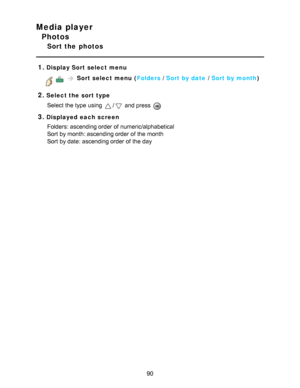

Sort the  photos
1.
Display Sort select menu
Sort select menu  ( Folders / Sort by date  / Sort by month )
2.Select the sort type
Select the type using
/ and press
3.Displayed each screenFolders: ascending order of numeric/alphabetical
Sort by month: ascending order of the month
Sort by date: ascending order of the day
