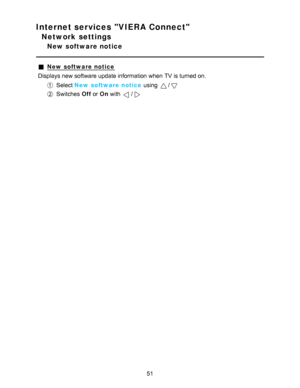

Panasonic ST50 Series Tv User Manual

Internet services VIERA Connect
Network settings
New software notice
New  software notice
Displays new software update information  when TV is turned on.
Select  New  software notice  using /
Switches  Off or On with /
51

Internet services VIERA Connect
Network settings

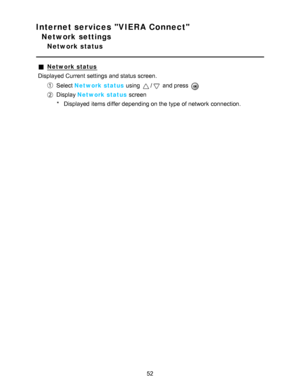

Network status
Network status
Displayed Current settings  and status screen.
Select  Network status  using / and press
Display Network status  screen
* Displayed items differ depending on the type of network  connection.
52

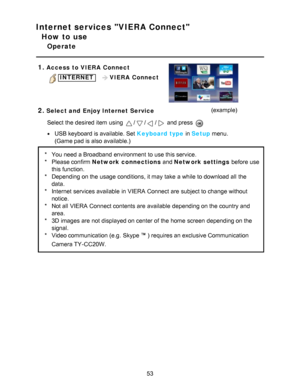

Internet services VIERA Connect
How to use
Operate
1.
Access  to VIERA  Connect
INTERNET    VIERA  Connect
2.Select and  Enjoy Internet Service (example)
Select the desired item using
/// and press
USB keyboard is available. Set  Keyboard type  in Setup menu.
(Game pad is also available.)
* You need a Broadband environment  to use this service.
* Please confirm Network connections  and Network settings before use
this function.
* Depending on the usage conditions, it may take a while to download all...

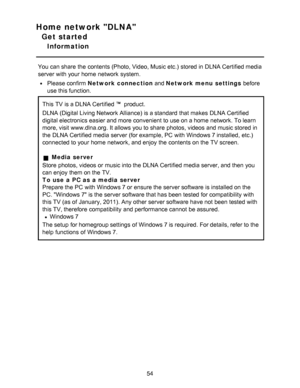

Home network DLNA
Get started
Information
You can share  the contents (Photo, Video, Music etc.)  stored in DLNA Certified media
server with your  home  network  system.
Please confirm Network connection and Network menu  settings before
use this function.
This TV is a DLNA Certified product.
DLNA (Digital Living Network Alliance) is a standard that makes  DLNA Certified
digital electronics easier and more convenient to use on a home  network. To learn
more, visit www.dlna.org. It allows you to share...

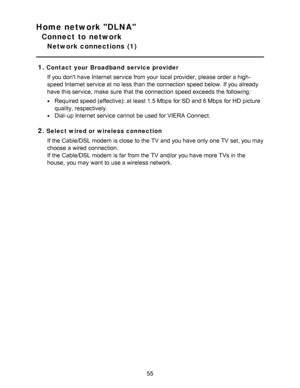

Home network DLNA
Connect to network
Network connections  (1)
1.
Contact your Broadband service provider If you dont have Internet service from your  local provider, please  order a high-
speed Internet service at no less than  the connection speed below. If you already
have this service,  make  sure  that the connection speed exceeds the following:
Required speed (effective): at least 1.5 Mbps  for SD and 6 Mbps  for HD  picture
quality, respectively.
Dial-up Internet service cannot  be used for VIERA...

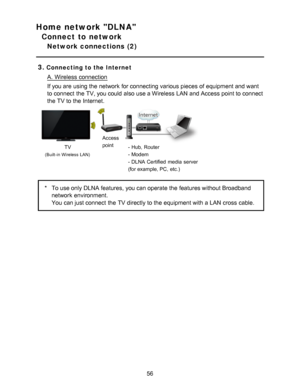

Home network DLNA
Connect to network
Network connections  (2)
3.
Connecting to the Internet
A.  Wireless connection
If you are  using the network  for connecting various pieces of equipment and want
to connect  the TV, you could also use a Wireless LAN  and Access point to connect
the TV to the Internet.
TV
(Built -in  Wireless  LAN)
Access
point - Hub, Router
- Modem
- DLNA Certified  media  server
(for example, PC, etc.)
*To use only DLNA features, you can operate the features without Broadband...

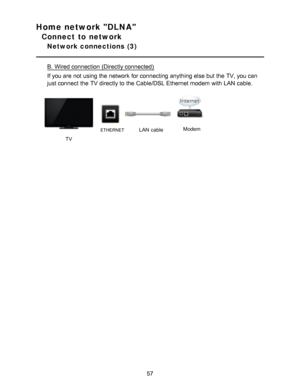

Home network DLNA
Connect to network
Network connections  (3)
B.  Wired connection (Directly connected)
If you are  not using the network  for connecting anything else but the TV, you can
just connect  the TV directly to the Cable/DSL Ethernet modem with LAN  cable.

TV
ETHERNETLAN  cableModem
57

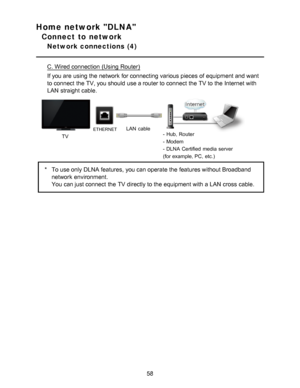

Home network DLNA
Connect to network
Network connections  (4)
C. Wired connection (Using Router)
If you are  using the network  for connecting various pieces of equipment and want
to connect  the TV, you should  use a router to connect  the TV to the Internet with
LAN  straight cable.
TV
ETHERNETLAN  cable- Hub, Router
- Modem
- DLNA Certified  media  server
(for example, PC, etc.)
*To use only DLNA features, you can operate the features without Broadband
network  environment.
You can just connect  the...

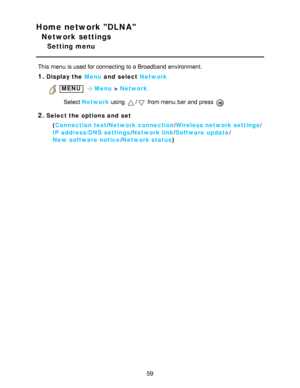

Home network DLNA
Network settings
Setting menu
This menu  is used for connecting to a Broadband environment.
1.Display the Menu and  select Network
 MENU Menu > Network
Select  Network  using
/ from menu  bar  and press
2.Select the options and  set
(Connection test /Network connection /Wireless network settings /
IP address/DNS  settings /Network link/ Software  update /
New  software notice /Network status )
59

Home network DLNA
Network settings

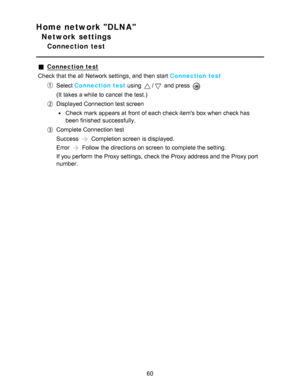

Connection  test
Connection test
Check that the all  Network settings, and then  start  Connection test
Select  Connection test  using / and press
(It takes a while to cancel the test.)
Displayed Connection test screen
Check mark appears at front  of each check items box when check has
been finished  successfully.
Complete Connection test
Success
 Completion screen  is displayed.
Error
 Follow the directions on screen  to complete the setting.
If you perform  the...
