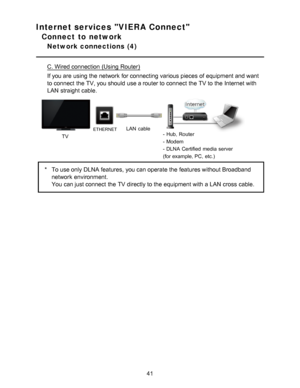

Panasonic ST50 Series Tv User Manual

Internet services VIERA Connect
Connect to network
Network connections  (4)
C. Wired connection (Using Router)
If you are  using the network  for connecting various pieces of equipment and want
to connect  the TV, you should  use a router to connect  the TV to the Internet with
LAN  straight cable.
TV
ETHERNETLAN  cable- Hub, Router
- Modem
- DLNA Certified  media  server
(for example, PC, etc.)
*To use only DLNA features, you can operate the features without Broadband
network  environment.
You can just...

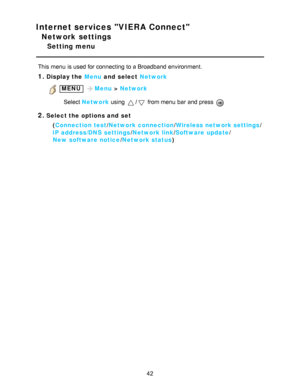

Internet services VIERA Connect
Network settings
Setting menu
This menu  is used for connecting to a Broadband environment.
1.Display the Menu and  select Network
 MENU Menu > Network
Select  Network  using
/ from menu  bar  and press
2.Select the options and  set
(Connection test /Network connection /Wireless network settings /
IP address/DNS  settings /Network link/ Software  update /
New  software notice /Network status )
42

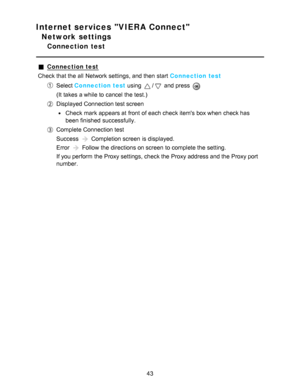

Internet services VIERA Connect
Network settings
Connection  test
Connection test
Check that the all  Network settings, and then  start  Connection test
Select  Connection test  using / and press
(It takes a while to cancel the test.)
Displayed Connection test screen
Check mark appears at front  of each check items box when check has
been finished  successfully.
Complete Connection test
Success
 Completion screen  is displayed.
Error
 Follow the directions on screen  to complete the setting.
If you...

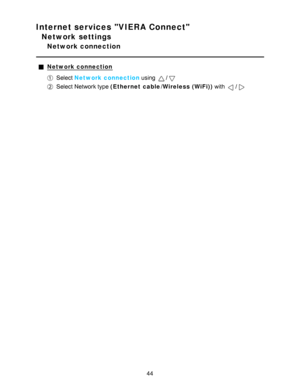

Internet services VIERA Connect
Network settings
Network connection
Network connection
Select Network connection  using /
Select Network type (Ethernet cable/Wireless (WiFi) ) with /
44

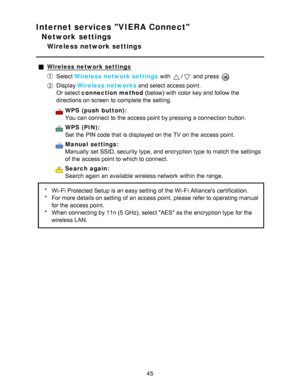

Internet services VIERA Connect
Network settings
Wireless network settings
Wireless network settings
Select Wireless network settings  with / and press
Display Wireless networks  and select access point.
Or select connection method  (below) with color key and follow the
directions on screen  to complete the setting.
WPS  (push  button):
You can connect  to the access point by pressing a connection button.
WPS  (PIN):
Set  the PIN code that is displayed on the TV on the access point.
Manual  settings:...

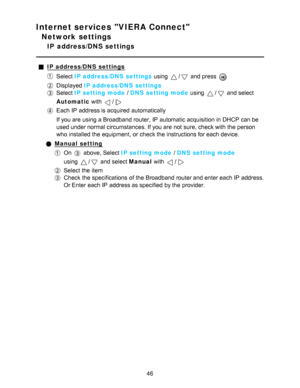

Internet services VIERA Connect
Network settings
IP  address/DNS settings
IP address/DNS  settings
Select IP address/DNS  settings  using / and press
Displayed IP address/DNS  settings
Select IP setting mode  / DNS setting mode  using / and select
Automatic  with
/
Each IP  address is acquired automatically
If you are  using a Broadband router, IP  automatic acquisition in DHCP can be
used under normal circumstances. If you are  not sure, check with the person
who installed the equipment,  or check...

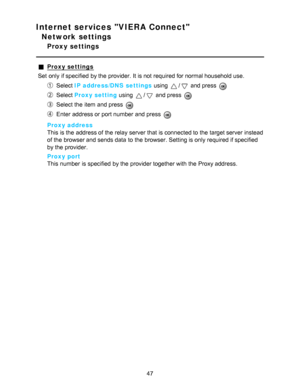

Internet services VIERA Connect
Network settings
Proxy settings
Proxy settings
Set  only if specified  by the provider. It is not required for normal household use.
Select  IP address/DNS  settings  using / and press
Select Proxy setting  using / and press
Select the item and press
Enter address or port number and press
Proxy address
This is the address of the relay server that is connected to the target server instead
of the browser and sends data  to the browser. Setting is only required if...

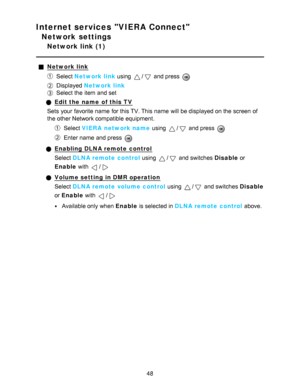

Internet services VIERA Connect
Network settings
Network link (1)
Network link
Select Network link using / and press
Displayed  Network link
Select the item and set
Edit the name  of this TV
Sets  your  favorite name  for this TV. This name  will be displayed on the screen  of
the other Network compatible equipment.
Select  VIERA  network name  using / and press
Enter name  and press
Enabling DLNA remote control
Select DLNA remote control  using
/ and switches Disable or
Enable  with
/
Volume...

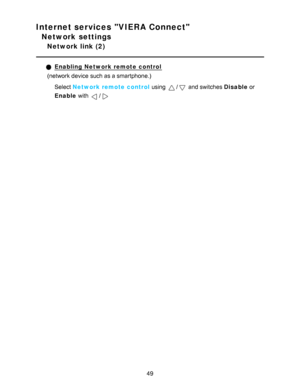

Internet services VIERA Connect
Network settings
Network link (2)
Enabling Network remote control
(network device such as a smartphone.)
Select  Network remote control  using
/ and switches Disable or
Enable  with
/
49

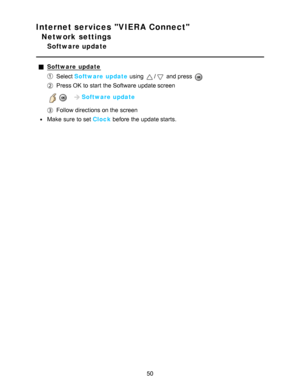

Internet services VIERA Connect
Network settings
Software update
Software  update
Select Software  update  using / and press
Press OK  to start  the Software  update screen
   Software  update
Follow directions on the screen
Make  sure  to set Clock  before the update starts.
