Panasonic ST50 Series Tv User Manual

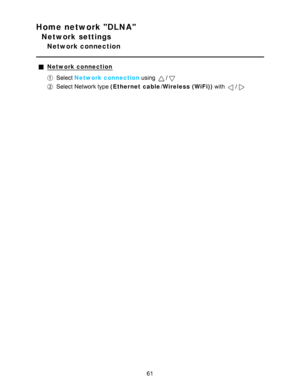

Home network DLNA
Network settings
Network connection
Network connection
Select Network connection  using /
Select Network type (Ethernet cable/Wireless (WiFi) ) with /
61

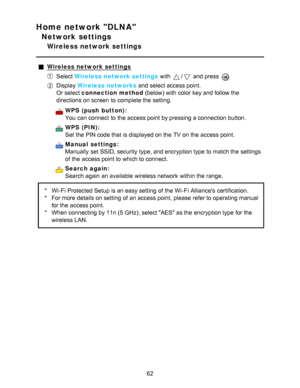

Home network DLNA
Network settings
Wireless network settings
Wireless network settings
Select Wireless network settings  with / and press
Display Wireless networks  and select access point.
Or select connection method  (below) with color key and follow the
directions on screen  to complete the setting.
WPS  (push  button):
You can connect  to the access point by pressing a connection button.
WPS  (PIN):
Set  the PIN code that is displayed on the TV on the access point.
Manual  settings:
Manually  set...

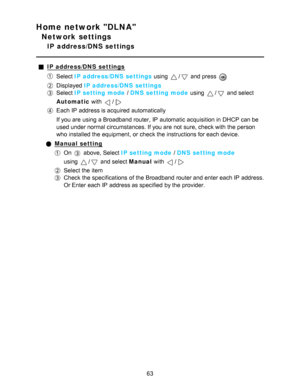

Home network DLNA
Network settings
IP  address/DNS settings
IP address/DNS  settings
Select IP address/DNS  settings  using / and press
Displayed IP address/DNS  settings
Select IP setting mode  / DNS setting mode  using / and select
Automatic  with
/
Each IP  address is acquired automatically
If you are  using a Broadband router, IP  automatic acquisition in DHCP can be
used under normal circumstances. If you are  not sure, check with the person
who installed the equipment,  or check the instructions...

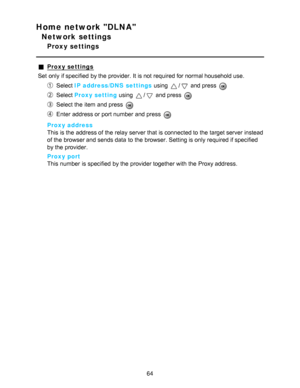

Home network DLNA
Network settings
Proxy settings
Proxy settings
Set  only if specified  by the provider. It is not required for normal household use.
Select  IP address/DNS  settings  using / and press
Select Proxy setting  using / and press
Select the item and press
Enter address or port number and press
Proxy address
This is the address of the relay server that is connected to the target server instead
of the browser and sends data  to the browser. Setting is only required if specified
by the...

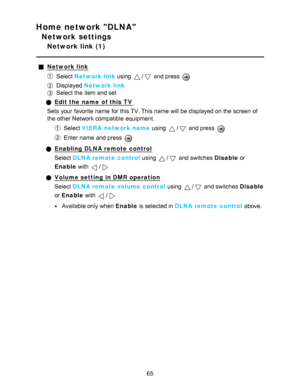

Home network DLNA
Network settings
Network link (1)
Network link
Select Network link using / and press
Displayed  Network link
Select the item and set
Edit the name  of this TV
Sets  your  favorite name  for this TV. This name  will be displayed on the screen  of
the other Network compatible equipment.
Select  VIERA  network name  using / and press
Enter name  and press
Enabling DLNA remote control
Select DLNA remote control  using
/ and switches Disable or
Enable  with
/
Volume setting in DMR...

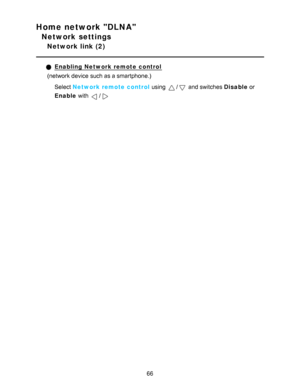

Home network DLNA
Network settings
Network link (2)
Enabling Network remote control
(network device such as a smartphone.)
Select  Network remote control  using
/ and switches Disable or
Enable  with
/
66

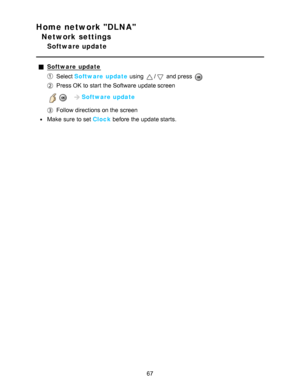

Home network DLNA
Network settings
Software update
Software  update
Select Software  update  using / and press
Press OK  to start  the Software  update screen
   Software  update
Follow directions on the screen
Make  sure  to set Clock  before the update starts.
67

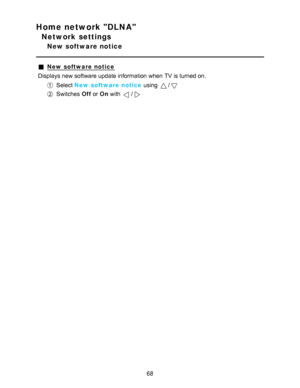

Home network DLNA
Network settings
New software notice
New  software notice
Displays new software update information  when TV is turned on.
Select  New  software notice  using /
Switches  Off or On with /
68

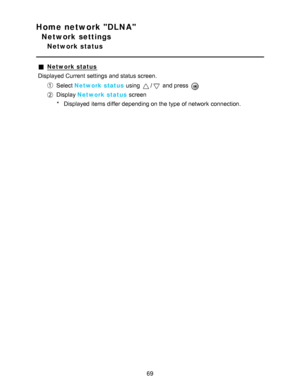

Home network DLNA
Network settings
Network status
Network status
Displayed Current settings  and status screen.
Select  Network status  using / and press
Display Network status  screen
* Displayed items differ depending on the type of network  connection.
69

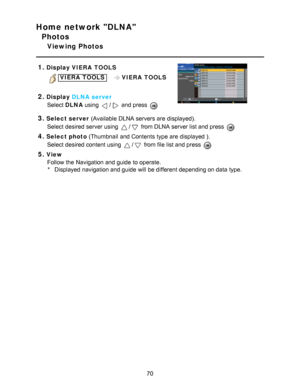

Home network DLNA
Photos
Viewing Photos
1.
Display  VIERA  TOOLS
VIERA  TOOLS    VIERA  TOOLS

2.Display DLNA server
Select  DLNA using
/ and press
3.Select server  (Available DLNA servers are  displayed).
Select desired server using
/ from DLNA server list and press
4.Select photo  (Thumbnail  and Contents  type are  displayed ).
Select desired content using
/ from file list and press
5.View Follow the Navigation and guide  to operate.* Displayed navigation and guide  will be different...
