Philips Bdl5571v User Manual



BDL5571V




www.philips.com/welcome
User Manual (English)
















User Manual BDL5571V
 1
SAFETY INSTRUCTIONS
WARNINGS AND PRECAUTIONS

KNOW THESE SAFETY SYMBOLS
  CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE
PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part
of this product.

This symbol alerts you that important literature concerning operation and maintenance has been...

User Manual BDL5571V
 2
Read and follow these instructions when connecting and using your computer monitor:
 Unplug the monitor if you are not going to use it for an extensive period of time.
 Unplug the monitor if you need to clean it with a slightly damp cloth. The screen many be
wiped with a dry cloth when the power is off. However, never use alcohol, solvents or
ammonia-based liquids.
 Consult a service technician if the monitor does not operate normally when you have followed
the...

User Manual BDL5571V
 3






REGULATORY INFORMATION

CE DECLARATION OF CONFORMITY

MMD declare under our responsibility that the product is in conformity with the following standards
• EN60950-1:2006+A11:2009 (Safety requirement of Information Technology Equipment)
• EN55022:2006+A1:2007 (Radio Disturbance requirement of Information Technology Equipment)
• EN55024:1998+A1:2001+A2:2003 (Immunity requirement of Information Technology Equipment)
• EN61000-3-2:2006 (Limits for Harmonic...

User Manual BDL5571V
 4

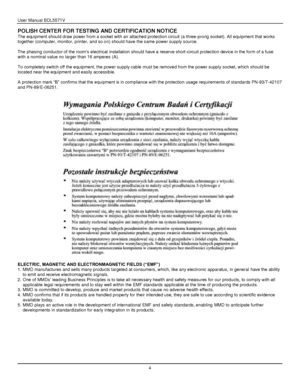

POLISH CENTER FOR TESTING AND CERTIFICATION NOTICE
The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works
together (computer, monitor, printer, and so on) should have the same power supply source.

The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse
with a nominal value no larger than 16 amperes (A).

To completely...

User Manual BDL5571V
 5

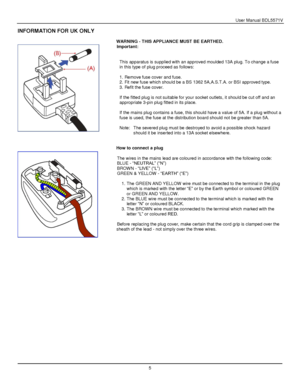

INFORMATION FOR UK ONLY

WARNING - THIS APPLIANCE MUST BE EARTHED.
Important:


This apparatus is supplied with an approved moulded 13A plug. To change a fuse
in this type of plug proceed as follows:

1. Remove fuse cover and fuse.
2. Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI approved type.
3. Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an
appropriate 3-pin plug fitted in its...

User Manual BDL5571V
 6

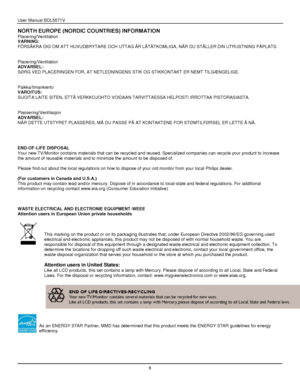

NORTH EUROPE (NORDIC COUNTRIES) INFORMATION
Placering/Ventilation VARNING:
FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS.


Placering/Ventilation
ADVARSEL:
SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE.


Paikka/Ilmankierto
VAROITUS:
SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI IRROTTAA PISTORASIASTA.


Plassering/Ventilasjon
ADVARSEL:
NÅR DETTE...

User Manual BDL5571V
 7

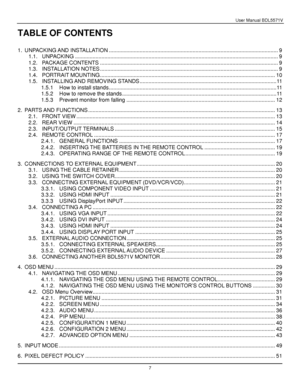

TABLE OF CONTENTS

1. UNPACKING AND INSTALLATION ................................................................................................................... 9
1.1. UNPACKING .......................................................................................................................................... 9
1.2. PACKAGE CONTENTS ......................................................................................................................... 9
1.3....

User Manual BDL5571V
 8

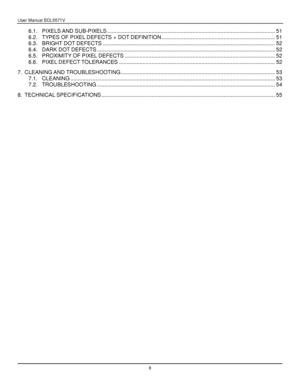

6.1. PIXELS AND SUB-PIXELS .................................................................................................................. 51
6.2. TYPES OF PIXEL DEFECTS + DOT DEFINITION ............................................................................. 51
6.3. BRIGHT DOT DEFECTS ..................................................................................................................... 52
6.4. DARK DOT DEFECTS...

User Manual BDL5571V
 9

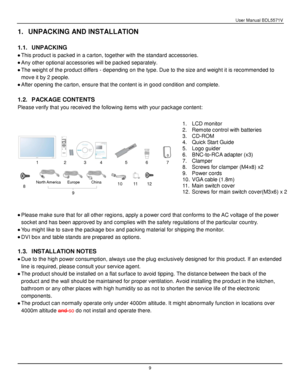

1. UNPACKING AND INSTALLATION

1.1. UNPACKING
 This product is packed in a carton, together with the standard accessories.
 Any other optional accessories will be packed separately.
 The weight of the product differs - depending on the type. Due to the size and weight it is recommended to
move it by 2 people.
 After opening the carton, ensure that the content is in good condition and complete.

1.2. PACKAGE CONTENTS
Please verify that you received the following...
