Page 41

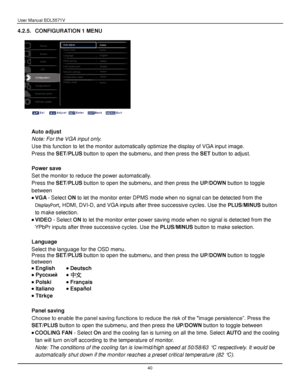

User Manual BDL5571V 40 4.2.5. CONFIGURATION 1 MENU Auto adjust Note: For the VGA input only. Use this function to let the monitor automatically optimize the display of VGA input image. Press the SET/PLUS button to open the submenu, and then press the SET button to adjust. Power save Set the monitor to reduce the power automatically. Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle between VGA - Select ON to let the monitor enter DPMS...
Page 42

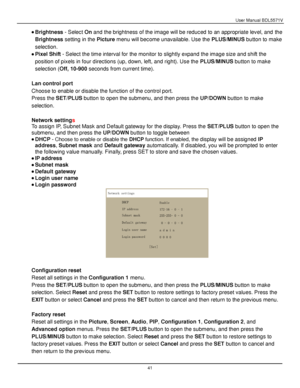

User Manual BDL5571V 41 Brightness - Select On and the brightness of the image will be reduced to an appropriate level, and the Brightness setting in the Picture menu will become unavailable. Use the PLUS/MINUS button to make selection. Pixel Shift - Select the time interval for the monitor to slightly expand the image size and shift the position of pixels in four directions (up, down, left, and right). Use the PLUS/MINUS button to make selection (Off, 10-900 seconds from current time)....
Page 43

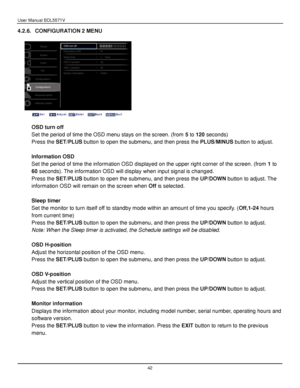

User Manual BDL5571V 42 4.2.6. CONFIGURATION 2 MENU OSD turn off Set the period of time the OSD menu stays on the screen. (from 5 to 120 seconds) Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust. Information OSD Set the period of time the information OSD displayed on the upper right corner of the screen. (from 1 to 60 seconds). The information OSD will display when input signal is changed. Press the SET/PLUS button to open the submenu, and...
Page 44
User Manual BDL5571V 43 4.2.7. ADVANCED OPTION MENU Input resolution Note: For the VGA input only. Set the resolution of the VGA input. This is only required when the monitor is unable to detect the VGA input resolution correctly. Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle between 1024x768, 1280x768, 1360x768 and 1366x768 640x480, 720x480 and 852x480 800x600, 1064x600 and 720x576 1400x1050 and 1680x1050 720x400 and 640x400 ...
Page 45

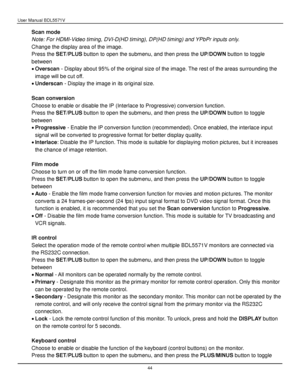

User Manual BDL5571V 44 Scan mode Note: For HDMI-Video timing, DVI-D(HD timing), DP(HD timing) and YPbPr inputs only. Change the display area of the image. Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle between Overscan - Display about 95% of the original size of the image. The rest of the areas surrounding the image will be cut off. Underscan - Display the image in its original size. Scan conversion Choose to enable or disable the IP...
Page 46

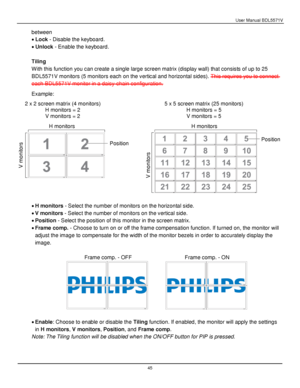

User Manual BDL5571V 45 between Lock - Disable the keyboard. Unlock - Enable the keyboard. Tiling With this function you can create a single large screen matrix (display wall) that consists of up to 25 BDL5571V monitors (5 monitors each on the vertical and horizontal sides). This requires you to connect each BDL5571V monitor in a daisy-chain configuration. Example: H monitors H monitors H monitors - Select the number of monitors on the horizontal side. V monitors -...
Page 47

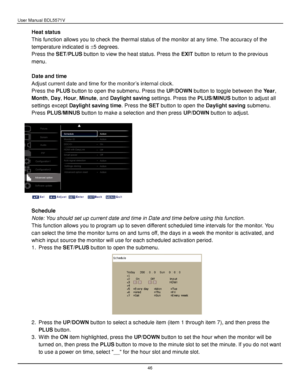

User Manual BDL5571V 46 Heat status This function allows you to check the thermal status of the monitor at any time. The accuracy of the temperature indicated is 5 degrees. Press the SET/PLUS button to view the heat status. Press the EXIT button to return to the previous menu. Date and time Adjust current date and time for the monitor’s internal clock. Press the PLUS button to open the submenu. Press the UP/DOWN button to toggle between the Year, Month, Day, Hour, Minute, and Daylight...
Page 48

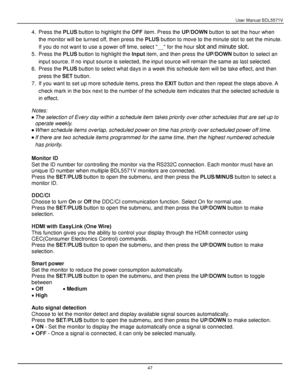

User Manual BDL5571V 47 4. Press the PLUS button to highlight the OFF item. Press the UP/DOWN button to set the hour when the monitor will be turned off, then press the PLUS button to move to the minute slot to set the minute. If you do not want to use a power off time, select __ for the hour slot and minute slot. 5. Press the PLUS button to highlight the Input item, and then press the UP/DOWN button to select an input source. If no input source is selected, the input source will remain the same...
Page 49

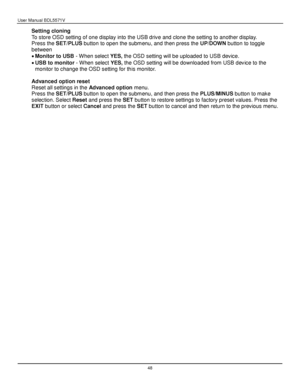

User Manual BDL5571V 48 Setting cloning To store OSD setting of one display into the USB drive and clone the setting to another display. Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle between Monitor to USB - When select YES, the OSD setting will be uploaded to USB device. USB to monitor - When select YES, the OSD setting will be downloaded from USB device to the monitor to change the OSD setting for this monitor. Advanced option reset Reset...
Page 50

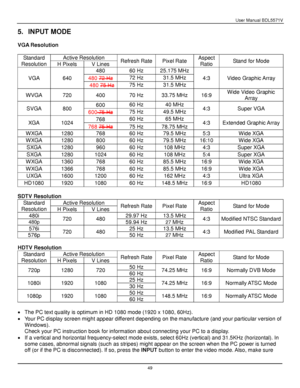

User Manual BDL5571V 49 5. INPUT MODE VGA Resolution Standard Resolution Active Resolution Refresh Rate Pixel Rate Aspect Ratio Stand for Mode H Pixels V Lines VGA 640 480 60 Hz 25.175 MHz 4:3 Video Graphic Array 480 72 Hz 72 Hz 31.5 MHz 480 75 Hz 75 Hz 31.5 MHz WVGA 720 400 70 Hz 33.75 MHz 16:9 Wide Video Graphic Array SVGA 800 600 60 Hz 40 MHz 4:3 Super VGA 600 75 Hz 75 Hz 49.5 MHz XGA 1024 768 60 Hz 65 MHz 4:3 Extended Graphic Array 768 75 Hz 75 Hz 78.75 MHz...
