User Manual BDL5571V
 50

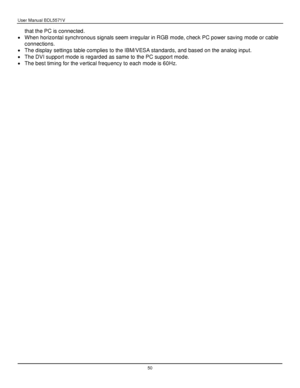

that the PC is connected.
 When horizontal synchronous signals seem irregular in RGB mode, check PC power saving mode or cable
connections.
 The display settings table complies to the IBM/VESA standards, and based on the analog input.
 The DVI support mode is regarded as same to the PC support mode.
 The best timing for the vertical frequency to each mode is 60Hz.


User Manual BDL5571V
 51

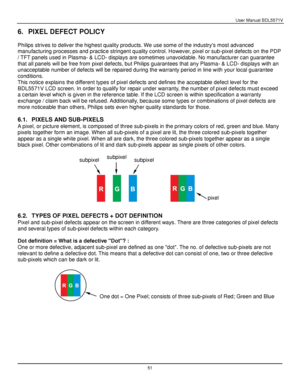

6. PIXEL DEFECT POLICY

Philips strives to deliver the highest quality products. We use some of the industrys most advanced
manufacturing processes and practice stringent quality control. However, pixel or sub-pixel defects on the PDP
/ TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee
that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an
unacceptable number of...

User Manual BDL5571V
 52

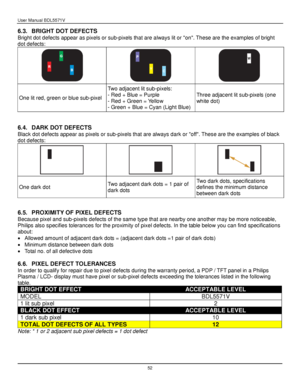

6.3. BRIGHT DOT DEFECTS
Bright dot defects appear as pixels or sub-pixels that are always lit or on. These are the examples of bright
dot defects:

One lit red, green or blue sub-pixel
Two adjacent lit sub-pixels:
- Red + Blue = Purple
- Red + Green = Yellow
- Green + Blue = Cyan (Light Blue)
Three adjacent lit sub-pixels (one
white dot)


6.4. DARK DOT DEFECTS
Black dot defects appear as pixels or sub-pixels that are always dark or off. These are the examples...

User Manual BDL5571V
 53

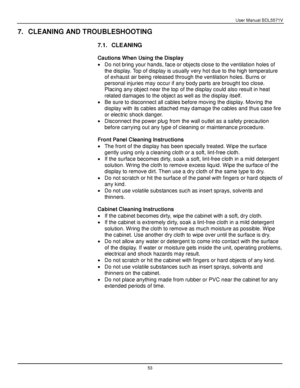

7. CLEANING AND TROUBLESHOOTING

7.1. CLEANING

Cautions When Using the Display
 Do not bring your hands, face or objects close to the ventilation holes of
the display. Top of display is usually very hot due to the high temperature
of exhaust air being released through the ventilation holes. Burns or
personal injuries may occur if any body parts are brought too close.
Placing any object near the top of the display could also result in heat
related damages to the...

User Manual BDL5571V
 54

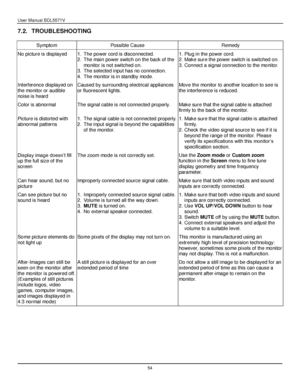

7.2. TROUBLESHOOTING

Symptom Possible Cause Remedy
No picture is displayed 1. The power cord is disconnected.
2. The main power switch on the back of the
monitor is not switched on.
3. The selected input has no connection.
4. The monitor is in standby mode.
1. Plug in the power cord.
2. Make sure the power switch is switched on.
3. Connect a signal connection to the monitor.
Interference displayed on
the monitor or audible
noise is heard
Caused by surrounding...

User Manual BDL5571V
 55

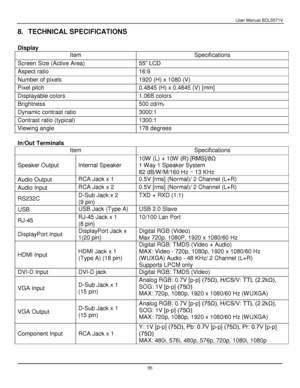

8. TECHNICAL SPECIFICATIONS

Display
Item  Specifications
Screen Size (Active Area)  55” LCD
Aspect ratio  16:9
Number of pixels  1920 (H) x 1080 (V)
Pixel pitch  0.4845 (H) x 0.4845 (V) [mm]
Displayable colors  1.06B colors
Brightness  500 cd/m2
Dynamic contrast ratio  3000:1
Contrast ratio (typical)  1300:1
Viewing angle  178 degrees

In/Out Terminals
Item Specifications
Speaker Output  Internal Speaker
10W (L) + 10W (R) [RMS]/8Ω
1 Way 1 Speaker...

User Manual BDL5571V
 56

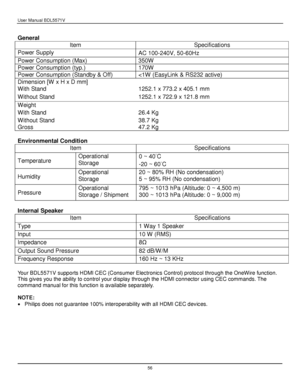

General
Item  Specifications
Power Supply  AC 100-240V, 50-60Hz
Power Consumption (Max)  350W
Power Consumption (typ.) 170W
Power Consumption (Standby & Off)






































2010 © Koninklijke Philips Electronics N.V. All rights reserved.

Philips and the Philips Shield Emblem are registered trade marks
of Koninklijke Philips Electronics N.V. and are used under license
from Koninklijke Philips Electronics N.V.

Specifications are subject to change without notice.
