Philips Bdl5571v User Manual

User Manual BDL5571V
 20

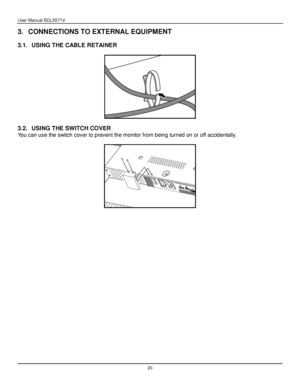

3. CONNECTIONS TO EXTERNAL EQUIPMENT

3.1. USING THE CABLE RETAINER



3.2. USING THE SWITCH COVER
You can use the switch cover to prevent the monitor from being turned on or off accidentally.






User Manual BDL5571V
 21

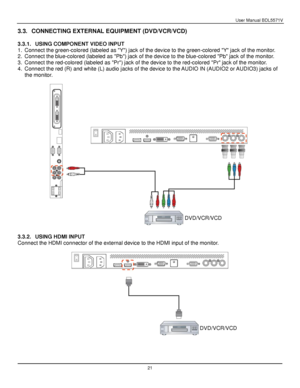

3.3. CONNECTING EXTERNAL EQUIPMENT (DVD/VCR/VCD)

3.3.1. USING COMPONENT VIDEO INPUT
1. Connect the green-colored (labeled as Y) jack of the device to the green-colored Y jack of the monitor.
2. Connect the blue-colored (labeled as Pb) jack of the device to the blue-colored Pb jack of the monitor.
3. Connect the red-colored (labeled as Pr) jack of the device to the red-colored Pr jack of the monitor.
4. Connect the red (R) and white (L) audio jacks of the device to the...

User Manual BDL5571V
 22

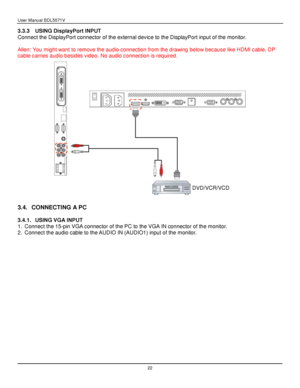

3.3.3 USING DisplayPort INPUT
Connect the DisplayPort connector of the external device to the DisplayPort input of the monitor.

Allen: You might want to remove the audio connection from the drawing below because like HDMI cable, DP
cable carries audio besides video. No audio connection is required.


3.4. CONNECTING A PC

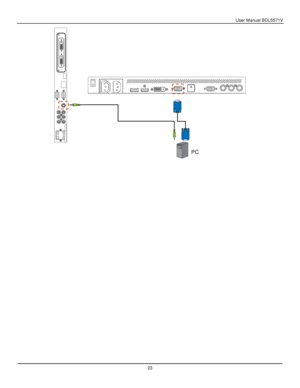

3.4.1. USING VGA INPUT
1. Connect the 15-pin VGA connector of the PC to the VGA IN connector of the monitor.
2. Connect the audio cable to the...

User Manual BDL5571V
 23

PC


User Manual BDL5571V
 24

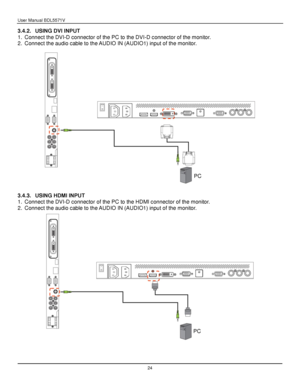

3.4.2. USING DVI INPUT
1. Connect the DVI-D connector of the PC to the DVI-D connector of the monitor.
2. Connect the audio cable to the AUDIO IN (AUDIO1) input of the monitor.



3.4.3. USING HDMI INPUT
1. Connect the DVI-D connector of the PC to the HDMI connector of the monitor.
2. Connect the audio cable to the AUDIO IN (AUDIO1) input of the monitor.

PC
PC


User Manual BDL5571V
 25

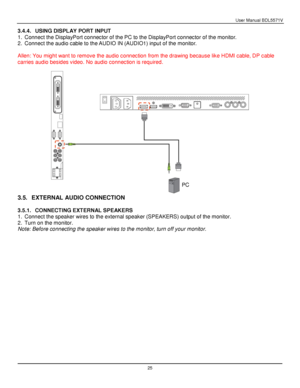

3.4.4. USING DISPLAY PORT INPUT
1. Connect the DisplayPort connector of the PC to the DisplayPort connector of the monitor.
2. Connect the audio cable to the AUDIO IN (AUDIO1) input of the monitor.

Allen: You might want to remove the audio connection from the drawing because like HDMI cable, DP cable
carries audio besides video. No audio connection is required.


3.5. EXTERNAL AUDIO CONNECTION

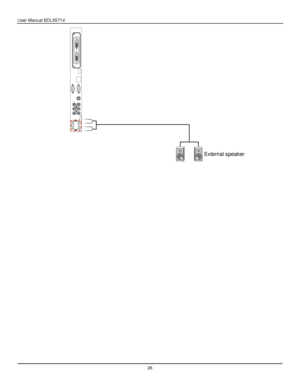

3.5.1. CONNECTING EXTERNAL SPEAKERS
1. Connect the speaker wires to the...

User Manual BDL5571V
 26
External speaker


User Manual BDL5571V
 27

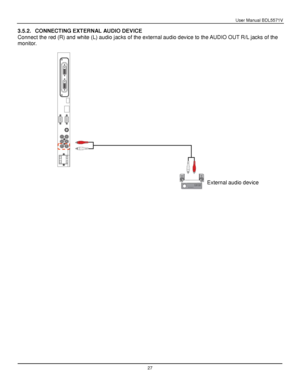

3.5.2. CONNECTING EXTERNAL AUDIO DEVICE
Connect the red (R) and white (L) audio jacks of the external audio device to the AUDIO OUT R/L jacks of the
monitor.



External audio device


User Manual BDL5571V
 28

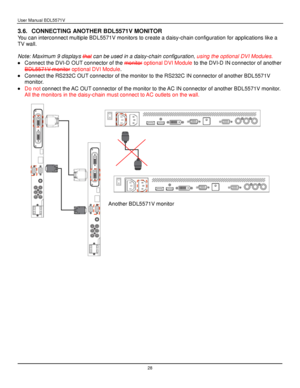

3.6. CONNECTING ANOTHER BDL5571V MONITOR
You can interconnect multiple BDL5571V monitors to create a daisy-chain configuration for applications like a
TV wall.

Note: Maximum 9 displays that can be used in a daisy-chain configuration, using the optional DVI Modules.
 Connect the DVI-D OUT connector of the monitor optional DVI Module to the DVI-D IN connector of another
BDL5571V monitor optional DVI Module.
 Connect the RS232C OUT connector of the monitor to the RS232C...

User Manual BDL5571V
 29

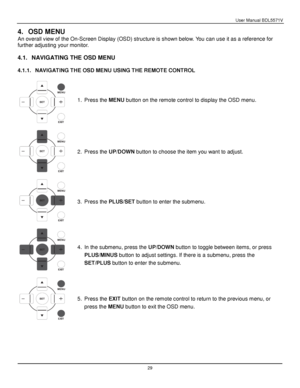

4. OSD MENU
An overall view of the On-Screen Display (OSD) structure is shown below. You can use it as a reference for
further adjusting your monitor.

4.1. NAVIGATING THE OSD MENU

4.1.1. NAVIGATING THE OSD MENU USING THE REMOTE CONTROL




1. Press the MENU button on the remote control to display the OSD menu.
2. Press the UP/DOWN button to choose the item you want to adjust.
3. Press the PLUS/SET button to enter the submenu.
4. In the submenu, press the UP/DOWN...
