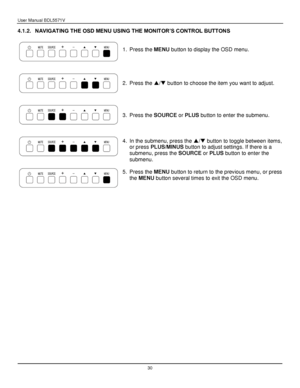

4.1.2. NAVIGATING THE OSD MENU USING THE MONITOR‟S CONTROL BUTTONS



1. Press the MENU button to display the OSD menu.
2. Press the / button to choose the item you want to adjust.
3. Press the SOURCE or PLUS button to enter the submenu.
4. In the submenu, press the / button to toggle between items,
or press PLUS/MINUS button to adjust settings. If there is a
submenu, press the SOURCE or PLUS button to enter the
submenu.
5. Press the MENU button to return to the...

User Manual BDL5571V
 31
4.2. OSD Menu Overview

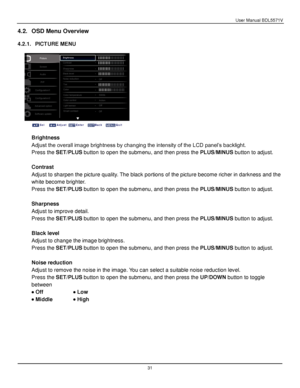

4.2.1. PICTURE MENU




Brightness
Adjust the overall image brightness by changing the intensity of the LCD panel’s backlight.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust.

Contrast
Adjust to sharpen the picture quality. The black portions of the picture become richer in darkness and the
white become brighter.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS...

User Manual BDL5571V
 32

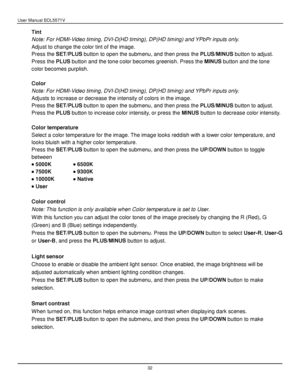

Tint
Note: For HDMI-Video timing, DVI-D(HD timing), DP(HD timing) and YPbPr inputs only.
Adjust to change the color tint of the image.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust.
Press the PLUS button and the tone color becomes greenish. Press the MINUS button and the tone
color becomes purplish.

Color
Note: For HDMI-Video timing, DVI-D(HD timing), DP(HD timing) and YPbPr inputs only.
Adjusts to increase or decrease...

User Manual BDL5571V
 33

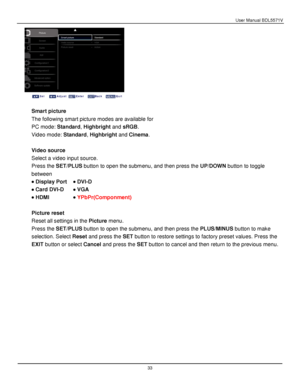

Smart picture
The following smart picture modes are available for
PC mode: Standard, Highbright and sRGB.
Video mode: Standard, Highbright and Cinema.

Video source
Select a video input source.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle
between
 Display Port  DVI-D
 Card DVI-D  VGA
 HDMI  YPbP(Componment)

Picture reset
Reset all settings in the Picture menu.
Press the SET/PLUS button to open the...

User Manual BDL5571V
 34

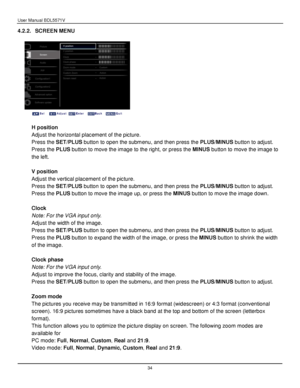

4.2.2. SCREEN MENU




H position
Adjust the horizontal placement of the picture.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust.
Press the PLUS button to move the image to the right, or press the MINUS button to move the image to
the left.

V position
Adjust the vertical placement of the picture.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust.
Press the PLUS button to...

User Manual BDL5571V
 35

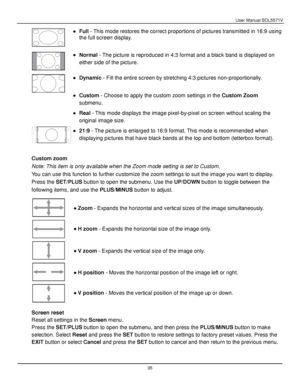

 Full - This mode restores the correct proportions of pictures transmitted in 16:9 using
the full screen display.

 Normal - The picture is reproduced in 4:3 format and a black band is displayed on
either side of the picture.





 Dynamic - Fill the entire screen by stretching 4:3 pictures non-proportionally.

 Custom - Choose to apply the custom zoom settings in the Custom Zoom
submenu.
 Real - This mode displays the image pixel-by-pixel on screen...

User Manual BDL5571V
 36

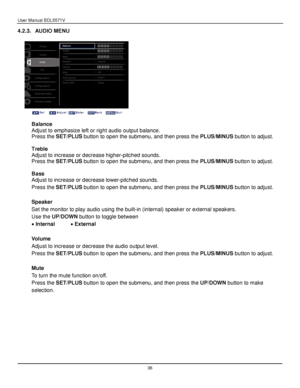

4.2.3. AUDIO MENU




Balance
Adjust to emphasize left or right audio output balance.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust.

Treble
Adjust to increase or decrease higher-pitched sounds.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to adjust.

Bass
Adjust to increase or decrease lower-pitched sounds.
Press the SET/PLUS button to open the submenu, and then press the...

User Manual BDL5571V
 37

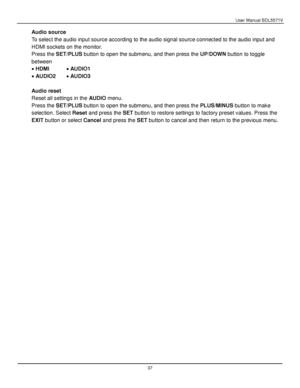

Audio source
To select the audio input source according to the audio signal source connected to the audio input and
HDMI sockets on the monitor.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle
between
 HDMI  AUDIO1
 AUDIO2  AUDIO3

Audio reset
Reset all settings in the AUDIO menu.
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to make
selection. Select Reset and press the SET button...

User Manual BDL5571V
 38

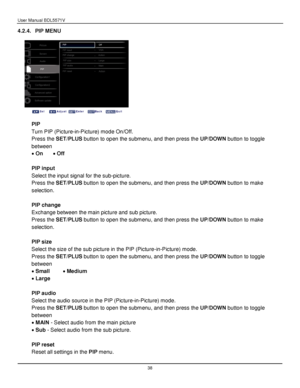

4.2.4. PIP MENU




PIP
Turn PIP (Picture-in-Picture) mode On/Off.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to toggle
between
 On  Off

PIP input
Select the input signal for the sub-picture.
Press the SET/PLUS button to open the submenu, and then press the UP/DOWN button to make
selection.

PIP change
Exchange between the main picture and sub picture.
Press the SET/PLUS button to open the submenu, and then press the...

User Manual BDL5571V
 39
Press the SET/PLUS button to open the submenu, and then press the PLUS/MINUS button to make
selection. Select Reset and press the SET button to restore settings to factory preset values. Press the
EXIT button or select Cancel and press the SET button to cancel and then return to the previous menu.

Notes:

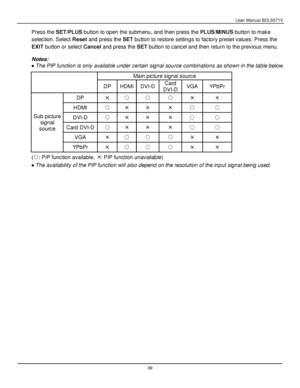

 The PIP function is only available under certain signal source combinations as shown in the table below.
 Main picture signal source
DP HDMI DVI-D Card
DVI-D VGA...
