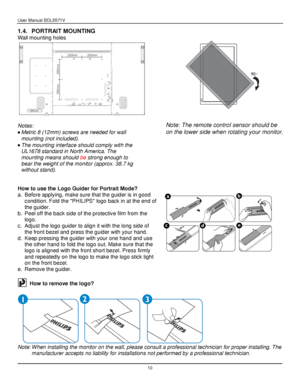

1.4. PORTRAIT MOUNTING
Wall mounting holes

Notes:
 Metric 8 (12mm) screws are needed for wall
mounting (not included).
 The mounting interface should comply with the
UL1678 standard in North America. The
mounting means should be strong enough to
bear the weight of the monitor (approx. 38.7 kg
without stand).


How to use the Logo Guider for Portrait Mode?
a. Before applying, make sure that the guider is in good
condition. Fold the PHILIPS logo back in at the...

User Manual BDL5571V
 11

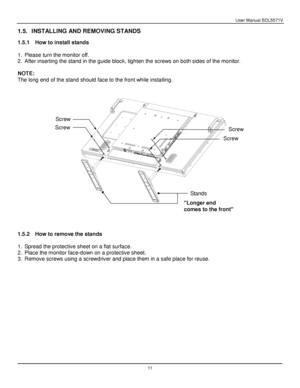

1.5. INSTALLING AND REMOVING STANDS

1.5.1 How to install stands

1. Please turn the monitor off.
2. After inserting the stand in the guide block, tighten the screws on both sides of the monitor.

NOTE:
The long end of the stand should face to the front while installing.







1.5.2 How to remove the stands

1. Spread the protective sheet on a flat surface.
2. Place the monitor face-down on a protective sheet.
3. Remove screws using a screwdriver and place...

User Manual BDL5571V
 12

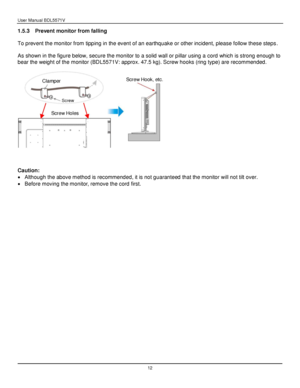

1.5.3 Prevent monitor from falling

To prevent the monitor from tipping in the event of an earthquake or other incident, please follow these steps.

As shown in the figure below, secure the monitor to a solid wall or pillar using a cord which is strong enough to
bear the weight of the monitor (BDL5571V: approx. 47.5 kg). Screw hooks (ring type) are recommended.





Caution:
 Although the above method is recommended, it is not guaranteed that the monitor will not...

User Manual BDL5571V
 13

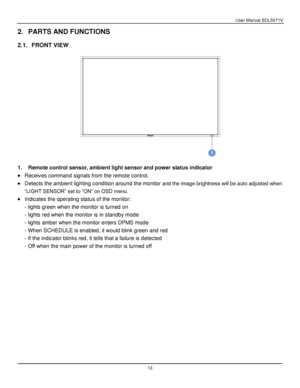

2. PARTS AND FUNCTIONS

2.1. FRONT VIEW



1. Remote control sensor, ambient light sensor and power status indicator
 Receives command signals from the remote control.
 Detects the ambient lighting condition around the monito and the image brightness will be auto adjusted when
“LIGHT SENSOR” set to “ON” on OSD menu.
 Indicates the operating status of the monitor:
- lights green when the monitor is turned on
- lights red when the monitor is in standby mode
-...

User Manual BDL5571V
 14

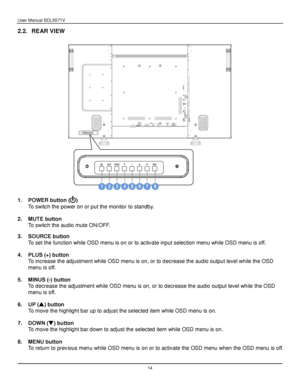

2.2. REAR VIEW



1. POWER button ()
To switch the power on or put the monitor to standby.

2. MUTE button
To switch the audio mute ON/OFF.

3. SOURCE button
To set the function while OSD menu is on or to activate input selection menu while OSD menu is off.

4. PLUS (+) button
To increase the adjustment while OSD menu is on, or to decrease the audio output level while the OSD
menu is off.

5. MINUS (-) button
To decrease the adjustment while OSD menu is on, or...

User Manual BDL5571V
 15
Note: Keyboard Control Lock Mode This function completely disables the access to all Keyboard Control
functions. To enable the keyboard control lock, press both of “” and “” buttons and hold down continuously
for more than 3 seconds. To recover back to the user mode, press both of “” and “” and hold continuously
for three 3 seconds.


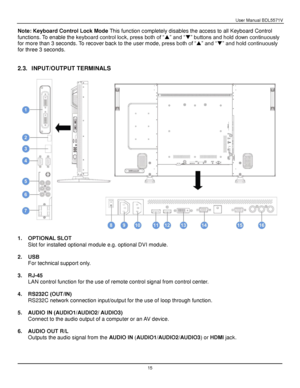

2.3. INPUT/OUTPUT TERMINALS



1. OPTIONAL SLOT
Slot for installed optional module e.g. optional DVI module.

2. USB
For...

User Manual BDL5571V
 16

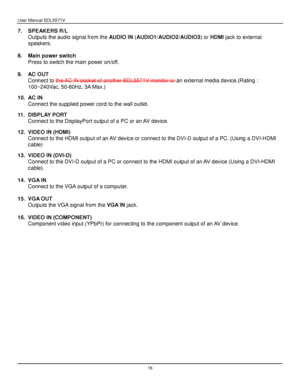

7. SPEAKERS R/L
Outputs the audio signal from the AUDIO IN (AUDIO1/AUDIO2/AUDIO3) or HDMI jack to external
speakers.

8. Main power switch
Press to switch the main power on/off.

9. AC OUT
Connect to the AC IN socket of another BDL5571V monitor or an external media device.(Rating :
100~240Vac, 50-60Hz, 3A Max.)
10. AC IN
Connect the supplied power cord to the wall outlet.
11. DISPLAY PORT
Connect to the DisplayPort output of a PC or an AV device.

12. VIDEO IN...

User Manual BDL5571V
 17

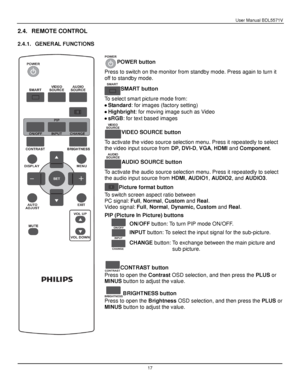

2.4. REMOTE CONTROL

2.4.1. GENERAL FUNCTIONS

POWER button
Press to switch on the monitor from standby mode. Press again to turn it
off to standby mode.
SMART button
To select smart picture mode from:
 Standard: for images (factory setting)
 Highbright: for moving image such as Video
 sRGB: for text based images
VIDEO SOURCE button
To activate the video source selection menu. Press it repeatedly to select
the video input source from DP, DVI-D, VGA, HDMI and...

User Manual BDL5571V
 18

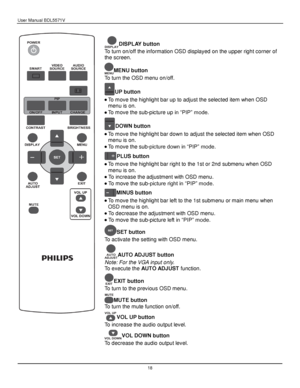

DISPLAY button
To turn on/off the information OSD displayed on the upper right corner of
the screen.
MENU button
To turn the OSD menu on/off.
UP button
 To move the highlight bar up to adjust the selected item when OSD
menu is on.
 To move the sub-picture up in “PIP” mode.
DOWN button
 To move the highlight bar down to adjust the selected item when OSD
menu is on.
 To move the sub-picture down in “PIP” mode.
PLUS button
 To move the highlight bar right to...

User Manual BDL5571V
 19

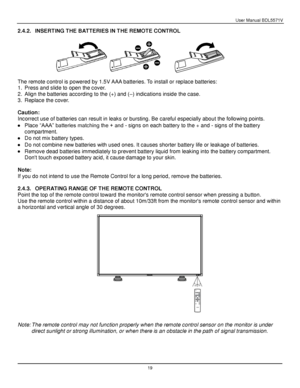

2.4.2. INSERTING THE BATTERIES IN THE REMOTE CONTROL



The remote control is powered by 1.5V AAA batteries. To install or replace batteries:
1. Press and slide to open the cover.
2. Align the batteries according to the (+) and (–) indications inside the case.
3. Replace the cover.

Caution:
Incorrect use of batteries can result in leaks or bursting. Be careful especially about the following points.
 Place “AAA” batteries matching the + and - signs on each battery...
