REVERSING AUTOMATIC DOCUMENT FEEDER (SF-A58)
The reversing automatic document feeder (RADF) will handle A5 to
A3 (5-1/2 x 8-1/2 to 11 x 17) originals. Two-sided originals can be
copied automatically without having to manually turn them over.

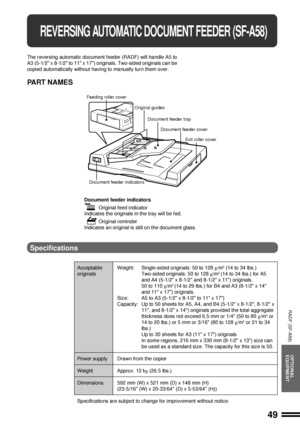

PART NAMES
RADF (SF-A58)
Document feeder indicators
Original feed indicator
Indicates the originals in the tray will be fed.
Original reminder
Indicates an original is still on the document glass.
Feeding roller cover
Original guides
Document...

50
OPTIONAL
EQUIPMENT
RADF (SF-A58)

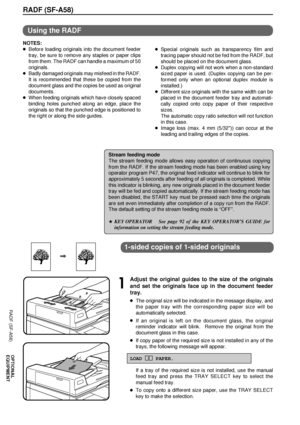

NOTES:
lBefore loading originals into the document feeder
tray, be sure to remove any staples or paper clips
from them. The RADF can handle a maximum of 50
originals.
lBadly damaged originals may misfeed in the RADF.
It is recommended that these be copied from the
document glass and the copies be used as original
documents.
lWhen feeding originals which have closely spaced
binding holes punched along an edge, place the
originals so that the punched edge is positioned...

51
OPTIONAL
EQUIPMENT
RADF (SF-A58)

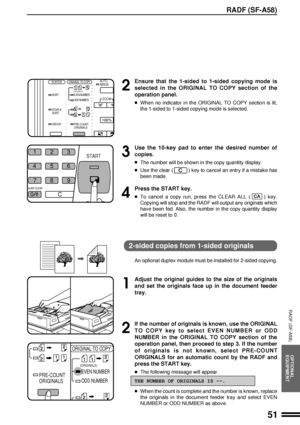

2
Ensure that the 1-sided to 1-sided copying mode is
selected in the ORIGINAL TO COPY section of the
operation panel.
lWhen no indicator in the ORIGINAL TO COPY section is lit,
the 1-sided to 1-sided copying mode is selected.
3
Use the 10-key pad to enter the desired number of
copies.
lThe number will be shown in the copy quantity display.
lUse the clear () key to cancel an entry if a mistake has
been made.
4
Press the START key.
lTo cancel a copy run, press the CLEAR...

52
OPTIONAL
EQUIPMENT
RADF (SF-A58)

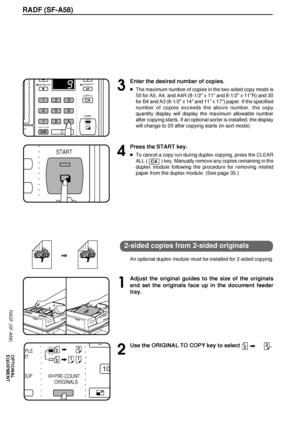

RADF (SF-A58)
9
START
10
APLE
RT
OUP
PRE-COUNT
ORIGINALS
3
Enter the desired number of copies.
lThe maximum number of copies in the two-sided copy mode is
50 for A5, A4, and A4R (8-1/2 x 11 and 8-1/2 x 11R) and 30
for B4 and A3 (8-1/2 x 14 and 11 x 17) paper. If the specified
number of copies exceeds the above number, the copy
quantity display will display the maximum allowable number
after copying starts. If an optional sorter is installed, the display
will change to...

53
OPTIONAL
EQUIPMENT
RADF (SF-A58)

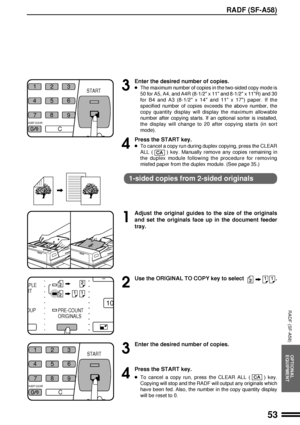

3
Enter the desired number of copies.
lThe maximum number of copies in the two-sided copy mode is
50 for A5, A4, and A4R (8-1/2 x 11 and 8-1/2 x 11R) and 30
for B4 and A3 (8-1/2 x 14 and 11 x 17) paper. If the
specified number of copies exceeds the above number, the
copy quantity display will display the maximum allowable
number after copying starts. If an optional sorter is installed,
the display will change to 20 after copying starts (in sort
mode).
4
Press the START...

54
OPTIONAL
EQUIPMENT
RADF (SF-A58)

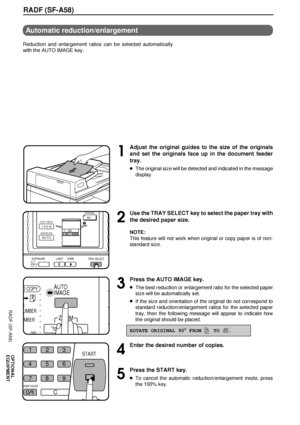

1
Adjust the original guides to the size of the originals
and set the originals face up in the document feeder
tray.
lThe original size will be detected and indicated in the message
display.
2
Use the TRAY SELECT key to select the paper tray with
the desired paper size.
NOTE:
This feature will not work when original or copy paper is of non-
standard size.
3
Press the AUTO IMAGE key.
lThe best reduction or enlargement ratio for the selected paper
size will be...

55
OPTIONAL
EQUIPMENT
RADF (SF-A58)
RADF (SF-A58)
 Covers

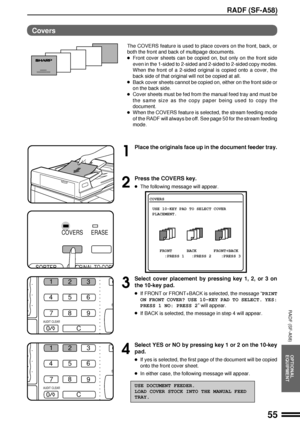

The COVERS feature is used to place covers on the front, back, or
both the front and back of multipage documents.
lFront cover sheets can be copied on, but only on the front side
even in the 1-sided to 2-sided and 2-sided to 2-sided copy modes.
When the front of a 2-sided original is copied onto a cover, the
back side of that original will not be copied at all.
lBack cover sheets cannot be copied on, either on the front side or
on the back side....

56
OPTIONAL
EQUIPMENT
RADF (SF-A58)

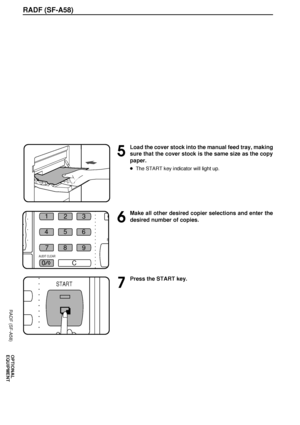

5
Load the cover stock into the manual feed tray, making
sure that the cover stock is the same size as the copy
paper.
lThe START key indicator will light up.
6
Make all other desired copier selections and enter the
desired number of copies.
7
Press the START key.
RADF (SF-A58)
1
23
456
7
0
C 8
9
S
AUDIT CLEAR
9
START
Downloaded From ManualsPrinter.com Manuals

57
OPTIONAL
EQUIPMENT
RADF (SF-A58)
RADF (SF-A58)
Location C Location BLocation A

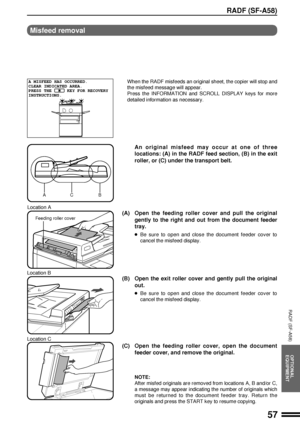

Misfeed removal
When the RADF misfeeds an original sheet, the copier will stop and
the misfeed message will appear.
Press the INFORMATION and SCROLL DISPLAY keys for more
detailed information as necessary.
An original misfeed may occur at one of three
locations: (A) in the RADF feed section, (B) in the exit
roller, or (C) under the transport belt.
(A) Open the feeding roller cover and pull the original
gently to the right...

58
OPTIONAL
EQUIPMENT

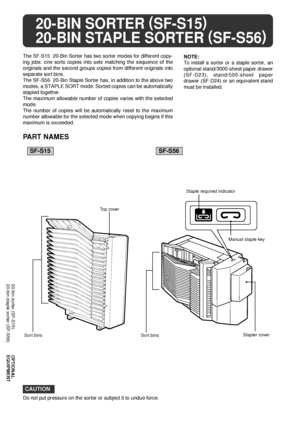

20-BIN SORTER (
