Sharp SF 2540 User Manual

59
OPTIONAL
EQUIPMENT
20-BIN SORTER (SF-S15)/20-BIN STAPLE SORTER (SF-S56)
20-bin sorter (SF-S15)
20-bin staple sorter (SF-S56)
NON-SORT

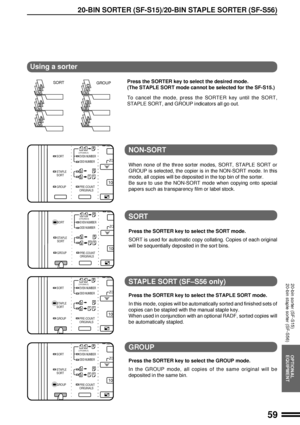

When none of the three sorter modes, SORT, STAPLE SORT or
GROUP is selected, the copier is in the NON-SORT mode. In this
mode, all copies will be deposited in the top bin of the sorter.
Be sure to use the NON-SORT mode when copying onto special
papers such as transparency film or label stock.
SORT
Press the SORTER key to select the SORT mode.
SORT is used for automatic...

60
OPTIONAL
EQUIPMENT

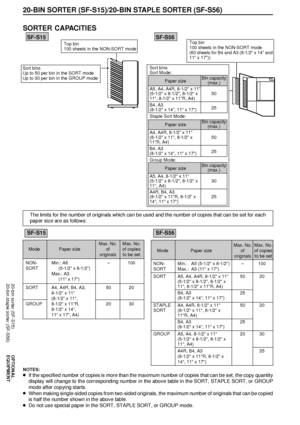

Max. No. Max. No.
Mode Paper size of of copies
originals to be set
NON- Min.: A5 (5-1/2 x 8-1/2) Ð 100
SORT Max.: A3 (11 x 17)
SORT A5, A4, A4R, 8-1/2 x 11 50 20
(5-1/2 x 8-1/2, 8-1/2 x
11, 8-1/2 x 11R, A4)
B4, A3 25
(8-1/2 x 14, 11 x 17)
STAPLE A4, A4R, 8-1/2 x 11 50 20
SORT (8-1/2 x 11, 8-1/2 x
11R, A4)
B4, A3 25
(8-1/2 x 14, 11 x 17)
GROUP A5, A4, 8-1/2 x 11 20 30
(5-1/2 x 8-1/2, 8-1/2 x
11, A4)
A4R, B4, A3 25
(8-1/2 x 11R, 8-1/2 x
14, 11 x 17)
NOTES:
lIf the specified number of...

61
OPTIONAL
EQUIPMENT
20-BIN STAPLE SORTER (SF-S56)
20-bin staple sorter (SF-S56)
Staple sort (SF-S56 only)
The STAPLE SORT mode staples copies of A4, A4R, B4, A3, and
8-1/2 x 11 (8-1/2 x 11, 8-1/2 x 11R, 8-1/2 x 14, 11 x 17, and
A4) sizes. For other paper sizes, use the manual stapling mode. See
page 63.

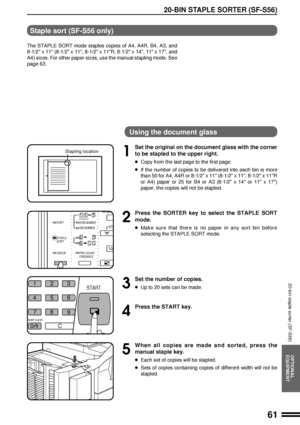

Using the document glass
1
Set the original on the document glass with the corner
to be stapled to the upper right.
lCopy from the last page to the first page.
lIf the number of copies to be delivered...

62
OPTIONAL
EQUIPMENT
20-BIN STAPLE SORTER (SF-S56)
20-bin staple sorter (SF-S56)

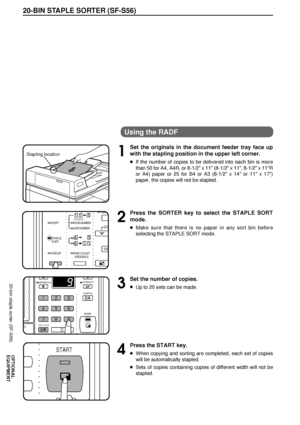

Using the RADF
1
Set the originals in the document feeder tray face up
with the stapling position in the upper left corner.
lIf the number of copies to be delivered into each bin is more
than 50 for A4, A4R, or 8-1/2 x 11 (8-1/2 x 11, 8-1/2 x 11R
or A4) paper or 25 for B4 or A3 (8-1/2 x 14 or 11 x 17)
paper, the copies will not be stapled.
2
Press the SORTER key to select the STAPLE SORT
mode.
lMake sure that there is no...

63
OPTIONAL
EQUIPMENT
20-BIN STAPLE SORTER (SF-S56)
20-bin staple sorter (SF-S56)

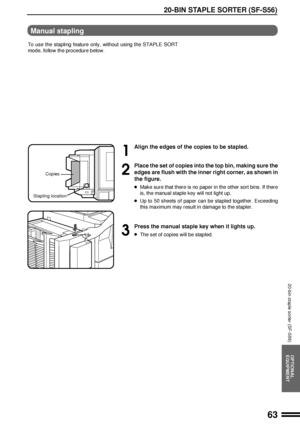

1
Align the edges of the copies to be stapled.
2
Place the set of copies into the top bin, making sure the
edges are flush with the inner right corner, as shown in
the figure.
lMake sure that there is no paper in the other sort bins. If there
is, the manual staple key will not light up.
lUp to 50 sheets of paper can be stapled together. Exceeding
this maximum may result in damage to the stapler.
3
Press the manual staple...

64
OPTIONAL
EQUIPMENT
20-BIN STAPLE SORTER (SF-S56)

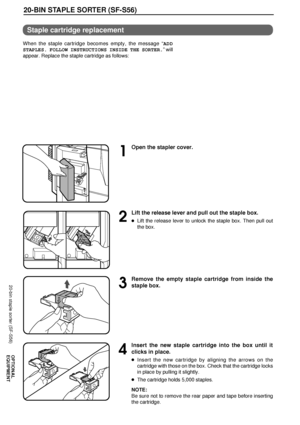

1
Open the stapler cover.
2
Lift the release lever and pull out the staple box.
lLift the release lever to unlock the staple box. Then pull out
the box.
3
Remove the empty staple cartridge from inside the
staple box.
4
Insert the new staple cartridge into the box until it
clicks in place.
lInsert the new cartridge by aligning the arrows on the
cartridge with those on the box. Check that the cartridge locks
in place by pulling it slightly.
lThe cartridge...

65
OPTIONAL
EQUIPMENT
20-BIN STAPLE SORTER (SF-S56)
20-bin staple sorter (SF-S56)

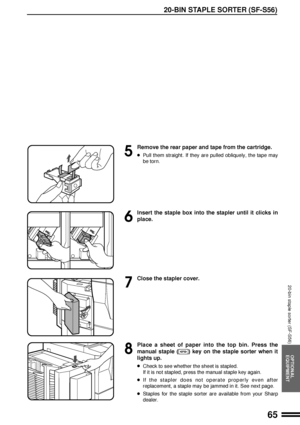

5
Remove the rear paper and tape from the cartridge.
lPull them straight. If they are pulled obliquely, the tape may
be torn.
6
Insert the staple box into the stapler until it clicks in
place.
7
Close the stapler cover.
8
Place a sheet of paper into the top bin. Press the
manual staple (
) key on the staple sorter when it
lights up.
lCheck to see whether the sheet is stapled.
If it is not stapled, press the manual staple...

66
OPTIONAL
EQUIPMENT

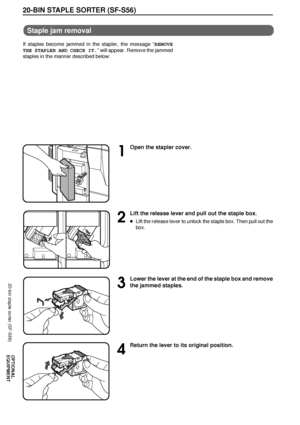

1
Open the stapler cover.
2
Lift the release lever and pull out the staple box.
lLift the release lever to unlock the staple box. Then pull out the
box.
3
Lower the lever at the end of the staple box and remove
the jammed staples.
4
Return the lever to its original position.
Staple jam removal
If staples become jammed in the stapler, the message ÒREMOVE
THE STAPLER AND CHECK IT.Ó will appear. Remove the jammed
staples in the manner described below:
20-BIN STAPLE SORTER (SF-S56)...

67
OPTIONAL
EQUIPMENT

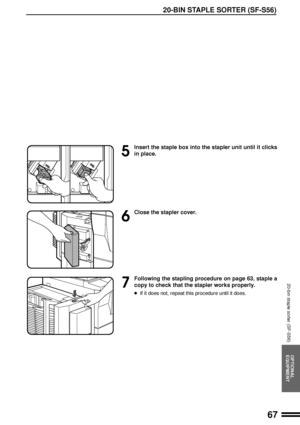

5
Insert the staple box into the stapler unit until it clicks
in place.
6
Close the stapler cover.
7
Following the stapling procedure on page 63, staple a
copy to check that the stapler works properly.
lIf it does not, repeat this procedure until it does.
20-BIN STAPLE SORTER (SF-S56)
20-bin staple sorter (SF-S56)
Downloaded From ManualsPrinter.com Manuals

68
OPTIONAL
EQUIPMENT

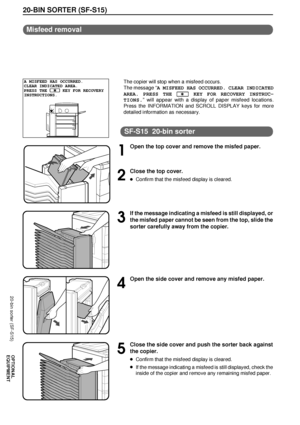

20-bin sorter (SF-S15)
