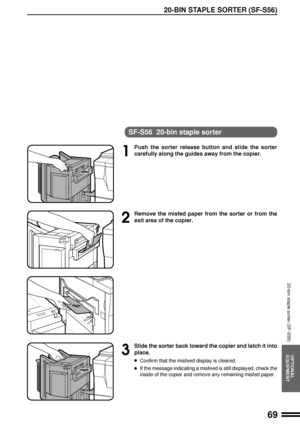

20-BIN STAPLE SORTER (SF-S56)
20-bin staple sorter (SF-S56)
SF-S56  20-bin staple sorter
1
Push the sorter release button and slide the sorter
carefully along the guides away from the copier.
2
Remove the misfed paper from the sorter or from the
exit area of the copier.
3
Slide the sorter back toward the copier and latch it into
place.
lConfirm that the misfeed display is cleared.
lIf the message indicating a misfeed is still displayed, check the
inside of the copier and remove any...

70
OPTIONAL
EQUIPMENT
20-BIN SORTER (SF-S15)/20-BIN STAPLE SORTER (SF-S56)
20-bin sorter (SF-S15)
20-bin staple sorter (SF-S56)

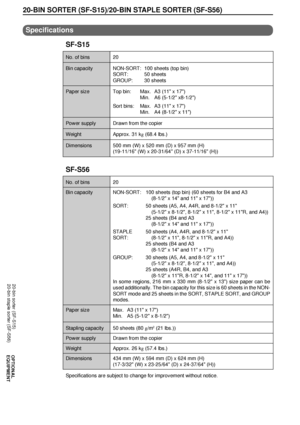

Specifications
SF-S15
No. of bins 20
Bin capacity NON-SORT: 100 sheets (top bin)
SORT: 50 sheets
GROUP: 30 sheets
Paper size Top bin: Max. A3 (11 x 17)
Min. A6 (5-1/2 x8-1/2)
Sort bins: Max. A3 (11 x 17)
Min. A4 (8-1/2 x 11)
Power supply Drawn from the copier
Weight Approx. 31 kg (68.4 lbs.)
Dimensions 500 mm (W) x 520 mm (D) x 957 mm (H)
(19-11/16 (W) x 20-31/64 (D) x 37-11/16...

71
OPTIONAL
EQUIPMENT
STAND/3000-SHEET PAPER DRAWER (
SF-D23)
STAND/500-SHEET PAPER DRAWER (
SF-D24)

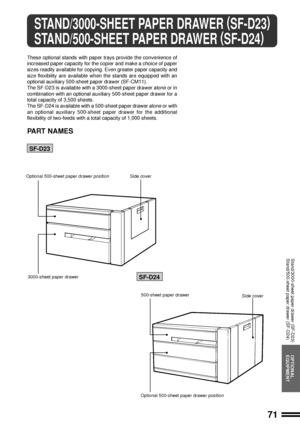

These optional stands with paper trays provide the convenience of
increased paper capacity for the copier and make a choice of paper
sizes readily available for copying. Even greater paper capacity and
size flexibility are available when the stands are equipped with an
optional auxiliary 500-sheet paper drawer (SF-CM11).
The SF-D23 is available with a 3000-sheet paper drawer alone or in
combination with...

72
OPTIONAL
EQUIPMENT
STAND/3000-SHEET PAPER DRAWER (SF-D23)/STAND/500-SHEET PAPER DRAWER (SF-D24)

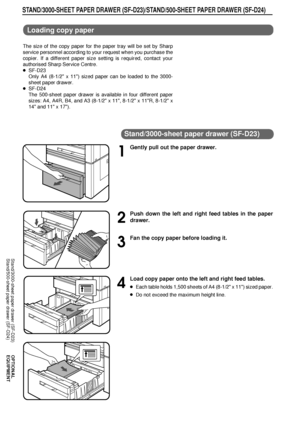

Loading copy paper
The size of the copy paper for the paper tray will be set by Sharp
service personnel according to your request when you purchase the
copier. If a different paper size setting is required, contact your
authorised Sharp Service Centre.
lSF-D23
Only A4 (8-1/2 x 11) sized paper can be loaded to the 3000-
sheet paper drawer.
lSF-D24
The 500-sheet paper drawer is available in four different...

73
OPTIONAL
EQUIPMENT
STAND/3000-SHEET PAPER DRAWER (SF-D23)/STAND/500-SHEET PAPER DRAWER (SF-D24)
Stand/3000-sheet paper drawer (SF-D23)
Stand/500-sheet paper drawer (SF-D24)

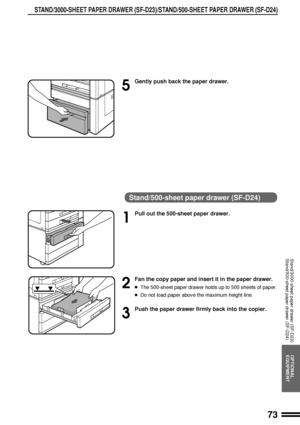

5
Gently push back the paper drawer.
Stand/500-sheet paper drawer (SF-D24)
1
Pull out the 500-sheet paper drawer.
2
Fan the copy paper and insert it in the paper drawer.
lThe 500-sheet paper drawer holds up to 500 sheets of paper.
lDo not load paper above the maximum height line.
3
Push the paper drawer firmly back into the...

74
OPTIONAL
EQUIPMENT

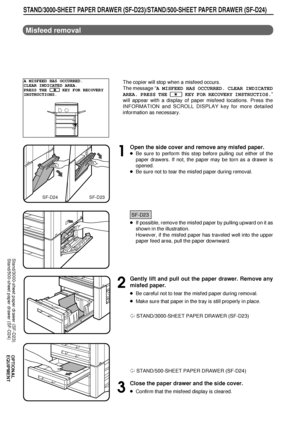

Misfeed removal
The copier will stop when a misfeed occurs.
The message ÒA MISFEED HAS OCCURRED. CLEAR INDICATED
AREA. PRESS THE
 KEY FOR RECOVERY INSTRUCTIOS.Ó
will appear with a display of paper misfeed locations. Press the
INFORMATION and SCROLL DISPLAY key for more detailed
information as necessary.
STAND/3000-SHEET PAPER DRAWER (SF-D23)/STAND/500-SHEET PAPER DRAWER (SF-D24)
Stand/3000-sheet paper drawer (SF-D23)
Stand/500-sheet paper drawer (SF-D24)
1
Open the side cover and...

75
OPTIONAL
EQUIPMENT
STAND/3000-SHEET PAPER DRAWER (SF-D23)/STAND/500-SHEET PAPER DRAWER (SF-D24)
Stand/3000-sheet paper drawer (SF-D23)
Stand/500-sheet paper drawer (SF-D24)

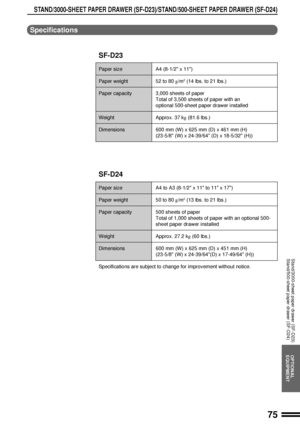

Specifications
SF-D23
Paper size A4 (8-1/2 x 11)
Paper weight 52 to 80 g/m2 (14 lbs. to 21 lbs.)
Paper capacity 3,000 sheets of paper
Total of 3,500 sheets of paper with an
optional 500-sheet paper drawer installed
Weight Approx. 37 kg (81.6 lbs.)
Dimensions 600 mm (W) x 625 mm (D) x 461 mm (H)
(23-5/8 (W) x 24-39/64 (D) x 18-5/32...

76
OPTIONAL
EQUIPMENT
MEMO
Downloaded From ManualsPrinter.com Manuals

77

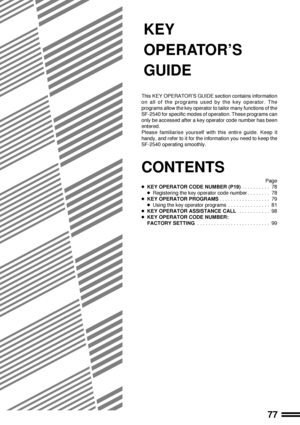

KEY OPERATOR PROGRAMS
Key operator programs
This KEY OPERATORÕS GUIDE section contains information
on all of the programs used by the key operator. The
programs allow the key operator to tailor many functions of the
SF-2540 for specific modes of operation. These programs can
only be accessed after a key operator code number has been
entered.
Please familiarise yourself with this entire guide. Keep it
handy, and refer to it for the information you need to keep the
SF-2540 operating smoothly.
CONTENTS...

78
KEY OPERATOR PROGRAMS
Key operator programs
1
2
3
4
5
6
/ // /
/
INTERRUPT
0
C
AUDIT CLEAR
ISPLAY
MATION
1
23
456
7
0
C 8
9
S
AUDIT CLEAR
9
START

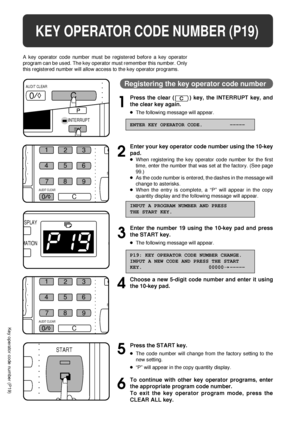

KEY OPERATOR CODE NUMBER (P19)
A key operator code number must be registered before a key operator
program can be used. The key operator must remember this number. Only
this registered number will allow access to the key operator programs.
Registering the key operator code number
Press the clear () key, the INTERRUPT key, and
the clear key again.
lThe...
