Sony Projector VPL-HW55ES User Manual

Others

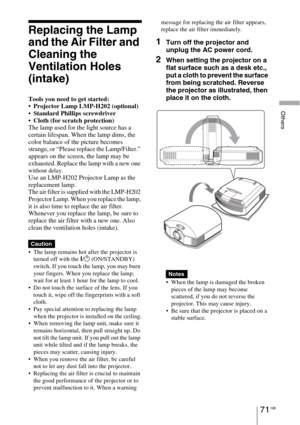

71 GB
Replacing the Lamp
and the Air Filter and
Cleaning the
Ventilation Holes
(intake)
Tools you need to get started:
 Projector Lamp LMP-H202 (optional)
Standard Phillips screwdriver
Cloth (for scratch protection)
The lamp used for the light source has a
certain lifespan. When the lamp dims, the
color balance of the picture becomes
strange, or “Please replace the Lamp/Filter.”
appears on the screen, the lamp may be
exhausted. Replace the lamp with a new one
without delay.
Use an...

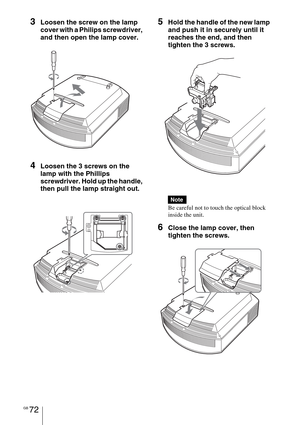

GB 72
3Loosen the screw on the lamp
cover with a Philips screwdriver,
and then open the lamp cover.
4Loosen the 3 screws on the
lamp with the Phillips
screwdriver. Hold up the handle,
then pull the lamp straight out.
5Hold the handle of the new lamp
and push it in securely until it
reaches the end, and then
tighten the 3 screws.
Be careful not to touch the optical block
inside the unit.
6Close the lamp cover, then
tighten the screws.
Note

Others

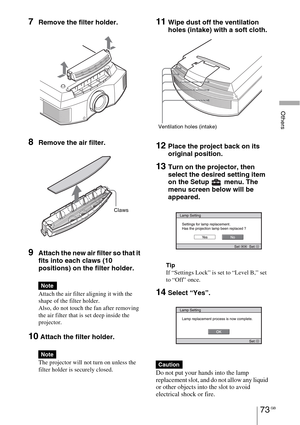

73 GB
7Remove the filter holder.
8Remove the air filter.
9Attach the new air filter so that it
fits into each claws (10
positions) on the filter holder.
Attach the air filter aligning it with the
shape of the filter holder.
Also, do not touch the fan after removing
the air filter that is set deep inside the
projector.
10 Attach the filter holder.
The projector will not turn on unless the
filter holder is securely closed.
11Wipe dust off the ventilation
holes (intake) with a soft cloth....

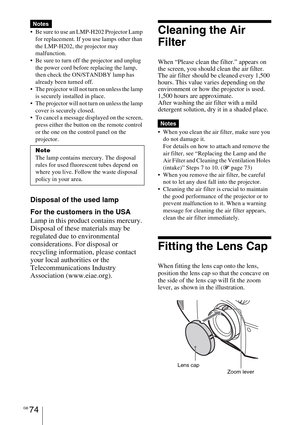

GB 74
 Be sure to use an LMP-H202 Projector Lamp
for replacement. If you use lamps other than
the LMP-H202, the projector may
malfunction.
 Be sure to turn off the projector and unplug
the power cord before replacing the lamp,
then check the ON/STANDBY lamp has
already been turned off.
 The projector will not turn on unless the lamp
is securely installed in place.
 The projector will not turn on unless the lamp
cover is securely closed.
 To cancel a message displayed on the screen,
press either...

Others

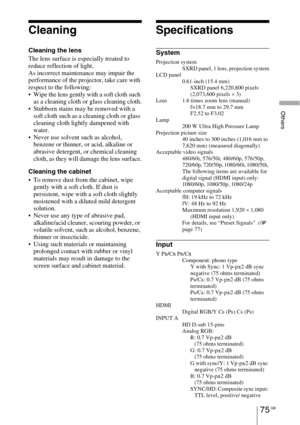

75 GB
Cleaning
Cleaning the lens
The lens surface is especially treated to
reduce reflection of light.
As incorrect maintenance may impair the
performance of the projector, take care with
respect to the following:
 Wipe the lens gently with a soft cloth such
as a cleaning cloth or glass cleaning cloth.
 Stubborn stains may be removed with a
soft cloth such as a cleaning cloth or glass
cleaning cloth lightly dampened with
water.
 Never use solvent such as alcohol,
benzene or thinner, or...

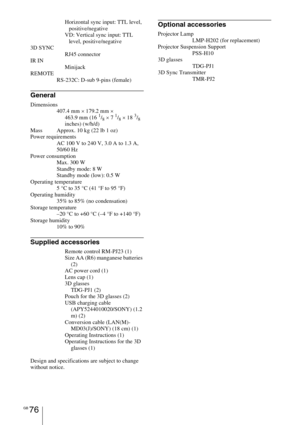

GB 76
Horizontal sync input: TTL level,
positive/negative
VD: Vertical sync input: TTL
level, positive/negative
3D SYNC
RJ45 connector
IR IN
Minijack
REMOTE
RS-232C: D-sub 9-pins (female)
General
Dimensions
407.4 mm × 179.2 mm ×
463.9 mm (16
1/8 × 71/8 × 183/8
inches) (w/h/d)
Mass Approx. 10 kg (22 lb 1 oz)
Power requirements
AC 100 V to 240 V, 3.0 A to 1.3 A,
50/60 Hz
Power consumption
Max. 300 W
Standby mode: 8 W
Standby mode (low): 0.5 W
Operating temperature
5 °C to 35 °C (41 °F to 95 °F)...

Others

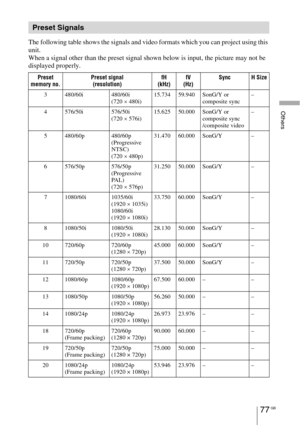

77 GB
The following table shows the signals and video formats which you can project using this
unit.
When a signal other than the preset signal shown below is input, the picture may not be
displayed properly.
Preset Signals
Preset
memory no.Preset signal
(resolution)fH
(kHz)fV
(Hz)Sync H Size
3 480/60i 480/60i
(720×480i)15.734 59.940 SonG/Y or
composite sync–
4 576/50i 576/50i
(720×576i)15.625 50.000 SonG/Y or
composite sync
/composite video–
5 480/60p 480/60p
(Progressive
NTSC)...

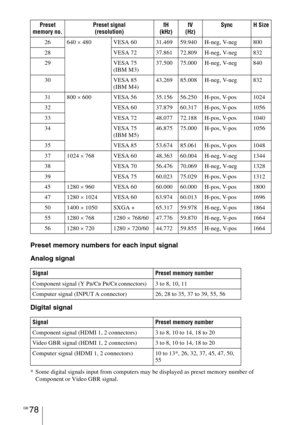

GB 78
Preset memory numbers for each input signal
Analog signal
Digital signal
* Some digital signals input from computers may be displayed as preset memory number of
Component or Video GBR signal. 26 640 × 480 VESA 60 31.469 59.940 H-neg, V-neg 800
28 VESA 72 37.861 72.809 H-neg, V-neg 832
29 VESA 75
(IBM M3)37.500 75.000 H-neg, V-neg 840
30 VESA 85
(IBM M4)43.269 85.008 H-neg, V-neg 832
31 800 × 600 VESA 56 35.156 56.250 H-pos, V-pos 1024
32 VESA 60 37.879 60.317 H-pos, V-pos 1056
33 VESA 72 48.077...

Others

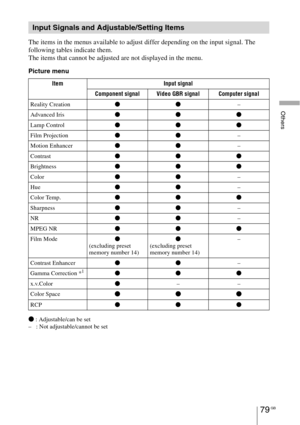

79 GB
The items in the menus available to adjust differ depending on the input signal. The
following tables indicate them.
The items that cannot be adjusted are not displayed in the menu.
Picture menu
z
 : Adjustable/can be set
–   : Not adjustable/cannot be set
Input Signals and Adjustable/Setting Items
Item Input signal
Component signal Video GBR signal Computer signal
Reality Creationzz–
Advanced Iriszzz
Lamp Controlzzz
Film Projectionzz–
Motion Enhancerzz–
Contrastzzz
Brightnesszzz
Colorzz–...

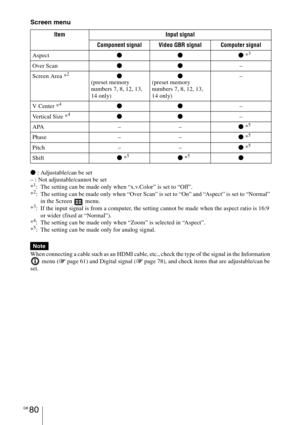

GB 80
Screen menu
z : Adjustable/can be set
– : Not adjustable/cannot be set
*
1: The setting can be made only when “x.v.Color” is set to “Off”.
*2: The setting can be made only when “Over Scan” is set to “On” and “Aspect” is set to “Normal”
in the Screen   menu.
*
3: If the input signal is from a computer, the setting cannot be made when the aspect ratio is 16:9
or wider (fixed at “Normal”).
*
4: The setting can be made only when “Zoom” is selected in “Aspect”.
*5: The setting can be made only for...
