Stiga TITAN TITAN 540 D TITAN 740 D Instructions Manual

81
ENGLISHEN
Original instructions for use
Check that the warning triangle is al-
ways taken when travelling.
3.3.3 Safety belt (1:G)
Aways use the safety belt when driving the ma-
chine.
3.3.4 Protective frame (1:N)
The machine is equipped with a protective frame. Always drive with th e protective frame
in upright position. Only fold the frame
when driving on a le vel surface and the
frame has to be folded for the machine
to be able to pass
3.4 CONTROLSThe descriptions of the controls are gathered...

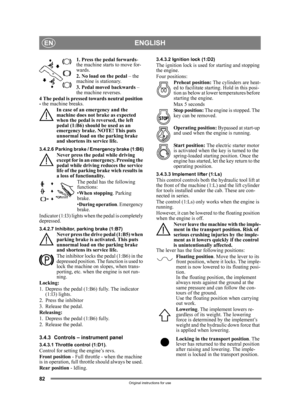

82
ENGLISHEN
Original instructions for use
1. Press the pedal forwards-
the machine starts to move for-
wards.
2. No load on the pedal  – the
machine is stationary.
3. Pedal moved backwards  –
the machine reverses.
4 The pedal is pressed towards neutral position
-  the machine breaks.
In case of an  emergency and the
machine does not brake as expected
when the pedal is reversed, the left
pedal (1:B6) should be used as an
emergency brake.  NOTE! This puts
unnormal load on the parking brake
and...

83
ENGLISHEN
Original instructions for use
Raising. Move the lever to the rear posi-
tion until the implement is in the highest
position (transport position). Then re-
lease the lever to lock in the transport po-
sition.
3.4.3.4 Hydraulic control (1:Aux1s)This control is used to c ontrol certain functions de-
pending on the attached implement.
The control only works when the engine is running
and the implement’s hydraulic hoses for the in-
tended function are connect ed to the hydraulic out-
put...

84
ENGLISHEN
Original instructions for use
Front cover (1:R)
Removing:
1. Remove the two front rubber straps.
2. Open the locking knobs (4:B).
3. Move the cover forward and upward.
Installing
:
1. Align the cover.
2. Insert the locking knob lugs in the holes on top  and close the locking knobs.
3. Hook on the two rubber straps.
3.4.4.5 Protective frame (1:N)
Always drive with th e protective frame
in upright position. Only fold the frame
when driving on a le vel surface and the
frame has to be folded...

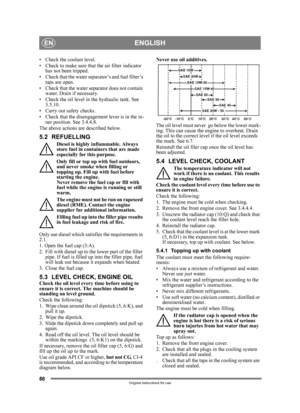

85
ENGLISHEN
Original instructions for use
• Set the throttle control to idle. Do not stop the
engine.
• Clean away any leaves , grass or any other ob-
jects from the outside of the oil cooler. See 5.12.
• Leave the engine idling until the temperature  has dropped, the indicator has gone out. The
machine can then be used as normal.
• If the temperature has not dropped within 5  minutes,  stop the engine and take the machine
to an authorised workshop for repair.
3.5.6 Engine temperature indicator...

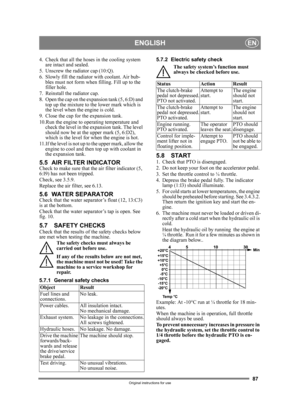

86
ENGLISHEN
Original instructions for use
• Check the coolant level.
• Check to make sure that the air filter indicator has not been tripped.
• Check that the water separator’s and fuel filter’s  taps are open.
• Check that the water separator does not contain  water. Drain  if necessary.
• Check the oil level in  the hydraulic tank. See
3.5.10.
• Carry out safety checks.
• Check that the disengagement lever is in the in- ner position. See 3.4.4.8.
The above actions are described below.
5.2 REFUELLING...

87
ENGLISHEN
Original instructions for use
4. Check that all the hoses in the cooling system are intact and sealed.
5. Unscrew the radiator cap (10:Q).
6. Slowly fill the radiator with coolant. Air bub- bles must not form when filling. Fill up to the
filler hole.
7. Reinstall the radiator cap.
8. Open the cap on the expansion tank (5, 6:D) and  top up the mixture to the lower mark which is
the level when the engine is cold.
9. Close the cap for the expansion tank.
10.Run the engine to operating...

88
ENGLISHEN
Original instructions for use
5.9 POWER ASSISTED STEERINGThe power steering transfers the force from the
machine’s hydraulic system to the steering wheel
when turned. This makes the machine very easy to
steer when the engine is running at full throttle.
Power steering forces reduce as the engine speed
reduces.
5.10 OPERATING TIPSAlways ensure that the correct amount of oil is in
the engine. Especially when driving on slopes.
See 5.3. Be careful when driving on slopes. No
sudden...

89
ENGLISHEN
Original instructions for use
stamped” service log is a valuable document that
improves the machine’s second-hand value.
The service points are given in the table below. De-
scriptions of how the proc edures are to be carried
out are given after the table.
6.2 SERVICE POINTS.
6.3 PREPARATIONAll service and all maintenance must be carried out
on a stationary machine with the engine switched
off.
Prevent the machine from rolling by
always applying  the parking brake.
Stop the engine....

90
ENGLISHEN
Original instructions for use
6.5.2 740
1. Stop the engine and allow it to cool.
2.  Close all the fuel taps.
3. Use an oil filter wrench to slacken off the filter (6:E) in the direction (15:Dis). Carefully re-
move the filter to prevent the spillage of fuel.
Wipe up any spilled fuel.
4. Clean around the mounting surface of the filter.
5. Apply a thin layer of fuel to the new filter gas- ket.
6. Install the new filter by rotating it in the direc- tion (6:Ass) until the gasket comes into...
