Christie Projector Roadie HD+35K User Manual

Section 3: Operation
Roadie HD+35K User Manual3-45020-100340-02 Rev. 1  (01-2010)
If you have a simple serial network with only one type of linking (RS-232 or RS-422) the type of network
routing does not matter.

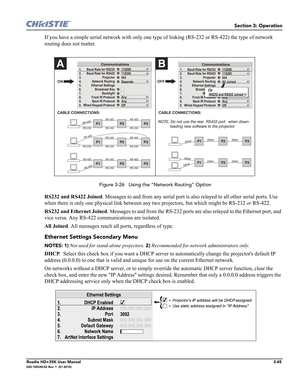

 Figure 3-26   Using the "Network Routing" Option
RS232 and RS422 Joined. Messages to and from any serial port is also relayed to all other serial ports. Use
when there is only one physical link between any two projectors, but which might be RS-232 or RS-422.
RS232 and Ethernet Joined....

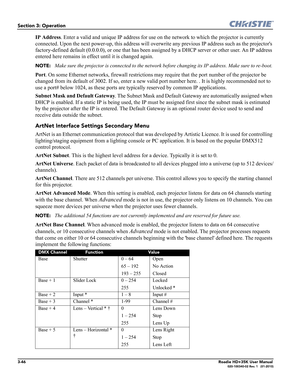

3-46Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
IP Address. Enter a valid and unique IP address for use on the network to which the projector is currently
connected. Upon the next power-up, this address will overwrite any previous IP address such as the projectors
factory-defined default (0.0.0.0), or one that has been assigned by a DHCP server or other user. An IP address
entered here remains in effect until it is changed again.
NOTE:  Make sure the projector is...

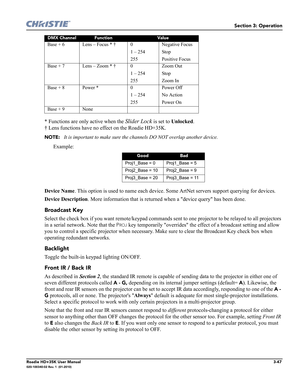

Section 3: Operation
Roadie HD+35K User Manual3-47020-100340-02 Rev. 1  (01-2010)
* Functions are only active when the Slider Lock is set to Unlocked.
† Lens functions have no effect on the Roadie HD+35K.
NOTE: It is important to make sure the channels DO NOT overlap another device.
Example:
Device Name. This option is used to name each device. Some ArtNet servers support querying for devices.
Device Description. More information that is returned when a device query has been done.
Broadcast Key
Select...

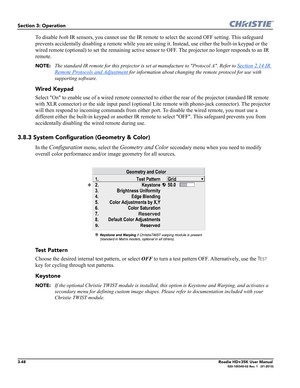

3-48Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
To disable both IR sensors, you cannot use the IR remote to select the second OFF setting. This safeguard
prevents accidentally disabling a remote while you are using it. Instead, use either the built-in keypad or the
wired remote (optional) to set the remaining active sensor to OFF. The projector no longer responds to an IR
remote.
NOTE: The standard IR remote for this projector is set at manufacture to Protocol A....

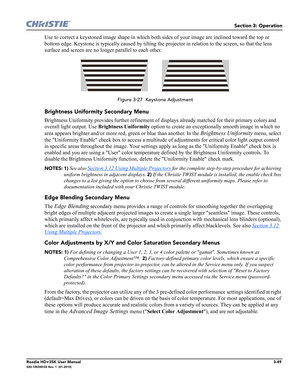

Section 3: Operation
Roadie HD+35K User Manual3-49020-100340-02 Rev. 1  (01-2010)
Use to correct a keystoned image shape in which both sides of your image are inclined toward the top or
bottom edge. Keystone is typically caused by tilting the projector in relation to the screen, so that the lens
surface and screen are no longer parallel to each other.
 Figure 3-27  Keystone Adjustment
Brightness Uniformity Secondary Menu
Brightness Uniformity provides further refinement of displays already matched for...

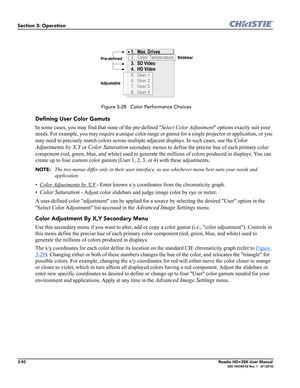

3-50Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
 Figure 3-28   Color Performance Choices
Defining User Color Gamuts
In some cases, you may find that none of the pre-defined Select Color Adjustment options exactly suit your
needs. For example, you may require a unique color range or gamut for a single projector or application, or you
may need to precisely match colors across multiple adjacent displays. In such cases, use the
Color
Adjustments by X,Y
 or Color...

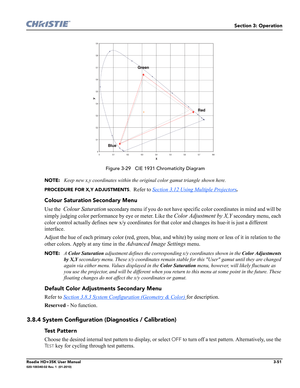

Section 3: Operation
Roadie HD+35K User Manual3-51020-100340-02 Rev. 1  (01-2010)
 Figure 3-29   CIE 1931 Chromaticity Diagram
NOTE:
Keep new x,y coordinates within the original color gamut triangle shown here.
PROCEDURE FOR X,Y ADJUSTMENTS.  Refer to Section 3.12 Using Multiple Projectors.
Colour Saturation Secondary Menu
Use the  Colour Saturation secondary menu if you do not have specific color coordinates in mind and will be
simply judging color performance by eye or meter. Like the
Color...

3-52Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
Test Pattern Grey Level
Set the desired level of gray for displaying in the full gray field test pattern.
 Figure 3-30  Diagnostics and Calibration
Freeze Image
Enter a check mark to freeze (stop) an image at a single frame. This diagnostic tool is useful if you need to
examine in detail a still version of an incoming image that cannot be frozen at the source. For example, in
moving images it is sometimes difficult to...

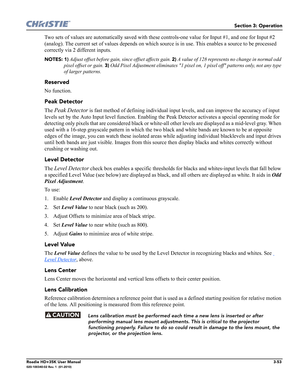

Section 3: Operation
Roadie HD+35K User Manual3-53020-100340-02 Rev. 1  (01-2010)
Two sets of values are automatically saved with these controls-one value for Input #1, and one for Input #2
(analog). The current set of values depends on which source is in use. This enables a source to be processed
correctly via 2 different inputs.
NOTES: 1) Adjust offset before gain, since offset affects gain. 2) A value of 128 represents no change in normal odd
pixel offset or gain.
3) Odd Pixel Adjustment...

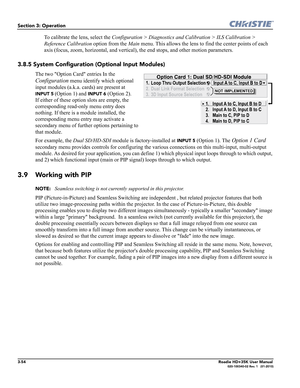

3-54Roadie HD+35K User Manual020-100340-02 Rev. 1   (01-2010)
Section 3: Operation
To calibrate the lens, select the Configuration > Diagnostics and Calibration > ILS Calibration >
Reference Calibration option from the Main menu. This allows the lens to find the center points of each
axis (focus, zoom, horizontal, and vertical), the end stops, and other motion parameters.
3.8.5 System Configuration (Optional Input Modules)
The two Option Card entries In the
Configuration menu identify which optional...
